Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3J-2200SWITCH PUSH SPST-NO 0.05A 24V |
301 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
SW-PB8-AA00B1GE-2SEALED SNAP-ACTING PUSHBUTTON SW |
187 |
|
Datasheet |
SW | Box | Active | - | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
800SP8B6M6RESWITCH PUSH SPDT 0.4VA 20V |
225 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
800CSP1B6M7QESWITCH PB SPDT 3A 120V |
810 |
|
Datasheet |
800C | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
ESANMD5GBXSWITCH PB SPST-NO 125MA 125V |
150 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
SW-PB8-AA22A1QE-3ALTERNATE ACTING PUSHBUTTON SWIT |
118 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
GPB502A05BRSWITCH PUSH SPST-NO 3A 125V |
278 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | - |
|
800SP8B6M7QESWITCH PUSHBUTTON SPDT 3A 120V |
263 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB8-AA00A2QE-3ALTERNATE ACTING PUSHBUTTON SWIT |
117 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
WBL2UEEGBQR05CLRSWITCH PUSH DPDT 300MA 30V |
722 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue/Green | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GB215AP-ASWITCH PUSH SPST-NO 0.4VA 28V |
1 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
GB215ABSWITCH PUSH SPST-NO 0.4VA 28V |
14 |
|
Datasheet |
GB2 | Box | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
465031712505SWITCH PUSHBUTTON SPDT 0.4VA 28V |
349 |
|
Datasheet |
WS-PB | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Gull Wing | - | - | - | -40°C ~ 85°C |
|

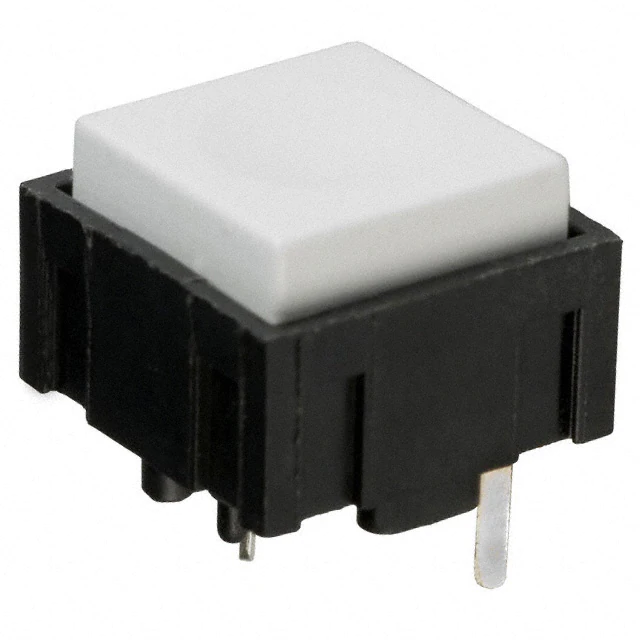

KS11R21CQESWITCH PUSH SPST-NO 0.025A 50V |
511 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | White | - | - | PC Pin | - | Voltage Reduction Lighting | - | -30°C ~ 65°C |
|
800AWSP8M6QESWITCH PUSHBUTTON SPDT 1A 120V |
331 |
|
Datasheet |
800A | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

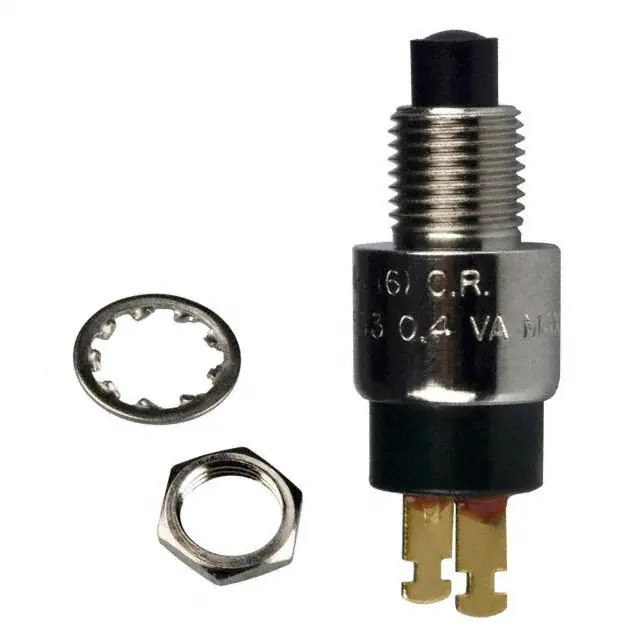

8532MZBE2SWITCH PUSH SPST-NO 0.4VA 20V |
397 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
|
RP8100B2M1CEBLKWHTNILSWITCH PB SPST-NO 0.125A 125V |
551 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
SW-PB8-BE221QE-1SNAP-ACTING PUSHBUTTON SWITCH, B |
282 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
AB11CVSWITCH PUSH SPST-NO 0.4VA 28V |
175 |
|
Datasheet |
AB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

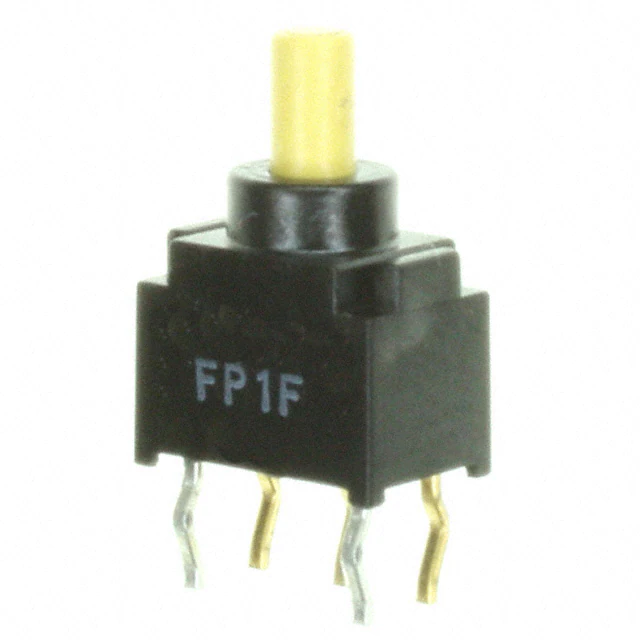

FP1F-2M-ZSWITCH PUSH SPDT 0.4VA 28V |
643 |
|
Datasheet |
FP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Yellow | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
