Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBH2UEESNPNAGXSWITCH PUSH DPDT 0.1A 30V |
6,414 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
MX1A-11NWSWITCH PUSH SPST-NO 0.01A 12V |
18,575 |
|
- |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
MX1A-E1NWSWITCH PUSH SPST-NO 0.01A 12V |
9,637 |
|
- |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | Audible Click | - | -10°C ~ 70°C |
|
ML1A-11JWSWITCH PUSH SPST-NO 0.01A 12V |
6,805 |
|
Datasheet |
ML | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP40 | - | - | -10°C ~ 70°C |
|
MX1A-11NNSWITCH PUSH SPST-NO 0.01A 12V |
4,305 |
|
- |
MX | Bulk | Active | Panel Mount, Front | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | Square - 14.00mm x 14.00mm | -10°C ~ 70°C |
|
D6C90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
48,560 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6R90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
13,713 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
|
D6R90 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
47,020 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
PS1024ABLKSWITCH PUSH SPST-NO 3A 125V |
823 |
|
Datasheet |
PS1024 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|
PBH2UOANAGXSWITCH PUSH DPDT 0.1A 30V |
5,400 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PN11SHNA03QESWITCH PUSH SPDT 0.2A 30V |
1,640 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
GPBS-800NSWITCH PUSHBUTTON DPDT 0.1A 30V |
14,982 |
|
Datasheet |
GPBS | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

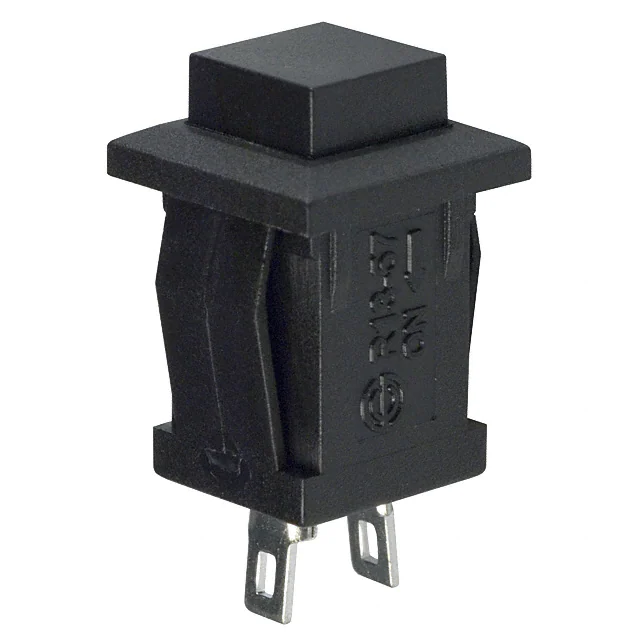

PS1057ABLKSWITCH PUSH SPST-NO 1A 125V |
420 |
|
Datasheet |
PS1057 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 12.60mm x 11.30mm | -20°C ~ 65°C |
|
PBH2UEENAGXSWITCH PUSH DPDT 0.1A 30V |
2,598 |
|
Datasheet |
PBH | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|

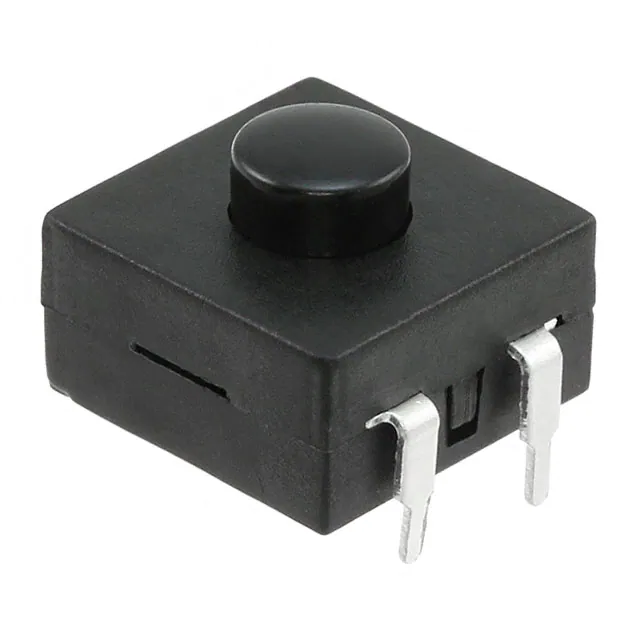

GPTS203211BSWITCH PUSHBUTTON SPST 1A 30V |
4,166 |
|
Datasheet |
GPTS | Bulk | Active | Through Hole | Standard | SPST | Off-On | 1A (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|

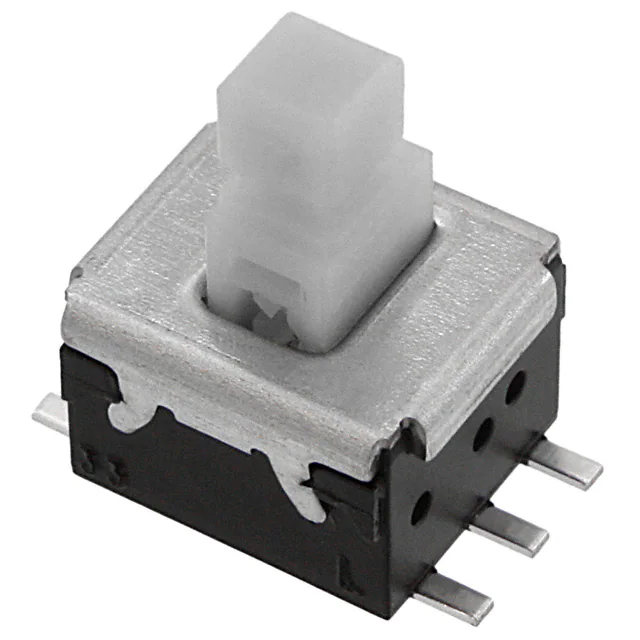

ESB-33535ASWITCH PUSH DPDT 0.2A 14V |
357 |
|
Datasheet |
ESB33 | Tape & Reel (TR) | Active | Surface Mount | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | Gull Wing | - | - | - | - |
|
40-4526-00SWITCH PUSHBUTTON SPST 5A 14V |
5,736 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 5A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
PS1023ABLKSWITCH PUSH SPST-NO 3A 125V |
3,142 |
|
Datasheet |
PS1023 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
40-4325-00SWITCH PUSHBUTTON SPST 10A 14V |
1,766 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 10A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|

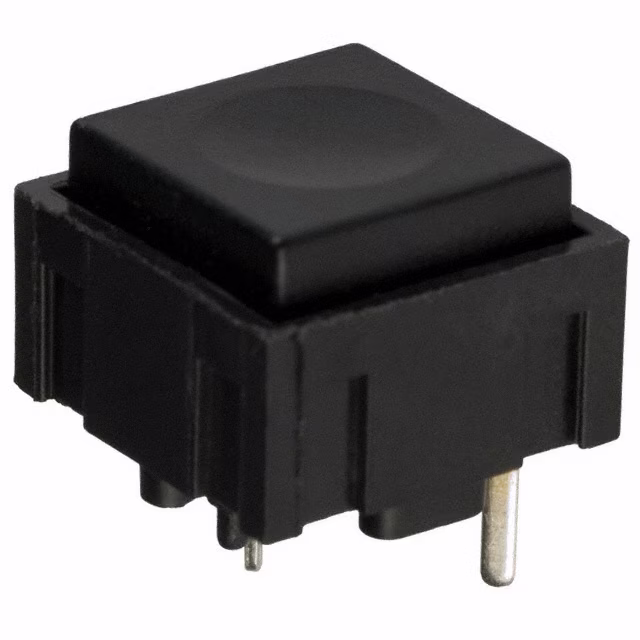

KS11R22CQDSWITCH PUSH SPST-NO 0.025A 50V |
33,521 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
