Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

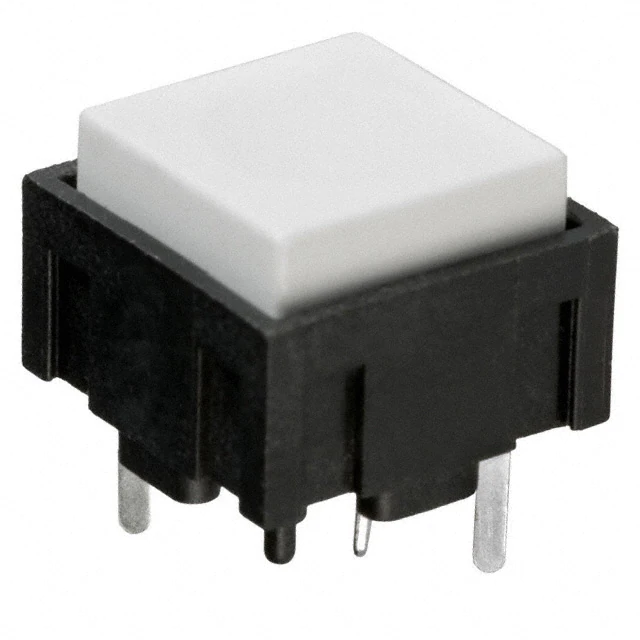

KS12R21CQDSWITCH PUSH SPDT 0.025A 50V |
373 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
800UDP8P1A1M6RESWITCH PUSH DPDT 0.4VA 20V |
520 |
|
Datasheet |
800U | Tube | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
C4V-821ASWITCH PUSHBUTTON DPST 8A 125V |
0 |
|
Datasheet |
C4V | Tray | Active | Panel Mount, Side | Standard | DPST | Off-On | 8A (AC) | 125 V | - | Square, Plunger | No Marking | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -10°C ~ 55°C |
|
LP4OA1RBATRSWITCH PUSHBUTTON DPDT 0.1A 30V |
831 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GPB040A05BBSWITCH PUSH SPST-NO 3A 125V |
758 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | - |
|
700ASP7B21M2QESWITCH PUSHBUTTON SPDT 3A 120V |
389 |
|
Datasheet |
700A | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
PMS9P1B10M2QESWITCH PUSH SPST-NO 3A 120V |
395 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
PMS8P1B05M2QESWITCH PUSHBUTTON SPDT 3A 120V |
270 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
MPB01-1C54-SB-CAP-R-DSPDT, THROUGH HOLE, 5.4 MM PUSH, |
142 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB01-1B54-SB-CAP-R-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
118 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
39-261 REDSWITCH PUSH SPDT 0.25A 115V |
4,718 |
|
Datasheet |
39 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 250mA (AC) | 115 V | - | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Flux Protection | - | -40°C ~ 125°C |
|
KM1101RR05BESWITCH PUSH SPST-NO 0.4VA 20V |
770 |
|
Datasheet |
KM | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
SW-PB8-AE222QE-1SNAP-ACTING PUSHBUTTON SWITCH, B |
214 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
SW-PB9-AAB00A1RE-6SEALED SUBMINIATIURE PUSHBUTTON |
419 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
SW-PB8-AB00B6QE-1SNAP-ACTING PUSHBUTTON SWITCH, R |
214 |
|
Datasheet |
SW | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB8-AB00A1QE-1SNAP-ACTING PUSHBUTTON SWITCH, S |
200 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|

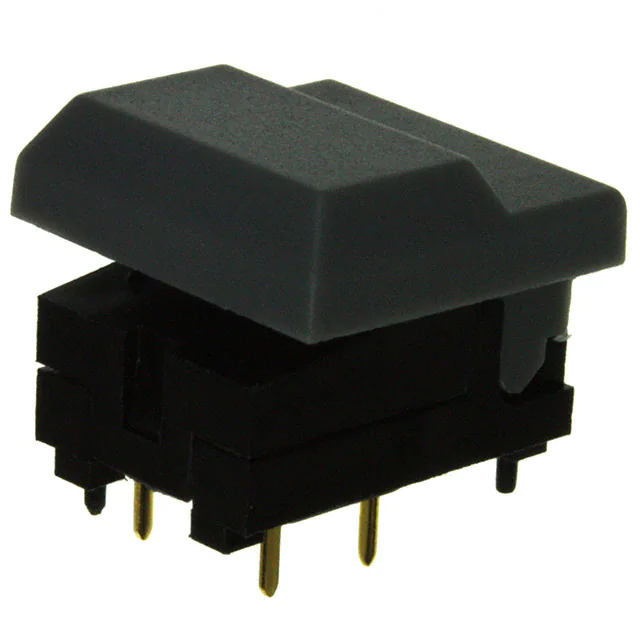

5511MGRYXSWITCH PUSH SPDT 0.03A 12V |
1,878 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

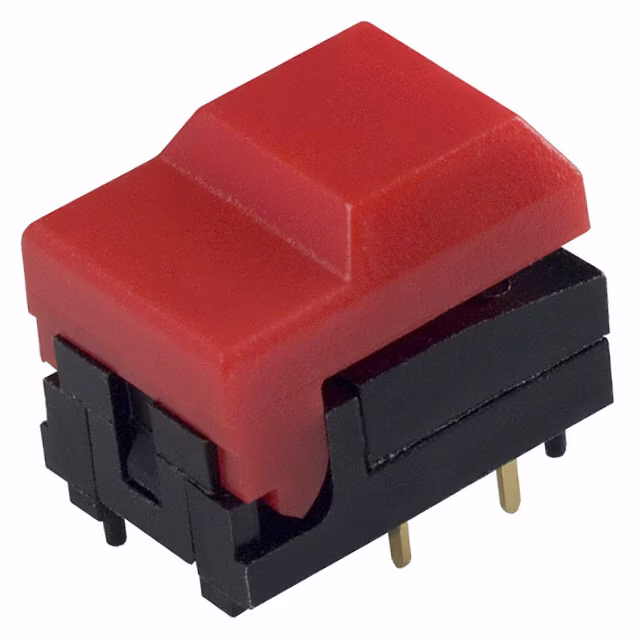

5501MREDXSWITCH PUSH SPDT 0.3A 12V |
878 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

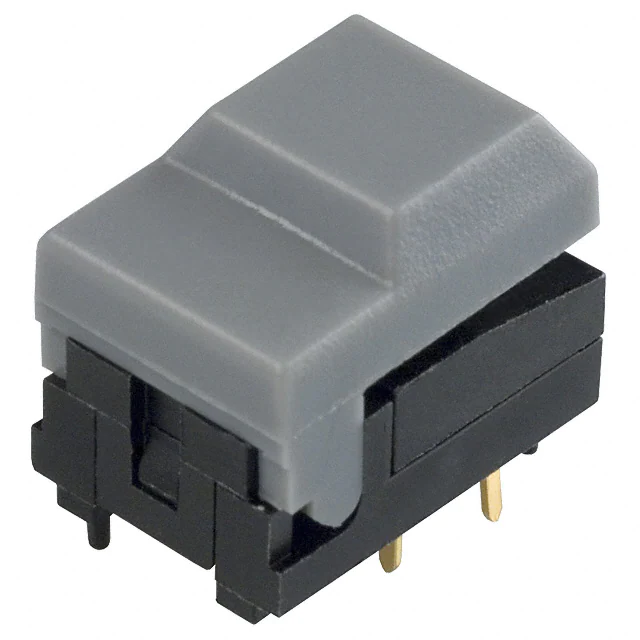

5501MGRYXSWITCH PUSH SPDT 0.3A 12V |
189 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
|
800SP9B5M6REHSWITCH PUSH SPST-NO 0.4VA 20V |
170 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
