Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

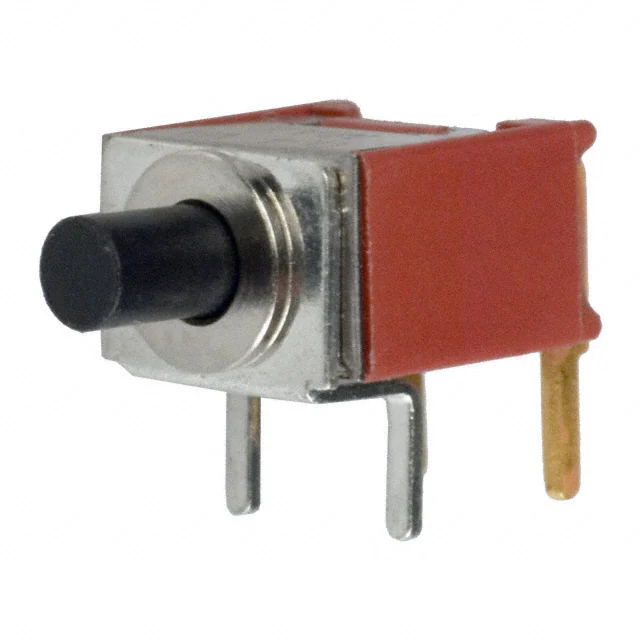

TP11MS9ABESWITCH PUSH SPST-NO 0.4VA 20V |
8,586 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

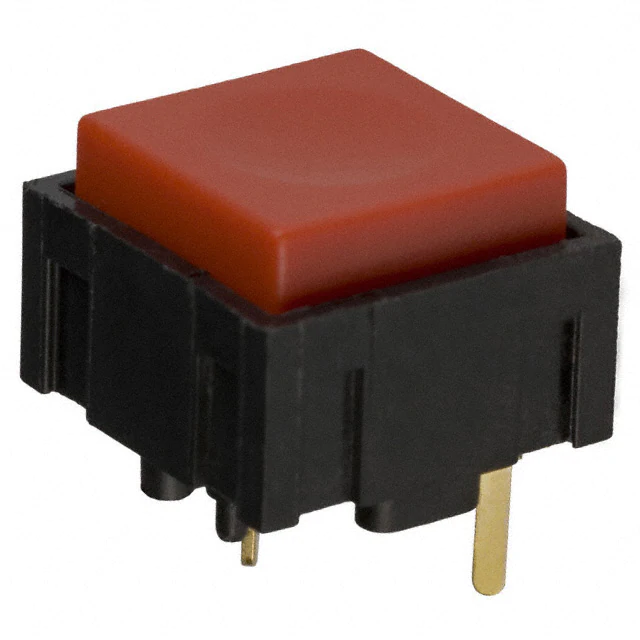

KS11R23CBDSWITCH PUSH SPST-NO 0.4VA 20V |
141 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
9532CDSWITCH PUSH SPST-NC 0.1A 30V |
800 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
AB11ABSWITCH PUSH SPST-NO 0.4VA 28V |
20 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

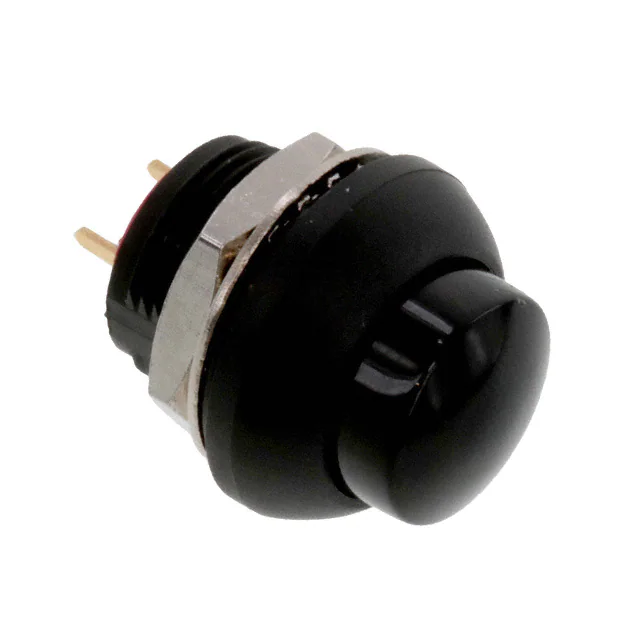

PB6B2HS2M4CAL00SWITCH PUSH SPST-NO 125MA 125V |
1,488 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
982A06RXSWITCH PUSH DPDT 0.25A 28V |
965 |
|
Datasheet |
98000R | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
BB16AHSWITCH PUSH SPDT 0.4VA 28V |
962 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
SW-PB8-BA00A1QE-3ALTERNATE ACTING PUSHBUTTON SWIT |
243 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
|
BB16AP-HASWITCH PUSH SPDT 0.4VA 28V |
0 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

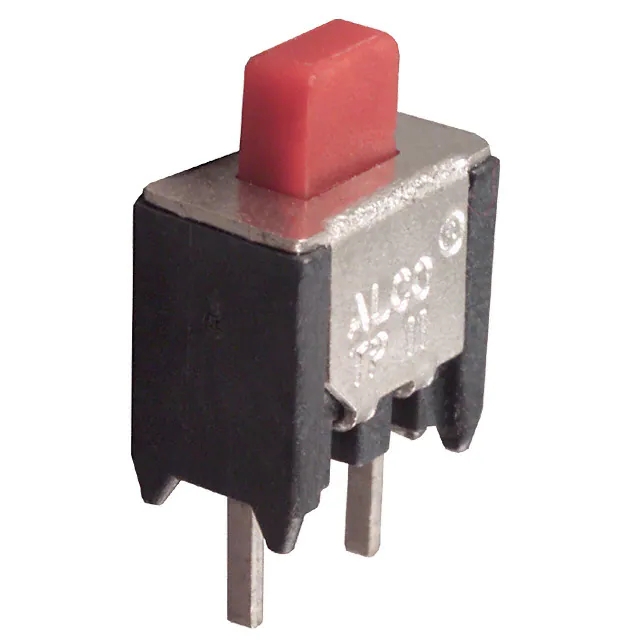

1825095-2SWITCH PUSH SPST-NO 0.4VA 20V |
1,092 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

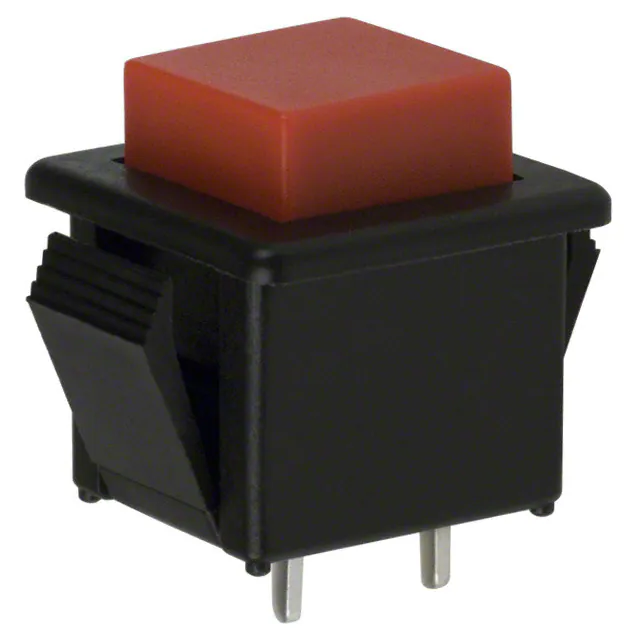

1443NC6SWITCH PUSH SPST-NO 3A 12V |
114 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
|
FB15ANEP2-HBSWITCH PUSH SPST-NO 0.5A 125V |
20 |
|
Datasheet |
FB | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
AB15AVSWITCH PUSH SPDT 0.4VA 28V |
1,319 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
ELUMOASAQ6C12SWITCH PUSH SPDT 0.25A 50V |
309 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
RP8301B2M1CEBLKREDNILSWITCH PB SPST-NO 200MA 250V |
123 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
BB15ABSWITCH PUSH SPDT 0.4VA 28V |
131 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
LP11EE1NCSYGSWITCH PB SPST 0.1A 12V |
303 |
|
Datasheet |
LP11 | Bulk | Active | Through Hole | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Green/Yellow | 2.2, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
WG48-1-RB-N-BK-FSWITCH PUSHBUTTON 1A 250V |
161 |
|
Datasheet |
WG48-RM | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO (DM) | Off-Mom | 1A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 15.30mm Dia | -40°C ~ 85°C |
|

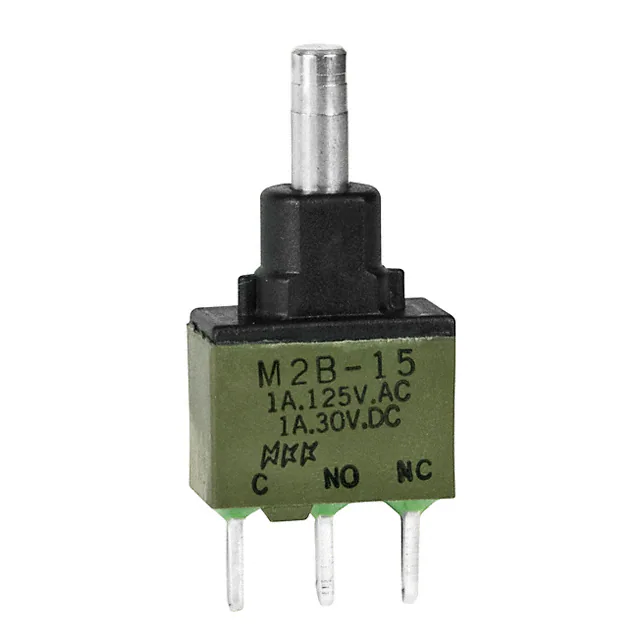

M2B15AA5W03SWITCH PUSHBUTTON SPDT 1A 125V |
2,558 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

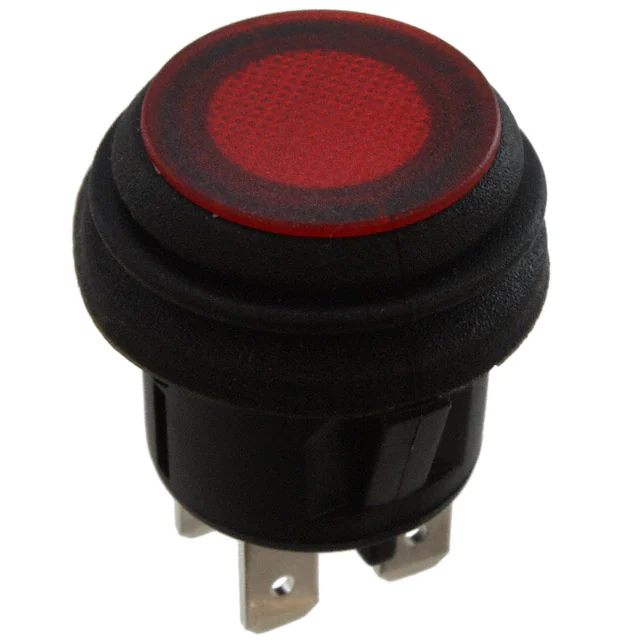

GPB527A202BRSWITCH PUSH DPST-NO 10A 125V |
168 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
