Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800AWSP9M61RESWITCH PUSH SPST-NO 0.4VA 20V |
269 |
|
Datasheet |
800A | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
KFB3ALA2RBBSWITCH PUSH DPST 10A 125V |
740 |
|
Datasheet |
KF | Box | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | On-Off | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
700SP7B10M2REHSWITCH PUSH SPDT 0.4VA 20V |
797 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
LP15R1WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
1,111 |
|
Datasheet |
LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GB215A2H-BBSWITCH PUSH 2XSPST-NO 0.4VA 28V |
132 |
|
Datasheet |
GB2 | Box | Active | Through Hole, Right Angle | Standard | SPST-NO x 2 | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
PMS9P1B09M2RESWITCH PUSH SPST-NO 0.4VA 20V |
453 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
PMS9P1B05M2RESWITCH PUSH SPST-NO 0.4VA 20V |
444 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
800SP9B9M6RESWITCH PUSH SPST-NO 0.4VA 20V |
156 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B7M6QESWITCH PUSH SPST-NO 3A 120V |
303 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
K12A BK 1 2.5NSWITCH PUSH SPST-NO 0.1A 30V |
4,454 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
MPB06-1C33-R-SMT-TRSPDT, SURFACE MOUNT, 3.3 MM PUSH |
388 |
|
Datasheet |
MPB06 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | - | - | -25°C ~ 80°C |
|
PMS9P1B05M2QESWITCH PUSH SPST-NO 3A 120V |
101 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
CFPB-1CC-4W6SWITCH PUSH SPST-NO 1MA 20V |
289 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5G6SWITCH PUSH SPST-NO 1MA 20V |
150 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
CFPB-1CC-5G9SWITCH PUSH SPST-NO 1MA 20V |
101 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|

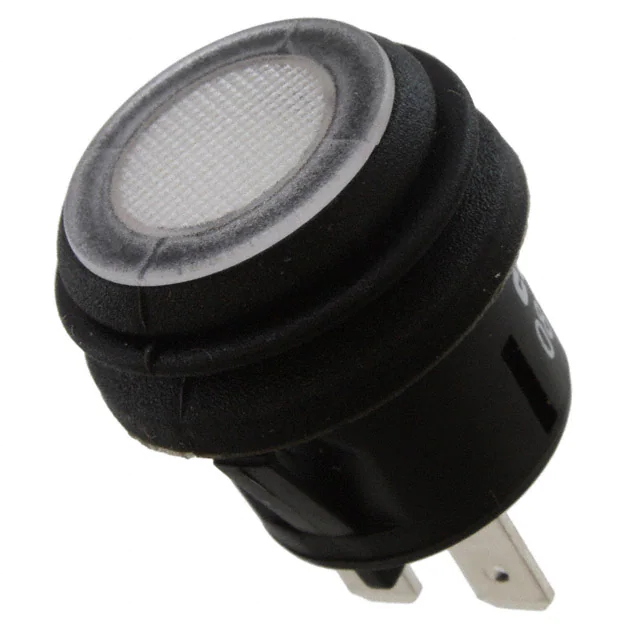

GPB527C202BWSWITCH PUSH SPST-NO 10A 125V |
1,728 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | White | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
800SP9B7M7QESWITCH PUSH SPST-NO 3A 120V |
566 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700SP7B11M51QEHSWITCH PUSHBUTTON SPDT 3A 120V |
168 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
SW-PB8-AA00A1QE-3ALTERNATE ACTING PUSHBUTTON SWIT |
157 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
B3J-4000SWITCH PUSH SPST-NO 0.05A 24V |
147 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
