Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB6B2HS2M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
804 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
GPB510A05BBSWITCH PUSH SPST-NO 3A 125V |
693 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | - |
|
RP8100B1M1CEBLKORGNILSWITCH PB SPST-NO 125MA 125V |
186 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Orange | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

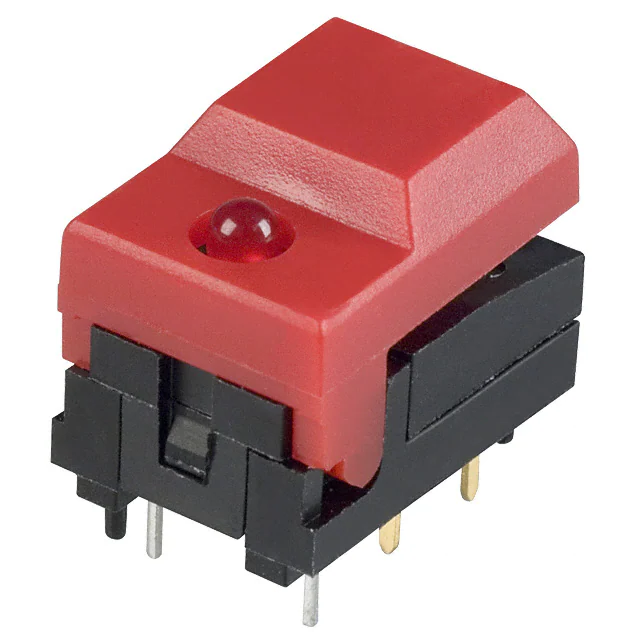

5501MREDREDSWITCH PB SPDT 0.3A 12V |
1,319 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5511MWHTREDSWITCH PUSH SPDT 0.03A 12V |
649 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

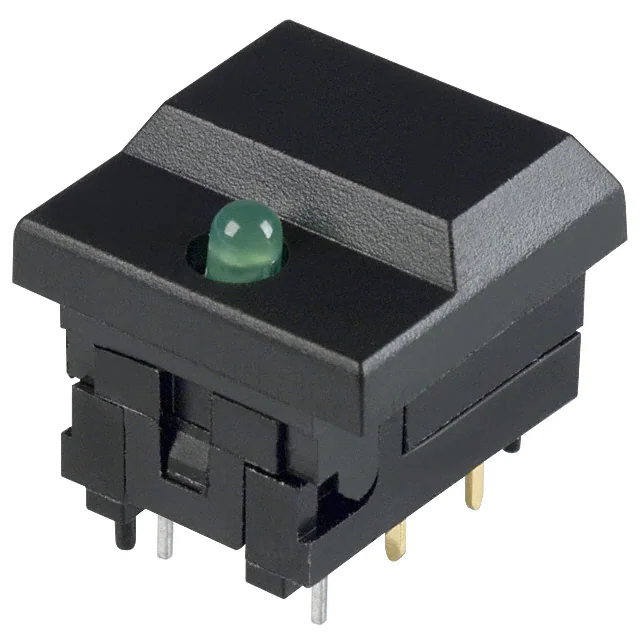

5511MBLKGRNSWITCH PUSH SPDT 0.03A 12V |
413 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

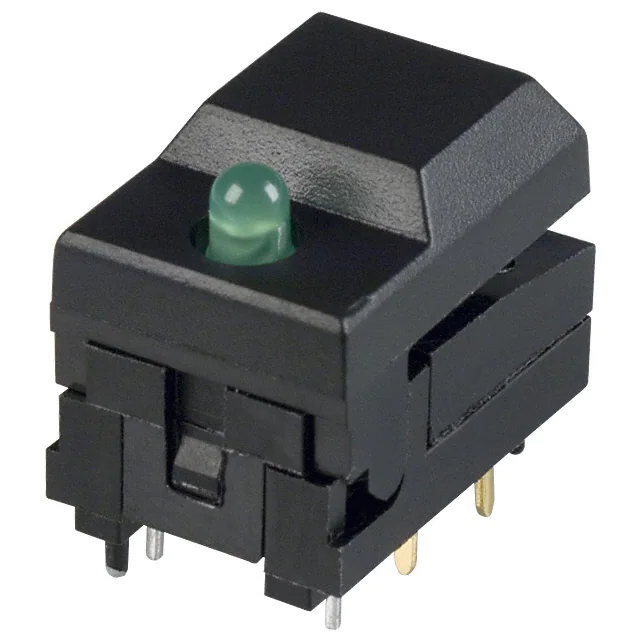

5501MBLKGRNSWITCH PUSH SPDT 0.3A 12V |
319 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
RP8100B1M1CEBLKBLKGRNSWITCH PB SPST-NO 0.125A 125V |
122 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B1M1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
101 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
LP2S2WHTWHT-NSWITCH PB SPST-NO 1MA 20V |
346 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | - | White | LED, White | 2.8 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|

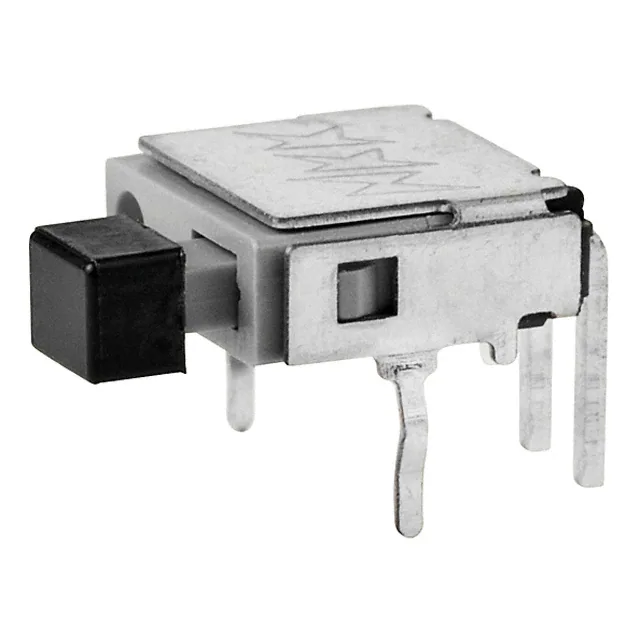

GB215AH-ASWITCH PUSH SPST-NO 0.4VA 28V |
385 |
|
Datasheet |
GB2 | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
HY37-6E6-011-0211SWITCH PUSH DPST-NO 17A 125V |
143 |
|
Datasheet |
- | Bulk | Active | Surface Mount | Standard | DPST-NO | Off-Mom | 17A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | SMD (SMT) Tab | - | Lockable | - | 0°C ~ 65°C |
|
|
FB15ANEP2/USWITCH PUSH SPST-NO 0.5A 125V |
6 |
|
Datasheet |
FB | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
LP4EE1PBCTWSWITCH PB DPDT 0.1A 30V |
484 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | - | Clear | LED, White | 3.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GPB527C2B02BG1SWITCH PUSH SPST-NO 10A 125V |
456 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Green | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
GP0115AAG30SWITCH PUSH SPST-NO 0.4VA 28V |
5 |
|
Datasheet |
GP01 | Tray | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|

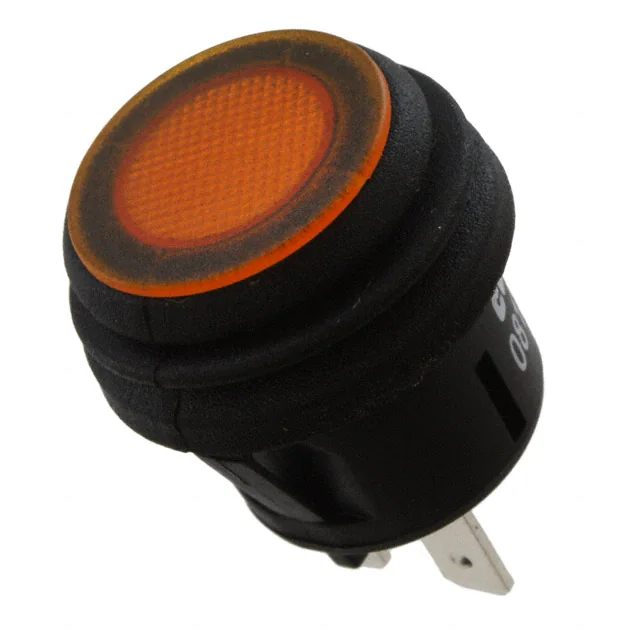

GPB527C202BASWITCH PUSH SPST-NO 10A 125V |
329 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Amber | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
|
RP8100B2M1CEBLKGRNYELSWITCH PB SPST-NO 0.125A 125V |
109 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | LED, Yellow | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
K12P BK 2 5NSWITCH PUSH SPST-NO 0.1A 30V |
13,546 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
W59-900069SWITCH PB SPST-NO 125MA 125V |
773 |
|
Datasheet |
W59 | Tube | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 125mA (AC), 400mA (DC) | 125 V | 32 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP67 - Dust Tight, Waterproof | - | Circular - 15.20mm Dia | -40°C ~ 105°C |
