Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

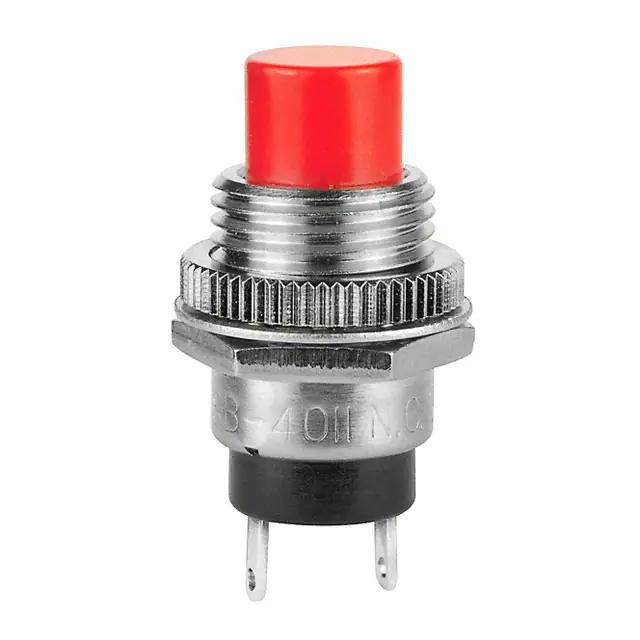

SB4011NCMCSWITCH PUSH SPST-NC 3A 125V |
339 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|

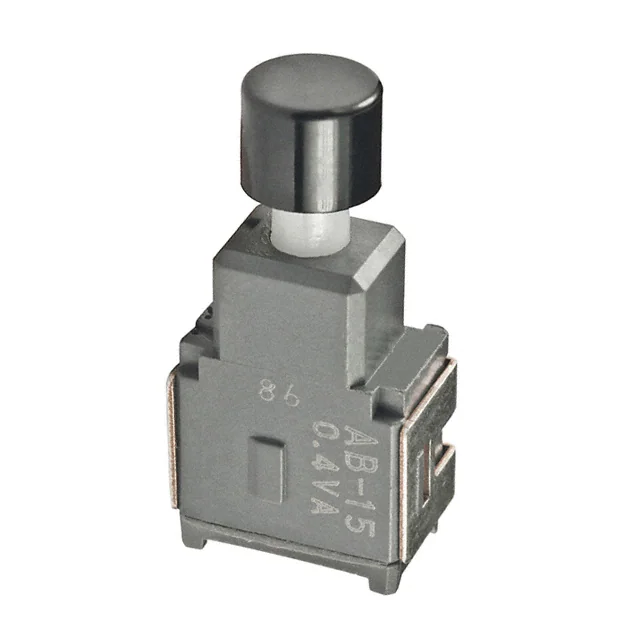

AB15AH-FASWITCH PUSH SPDT 0.4VA 28V |
10,057 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
FB15ANEP4SWITCH PUSH SPST-NO 0.4VA 28V |
18 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
FS5700DPMT2B2M2QESWITCH PUSHBUTTON DPDT 1A 9V |
121 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
301ZBESWITCH PUSH SPST-NO 0.4VA 20V |
353 |
|
- |
300 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Overtravel | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

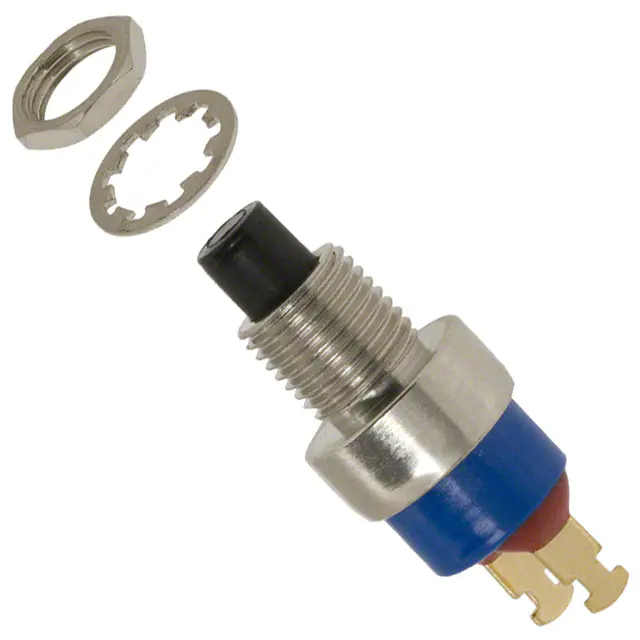

302ZBESWITCH PUSH SPST-NO 0.4VA 20V |
169 |
|
- |
300 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
700SP7M1REAP2BLKBLKSWITCH PUSH SPDT 0.4VA 20V |
148 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C |
|
PV5H24018SWITCH PUSHBUTTON SPST-NO 2A 36V |
126 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
M2B15AA5G13-HASWITCH PUSHBUTTON SPDT 0.4VA 28V |
314 |
|
Datasheet |
M2 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
0041.9141.7107SWITCH PUSH SPST-NO 200MA 60V |
232 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|
|
0041.9141.3107SWITCH PUSH SPST-NO 200MA 60V |
220 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Red | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|
|
0041.9151.3107SWITCH PUSH SPST-NO 200MA 60V |
194 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Red | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|

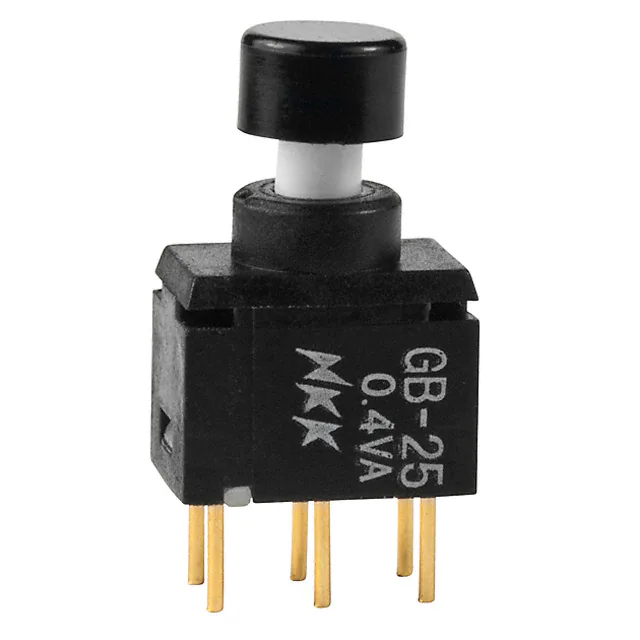

GB25AP-XASWITCH PUSH DPDT 0.4VA 28V |
2,305 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

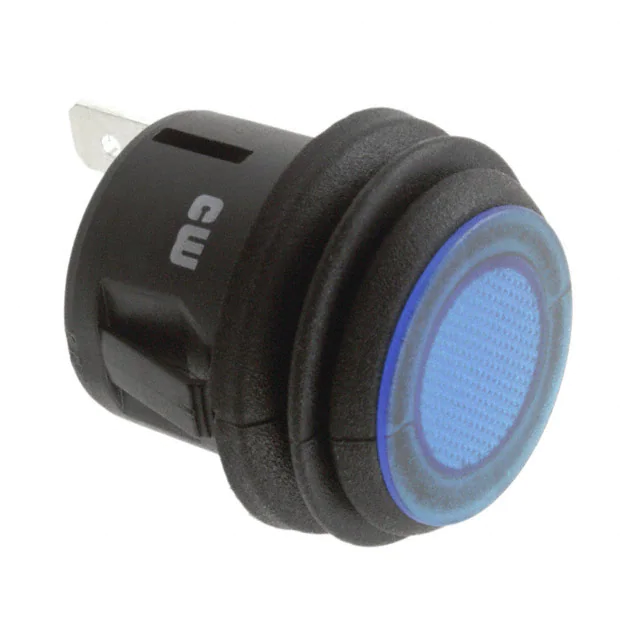

GPB527D202BUSWITCH PUSHBUTTON SPST 10A 125V |
371 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
GPB508AL05BRSWITCH PUSH SPST-NO 3A 125V |
332 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | LED, Red | 3 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 85°C |
|
|
BB16APSWITCH PUSH SPDT 0.4VA 28V |
3 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
K12PL GN 1 5N LV306SWITCH PUSH SPST-NO 0.1A 30V |
6,887 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | LED, Green | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
|
9233CD4SWITCH PUSH SPST-NO 0.1A 30V |
195 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
|
BB15AW-HCSWITCH PUSH SPDT 0.4VA 28V |
5 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

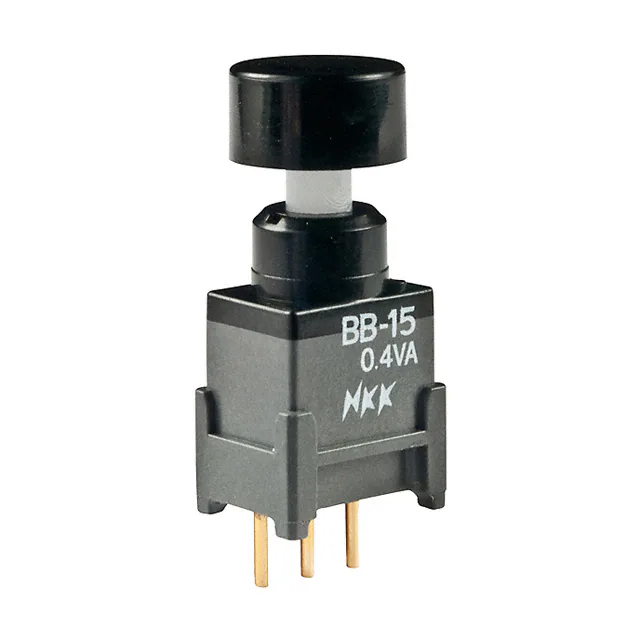

BB15AP-HASWITCH PUSH SPDT 0.4VA 28V |
196 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
