Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

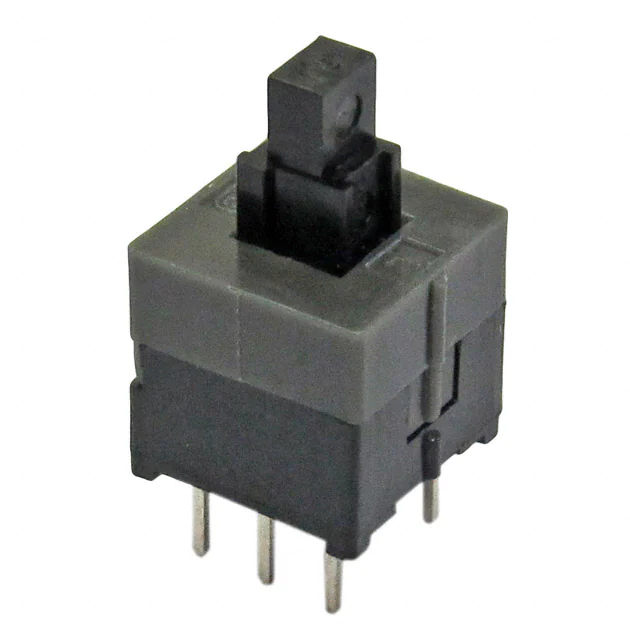

GPBS-850NSWITCH PUSHBUTTON DPDT 0.3A 30V |
2,055 |
|
Datasheet |
GPBS | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Rectangular, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
PBH4UEESNPNAGVSWITCH PB 4PDT 0.1A 30V |
942 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
330E11BLKSWITCH PUSH SPST-NO 0.025A 50V |
813 |
|
Datasheet |
330 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 25mA (DC) | - | 50 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
PN22SJSA03QESWITCH PUSH DPDT 0.2A 30V |
588 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

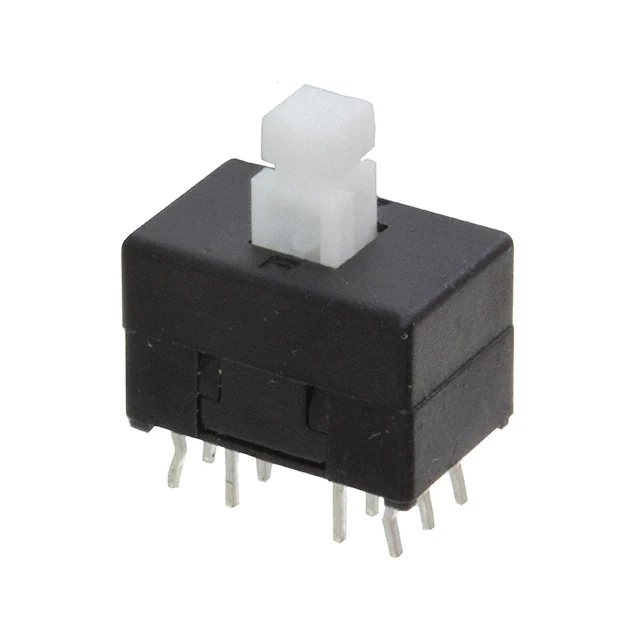

TL4201EEYBSWITCH PUSH 4PDT 0.1A 30V |
1,578 |
|
Datasheet |
TL4201 | Bulk | Active | Through Hole | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
PBH6UOANAGXSWITCH PUSH 6PDT 0.1A 30V |
158 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
B3J-1400SWITCH PUSH SPST-NO 0.05A 24V |
285 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-1200SWITCH PUSH SPST-NO 0.05A 24V |
168 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
TSSL 3 W GRSWITCH PUSHBUTTON ILLUM WH/GR/RD |
2,994 |
|
Datasheet |
TSS | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 12 V | Rectangular, Button | No Marking | White | LED, Green/Red | - | Gull Wing | - | - | - | -20°C ~ 70°C |
|
PR142C4000-136SWITCH PUSHBUTTON DPST 16A 125V |
492 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
|
PR141C1000-116-ACC-F03-1SWITCH PUSHBUTTON SPST 16A 125V |
1,500 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Clear (Red Filter/Diffuser) | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | PVC Cap and Frame | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
BNP10SHRESWITCH PB SPST-NO 3A 120V |
200 |
|
Datasheet |
BNP | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -40°C ~ 85°C |
|
WBL4UEEYQR05CLRSWITCH PUSHBUTTON 4PDT 300MA 30V |
838 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Yellow | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
SW-PB9-BA00BQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
241 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB9-BB00BQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
123 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
ANP11F9CGESWITCH PB SPDT 3A 120V |
139 |
|
Datasheet |
ANP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
LP4EE1RBATYSWITCH PUSH DPDT 0.1A 30V |
3,335 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
SW-PB9-AB00BQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
260 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
800SP9B10M6QESWITCH PUSH SPST-NO 3A 120V |
161 |
|
Datasheet |
800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
CFP2-1FC6-AWSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,106 |
|
Datasheet |
CFP2 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Washable | - | -40°C ~ 85°C |
