Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB9-BBA1RE-7SEALED SUBMINIATIURE PUSHBUTTON |
301 |
|
Datasheet |
SW | Box | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
LP2S2WHTRED-NSWITCH PUSH SPST-NO 1MA 20V |
5,766 |
|
Datasheet |
LP2 | Tray | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Red | 1.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
SW-PB8-AB00A2QE-1SNAP-ACTING PUSHBUTTON SWITCH, S |
122 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
LP4OA1PBBTRSWITCH PUSH DPDT 0.1A 30V |
446 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
WBL2UOABRR05CLRSWITCH PB DPDT 0.3A 30V |
7,777 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 300mA (DC) | - | 30 V | Round, Button, Domed | - | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
WBL2UEEBQR05CLRSWITCH PUSHBUTTON DPDT 300MA 30V |
551 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GB215AP-CSWITCH PUSH SPST-NO 0.4VA 28V |
156 |
|
Datasheet |
GB2 | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Rectangular, Button | No Marking | Red | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -25°C ~ 70°C |
|
LP2S1WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
1,044 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
MPB01-1B00-S-DSPST, THROUGH HOLE, 0 MM PUSH, O |
180 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
PMS9P1B09M2QESWITCH PUSH SPST-NO 3A 120V |
349 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

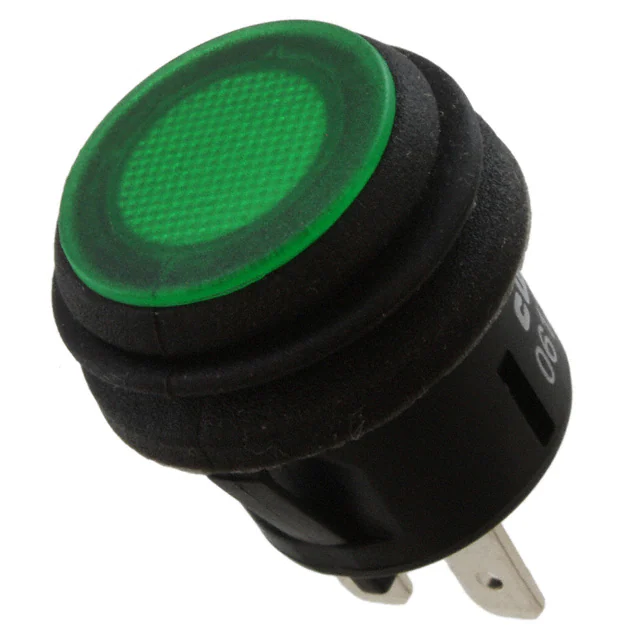

GPB527D202BGSWITCH PUSHBUTTON SPST 10A 125V |
703 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | On-Off | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
PMS9P1B10M6RESWITCH PUSH SPST-NO 0.4VA 20V |
4,330 |
|
Datasheet |
- | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
PMS8P1B09M2RESWITCH PUSHBUTTON SPDT 0.4VA 20V |
1,946 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
800USP8P1A1M6RESWITCH PUSH SPDT 0.4VA 20V |
298 |
|
Datasheet |
800U | Tube | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

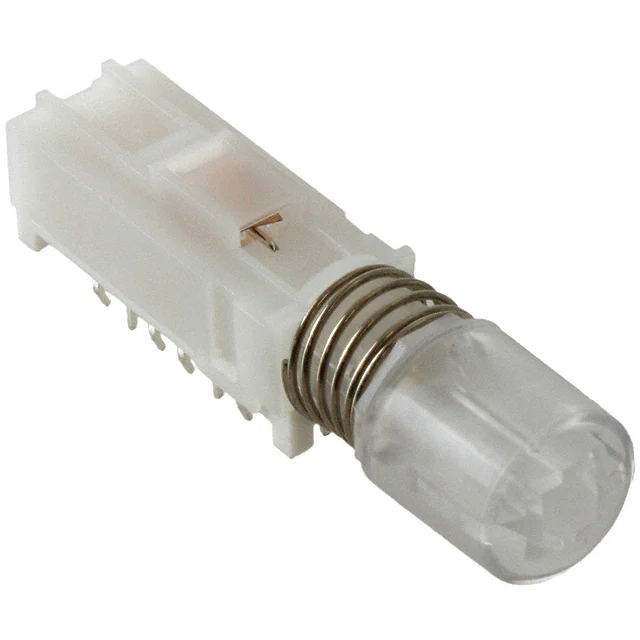

WBL4UEEGBQR05CLRSWITCH PUSH 4PDT 300MA 30V |
850 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue/Green | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GPB023A05BRSWITCH PUSH SPST-NO 3A 125V |
1,108 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | - |
|
|
LP4EE1PBCTRSWITCH PUSHBUTTON DPDT 0.1A 30V |
690 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
SW-PB9-AA00BQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
500 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB9-AA00AQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
470 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
SW-PB9-BBA2RE-7SEALED SUBMINIATIURE PUSHBUTTON |
450 |
|
Datasheet |
SW | Box | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
