Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EB2065-CASWITCH PUSHBUTTON SPDT 3A 125V |
929 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

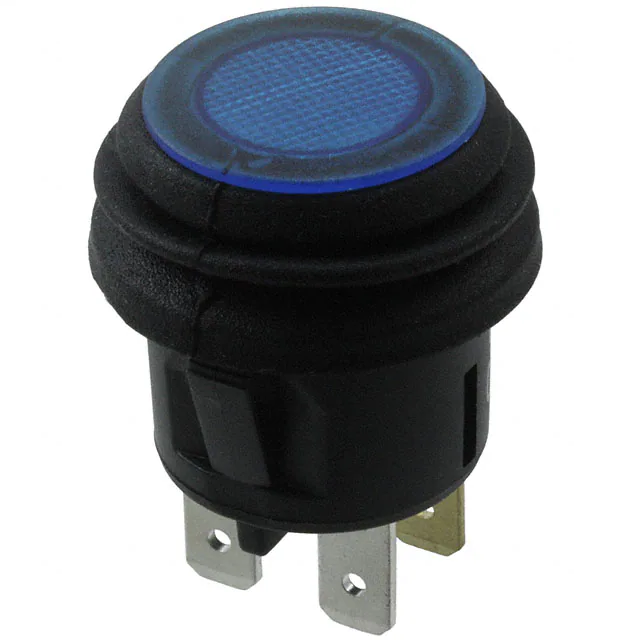

GPB527D2B02BU1SWITCH PUSHBUTTON SPST 10A 125V |
4,039 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
982A01RXSWITCH PUSH SPST-NO 0.25A 28V |
990 |
|
Datasheet |
98000R | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (AC), 250mA (DC) | 125 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

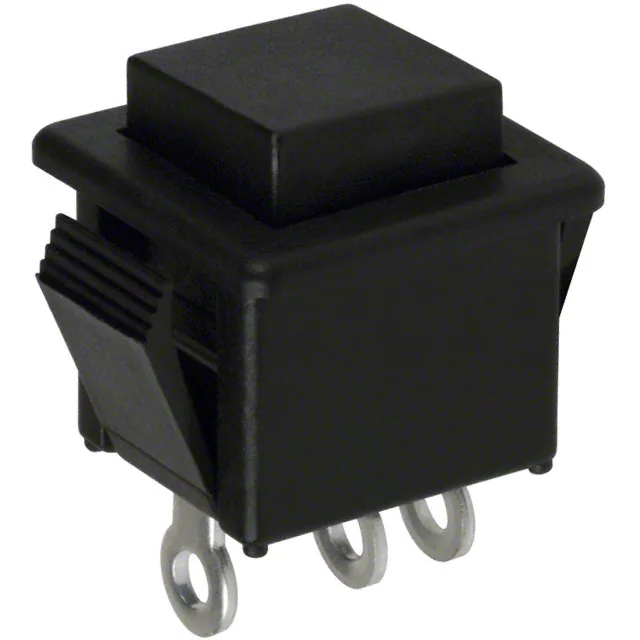

1415NC2SWITCH PUSHBUTTON SPDT 3A 12V |
246 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
40-2385-01SWITCH PUSHBUTTON SPST 2A 14V |
1,559 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
SB4011NCHSWITCH PUSH SPST-NC 3A 125V |
461 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
RP3508BBLKGRNGRNNSSWITCH PUSHBUTTON SPST 3A 125V |
2,928 |
|
Datasheet |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Green | LED, Green | 2.2 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
BB16AH-FASWITCH PUSH SPDT 0.4VA 28V |
8,325 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
SW-PB11-4CSKG-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
122 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (AC), 100mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Green | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

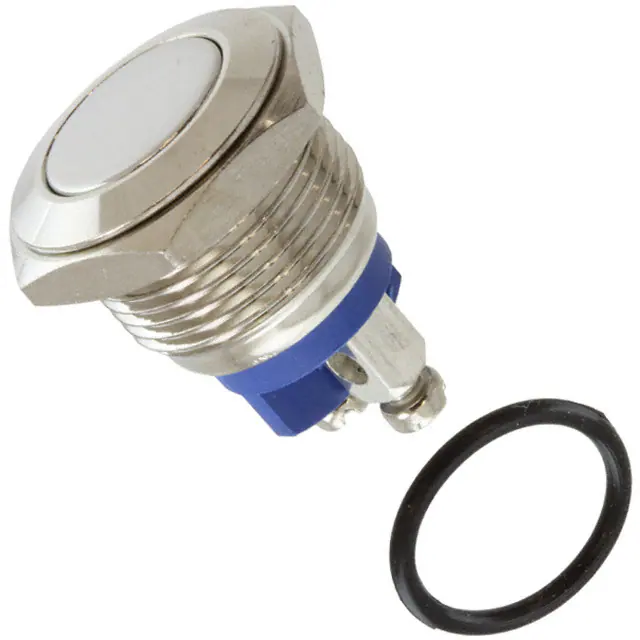

PV2F640NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
129 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|

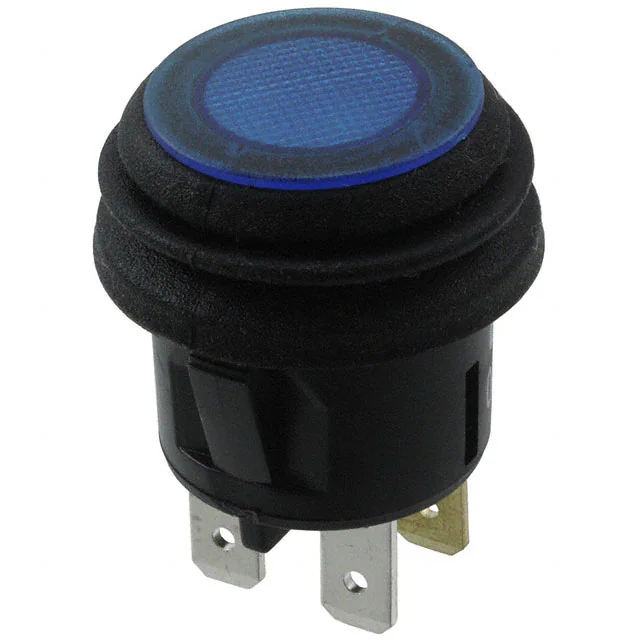

GPB527C2L02BU1SWITCH PUSH SPST-NO 10A 125V |
780 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Blue | LED, Blue | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
EP11FPD1ABESWITCH PUSH SPST-NO 0.4VA 20V |
3,448 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
RP8200B2M1CEBLKBLKNILSWITCH PUSH SPST 0.1A 24V |
395 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8200B2M1CEBLKREDNILSWITCH PUSH SPST 0.1A 24V |
384 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
GPB527D2B02BR1SWITCH PUSHBUTTON SPST 10A 125V |
1,841 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
RP8300B2M1CEBLKBLUNILSWITCH PB SPST-NO 200MA 250V |
1,358 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8300B2M1CEBLKREDNILSWITCH PB SPST-NO 200MA 250V |
1,299 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

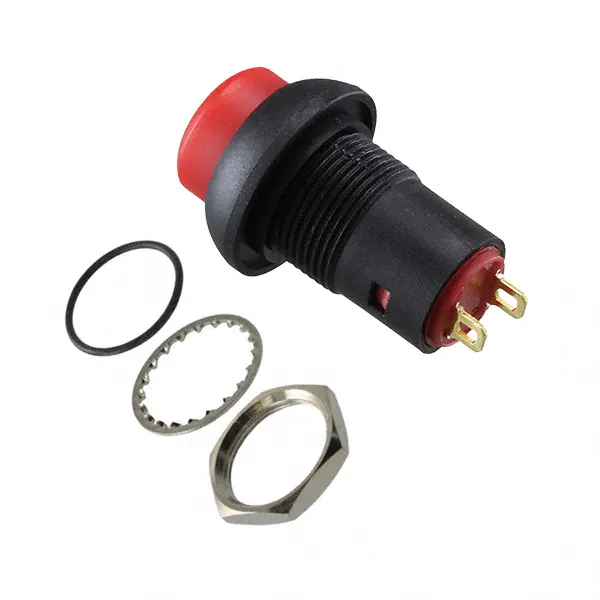

RP8201B2M1CEBLKREDNILSWITCH PUSH SPST 0.1A 24V |
200 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

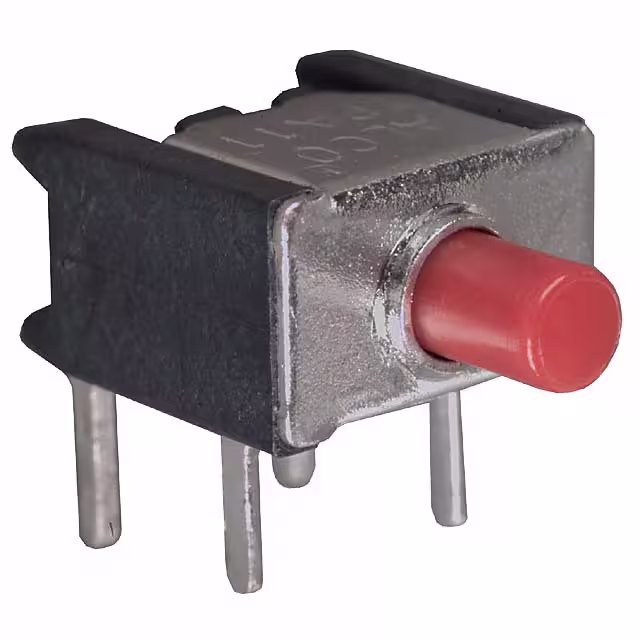

1825096-5SWITCH PUSH SPST-NO 0.4VA 20V |
977 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
EP11SD1SA1BESWITCH PUSH SPST-NO 0.4VA 20V |
918 |
|
Datasheet |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
