Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

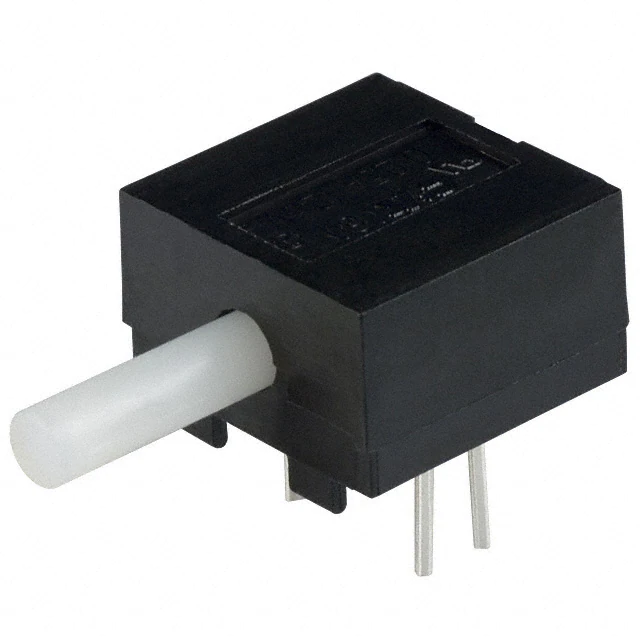

KM1202A08QESWITCH PUSH SPDT 0.25A 125V |
984 |
|
Datasheet |
KM | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 250mA (AC/DC) | 125 V | 125 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

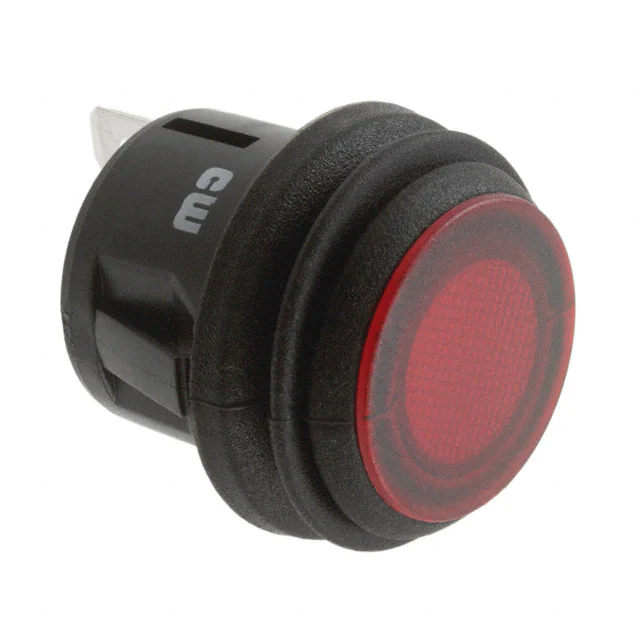

GPB527C202BRSWITCH PUSH SPST-NO 10A 125V |
202 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
PB6B2HS2M2CAL00SWITCH PUSH SPST-NO 125MA 125V |
7,363 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2M1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
466 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2M1CEBLKREDREDSWITCH PB SPST-NO 0.125A 125V |
274 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
40-3352-02SWITCH PUSHBUTTON SPST 5A 14V |
391 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 5A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
CFP2-2RC4-AWSWITCH PUSHBUTTON DPDT 0.4VA 28V |
755 |
|
Datasheet |
CFP2 | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Washable | - | -40°C ~ 85°C |
|
B3J-6100SWITCH PUSH SPST-NO 0.05A 24V |
995 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
PB66EE2CR6NPUSHBUTTON SWITCH DPDT OFF-ON (1 |
979 |
|
Datasheet |
PB66 | Bulk | Active | Panel Mount, Front | Anti-Vandal | DPST | Off-On | 16A (AC) | 127 V | - | Round, Button | - | Silver | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | 0°C ~ 55°C |
|

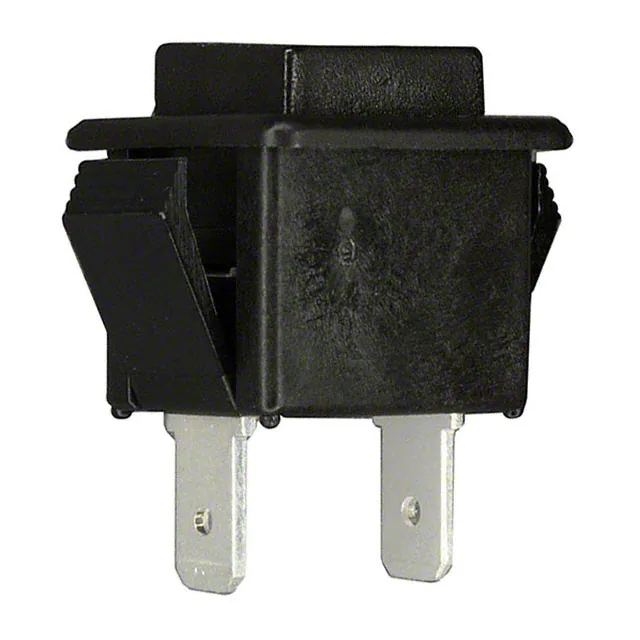

1412N8C2SWITCH PUSH SPST-NC 3A 12V |
898 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NC | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|
9233CDSWITCH PUSH SPST-NO 0.1A 30V |
700 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
SB4011NOH-2CSWITCH PUSH SPST-NO 3A 125V |
2,664 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
FS5700SPMT2B2M2QESWITCH PUSHBUTTON SPDT 1A 9V |
264 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|

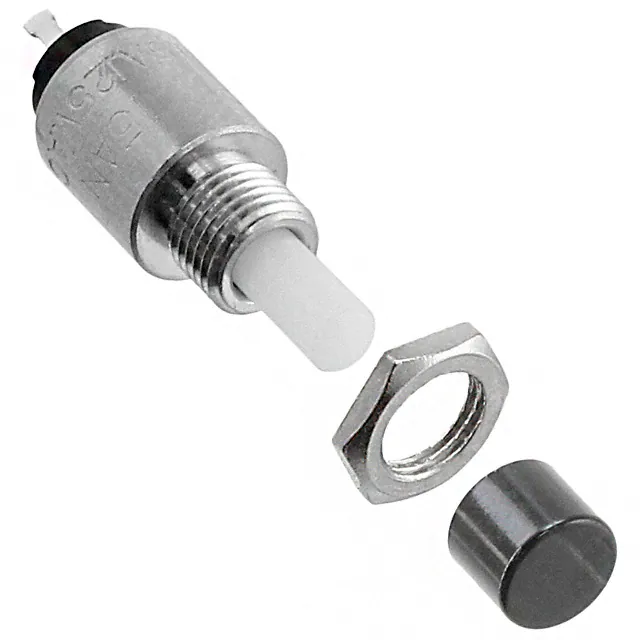

FB15ANEP2-FASWITCH PUSH SPST-NO 0.5A 125V |
5,644 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
PV5S64012SWITCH PUSH SPST-NO 2A 36V |
165 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | White | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
SERU AU OA BRAUNSWITCH PUSH SPDT 0.01A 24V |
188 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
15401SWITCH PUSH 4PST 0.25A 120V |
4,102 |
|
Datasheet |
Unimec™ | Tube | Active | Through Hole | Standard | 4PST-2NO/2NC | On-Mom, Off-Mom | 250mA (AC) | 120 V | - | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 160°C |
|

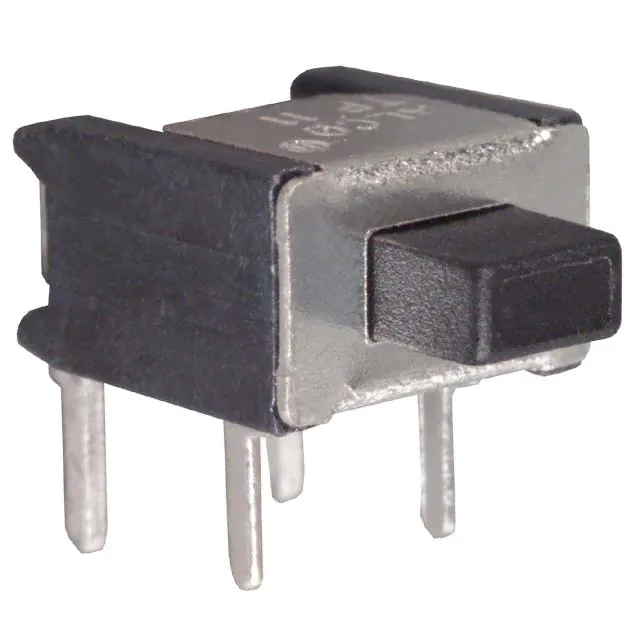

1825095-3SWITCH PUSH SPST-NO 0.4VA 20V |
1,516 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
PB66EE2CR6P31PUSHBUTTON SWITCH DPST 16A |
477 |
|
Datasheet |
PB66 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 16A (AC) | 127 V | - | Round, Button | - | Silver | LED, Green | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Circular - 25.00mm Dia | 0°C ~ 55°C |
|
SW-PB11-4CSKR-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
216 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 2A (AC), 100mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
