Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PV2F240NNM01SWITCH PUSHBUTTON SPST-NO 2A 48V |
267 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | Power Symbol | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
RP8200B2M1CEBLKBLKBLUSWITCH PUSH SPST 0.1A 24V |
112 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
40-4744-00SWITCH PUSHBUTTON SPST 10A 14V |
268 |
|
- |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
9233WWCDSWITCH PUSH SPST-NO 0.1A 30V |
783 |
|
Datasheet |
9000 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
39-3SWITCH PUSH SPST-NO 0.5A 115V |
174 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -40°C ~ 85°C |
|
39-1SWITCH PUSH SPST-NO 0.5A 115V |
660 |
|
Datasheet |
39 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 115 V | - | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | - | Circular - 4.37mm Dia | -40°C ~ 85°C |
|

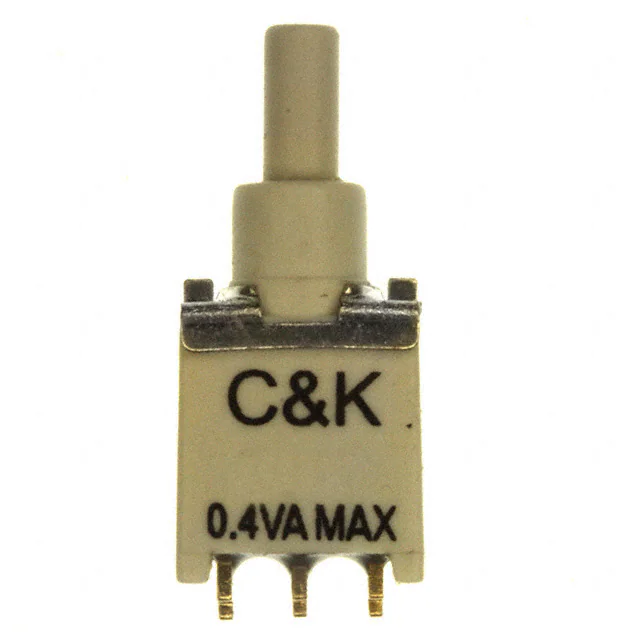

EP12SD1SA1BESWITCH PUSH SPDT 0.4VA 20V |
1,498 |
|
Datasheet |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

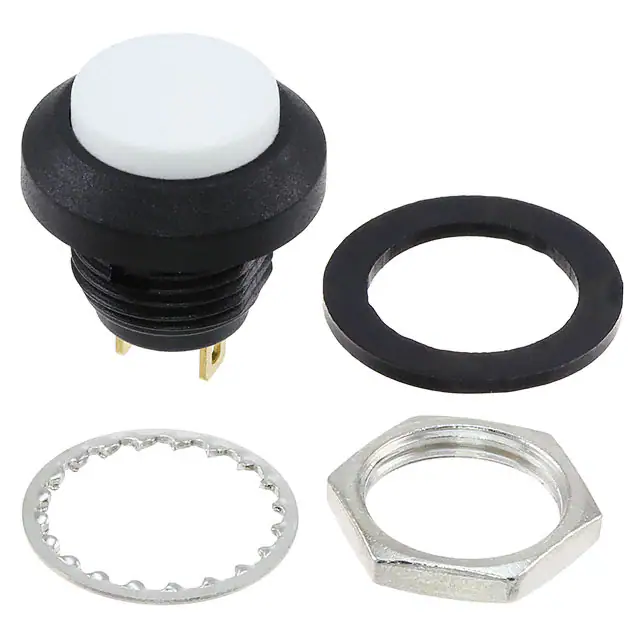

GPB556A05BWSWITCH PUSH SPST-NO 125MA 125V |
849 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|

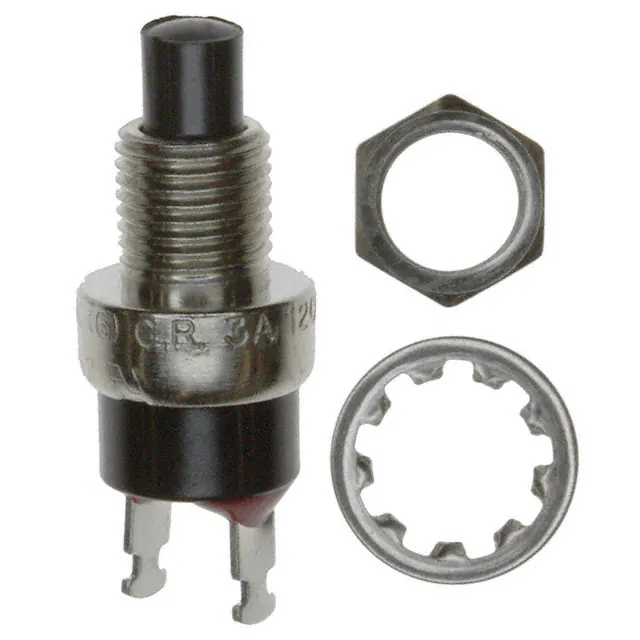

8552MZQE2SWITCH PUSH SPST-NO 3A 120V |
799 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
1213C2SWITCH PUSH SPST-NO 3A 125V |
2,618 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
EP11SD1ABESWITCH PUSH SPST-NO 0.4VA 20V |
751 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
1.10.001.001/0301SWITCH PUSH SPST-NO 0.7A 250V |
159 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 700mA (AC) | 250 V | - | Round, Button | No Marking | Red | - | - | Screw Terminal | IP40 | - | Circular - 15.20mm Dia | -28°C ~ 85°C |
|
MCS-16-NO00A12-Z0NCZ0NCWF-00000000-P0000-SMCS 16, METAL SWITCH SHORT STROK |
150 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | Circular - 16.10mm Dia | -20°C ~ 60°C |
|
1.10.001.001/0507SWITCH PUSH SPST-NO 0.7A 250V |
180 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 700mA (AC) | 250 V | - | Round, Button | No Marking | Green | - | - | Screw Terminal | IP40 | - | Circular - 15.20mm Dia | -28°C ~ 85°C |
|

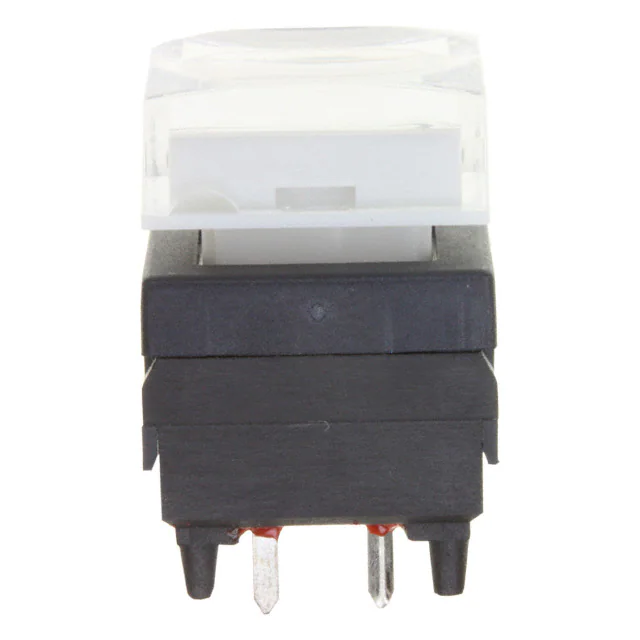

LP6OA2ASRGSWITCH PUSH DPST-NO 12MA 12V |
1,755 |
|
Datasheet |
LP6 | Bulk | Active | Through Hole | Standard, Illuminated | DPST-NO | Off-Mom | 12mA (DC) | - | 12 V | Square, Button | No Marking | Clear | LED, Green/Red | 1.95, 2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
BB16AH-HASWITCH PUSH SPDT 0.4VA 28V |
335 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|

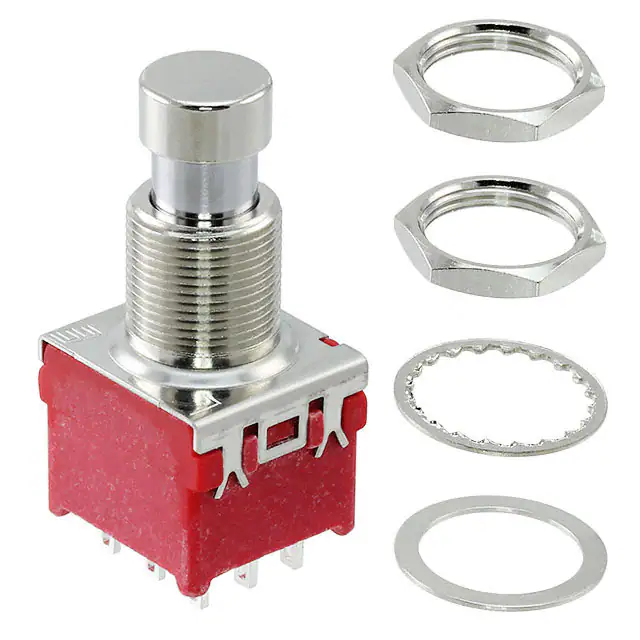

FS57003PLT2B2M1QEHSWITCH PUSHBUTTON 3PDT 1A 9V |
511 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
1241.1110.7097SWITCH PUSH SPST-NO 125MA 48V |
389 |
|
Datasheet |
MCS18 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Black | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -25°C ~ 60°C |
|
30-2ULSWITCH PUSH SPST-NC 5A 120V |
636 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 5A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|

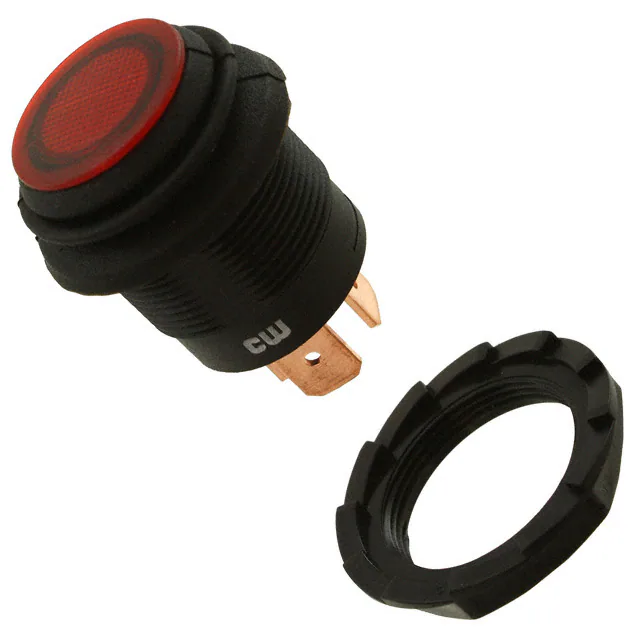

GPB553A2L01BRSWITCH PUSH SPST-NO 10A 14V |
560 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10A (DC) | - | 14 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
