Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ULP12OAP1RSSCL1REDGRNSWITCH PUSHBUTTON SPDT 0.4VA 28V |
351 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
PV5H24019SWITCH PUSHBUTTON SPST-NO 2A 36V |
232 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|

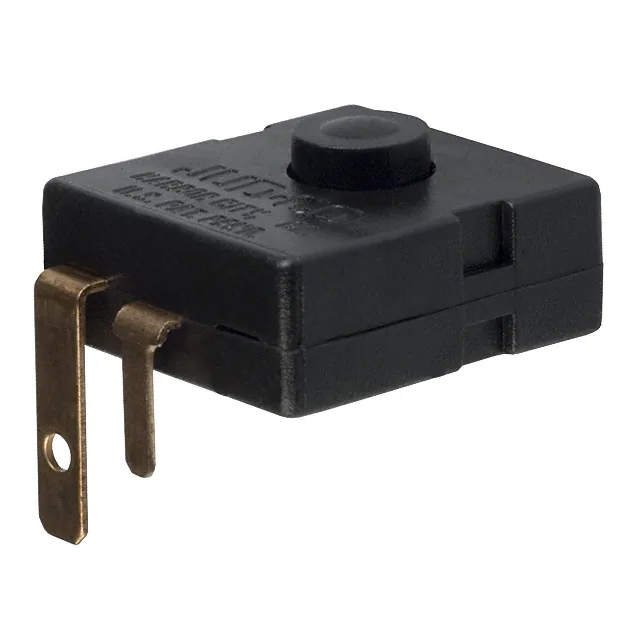

40-4911-00SWITCH PUSHBUTTON SPST 2A 14V |
4,345 |
|
Datasheet |
J-987 | Bulk | Active | Through Hole | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | - |
|
|
0041.9151.7107SWITCH PUSH SPST-NO 200MA 60V |
114 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|
GB25AP-XCSWITCH PUSH DPDT 0.4VA 28V |
16,130 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

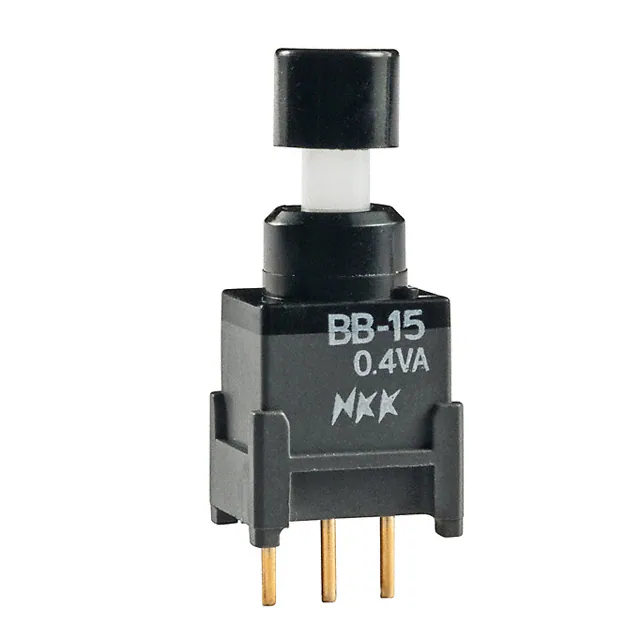

BB15AP-FASWITCH PUSH SPDT 0.4VA 28V |
805 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
BB15AHSWITCH PUSH SPDT 0.4VA 28V |
252 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
WG48-2-RM-N-BK-BSWITCH PUSHBUTTON 1A 250V |
170 |
|
Datasheet |
WG48-RM | Bulk | Active | Panel Mount, Front | Standard | SPST (DM) | Off-On | 1A (AC), 2A (DC) | 250 V | 24 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.42mm Dia | -40°C ~ 65°C |
|
SB4011NOHCSWITCH PUSH SPST-NO 3A 125V |
5,443 |
|
Datasheet |
SB40 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
.jpg)
|
EP11FPD1SAPESWITCH PUSH SPST-NO 0.4VA 20V |
229 |
|
Datasheet |
EP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
MSP103C004SWITCH PUSH SPST-NO 3A 125V |
1,820 |
|
Datasheet |
MSP3 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
PB6B2FM7M1CAL00S500SWITCH PUSH SPST-NO 125MA 125V |
405 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

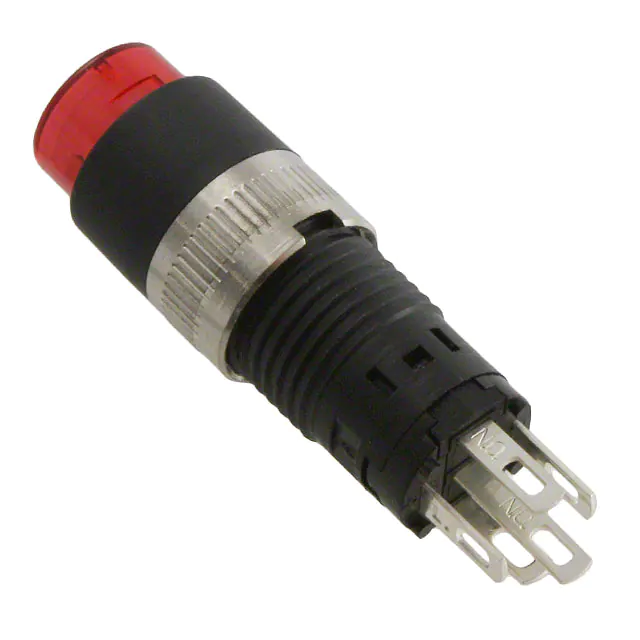

HB15CKW01-5C-CBSWITCH PUSH SPDT 0.1A 30V |
1,690 |
|
Datasheet |
HB | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-Mom | 100mA (AC/DC) | 30 V | 30 V | Round, Button | No Marking | Red | LED, Red | 2.1 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -25°C ~ 50°C |
|
30-3SWITCH PUSH SPST-NO 1A 115V |
1,685 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
GPB556A05BUSWITCH PUSH SPST-NO 125MA 125V |
1,076 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -25°C ~ 85°C |
|

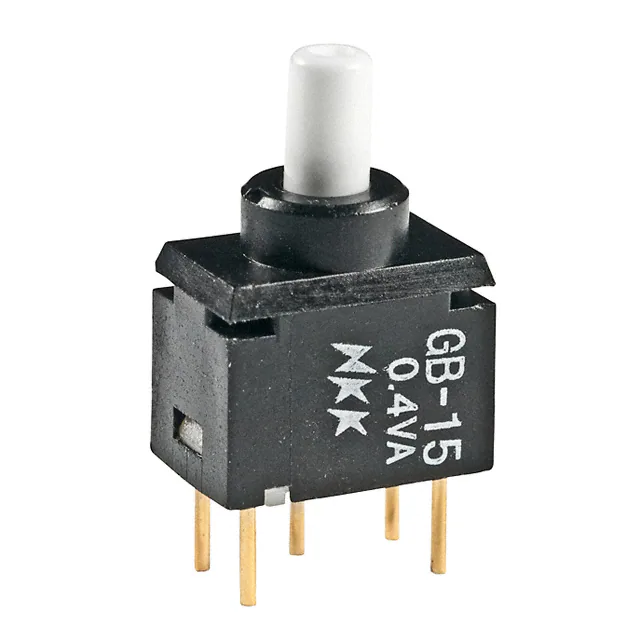

GB15APSWITCH PUSH SPDT 0.4VA 28V |
1,218 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
FS5700DPLT2B2M2QESWITCH PUSHBUTTON DPDT 1A 9V |
183 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|

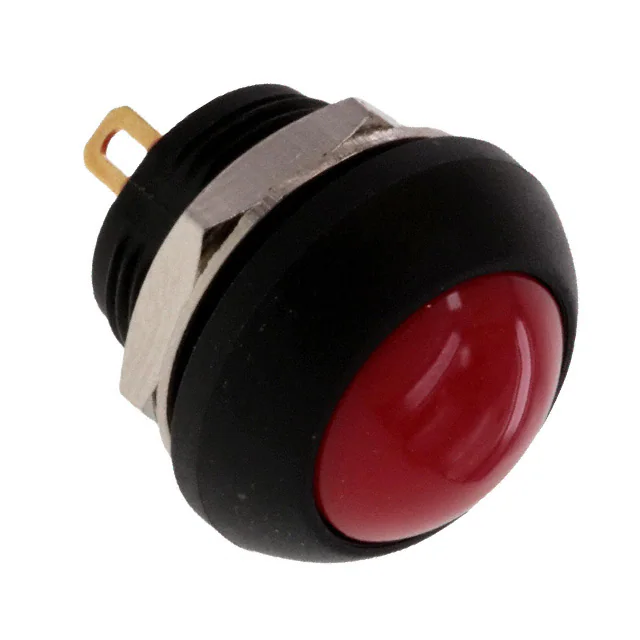

PB6B2RS3M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
3,671 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

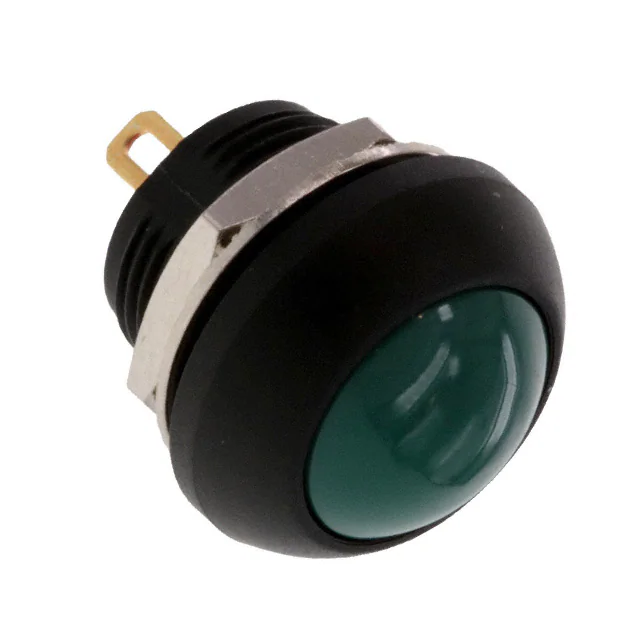

PB6B2RS6M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
3,525 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

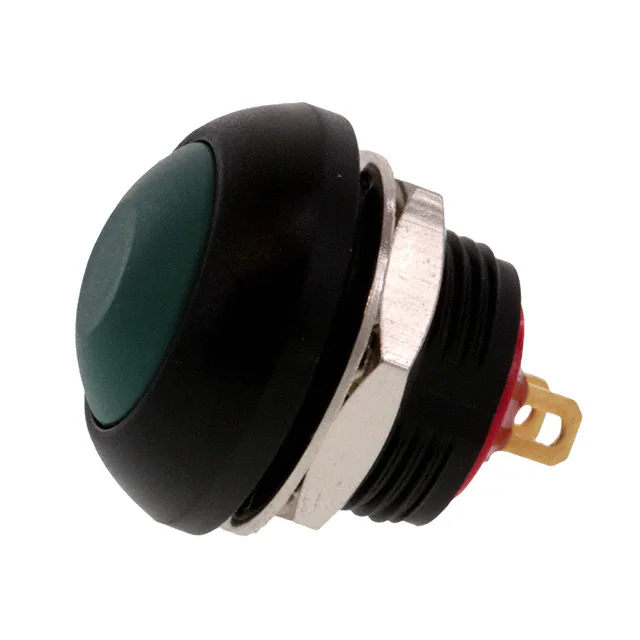

PB6B2FM6M1CAL00SWITCH PUSH SPST-NO 125MA 125V |
346 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
