Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SET BK AU OASWITCH PUSH SPDT 0.01A 24V |
445 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
CTHS15CIC06SWITCH PUSH CAPACITIVE ILLUM SQ |
226 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | No Marking | Clear | LED, Blue | 3.2 VDC | PC Pin | - | - | - | - |
|
15451SWITCH PUSH 4PST 0.25A 120V |
3,839 |
|
Datasheet |
Unimec™ | Tube | Active | Through Hole | Standard | 4PST-2NO/2NC | On-Off, Off-On | 250mA (AC) | 120 V | - | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP54 - Dust Protected, Water Resistant | - | - | -40°C ~ 160°C |
|
402ZBESWITCH PUSH SPST-NO 0.4VA 20V |
1,145 |
|
- |
400 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

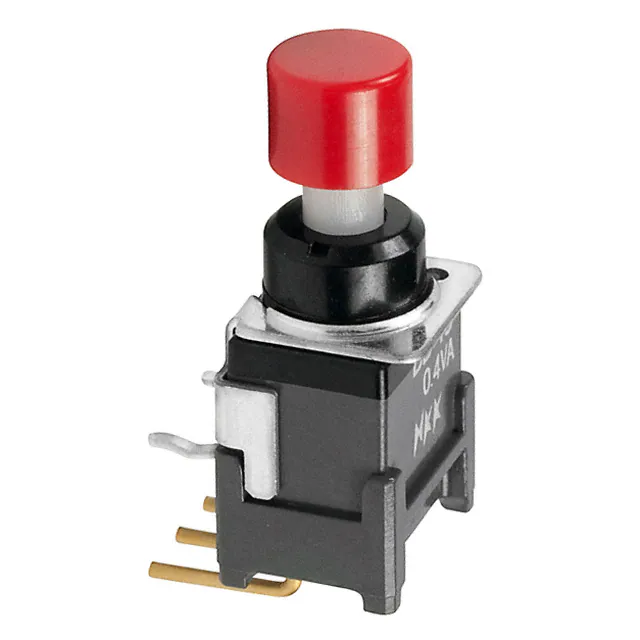

BB15AH-FCSWITCH PUSH SPDT 0.4VA 28V |
11,183 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
MSP103C04SWITCH PUSH SPST-NO 3A 125V |
918 |
|
Datasheet |
MSP3 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Red | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|

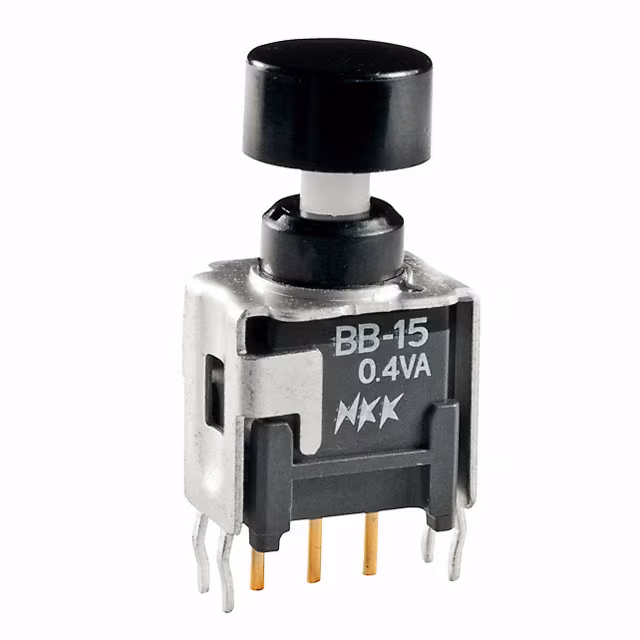

BB15AB-HASWITCH PUSH SPDT 0.4VA 28V |
500 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
1.10.107.011/0104SWITCH PUSH SPST-NO 100MA 24V |
140 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 24 V | 24 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP40 | - | Circular - 9.10mm Dia | -25°C ~ 70°C |
|

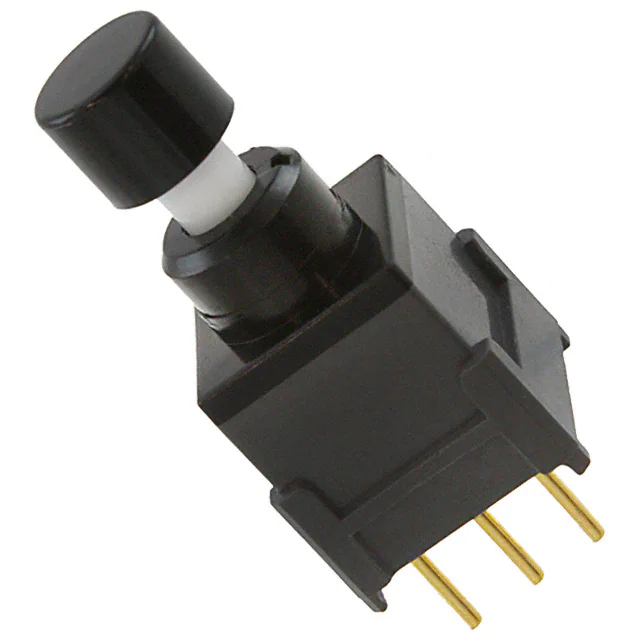

BB16AP-FASWITCH PUSH SPDT 0.4VA 28V |
4,957 |
|
Datasheet |
BB | Tray | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
RP8200B2M1CEBLKBLKGRNSWITCH PUSH SPST 0.1A 24V |
577 |
|
Datasheet |
RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8300B2M1CEBLKBLKREDSWITCH PB SPST-NO 200MA 250V |
439 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
700DP7B10M6QEHSWITCH PUSHBUTTON DPDT 3A 120V |
800 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
W59-900068SWITCH PB SPST-NO 125MA 125V |
106 |
|
Datasheet |
W59 | Tube | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 125mA (AC), 400mA (DC) | 125 V | 32 V | Round, Button, Domed | - | Black | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP67 - Dust Tight, Waterproof | - | Circular - 15.20mm Dia | -40°C ~ 105°C |
|

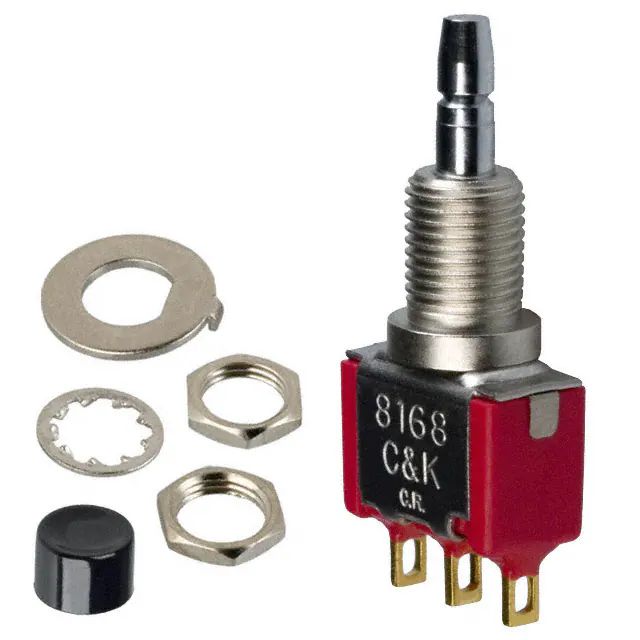

8168LHZBE2SWITCH PUSH SPDT 0.4VA 20V |
1,193 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
FS57003PLT2B2M2QESWITCH PUSHBUTTON 3PDT 1A 9V |
175 |
|
Datasheet |
FS5700 | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-On | 1A (DC) | - | 9 V | Round, Button | No Marking | Silver | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 12.20mm Dia | -10°C ~ 70°C |
|
SER GY AU OASWITCH PUSH SPDT 0.01A 24V |
858 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

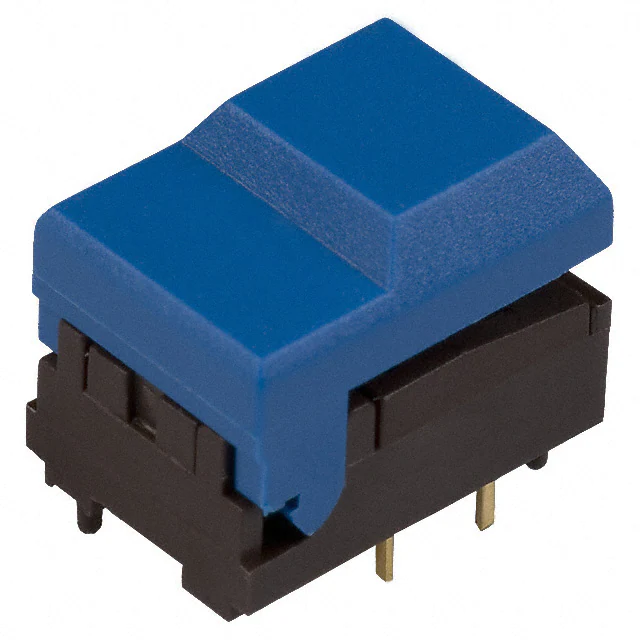

SER BU AU OASWITCH PUSH SPDT 0.01A 24V |
550 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
RP8100B2W1CEBLKBLKNILSWITCH PB SPST-NO 0.125A 125V |
211 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
9633NABSWITCH PUSH SPST-NO 1A 30V |
353 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.50mm Dia | -30°C ~ 65°C |
|
TP11SHCBESWITCH PUSH SPST-NO 0.4VA 20V |
1,155 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
