Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP8100B1M1CEBLKBLKNILSWITCH PB SPST-NO 0.125A 125V |
2,054 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
LP2S1WHTWHT-NSWITCH PUSH SPST-NO 1MA 20V |
533 |
|
Datasheet |
LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, White | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
KS11R22CQESWITCH PUSH SPST-NO 0.025A 50V |
607 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Voltage Reduction Lighting | - | -30°C ~ 65°C |
|
465031772505SWITCH PUSHBUTTON SPDT 0.4VA 28V |
142 |
|
Datasheet |
WS-PB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
800CSP1B6M6QESWITCH PB SPDT 3A 120V |
377 |
|
Datasheet |
800C | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
SW-PB11-1CSR-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
410 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Red | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
FB15ANEP2-FCSWITCH PUSH SPST-NO 0.5A 125V |
6,236 |
|
Datasheet |
FB | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
110-SPSWITCH PUSHBUTTON SPST 6A 125V |
919 |
|
Datasheet |
110 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 12.70mm Dia | 0°C ~ 85°C |
|
CFP2-1FC-AWSWITCH PUSHBUTTON SPDT 0.4VA 28V |
613 |
|
Datasheet |
CFP2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Washable | - | -40°C ~ 85°C |
|
APE1F-5M-10-ZSWITCH PUSH SPDT 0.05A 60V |
557 |
|
Datasheet |
APE | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 50mA (AC/DC) | 60 V | 60 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -20°C ~ 85°C |
|
RP8101B2M1CEBLKBLKNILSWITCH PUSH SPST-NO 0.125A 125V |
382 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
800AWSP8M2RESWITCH PUSHBUTTON SPDT 1A 120V |
1,105 |
|
Datasheet |
800A | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

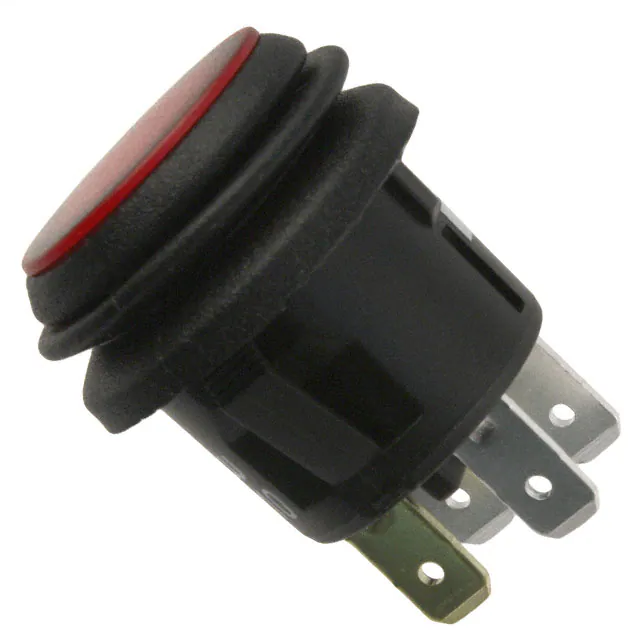

GPB527C2L02BR1SWITCH PUSH SPST-NO 10A 125V |
1,262 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | LED, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
700SP7B10M1QEHSWITCH PUSHBUTTON SPDT 3A 120V |
107 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
ELUMEETHQ7C22SWITCH PUSH SPDT 0.25A 50V |
302 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Plunger for Cap | No Marking | Black | LED, Blue | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
RP8100B2M1CEBLKREDNILSWITCH PB SPST-NO 0.125A 125V |
2,970 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2M1CEBLKYELNILSWITCH PB SPST-NO 0.125A 125V |
323 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2M1CEBLKGRNNILSWITCH PB SPST-NO 0.125A 125V |
289 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
700SP7B20M7QESWITCH PUSHBUTTON SPDT 3A 120V |
756 |
|
Datasheet |
700 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
700SP7B20M6QESWITCH PUSHBUTTON SPDT 3A 120V |
1,484 |
|
Datasheet |
700 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
