Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
700ASP7B10M1RESWITCH PUSH SPDT 0.4VA 20V |
512 |
|
Datasheet |
700A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

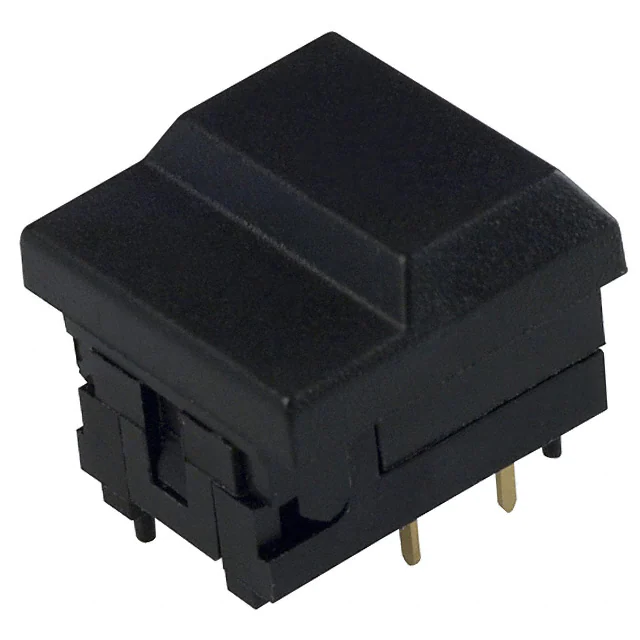

5511M1XSWITCH PUSH SPDT 0.03A 12V |
230 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
700ASP7B10M1QESWITCH PUSHBUTTON SPDT 3A 120V |
315 |
|
Datasheet |
700A | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
PMS9P1B08M2RESWITCH PUSH SPST-NO 0.4VA 20V |
560 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
GPB040B05BRSWITCH PUSHBUTTON SPST 3A 125V |
514 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | - |
|
KFB2ALA2RBBSWITCH PUSH SPST 10A 125V |
389 |
|
Datasheet |
KF | Box | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Red | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
CFPB-1CC-4W9SWITCH PUSH SPST-NO 1MA 20V |
827 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Yellow | 2.2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|

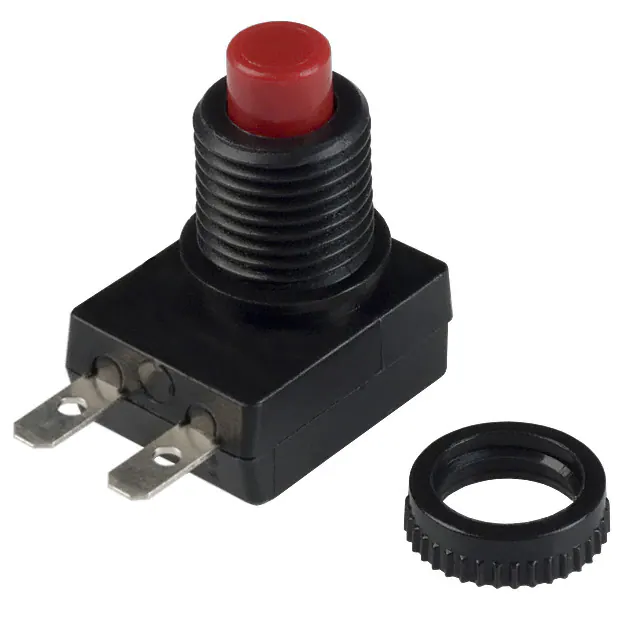

40-1880-02SWITCH PUSH SPST-NC 2A 14V |
1,118 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
EH12NMB2ZXSWITCH PB SPST-NO 2A 48V |
599 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Black | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
|
MDPG LFSSWITCH PUSH SPST-NO 0.05A 100V |
357 |
|
Datasheet |
MDP | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
EH12NMB3ZXSWITCH PB SPST-NO 2A 48V |
166 |
|
Datasheet |
EH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Red | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
5498STEP SWITCH WITH LED - THREE PAC |
237 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 12mA (DC) | - | 24 V | Square, Button | - | Gray | LED, Red | 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
GPB507A05BRSWITCH PUSH SPST-NO 6A 125V |
349 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 85°C |
|
B3J-2100SWITCH PUSH SPST-NO 0.05A 24V |
291 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-4100SWITCH PUSH SPST-NO 0.05A 24V |
163 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
GPB507A05BBSWITCH PUSH SPST-NO 6A 125V |
1,034 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 6A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 85°C |
|

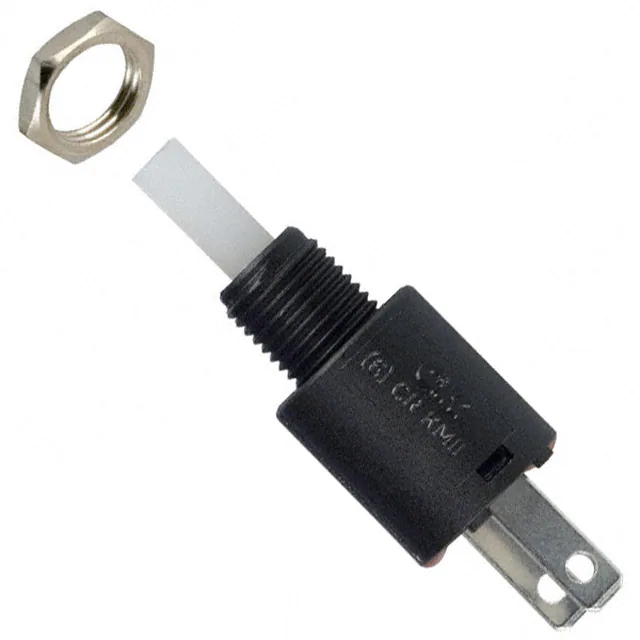

KM1101RR05QSWITCH PUSH SPST-NO 0.25A 125V |
1,134 |
|
Datasheet |
KM | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 250mA (AC/DC) | 125 V | 125 V | Plunger for Cap | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
K12A BK 1 5NSWITCH PUSH SPST-NO 0.1A 30V |
44,449 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|

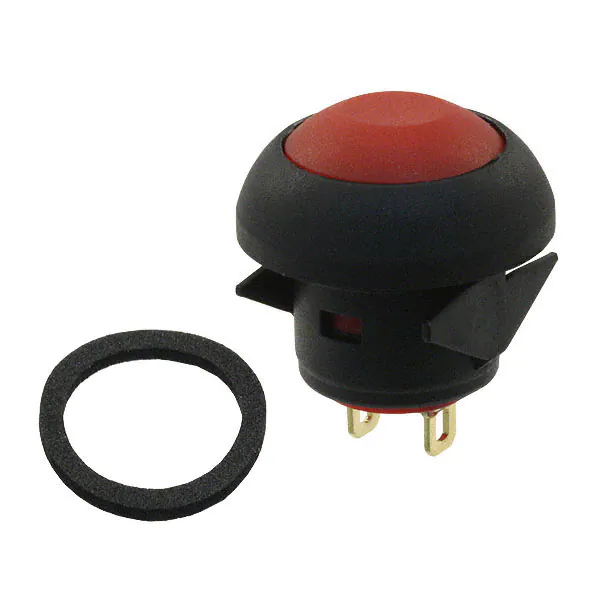

RP8100B1M1CEBLKREDNILSWITCH PB SPST-NO 0.125A 125V |
158 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B1M1CEBLKBLUNILSWITCH PB SPST-NO 0.125A 125V |
128 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
