Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW-PB11-1CSG-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
500 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
SW-PB11-1CSK-10IP67 ANTI-VANDAL PUSHBUTTON SWIT |
219 |
|
Datasheet |
SW | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PV2F240NNSWITCH PUSHBUTTON SPST-NO 2A 48V |
4,736 |
|
Datasheet |
PV2, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV5S24018SWITCH PUSH SPST-NO 2A 36V |
200 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
SW-PB8-BB12A1QE-1SNAP-ACTING PUSHBUTTON SWITCH, B |
283 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
PV5S24019SWITCH PUSH SPST-NO 2A 36V |
210 |
|
Datasheet |
PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|

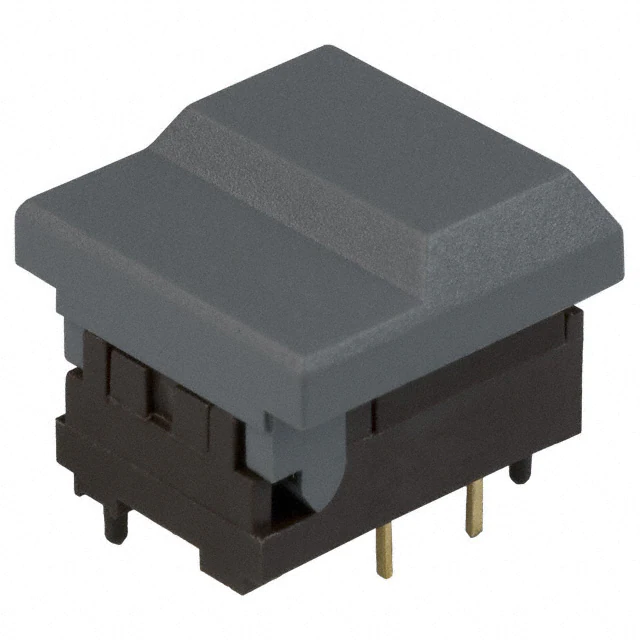

SET GY AU OASWITCH PUSH SPDT 0.01A 24V |
317 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

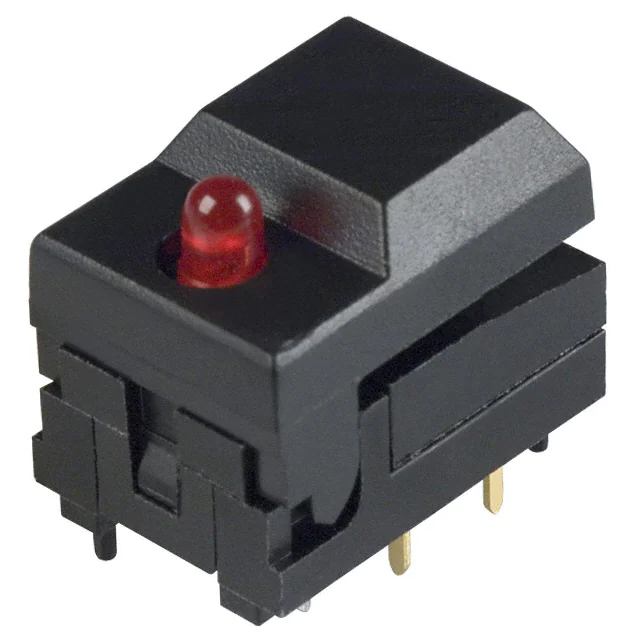

5501MBLKREDSWITCH PUSH SPDT 0.3A 12V |
266 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5501MWHTGRNSWITCH PUSH SPDT 0.3A 12V |
383 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
F6UEESWITCH PUSH 6PDT 0.5A 125V |
158 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
SW-PB7-1Z-A-RG-H-3-G2ANTI-VANDAL PUSHBUTTON SWITCH, 1 |
189 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 3A (AC) | 220 V | - | Round, Button | No Marking | - | LED, Green | 12 VAC/DC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
SW-PB7-1S-D-G1ANTI-VANDAL PUSHBUTTON SWITCH, M |
114 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 3A (AC) | 250 V | - | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | Circular - 16.00mm Dia | -25°C ~ 85°C |
|
ESANMD3GBXSWITCH PB SPST-NO 125MA 125V |
360 |
|
Datasheet |
ES | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC/DC) | 125 V | 50 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
K12A BK 1.5 5NSWITCH PUSH SPST-NO 0.1A 30V |
2,802 |
|
Datasheet |
K12 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
RP3508BBLKREDREDNSSWITCH PUSHBUTTON SPST 3A 125V |
2,655 |
|
Datasheet |
RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | LED, Red | 1.8 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|

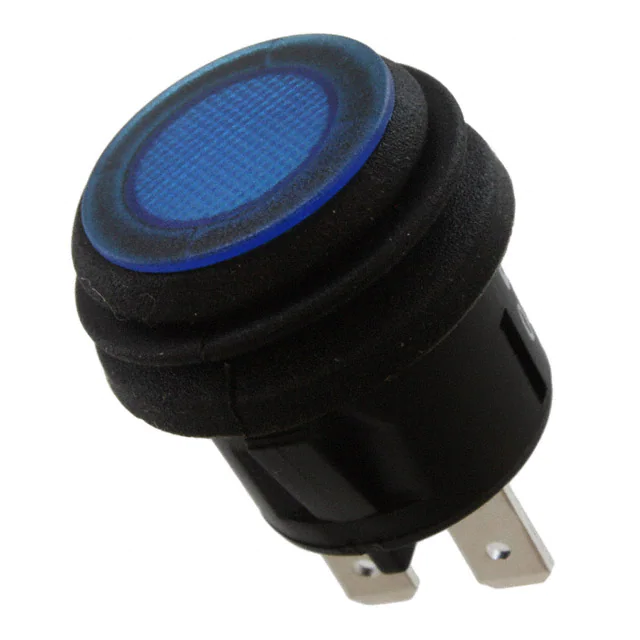

GPB527C202BUSWITCH PUSH SPST-NO 10A 125V |
1,162 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Blue | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
9533CDREPCO CONTACT KIT KTM33-1 |
949 |
|
- |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
TP11SH8AQESWITCH PUSH SPST-NO 1A 120V |
7,781 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

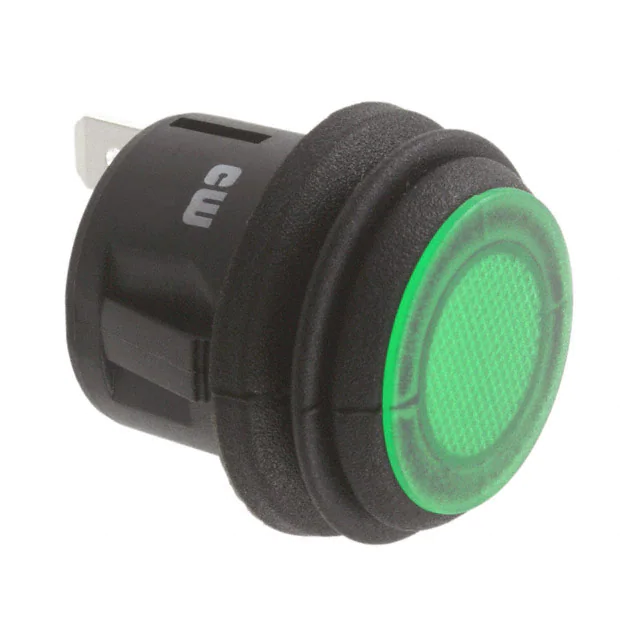

GPB527C202BGSWITCH PUSH SPST-NO 10A 125V |
1,261 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Green | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
RP8100B2M1CEBLKGRNGRNSWITCH PUSH SPST-NO 0.125A 125V |
313 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
