Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS1040BBLKSWITCH PUSHBUTTON SPST 3A 125V |
933 |
|
Datasheet |
PS1040 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.40mm Dia | -20°C ~ 65°C |
|
9533NCDSWITCH PUSH SPST-NO 0.1A 30V |
4,718 |
|
Datasheet |
9000 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 4.20mm Dia | -30°C ~ 65°C |
|
KFB3ANA1BBBSWITCH PUSH DPST 10A 125V |
4,071 |
|
Datasheet |
KF | Box | Active | Panel Mount, Snap-In | Standard | DPST | On-Off | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
40-4818-00SWITCH PUSH SPST-NO 2A 14V |
2,936 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
GPB023B05BRSWITCH PUSHBUTTON SPST 3A 125V |
564 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | - |
|
800SP9B9M1QEHSWITCH PUSH SPST-NO 3A 120V |
738 |
|
Datasheet |
800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
SW-PB8-AB12A1QE-1SNAP-ACTING PUSHBUTTON SWITCH, B |
340 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|

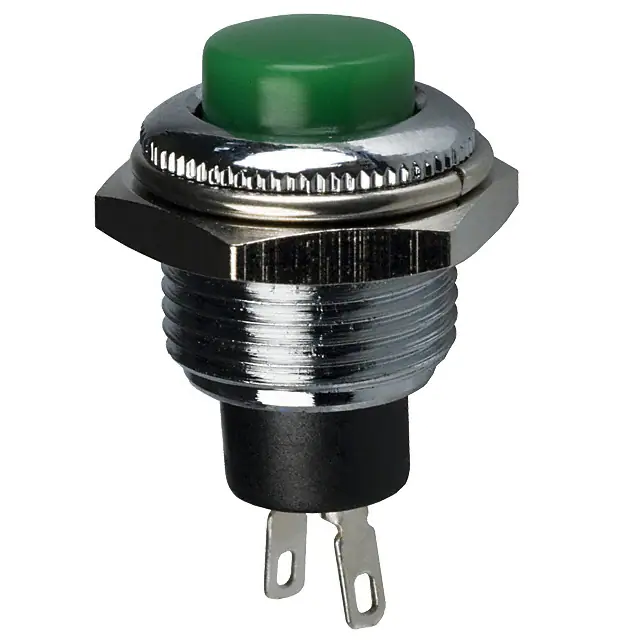

RP3502MBGRNSWITCH PUSH SPST-NC 3A 120V |
964 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|

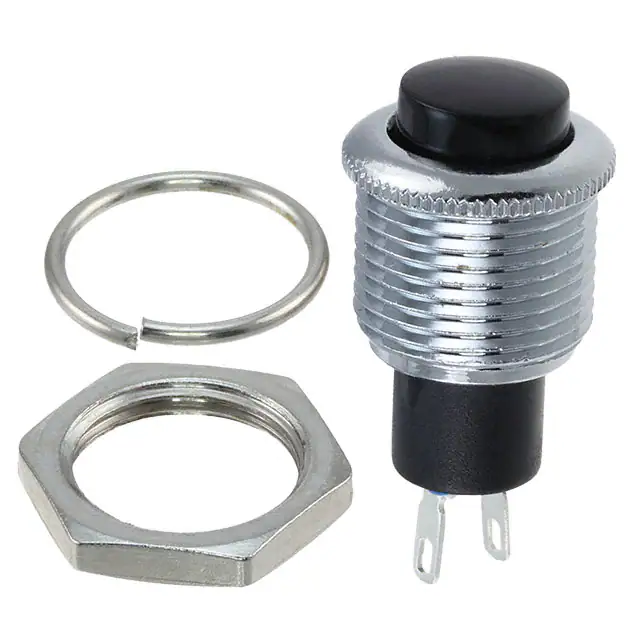

RP3502MBBLKSWITCH PUSH SPST-NC 3A 120V |
765 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
800AWSP9M2RESWITCH PUSH SPST-NO 0.4VA 20V |
142 |
|
Datasheet |
800A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
LP4OA1PBCTGSWITCH PUSH DPDT 0.1A 30V |
1,000 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
MSP103C-ZSWITCH PUSH SPST-NO 3A 125V |
1,528 |
|
Datasheet |
MSP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | - |
|

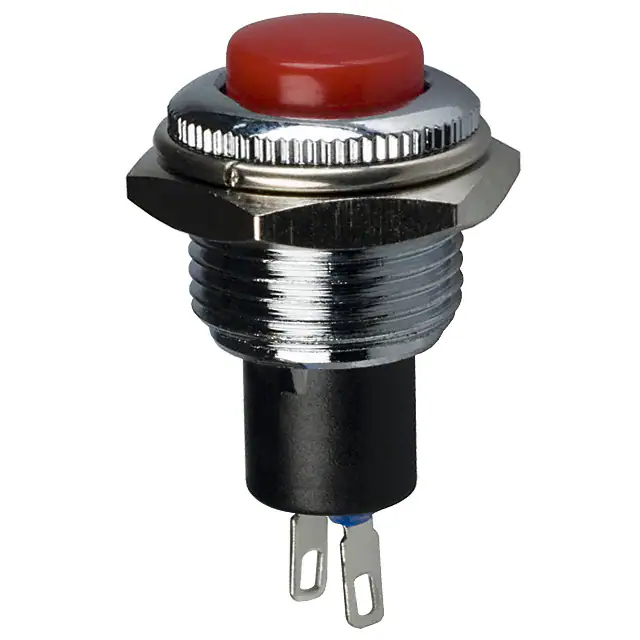

RP3502MBREDSWITCH PUSH SPST-NC 3A 120V |
758 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
800AWSP9M6QESWITCH PUSH SPST-NO 1A 120V |
2,870 |
|
Datasheet |
800A | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
800UDP8P1A1M6RER1BLKSWITCH PUSH DPDT 0.4VA 20V |
174 |
|
Datasheet |
800U | Tube | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

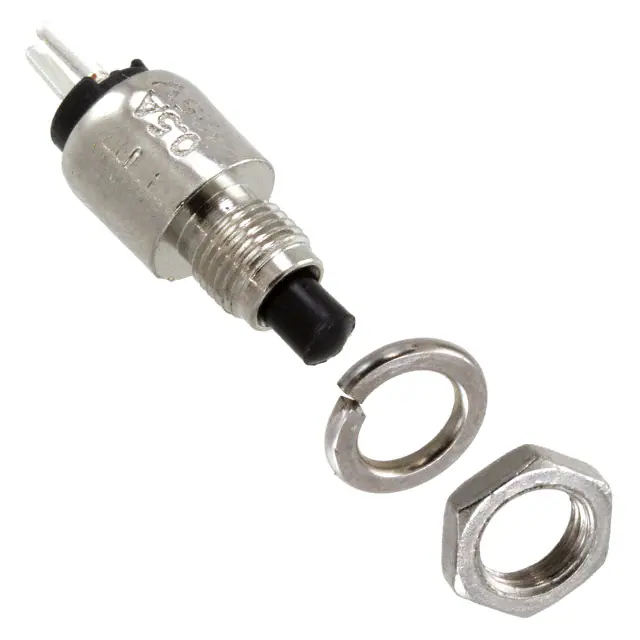

GPB081A09BSWITCH PUSH SPST-NO 0.5A 125V |
820 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 5.20mm Dia | - |
|
RP3508ABLKREDNNSSWITCH PUSH SPST-NO 3A 125V |
378 |
|
Datasheet |
RP3508 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
800CSP1B6M2QESWITCH PB SPDT 3A 120V |
129 |
|
Datasheet |
800C | Bulk | Active | Through Hole | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
GPB527D202BBSWITCH PUSH SPST 10A 125V |
5,410 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | Off-On | 10A (AC), 20A (DC) | 125 V | 14 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|

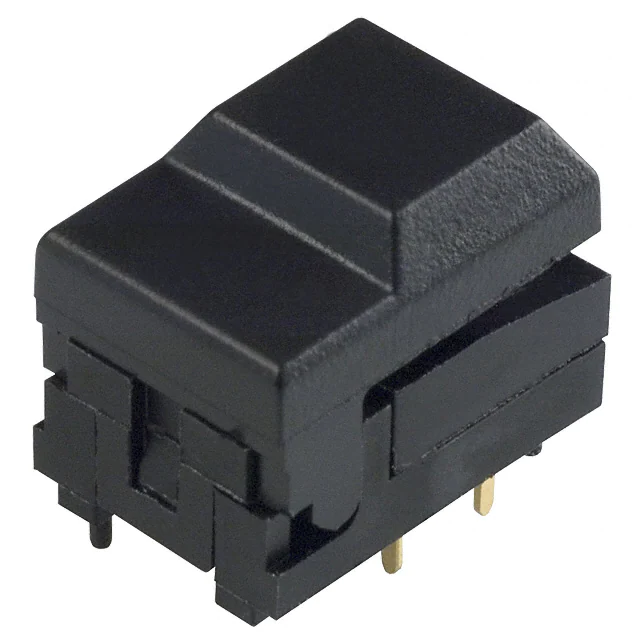

5501M1BLKXSWITCH PUSH SPDT 0.3A 12V |
102 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
