Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB300DTQSWITCH PUSHBUTTON SPDT 0.3A 28V |
5,145 |
|
Datasheet |
PB300 | Bulk | Active | Through Hole | Standard | SPDT | Off-Mom-Mom | 300mA (DC) | - | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 95°C |
|
GPB040A05BRSWITCH PUSH SPST-NO 3A 125V |
4,371 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | - |
|
LP4EE1PBATGSWITCH PUSH DPDT 0.1A 30V |
1,320 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
LP4OA1PBCTRSWITCH PUSH DPDT 0.1A 30V |
1,830 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
40-4692-00SWITCH PUSH SPST-NO 2A 14V |
1,879 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
800AWSP9M7QESWITCH PUSH SPST-NO 1A 120V |
3,957 |
|
Datasheet |
800A | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
SW-PB9-BA00AQE-5SUBMINIATIURE PUSHBUTTON SWITCH, |
331 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
BSP10TCQSWITCH PB SPST-NO 3A 120V |
273 |
|
Datasheet |
BSP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -40°C ~ 85°C |
|
GPB081A09RSWITCH PUSH SPST-NO 0.5A 125V |
1,471 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | Circular - 5.20mm Dia | - |
|
LP1OA1AGSWITCH PUSH SPST-NO 0.1A 30V |
856 |
|
Datasheet |
LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.2 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|
800SP9B6M2RESWITCH PUSH SPST-NO 0.4VA 20V |
1,076 |
|
Datasheet |
800 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
K12P BK 2.2 5NSWITCH PUSH SPST-NO 0.1A 30V |
7,156 |
|
Datasheet |
K12 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | IP40 | Tactile Feedback | - | -40°C ~ 85°C |
|
WBL2UOAGYQR05BLKPWRSWITCH PUSH DPDT 30V |
1,269 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | - | DPDT | On-Mom | 300mA (DC) | - | 30 V | Round, Button, Domed | No Marking | Silver | LED, Green/Yellow | - | PC Pin | - | - | - | -20°C ~ 70°C |
|

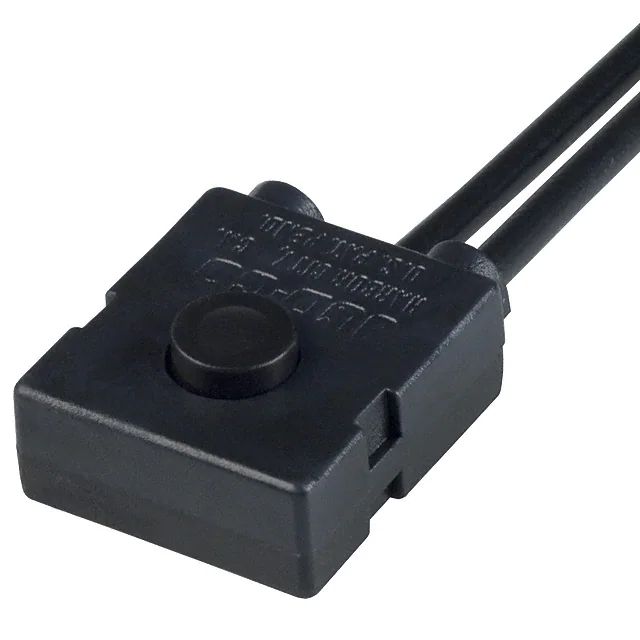

40-3979-00SWITCH PUSHBUTTON SPST 2A 14V |
3,834 |
|
Datasheet |
J-987 | Bulk | Active | Free Hanging | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
GPB024A05BBSWITCH PUSH SPST-NO 3A 125V |
2,074 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | - |
|
LP4OA1PBBTGSWITCH PUSH DPDT 0.1A 30V |
7,196 |
|
Datasheet |
LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green | 2.3 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
WBL2UEERGQR05CLRSWITCH PUSHBUTTON DPDT 300MA 30V |
1,060 |
|
Datasheet |
WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Green/Red | 1.7 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
ASP11TEBQSWITCH PB SPDT 3A 120V |
2,942 |
|
Datasheet |
ASP | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
RP3502MAREDSWITCH PUSH SPST-NO 3A 120V |
1,400 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
PB1973GBLKGILEF4SWITCH PUSHBUTTON DPST 15A 250V |
108 |
|
Datasheet |
PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Green | Incandescent, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
