Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA412C1100SWITCH PUSH DPST 16A 125V |
1,959 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|

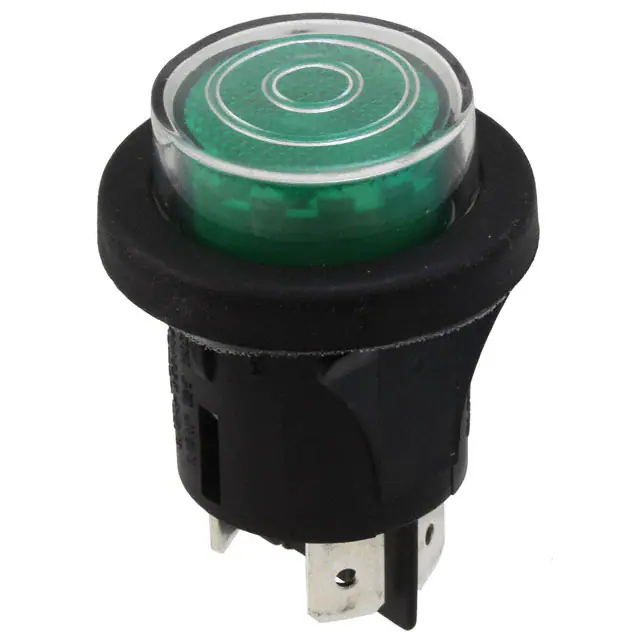

PR14EC1000-136/ACC-F03-1SWITCH PUSH DPST-NO 16A 125V |
711 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | PVC Cap and Frame | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PA412C1000-136SWITCH PUSH DPST 16A 125V |
2,183 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
MDS LFSSWITCH PUSH SPST-NO 0.1A 100V |
13,265 |
|
Datasheet |
MD | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Round, Button, Rubber | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
B3J-1100SWITCH PUSH SPST-NO 0.05A 24V |
874 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-1000SWITCH PUSH SPST-NO 0.05A 24V |
477 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
RP3502BBLKSWITCH PUSH SPST-NC 3A 120V |
435 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|

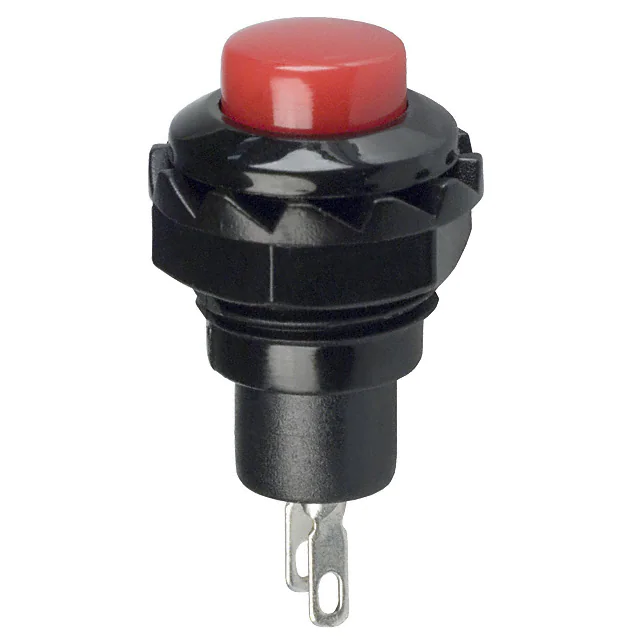

RP3502BREDSWITCH PUSH SPST-NC 3A 120V |
198 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
D6RLBUF1 LFSTOP ACTUATED KEYSWITCH ILLUMINAT |
4,918 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | White | LED, Blue | - | PC Pin | - | - | - | -20°C ~ 60°C |
|
PR142C1011-117SWITCH PUSHBUTTON DPST 16A 125V |
1,554 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Red | Neon, Red | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
D6RLWHF1 LFSTOP ACTUATED KEYSWITCH ILLUMINAT |
904 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | White | LED, White | - | PC Pin | - | - | - | -20°C ~ 60°C |
|
COM-09339SWITCH PUSHBUTTON SPDT 3A 120V |
472 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 28.00mm Dia | - |
|
COM-09336SWITCH PUSHBUTTON SPDT 3A 120V |
193 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Red | - | - | Quick Connect - 0.187" (4.7mm) | - | Arcade Style | Circular - 28.00mm Dia | - |
|
F2UEE TBSWITCH PUSH DPDT 0.5A 125V |
1,386 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | RTV Adhesive Sealant on Terminals | - | -40°C ~ 70°C |
|

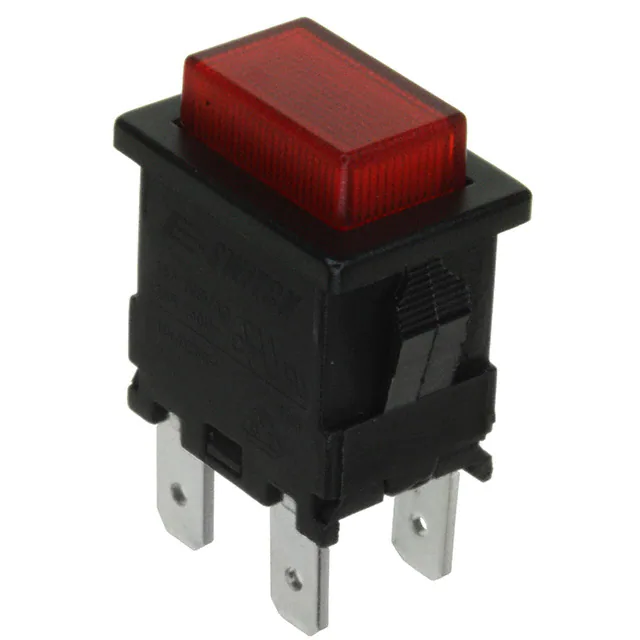

PB1973CBLKRILEF1SWITCH PUSH SPST 15A 250V |
684 |
|
Datasheet |
PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
|
40-4743-00SWITCH PUSHBUTTON SPST 6A 125V |
350 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 6A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|

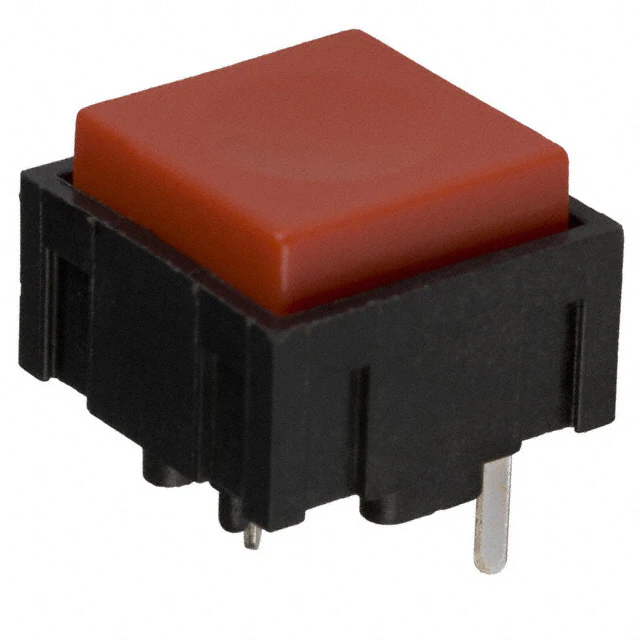

KS11R23CQDSWITCH PUSH SPST-NO 0.025A 50V |
499 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|

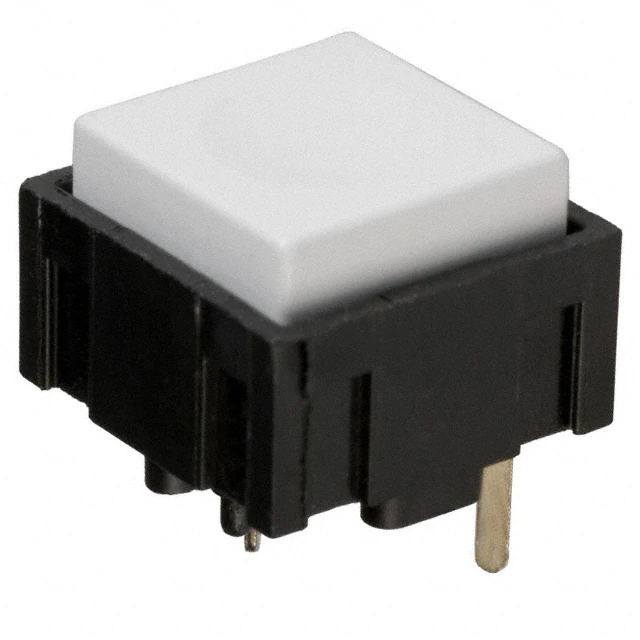

KS11R21CQDSWITCH PUSH SPST-NO 0.025A 50V |
484 |
|
Datasheet |
KS | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 25mA (AC/DC) | 50 V | 50 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 65°C |
|
RP3502MAGRNSWITCH PUSH SPST-NO 3A 120V |
3,369 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
|
|
SPPJ225800SWITCH PUSHBUTTON DPDT .2A 30VDC |
452 |
|
Datasheet |
SPPJ | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO/NC | On-Mom, Off-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
