Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

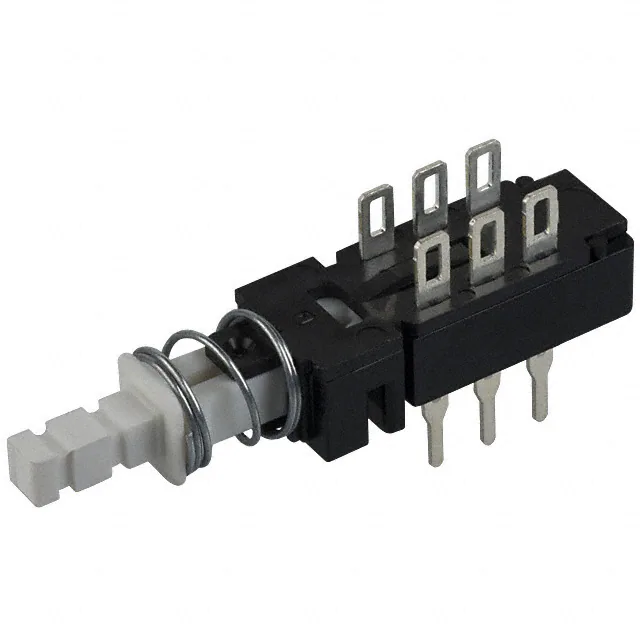

F2UOASWITCH PUSH DPDT 0.5A 125V |
1,565 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
40-2386-00SWITCH PUSHBUTTON SPST 2A 14V |
1,084 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Red | - | - | Wire Leads | - | - | - | - |
|

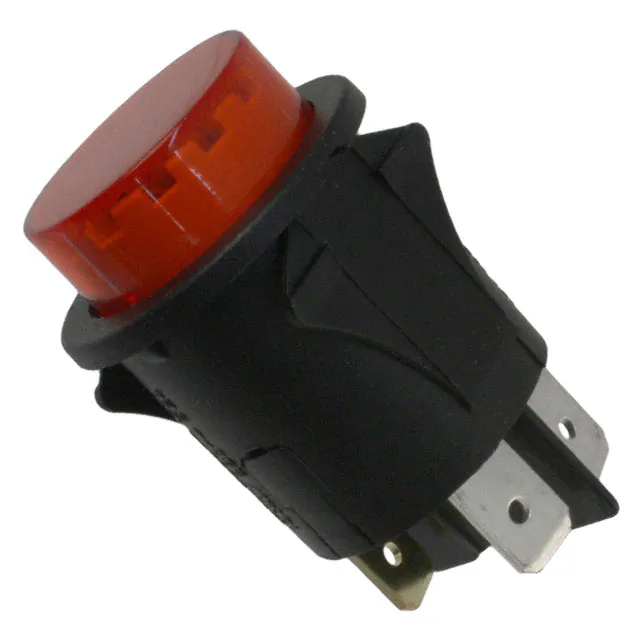

PR141C1000-116SWITCH PUSHBUTTON SPST 16A 125V |
353 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Red | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PA414C1100SWITCH PUSH SPST-NO 16A 125V |
1,886 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
PVA1 OA H1 3.5N V2SWITCH PUSH DPST-NO 0.1A 32V |
1,146 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
BNP10SCQESWITCH PB SPST-NO 3A 120V |
159 |
|
Datasheet |
BNP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -40°C ~ 85°C |
|
|
SPUJ191500SWITCH PUSHBUTTON DPDT .1A 30VDC |
1,028 |
|
Datasheet |
SPUJ | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | - | - | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
PVA2 OA H4 1.7N V2SWITCH PUSH DPDT 0.1A 32V |
4,256 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 32 V | Square, Plunger | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA2 OA H2 1.7N V2SWITCH PUSH DPDT 0.1A 32V |
1,736 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA2 OA H1 1.7N V2SWITCH PUSH DPDT 0.1A 32V |
844 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|

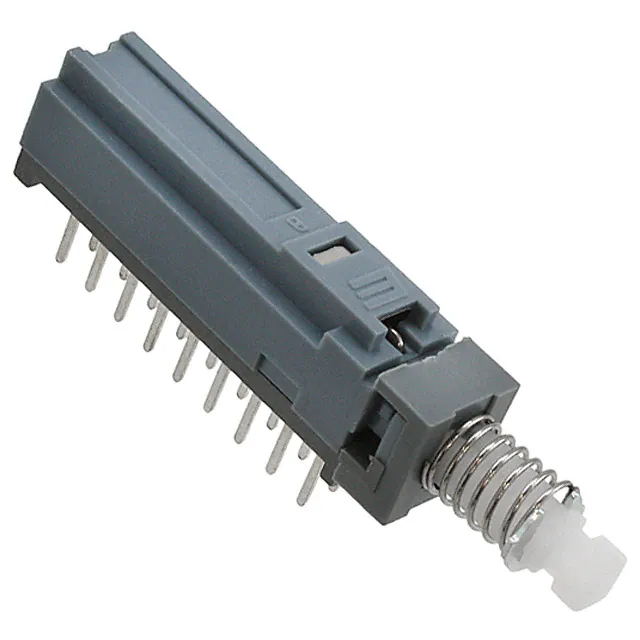

PBH6UEENAGXSWITCH PUSH 6PDT 0.1A 30V |
839 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PVA1 EE H3 1.2N V2SWITCH PUSH DPST 0.1A 32V |
698 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1EEH11.2N V2SWITCH PUSH DPST 0.1A 32V |
1,498 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA1 EE H2 1.2N V2SWITCH PUSH DPST 0.1A 32V |
793 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
PVA2 EE H2 1.7N V2SWITCH PUSH DPDT 0.1A 32V |
343 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|

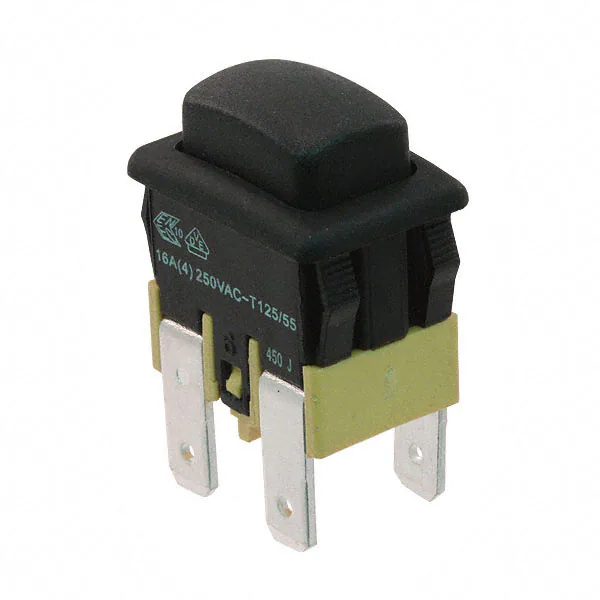

PA41EC1100SWITCH PUSH DPST-NO 16A 125V |
4,052 |
|
Datasheet |
PA4, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.00mm | -20°C ~ 65°C |
|
PVA1 EE H1 3.5N V2SWITCH PUSH DPST 0.1A 32V |
487 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPST | Off-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Red | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
3491SWITCH PUSH SPST-NO WHT 10MA 5V |
154 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 30.00mm Dia | - |
|
3429SWITCH PUSH SPST-NO WHT 10MA 5V |
122 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Round, Button | No Marking | Clear (White Filter/Diffuser) | LED, White | 5 VDC | Quick Connect - 0.110" (2.8mm) | - | Arcade Style | Circular - 24.00mm Dia | - |
|
RP3502MAYELSWITCH PUSH SPST-NO 3A 120V |
504 |
|
Datasheet |
RP3502 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 120 V | - | Round, Button | No Marking | Yellow | - | - | Solder Lug | - | - | Circular - 12.70mm Dia | -20°C ~ 65°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
