Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

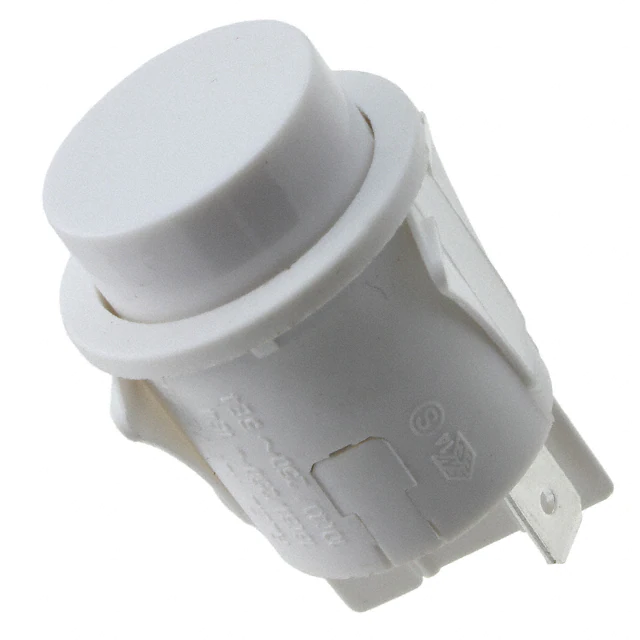

PR144C2200SWITCH PUSH SPST-NO 16A 125V |
495 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
40-4313-00SWITCH PUSH SPST-NO 3A 125V |
8,250 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
400xxQX.jpg)
|
PB400OAQXSWITCH PB DPST 3A 30V |
404 |
|
Datasheet |
PB400 | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 3A (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -5°C ~ 60°C |
|
PS1023AREDSWITCH PUSH SPST-NO 3A 125V |
1,653 |
|
Datasheet |
PS1023 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
ESB-33536SWITCH PUSH DPDT 0.2A 14V |
656 |
|
Datasheet |
ESB33 | Tape & Reel (TR) | Active | Surface Mount | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | White | - | - | Gull Wing | - | - | - | - |
|
|
PB400EEQXSWITCH PB DPST 3A 30V |
520 |
|
Datasheet |
PB400 | Bulk | Active | Through Hole, Right Angle | Standard | DPST | Off-On | 3A (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -5°C ~ 60°C |
|

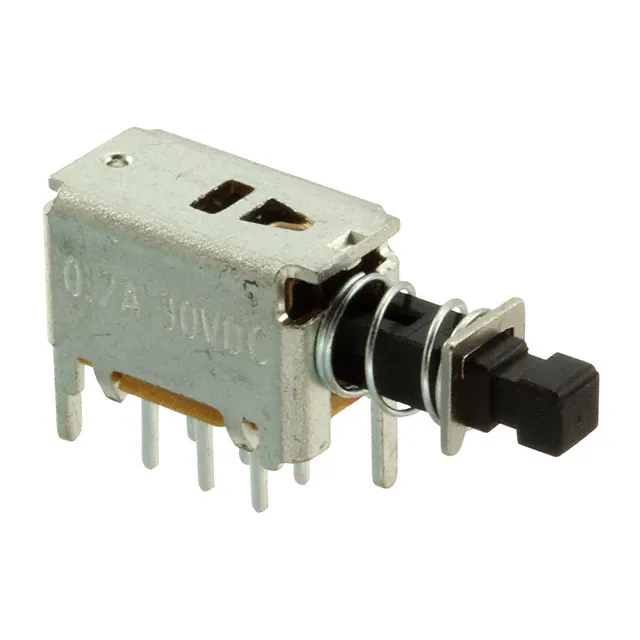

PN22SJNA03QESWITCH PUSH DPDT 0.2A 30V |
1,189 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

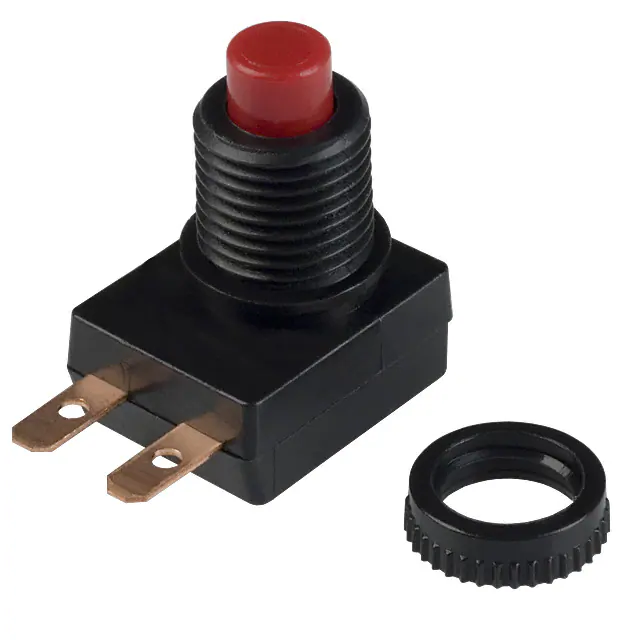

40-1673-01SWITCH PUSH SPST-NO 4A 14V |
676 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 4A (DC) | - | 14 V | Round, Plunger | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|

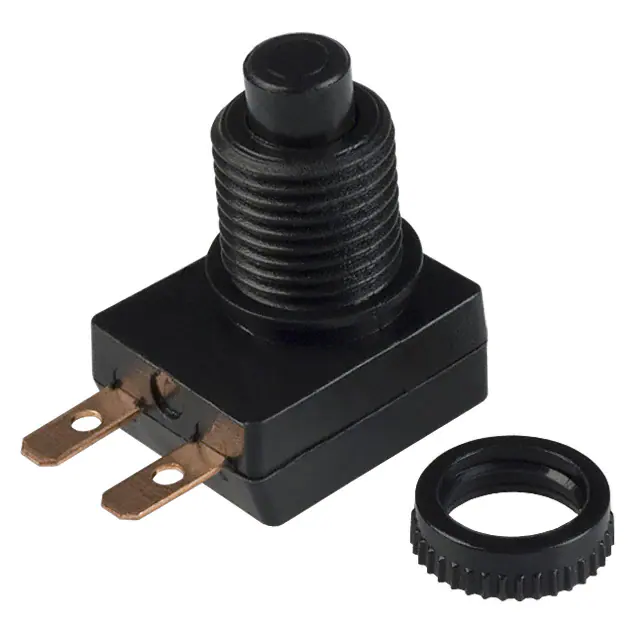

40-2502-01SWITCH PUSHBUTTON SPST 2A 14V |
2,711 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
PBH4UEENAGXSWITCH PUSH 4PDT 0.1A 30V |
2,570 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
40-3536-00SWITCH PUSH SPST-NC 5A 14V |
1,814 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 5A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
KFB2ANA1BBBSWITCH PUSH SPST 10A 125V |
12,990 |
|
Datasheet |
KF | Box | Active | Panel Mount, Snap-In | Standard | SPST | On-Off | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
40-4675-00SWITCH PUSH SPST-NC 10A 14V |
394 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 10A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|

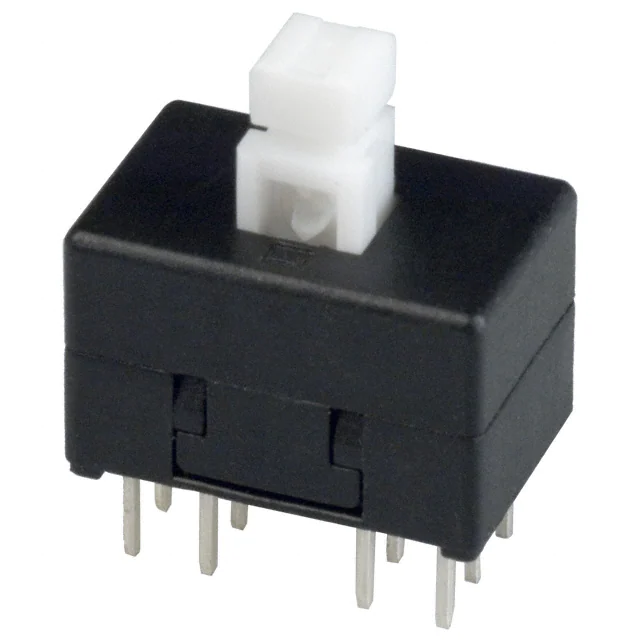

TL4201EEYASWITCH PUSH 4PDT 0.1A 30V |
845 |
|
Datasheet |
TL4201 | Bulk | Active | Through Hole | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
40-3145-01SWITCH PUSHBUTTON SPST 6A 125V |
1,648 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 6A (AC) | 125 V | - | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|

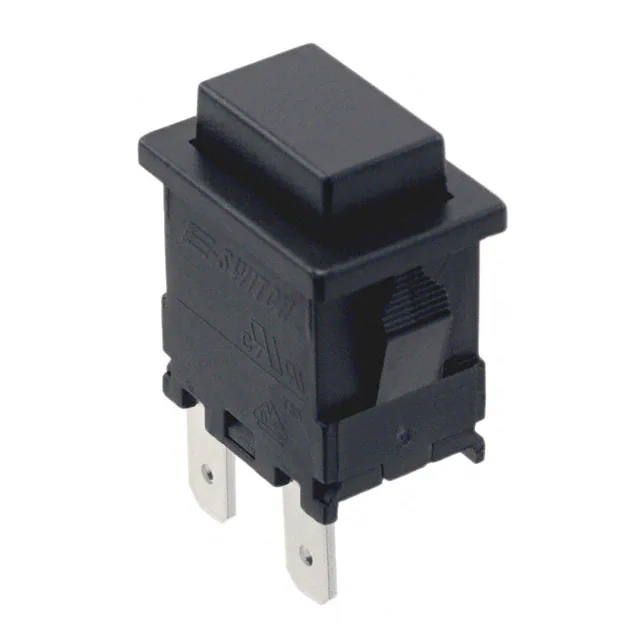

PB1973ABLKBLKEF0SWITCH PUSH SPST 15A 250V |
883 |
|
Datasheet |
PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST | On-Off | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
|

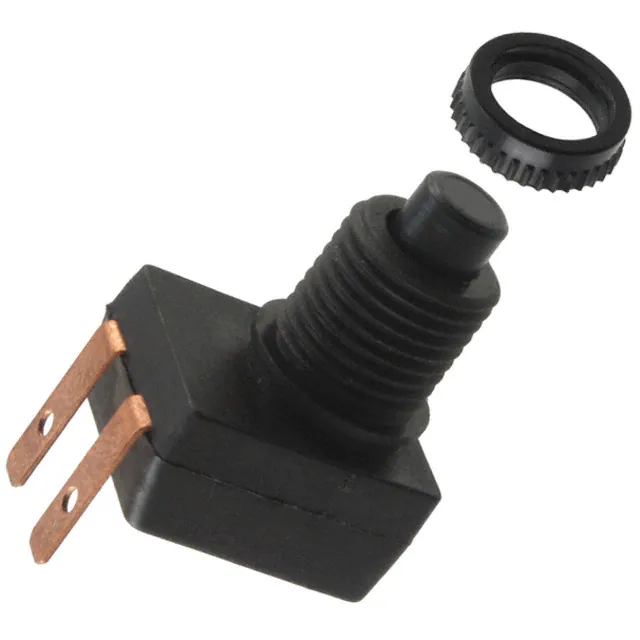

40-4677-00SWITCH PUSHBUTTON SPST 5A 14V |
2,639 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 5A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
PS1040AREDSWITCH PUSH SPST-NO 3A 125V |
1,260 |
|
Datasheet |
PS1040 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.40mm Dia | -20°C ~ 65°C |
|

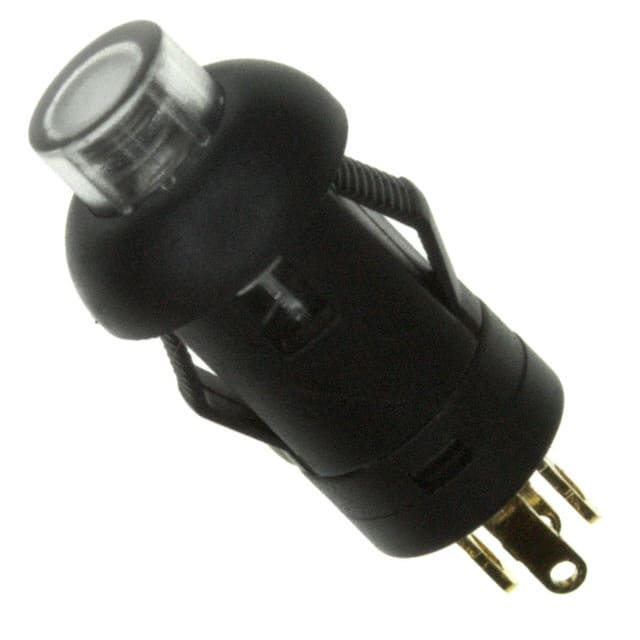

LP1OA1ABSWITCH PUSH SPST-NO 0.1A 30V |
5,424 |
|
Datasheet |
LP1 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue | 3.7 VDC | Solder Lug | - | - | Circular - 8.00mm Dia | -40°C ~ 85°C |
|
PB1973BBLKBLKEF0SWITCH PUSH SPST-NO 15A 250V |
316 |
|
Datasheet |
PB1973 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 15A (AC), 10A (DC) | 250 V | 125 V | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -10°C ~ 55°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
