Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D6RLRDF1 LFSTOP ACTUATED KEYSWITCH ILLUMINAT |
2,619 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | White | LED, Red | - | PC Pin | - | - | - | -20°C ~ 60°C |
|

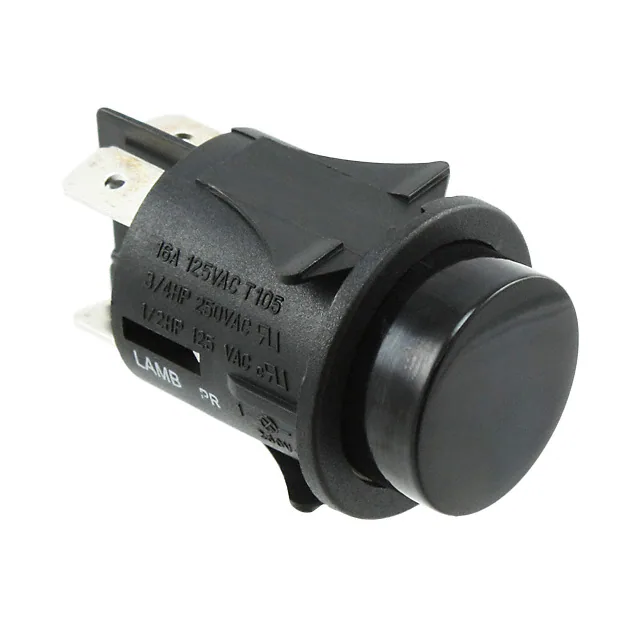

PR14EC1100SWITCH PUSH DPST-NO 16A 125V |
2,221 |
|
Datasheet |
PR1, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|

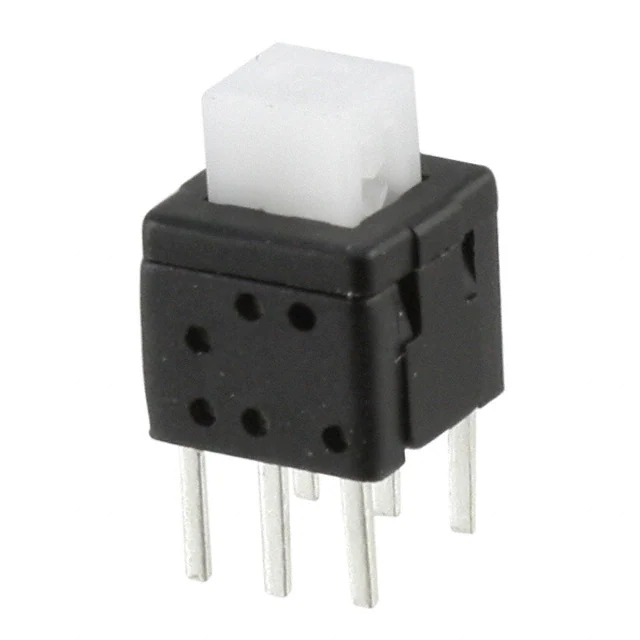

PS-2214-L NS PASWITCH PUSHBUTTON DPDT 0.1A 30V |
989 |
|
Datasheet |
PS, COMAX | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Natural | - | - | PC Pin | - | - | - | - |
|
MX2A-G1NBMX RGB, BROWN STEM, FULL TRAVEL |
484 |
|
Datasheet |
MX | Bag | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | - | 5 V | 5 V | Plunger for Cap | - | Brown | LED, Blue/Green/Red | - | PC Pin | IP40 | - | - | - |
|

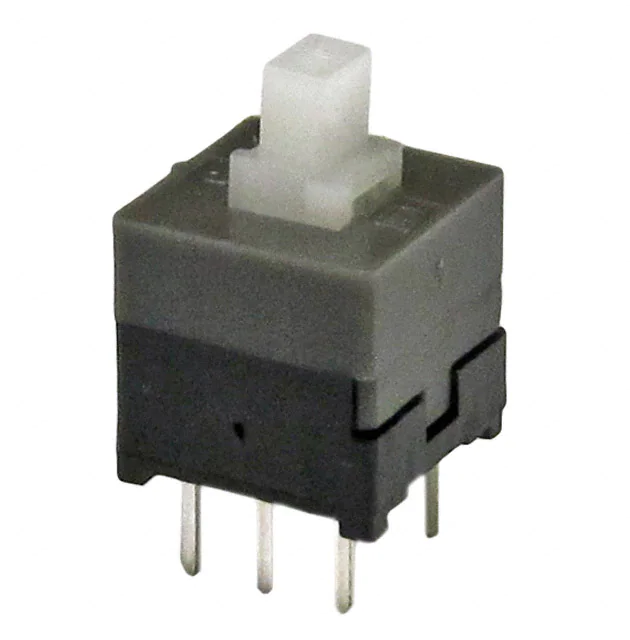

GPBS-850LSWITCH PUSHBUTTON DPDT 0.3A 30V |
2,539 |
|
Datasheet |
GPBS | Bulk | Active | Through Hole | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Rectangular, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
40-4394-00SWITCH PUSH SPST-NO 2A 14V |
1,272 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
40-1672-02SWITCH PUSHBUTTON SPST 2A 14V |
268 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Red | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
PS1040ABLKSWITCH PUSH SPST-NO 3A 125V |
3,160 |
|
Datasheet |
PS1040 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.40mm Dia | -20°C ~ 65°C |
|
PS1023BBLKSWITCH PUSHBUTTON SPST 3A 125V |
5,796 |
|
Datasheet |
PS1023 | Bulk | Active | Panel Mount, Front | Standard | SPST | Off-On | 3A (AC) | 125 V | - | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 12.20mm Dia | -20°C ~ 65°C |
|
PS1024AREDSWITCH PUSH SPST-NO 3A 125V |
5,200 |
|
Datasheet |
PS1024 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 7.20mm Dia | -20°C ~ 65°C |
|
PN12SJNA03QESWITCH PUSH SPDT 0.2A 30V |
4,033 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

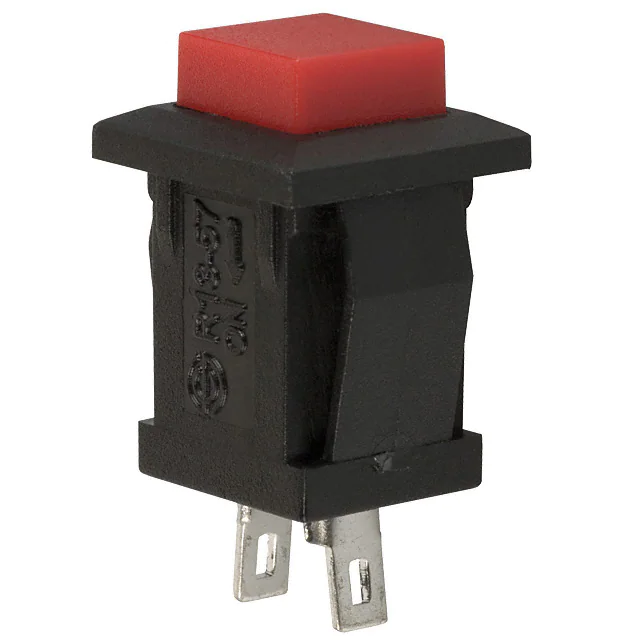

PS1057AREDSWITCH PUSH SPST-NO 1A 125V |
1,311 |
|
Datasheet |
PS1057 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Square, Button | No Marking | Red | - | - | Solder Lug | - | - | Rectangular - 12.60mm x 11.30mm | -20°C ~ 65°C |
|

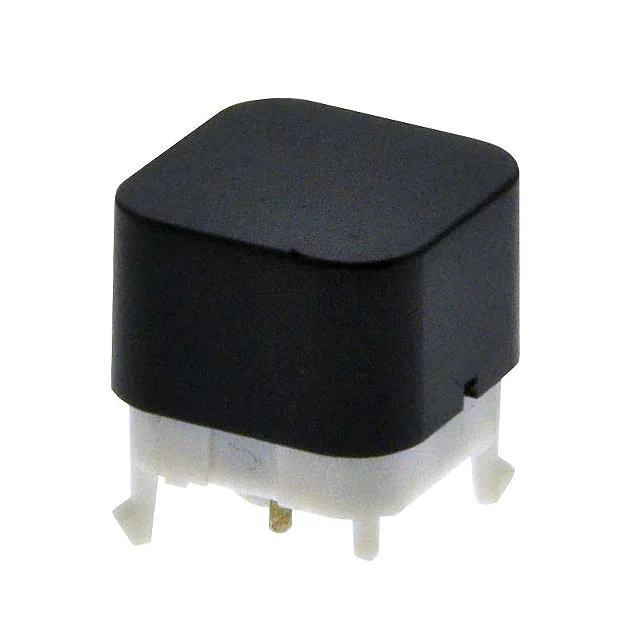

PB300STQSWITCH PUSH SPST-NO 30MA 28V |
8,944 |
|
Datasheet |
PB300 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 30mA (DC) | - | 28 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 95°C |
|
40-3573-02SWITCH PUSH SPST-NO 2A 14V |
4,323 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
40-3429-00SWITCH PUSH SPST-NO 2A 14V |
555 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|

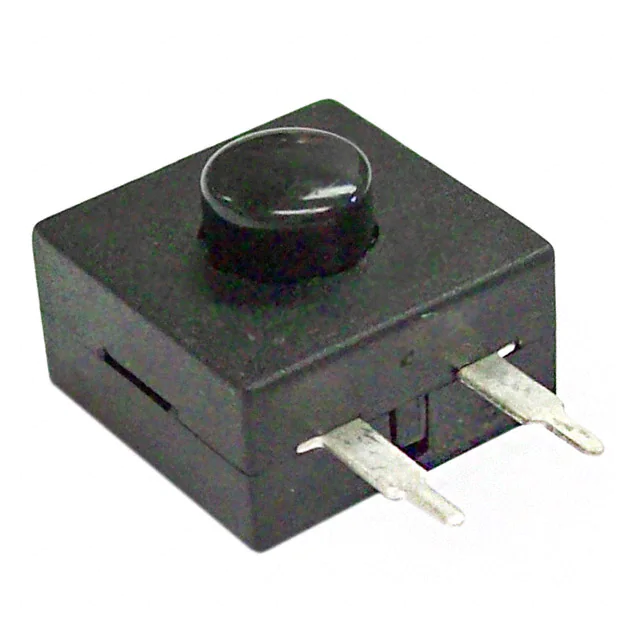

GPTS203212BSWITCH PUSHBUTTON SPST 1A 30V |
6,218 |
|
Datasheet |
GPTS | Bulk | Active | Through Hole, Right Angle | Standard | SPST | Off-On | 1A (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | - |
|

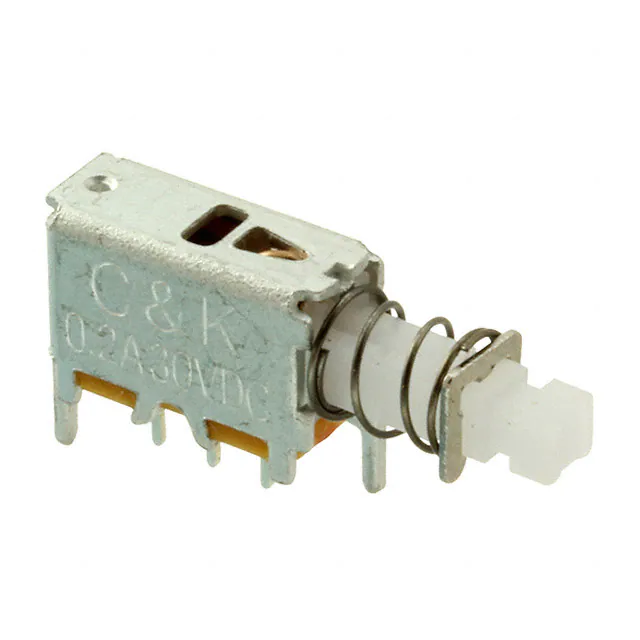

PN12SHNA03QESWITCH PUSH SPDT 0.2A 30V |
327 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PN21SDSA03QESWITCH PUSH DPDT 0.2A 30V |
1,210 |
|
Datasheet |
PN | Bag | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

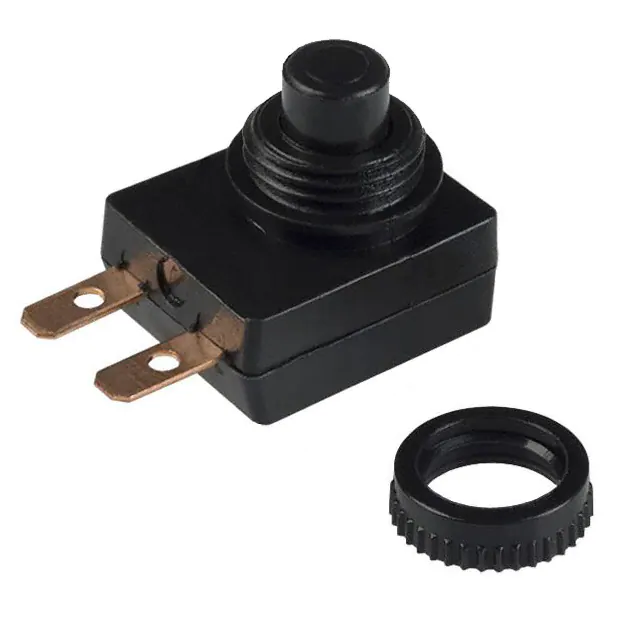

40-4520-00SWITCH PUSHBUTTON SPST 10A 14V |
1,303 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 10A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|

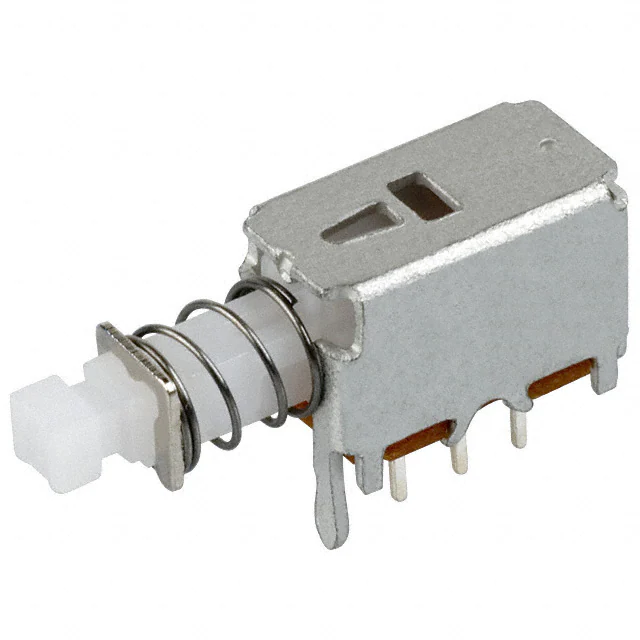

PN21SJNA03QESWITCH PUSH DPDT 0.2A 30V |
586 |
|
Datasheet |
PN | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
