Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WTSC-10R0K-A3SINGLE-COIL CIRCLE BASE WIRELESS |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 75mOhm Max | - | 4A | 6A | - | -20°C ~ 85°C | 1.38" Dia x 0.13" H (35.0mm x 3.3mm) |
|
WTSC-2R76J-A11CUSTOM WIRELESS CHARGING COIL |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
AWCCA-RX350300-101RX COIL, 1 COIL 25UH |
0 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 2 Layer | 25µH | ±10% | 170mOhm | 85 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.38" Dia x 0.12" H (35.0mm x 3.0mm) |
|
AWCCA-38R32H09-C01-BRX 1 COIL 1 LAYER 11.1UH 2.1A |
0 |
|
Datasheet |
AWCCA-38R32 | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 11.1µH | ±10% | 260mOhm | 22 @ 100kHz | 2.1A | 12A | 11MHz | -25°C ~ 85°C | 1.54" L x 1.30" W x 0.05" H (39.0mm x 33.0mm x 1.3mm) |
|
WTSQ-10R0K-MP-A5SINGLE-COIL SQUARE BASE WIRELESS |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 48mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) |
|
|
AWCCA-RX483205-103WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 14.5µH | ±10% | 140mOhm | 60 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|
|
SRX324801120KBARX 1 COIL 2 LAYER 12UH 3000MA |
3 |
|
Datasheet |
SRX | Bulk | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm Max | - | 3A | - | - | -40°C ~ 85°C | 1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm) |
|
|
SRX2939018R6JBRX 1 COIL 2 LAYER 8.6UH 2400MA |
0 |
|
Datasheet |
SRX | Active | Receiver | 1 Coil, 1 Layer | 8.6µH | ±5% | 165mOhm Max | - | 2.4A | - | - | -40°C ~ 85°C | 1.52" L x 1.20" W x 0.04" H (38.5mm x 30.5mm x 1.1mm) | |
|
|
AWCCA-RX404012-102WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm | 30 @ 125kHz | - | - | - | -25°C ~ 85°C | 1.57" L x 1.57" W x 0.05" H (40mm x 40mm x 1.2mm) |
|
|
AWCCA-RX514012-F003WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8.5µH | ±10% | 160mOhm | 25 @ 125kHz | - | - | - | -25°C ~ 85°C | 2.01" L x 1.57" W x 0.05" H (51.0mm x 40.0mm x 1.2mm) |
|
|
SCT50036R3KA11STX 1 COIL 1 LAYER 6.3UH 5000MA |
6 |
|
Datasheet |
SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | - | 5A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
|
SRX324501140KSRX 1 COIL 1 LAYER 14UH 1200MA |
6 |
|
Datasheet |
SRX | Bag | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm Max | - | 1.2A | - | - | -40°C ~ 85°C | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
|
|
IWAS3827ABEB100JF1IWAS-3827AB-F1 10 5% EB E2 |
0 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.65µH | ±5% | 178mOhm | 30 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.50" L x 1.05" W x 0.07" H (38.1mm x 26.7mm x 1.7mm) |
|
|
AWCCA-RX300200-102WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 6.3µH | ±10% | 140mOhm | 26 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.18" Dia x 0.08" H (30.0mm x 2.0mm) |
|
WTSQ-6R3K-A11SINGLE-COIL SQUARE BASE WIRELESS |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 9A | 10A | - | -20°C ~ 85°C | 2.09" L x 2.09" W x 0.21" H (53.0mm x 53.0mm x 5.3mm) |
|

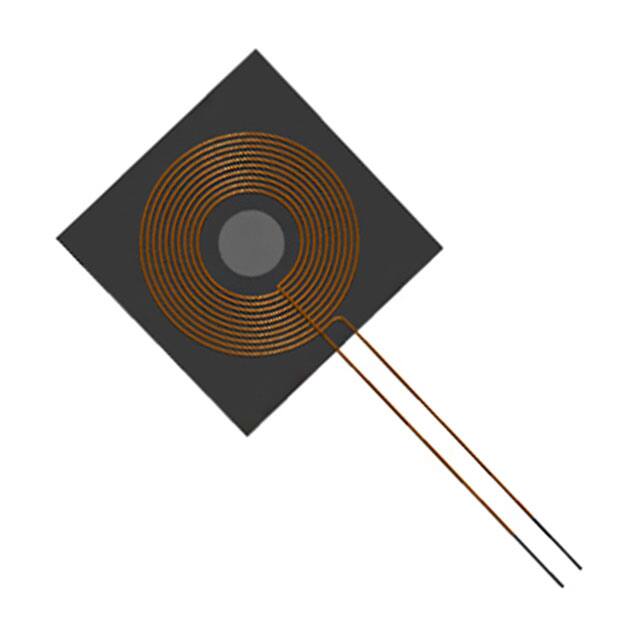

AWCCA-37R37H18-C01-BRECEIVER COIL, 1 COIL, 10UH |
0 |
|
Datasheet |
AWCCA | Box | Obsolete | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 160mOhm | 38 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.46" Dia x 0.07" H (37.0mm x 1.8mm) |
|
|
STX5050036R3KA11STX 1 COIL 1 LAYER 6.3UH 5000MA |
5 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 45mOhm Max | - | 5A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) |
|
|
IWAS4832AAEB220JF1IWAS-4832AA-F1 22 5% EB E2 |
0 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 22µH | ±5% | 427mOhm | 38 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm) |
|
AWCCA-20R20H08-C01-BRECEIVER COIL, 12UH |
0 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 290mOhm | 20 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.79" L x 0.79" W x 0.03" H (20.0mm x 20.0mm x 0.8mm) |
|
AWCCA-20N20H20-C01-BTX OR RX COIL, 1 COIL 6.3UH |
0 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 150mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.79" Dia x 0.08" H (20.0mm x 2.0mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
