Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

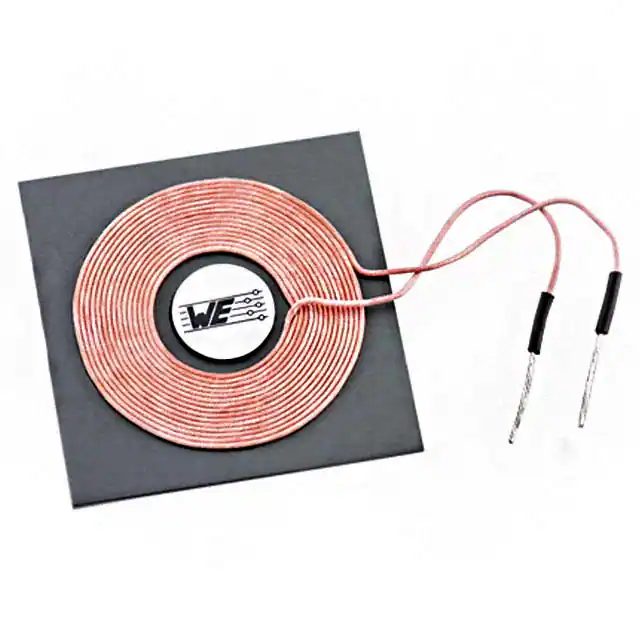

760308201RX 1 COIL 1 LAYER 10UH 4.5A |
0 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10µH | ±5% | 200mOhm Max | 50 @ 125kHz | 3.5A | 8A | 15MHz | -20°C ~ 105°C | 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) |
|
AWCCA-TX1005545-F002WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 75mOhm | 90 @ 100kHz | - | - | - | -25°C ~ 85°C | 3.94" L x 2.17" W x 0.18" H (100.0mm x 55.0mm x 4.5mm) |
|
1461794011RX TX 2 COIL 1 LAYER 9.6UH 5.6UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Tray | Active | Receiver, Transmitter | 2 Coil, 1 Layer | 9.6µH, 5.6µH | ±2% | 550mOhm, 38mOhm | 18 @ 200kHz, 160 @ 200kHz | - | - | - | - | 1.06" Dia x 0.15" H (27.0mm x 3.7mm) |
|
1461798021RX 1 COIL 1 LAYER 4UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 4µH | ±2% | 235mOhm | 115 @ 6.78MHz | - | - | - | - | 1.38" Dia x 0.02" H (35.0mm x 0.6mm) |
|
1461794001RX 2 COIL, 1 LYR 8.9UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 2 Coil, 1 Layer | 8.9µH | ±2% | 350mOhm | 25 @ 200kHz | - | - | - | - | 2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm) |
|
1461798001RX 1 COIL 1 LAYER 2.9UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 2.9µH | ±2% | 120mOhm | 160 @ 6.78MHz | - | - | - | - | 2.24" L x 2.86" W x 0.04" H (56.8mm x 72.8mm x 1.0mm) |
|
RWC5353EJ240-500TX 1 COIL 2 LAYER 24UH 5.5A |
0 |
|
Datasheet |
RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|
1461790001RX 1 COIL 1 LAYER 17.3UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 17.3µH | ±2% | 450mOhm | - | - | - | - | - | 1.69" L x 1.97" W x 0.02" H (43.0mm x 50.0mm x 0.5mm) |
|
CTTX505035BF-6R3KWIRELESS TRANSMITTER COIL |
4 |
|
- |
CTTX505035BF | Bulk | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 6.3µH | ±10% | 25mOhm | - | 10A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm) |
|
1461792001RX 2 COIL 1 LAYER 10.6UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 2 Coil, 1 Layer | 10.6µH | ±2% | 190mOhm | 24 @ 200kHz | - | - | - | - | 2.55" L x 2.11" W x 0.06" H (64.7mm x 53.6mm x 1.4mm) |
|
|
WT1005690-11F2-M9-GTX COIL UNIT |
0 |
|
- |
WT | Box | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
STX106530612R5KT3 COIL 1 LAYER 12.5UH, 11.5UH, 1 |
3 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | - | 6.5A | - | - | -40°C ~ 85°C | 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm) |
|
WRM483245-15F5-5V-GRX 1 COIL 1 LYR 13UH |
0 |
|
Datasheet |
WRM | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 13µH | - | 270mOhm | - | - | - | - | - | 2.99" L x 1.26" W x 0.04" H (76.0mm x 32.0mm x 1.0mm) |
|

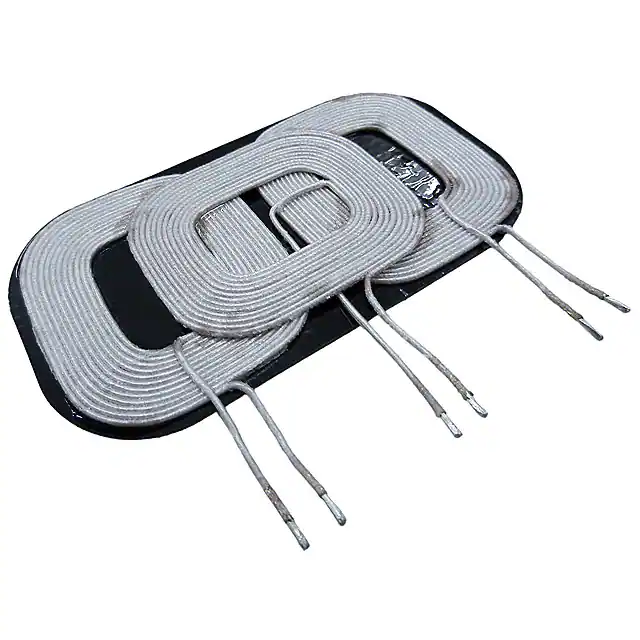

WT-1005660-12K2-A6-GTX 3 COIL 1 LYR 12.5UH/11.5UH |
0 |
|
Datasheet |
WT | Tray | Not For New Designs | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 70 @ 100kHz | - | - | - | -30°C ~ 70°C | 3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm) |
|

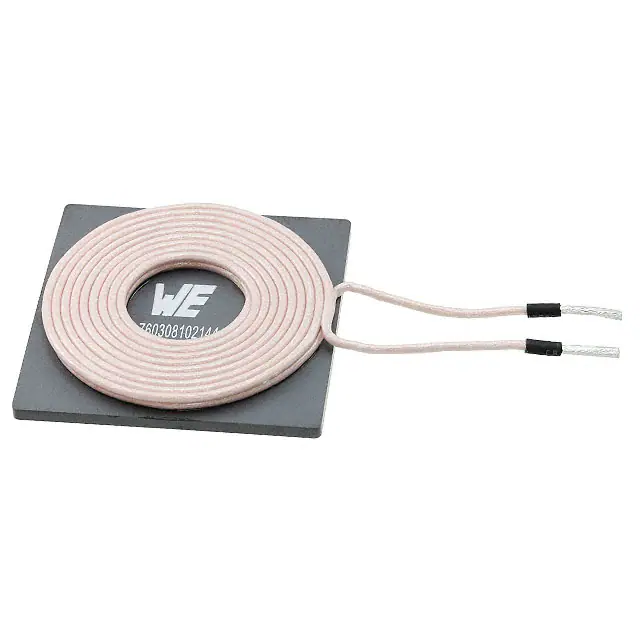

760308102144WE-WPCC WIRELESS POWER CHARGING |
0 |
|
Datasheet |
WE-WPCC | Box | Obsolete | Transmitter | 1 Coil, 2 Layer | 19.5µH | ±10% | 45mOhm Max | 220 @ 125kHz | 9.5A | 20A | 5MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.28" H (53.30mm x 53.30mm x 7.00mm) |
|
QPT-6071ATRANSMITTER |
1 |
|
Datasheet |
- | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 380mOhm Max | 65 @ 100kHz | - | - | - | 0°C ~ 40°C | 1.97" Dia x 0.09" H (50.0mm x 2.3mm) |
|
2114UNIVERSAL QI WIRELESS CHARGING M |
0 |
|
Datasheet |
- | Bulk | Active | Receiver | - | - | - | - | - | 600mA | - | - | - | - |
|
|
2115UNIVERSAL QI WIRELESS CHARGING M |
0 |
|
Datasheet |
- | Bulk | Obsolete | Receiver | - | - | - | - | - | 600mA | - | - | - | - |
|
|
2116UNIVERSAL QI WIRELESS CHARGING M |
0 |
|
Datasheet |
- | Bulk | Obsolete | Receiver | - | - | - | - | - | 600mA | - | - | - | - |
|
2117UNIVERSAL QI WIRELESS CHARGING M |
0 |
|
Datasheet |
- | Bulk | Obsolete | Receiver | - | - | - | - | - | 600mA | - | - | - | - |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
