Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2677QI WIRELESS CHARGING RECEIVER |
0 |
|
Datasheet |
- | Bulk | Obsolete | Receiver | - | - | - | - | - | - | - | - | - | 3.94" L x 1.50" W x 0.059" H (100.0mm x 38.0mm x 1.5mm) |
|
QPT-0003Transmitter |
0 |
|
Datasheet |
- | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 35mOhm | 100 @ 100kHz | - | - | - | 0°C ~ 40°C | 2.11" L x 2.11" W x 0.13" H (53.5mm x 53.5mm x 3.3mm) |
|
QPT-0039ATransmitter |
0 |
|
Datasheet |
- | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 35mOhm | 65 @ 100kHz | - | - | - | 0°C ~ 40°C | 1.97" Dia x 0.09" H (50.0mm x 2.3mm) |
|

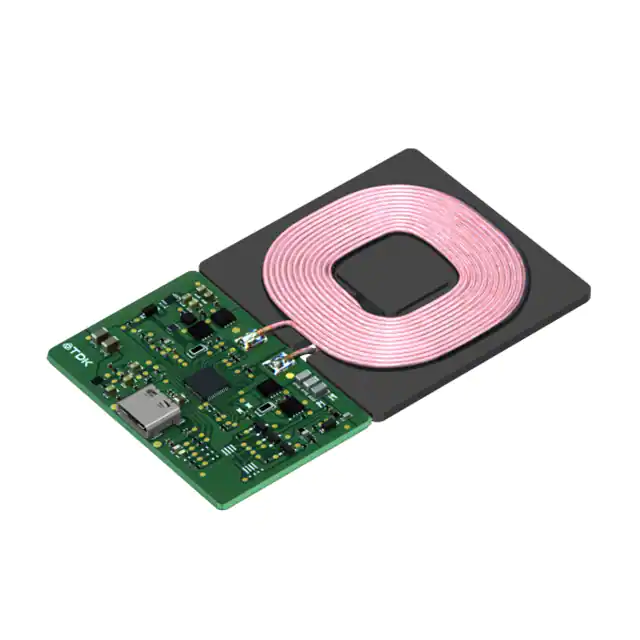

WTM905525-12F2-12V-GWIRELESS POWER TRANSFER TX COIL |
0 |
|
Datasheet |
WTM | Box | Obsolete | Transmitter | 1 Coil, 1 Layer | - | - | - | - | - | - | - | - | 3.43" L x 2.05" W x 0.197" H (87.0mm x 52.0mm x 5.0mm) |
|

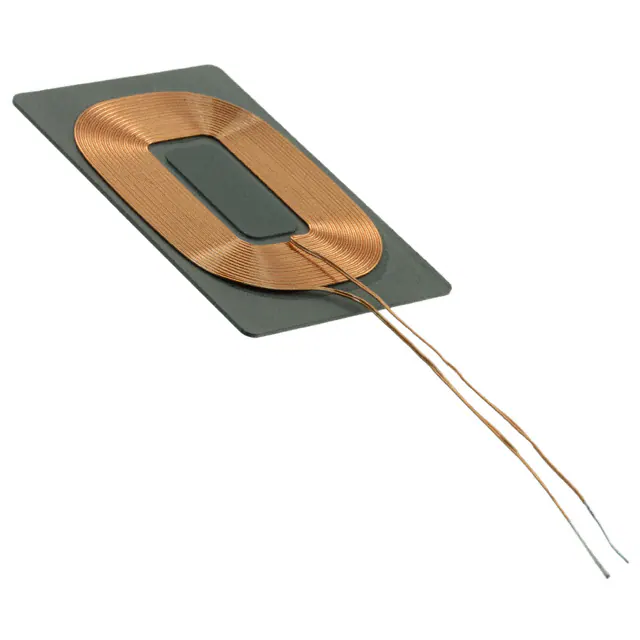

IWAS4832FFEB9R7J50RX 1 COIL 1 LAYER BIFILAR 9.7UH |
0 |
|
- |
- | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 9.7µH | ±5% | 200mOhm | 30 @ 200kHz | - | - | - | - | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|
IWAS3827ECEB100J50RX 1 COIL 1 LAYER 10.7UH |
0 |
|
Datasheet |
- | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 10.7µH | ±5% | 183mOhm | 30 @ 200kHz | - | - | - | - | 1.50" L x 1.05" W x 0.04" H (38.1mm x 26.7mm x 1.0mm) |
|

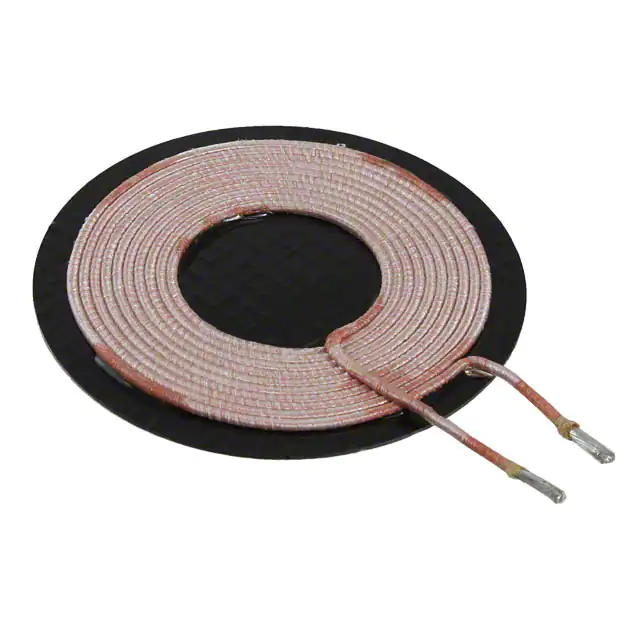

WT-505060-10K2-A11-GTX 1 COIL 1 LYR 6.3UH |
0 |
|
Datasheet |
WT | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 60mOhm Max | 70 @ 100kHz | - | - | - | -30°C ~ 70°C | 1.97" Dia x 0.13" H (50.0mm x 3.4mm) |
|

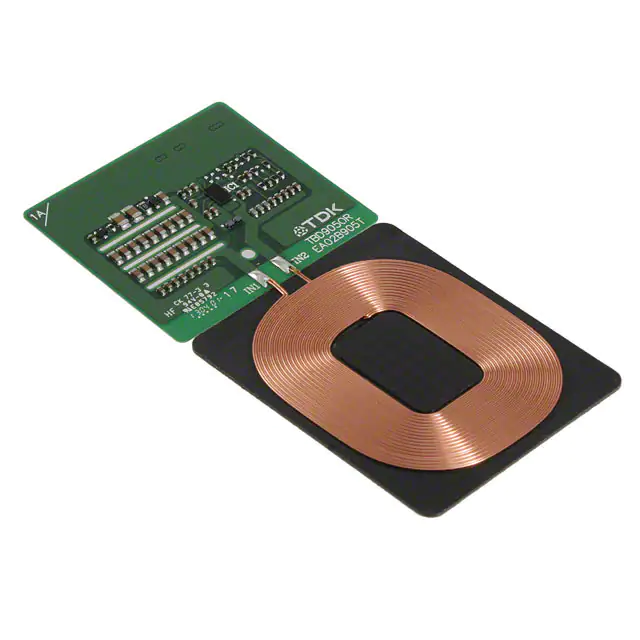

TMX-66-2M7RX 1 COIL 1 LYR |
0 |
|
Datasheet |
- | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | - | - | - | 24 @ 100kHz | - | - | - | - | 1.46" L x 1.25" W x 0.03" H (38.0mm x 32.0mm x 1.0mm) |
|
WR-483250-15M2-GRX 1 COIL 1 LYR BIFILAR 10.5UH |
0 |
|
Datasheet |
WR | Tray | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 10.5µH | ±5% | 200mOhm Max | - | - | - | - | -30°C ~ 70°C | 1.90" L x 1.27" W x 0.04" H (48.2mm x 32.2mm x 1.1mm) |
|

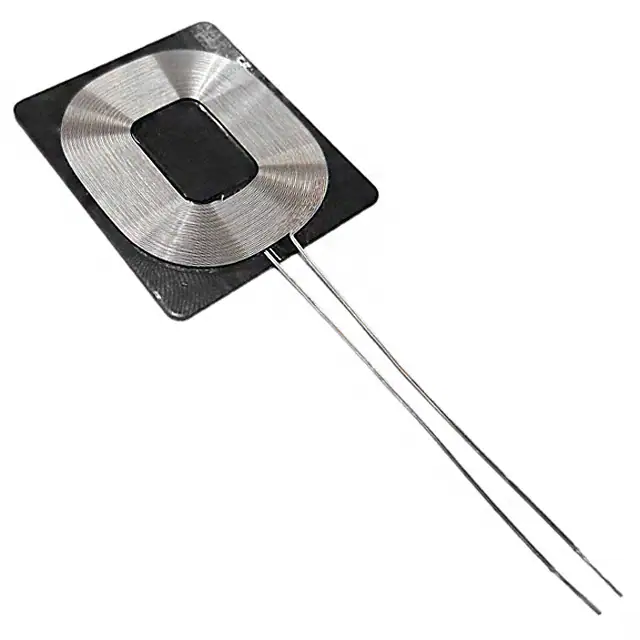

WR-383250-17M2-GRX 1 COIL 1 LYR BIFILAR 11.1UH |
0 |
|
Datasheet |
WR | Tray | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | 11.1µH | ±5% | 270mOhm Max | - | - | - | - | -30°C ~ 70°C | 1.50" L x 1.26" W x 0.04" H (38.1mm x 32.0mm x 1.0mm) |
|
AWCCA-48R32H11-C01-BRX 1 COIL 1 LAYER 10.5UH 2.6A |
0 |
|
Datasheet |
AWCCA-48R32 | Box | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 190mOhm | 28 @ 100kHz | 2.6A | 15A | 11MHz | -25°C ~ 85°C | 1.90" L x 1.28" W x 0.04" H (48.5mm x 32.5mm x 1.2mm) |
|

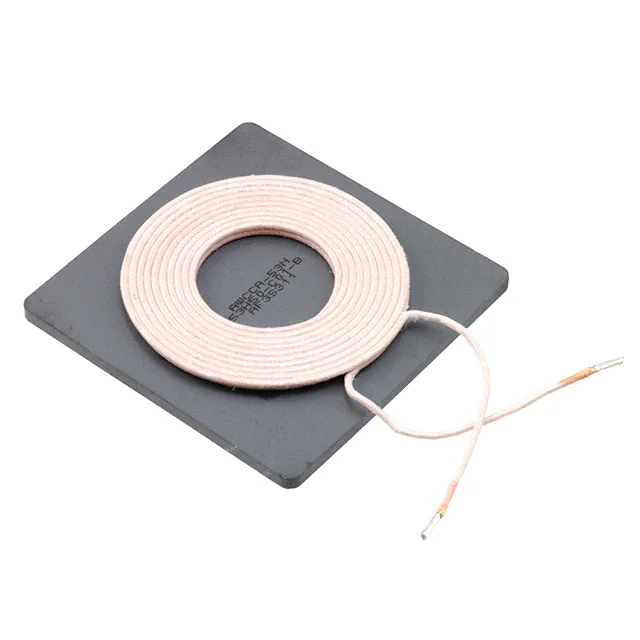

AWCCA-53N53H50-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
0 |
|
Datasheet |
AWCCA-53N53 | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 170 @ 100kHz | 5.7A | 30A | 2.8MHz | -25°C ~ 85°C | 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) |
|

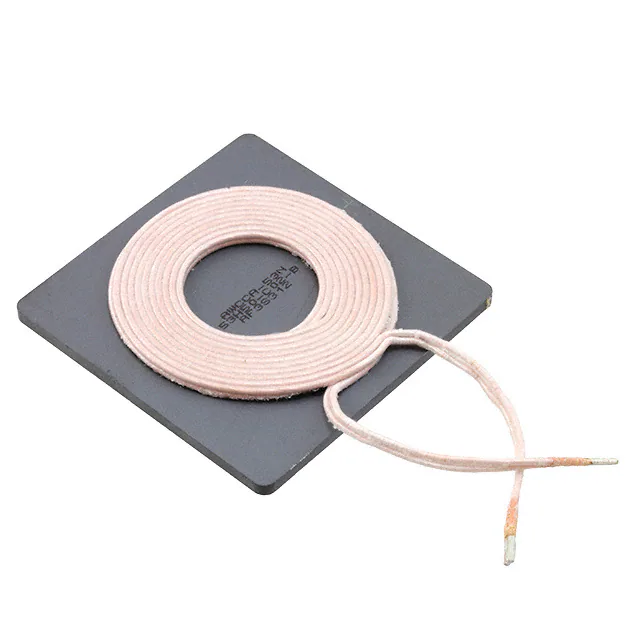

AWCCA-53N53H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11A |
0 |
|
Datasheet |
AWCCA-53N53 | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 66 @ 100kHz | 11A | 40A | 6.4MHz | -25°C ~ 85°C | 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) |
|

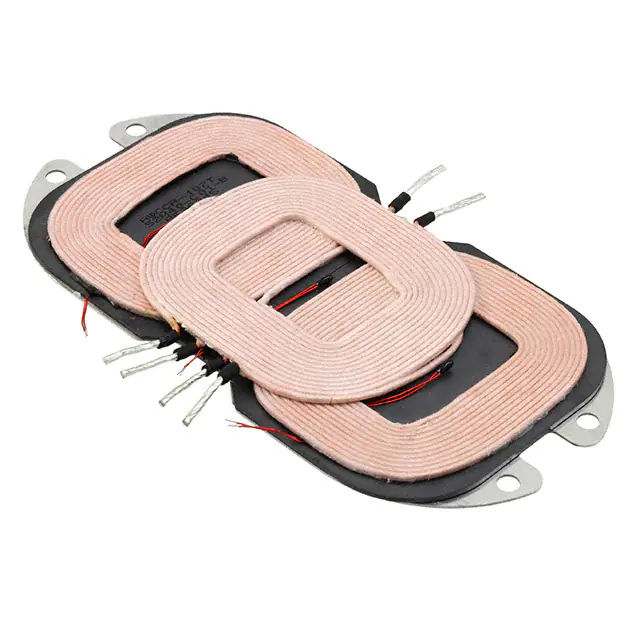

AWCCA-107T52H40-C01-BTX 3 COIL 1 LAYER 11.5UH 12UH |
0 |
|
Datasheet |
AWCCA-107T52 | Box | Discontinued at Digi-Key | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12µH | ±10% | 56mOhm | 80 @ 100kHz | 7.5A | 18A | 7MHz | -25°C ~ 85°C | 4.25" L x 2.06" W x 0.15" H (108.0mm x 52.5mm x 4.0mm) |
|
IWAS4832ECEB160J50RX 1 COIL 1 LAYER 16.2UH |
0 |
|
Datasheet |
- | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 16.2µH | ±5% | 366mOhm Max | 30 @ 200kHz | - | - | - | - | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.1mm) |
|
IWAS4832FEEB150J50RX 1 COIL 1 LAYER 16.2UH |
0 |
|
Datasheet |
- | Bag | Obsolete | Receiver | 1 Coil, 1 Layer | 16.2µH | ±5% | 366mOhm | 30 @ 200kHz | - | - | - | - | - |
|

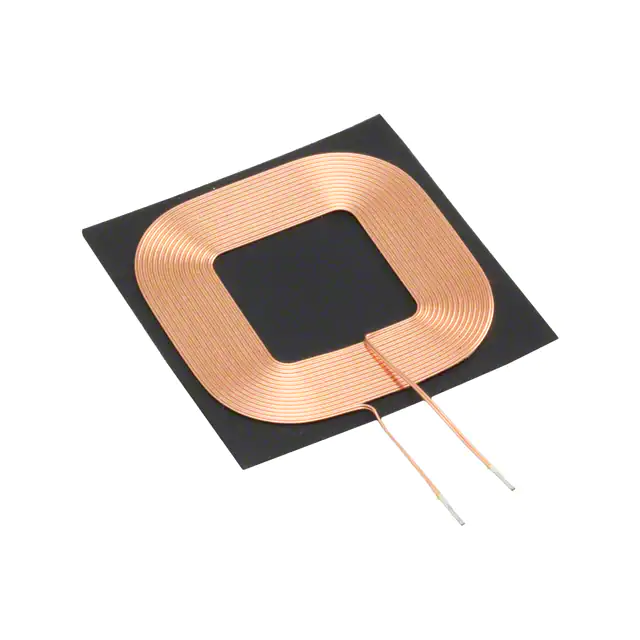

SWC4242KB120-100RX 1 COIL 1 LAYER 12.5UH |
0 |
|
Datasheet |
SWC | Box | Active | Receiver | 1 Coil, 1 Layer | 12.5µH | ±10% | 240mOhm Max | 20 @ 100kHz | - | - | - | -40°C ~ 85°C | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) |
|

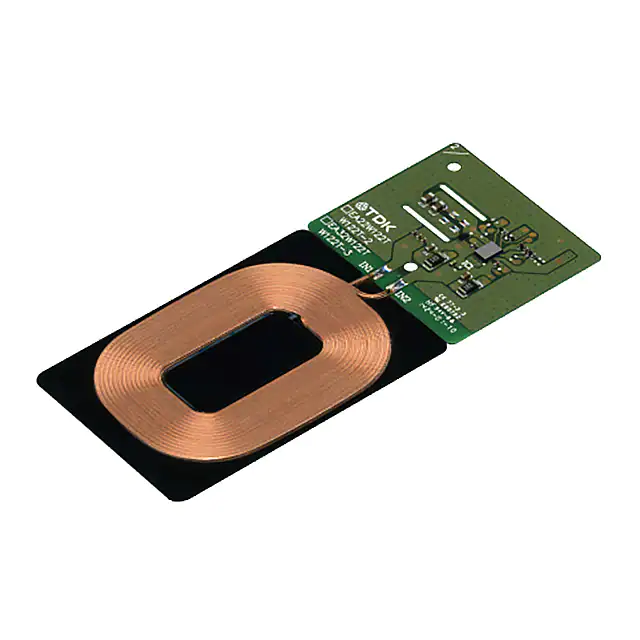

WRM483245-15F5-5V-G1RX 1 COIL 1 LYR 13UH |
0 |
|
Datasheet |
WRM | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 13µH | - | 270mOhm Max | - | - | - | - | - | - |
|
WRM483245-15F5-5V-G2RX 1 COIL 1 LYR 13UH |
0 |
|
Datasheet |
WRM | Tray | Obsolete | Receiver | 1 Coil, 1 Layer | 13µH | - | 270mOhm Max | - | - | - | - | - | - |
|
WTM505090-10K2-5V-G1TX 1 COIL 1 LYR 6.3UH |
0 |
|
Datasheet |
WTM | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm Max | - | - | - | - | - | - |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
