Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWCCA-26R26H08-C01-BRX 1 COIL 1 LAYER 10UH |
0 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver | 1 Coil, 1 Layer | 10µH | ±10% | 320mOhm | 18.5 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.02" Dia x 0.03" W (26.0mm x 0.8mm) |
|
SCT55048R9KMPA4TX 1 COIL 1 LAYER 8.9UH 6000MA |
4 |
|
Datasheet |
SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | - | 6A | - | - | -40°C ~ 85°C | 2.17" Dia x 0.16" H (55.0mm x 4.0mm) |
|
AWCCA-15N15H06-C01-BTX OR RX COIL, 1 COIL, 14.9UH |
0 |
|
Datasheet |
AWCCA | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 14.9µH | ±10% | 1Ohm | 8.5 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.59" Dia x 0.02" H (15.0mm x 0.6mm) |
|
WTM-7R1K-A28DOUBLE-COIL WIRELESS CHARGING CO |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 7.1µH | ±10% | 45mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) |
|
|
AWCCA-TX523517-102WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 80mOhm | 60 @ 100kHz | - | - | - | -40°C ~ 120°C | 2.05" L x 1.38" W x 0.07" H (52.0mm x 35.0mm x 1.8mm) |
|
1461791001RX 1 COIL 1 LAYER 11.6UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 11.6µH | ±2% | 520mOhm | 23 @ 200kHz | - | - | - | - | 1.69" L x 1.22" W x 0.02" H (43.0mm x 31.0mm x 0.5mm) |
|
1461791011RX 2 COIL, 1 LYR 9.9UH |
0 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 2 Coil, 1 Layer | 9.9µH | ±2% | 390mOhm | 23 @ 200kHz | - | - | - | - | 1.58" L x 1.85" W x 0.02" H (40.0mm x 47.0mm x 0.5mm) |
|
WT505090-10F2-LP-GTX 1 COIL, 1 LYR 6.3UH |
0 |
|
Datasheet |
WT | Tray | Not For New Designs | Transmitter | 1 Coil, 1 Layer | 6.3µH | - | 60mOhm | - | - | - | - | - | 1.97" Dia x 0.10" H (50.0mm x 2.5mm) |
|
WTM-7R3K-S7DOUBLE-COIL WIRELESS CHARGING CO |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 2 Coil, 1 Layer | 7.3µH | ±10% | 50mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) |
|

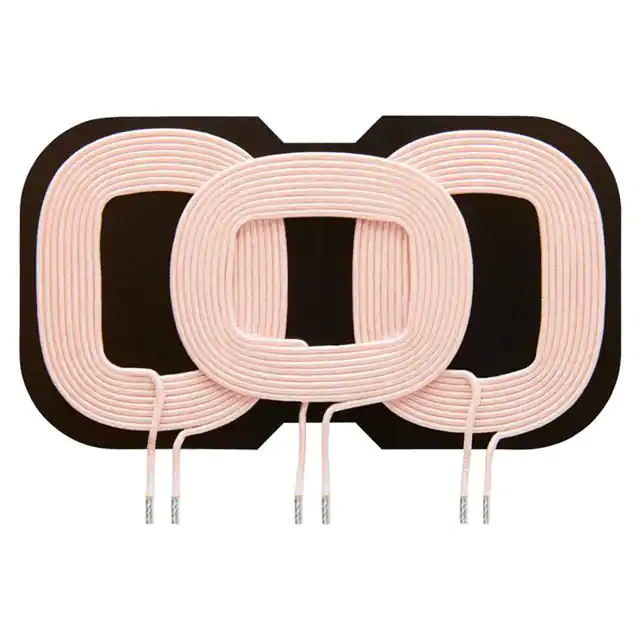

WTM-7R0K-A28MULTI-COIL WIRELESS CHARGING COI |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 6.5µH, 7µH | ±10% | 45mOhm Max | - | 7A | 12A | - | -20°C ~ 85°C | 3.70" L x 2.05" W x 0.16" H (94.0mm x 52.0mm x 4.0mm) |
|

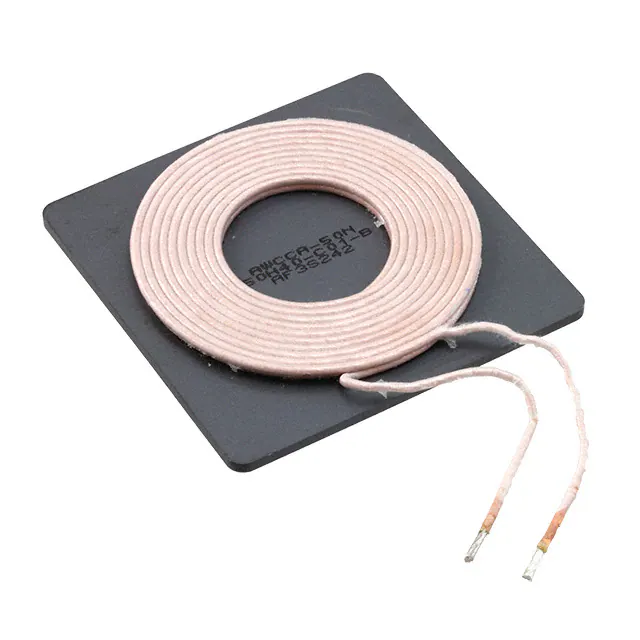

AWCCA-50N50H40-C01-BRX TX 1 COIL 1 LAYER 24UH 5.7A |
0 |
|
Datasheet |
AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 165 @ 100kHz | 5.7A | 27A | 2.9MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) |
|
AWCCA-50N50H40-C02-BRX TX 1 COIL 1 LAYER 6.3UH 11.1A |
0 |
|
Datasheet |
AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 11.1A | 40A | 5.7MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.15" H (50.0mm x 50.0mm x 4.0mm) |
|
|
SCT50046R3KA11DTX 1 COIL 2 LAYER 6.3UH 10000MA |
10 |
|
Datasheet |
SCT | Bag | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 10A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|
|
AWCCA-TX535315-101WIRELESS CHARGING COIL |
0 |
|
Datasheet |
AWCCA | Tray | Obsolete | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm | 135 @ 125kHz | - | - | - | -40°C ~ 85°C | 2.09" L x 2.09" W x 0.18" H (53.0mm x 53.0mm x 4.5mm) |
|
|
STX5050046R3KA11DTX 1 COIL 2 LAYER 6.3UH 10000MA |
6 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 25mOhm Max | - | 10A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm) |
|
|
STX555504100KMPA2TX 1 COIL 1 LAYER 10UH 6000MA |
9 |
|
Datasheet |
STX | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | - | 6A | - | - | -40°C ~ 85°C | 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) |
|
|
WTM-12R5K-A28WIRELESS CHARGING COIL |
0 |
|
Datasheet |
WCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) |
|

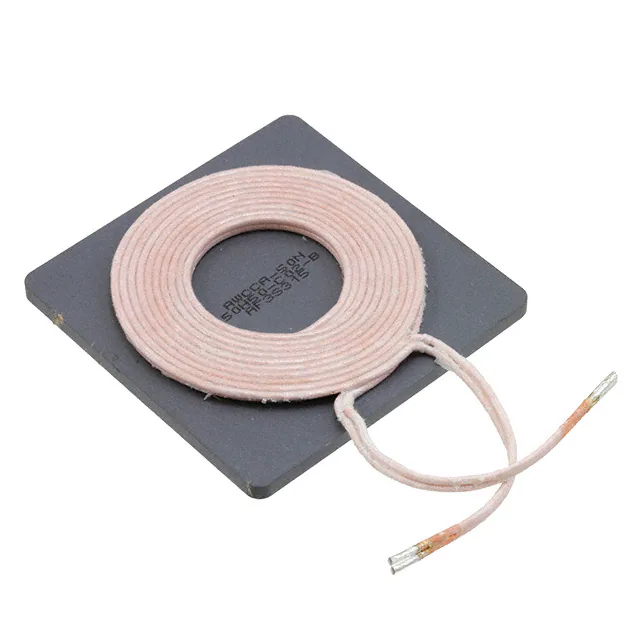

AWCCA-50N50H50-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
0 |
|
Datasheet |
AWCCA-50N50 | Box | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 75 @ 100kHz | 10.6A | 40A | 5.7MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm) |
|

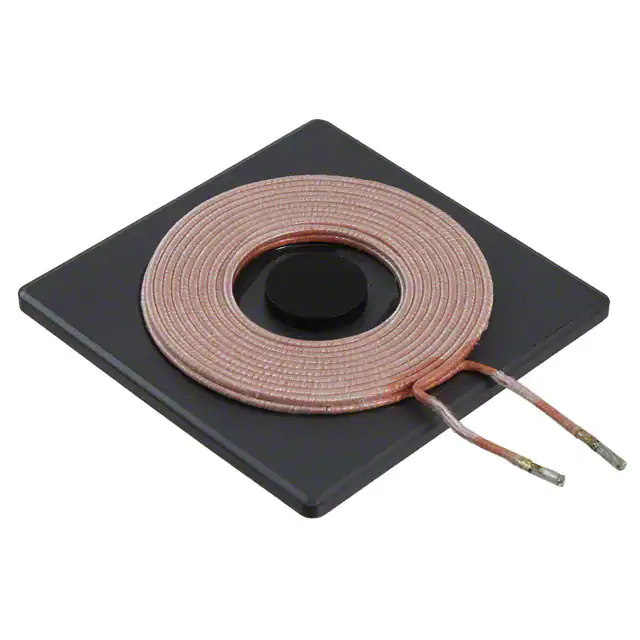

WT525225-20K2-A1-GTX 1 COIL 2 LYR 24UH |
0 |
|
Datasheet |
WT | Tray | Obsolete | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 100mOhm Max | 80 @ 100kHz | - | - | - | -30°C ~ 70°C | 2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm) |
|
|
WTM-9R8K-A9WIRELESS CHARGING COIL |
0 |
|
Datasheet |
WCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH | ±10% | 60mOhm, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
