Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760308101105TX 1 COIL 2 LAYER 3.3UH 3A |
0 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 2 Layer | 3.3µH | ±10% | 80mOhm Max | 30 @ 125kHz | 3A | 6A | 20MHz | -20°C ~ 105°C | 0.81" Dia x 0.10" H (20.5mm x 2.6mm) |
|

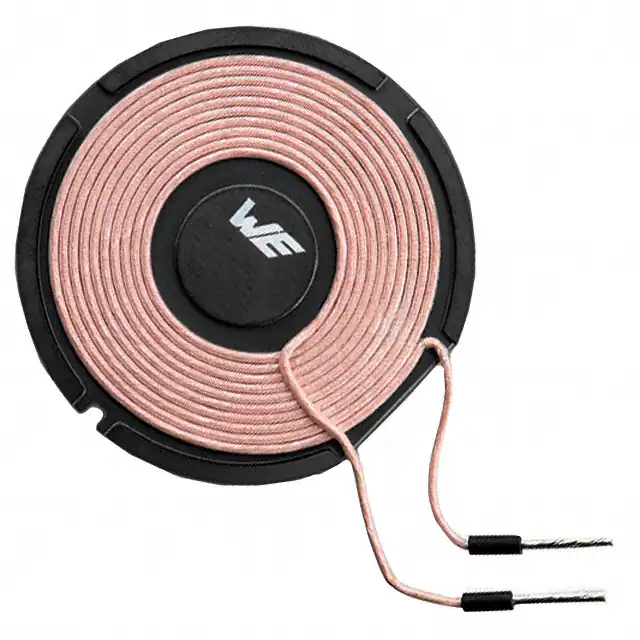

760308100111TX 1 COIL 1 LAYER 6.3UH 13A |
0 |
|
Datasheet |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 51mOhm Max | 120 @ 125kHz | 6A | 10A | 24MHz | -20°C ~ 105°C | 1.97" Dia x 0.24" H (50.0mm x 6.0mm) |
|
760308101304TX 1 COIL 1 LAYER 6.3UH 6A |
0 |
|
Datasheet |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm Max | 115 @ 125kHz | 6A | 10A | 16MHz | -20°C ~ 105°C | 1.85" Dia x 0.12" H (47.0mm x 3.0mm) |
|

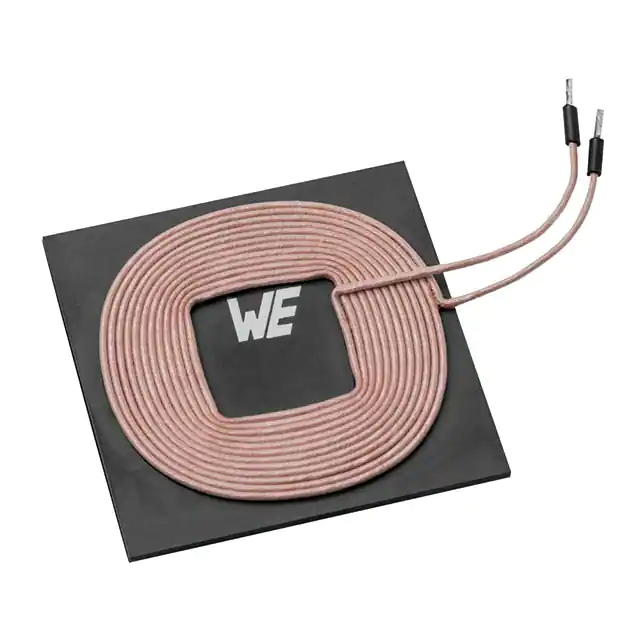

760308103102TX 1 COIL 1 LAYER 10UH 7A |
0 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 55mOhm Max | 130 @ 125kHz | 7A | 10A | 11MHz | -20°C ~ 105°C | 1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm) |
|

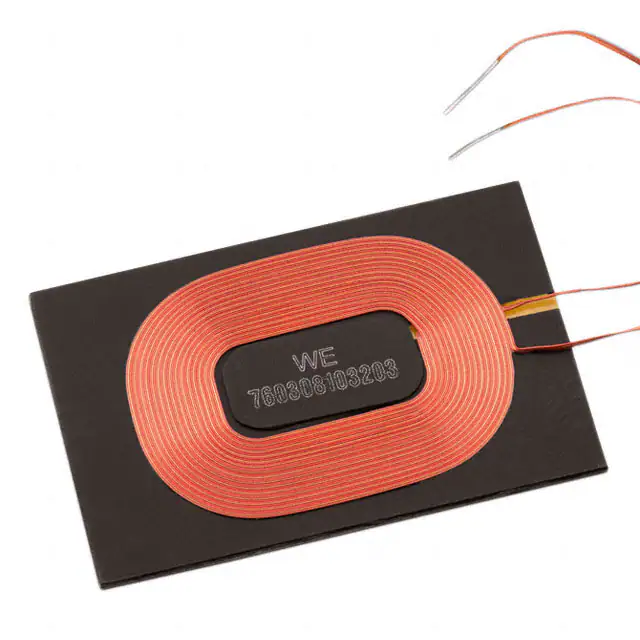

760308103203RX 1 COIL 1 LAYER 12UH 1.55A |
22 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 550mOhm | 21 @ 125kHz | 1.55A | 3A | 20MHz | -20°C ~ 105°C | 1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm) |
|

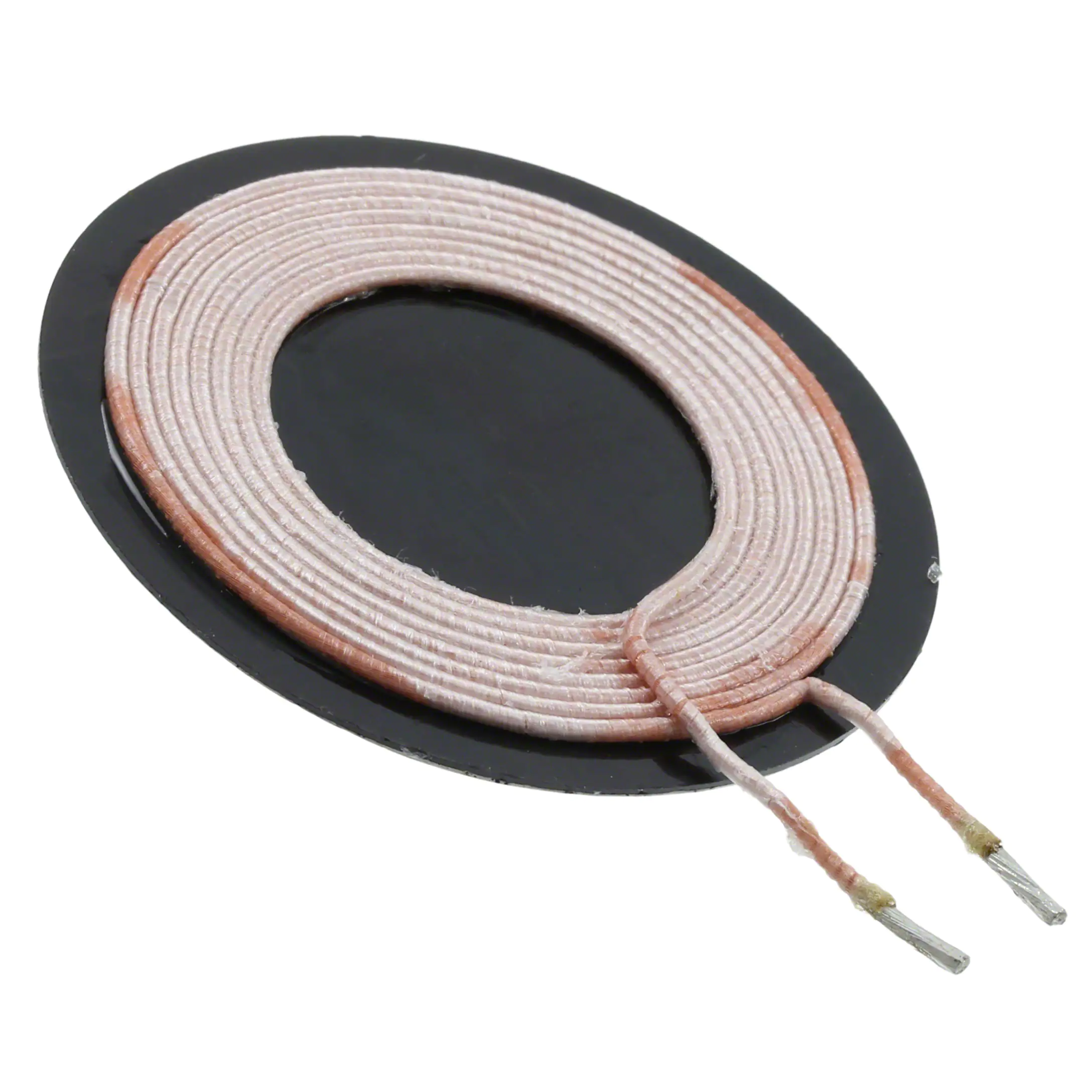

WT-505060-8K2-LTTX 1 COIL 1 LYR 4.95UH |
21 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 4.95µH | - | 30mOhm | 97 @ 100kHz | - | - | - | - | - |
|
760308102212RX 1 COIL 1 LAYER 5.4UH 2A |
22 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 5.4µH | ±10% | 240mOhm Max | 18 @ 125kHz | 2A | 4A | 25MHz | -20°C ~ 105°C | 1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm) |
|
760308103211RX 1 COIL 1 LAYER 7.3UH 2.5A |
22 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.3µH | ±10% | 200mOhm Max | 28 @ 125kHz | 2.5A | 5A | 12.7MHz | -20°C ~ 105°C | 1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm) |
|

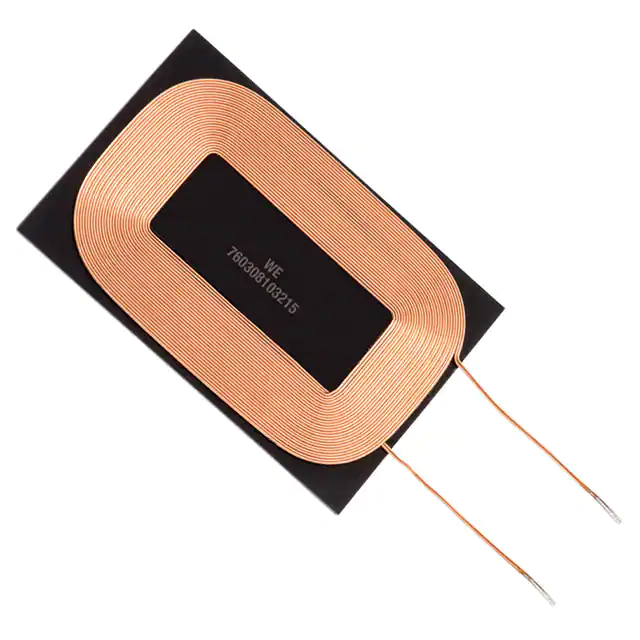

760308103215RX 1 COIL 1 LAYER 14.3UH 3A |
16 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 14.3µH | ±10% | 190mOhm Max | 40 @ 125kHz | 3A | 8A | 8.8MHz | -20°C ~ 105°C | 1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm) |
|

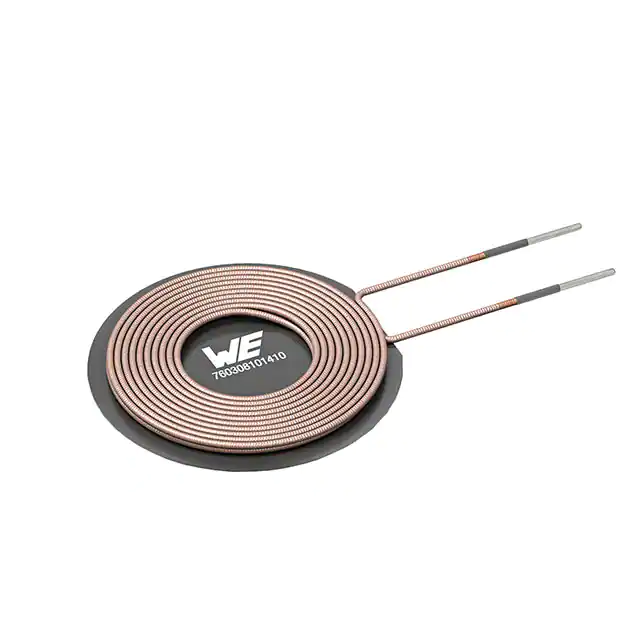

760308101410WE-WPCC WIRELESS POWER CHARGING |
4 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 100mOhm | 170 @ 125kHz | 5.5A | 10A | 6MHz | -20°C ~ 105°C | 1.97" Dia x 0.12" H (50.0mm x 3.1mm) |
|
760308102308WE-WPCC WIRELESS POWER CHARGING |
0 |
|
Datasheet |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 1 Layer | 3µH | ±10% | 35mOhm Max | 60 @ 125kHz | 8.5A | 15A | 27MHz | -20°C ~ 105°C | 1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm) |
|

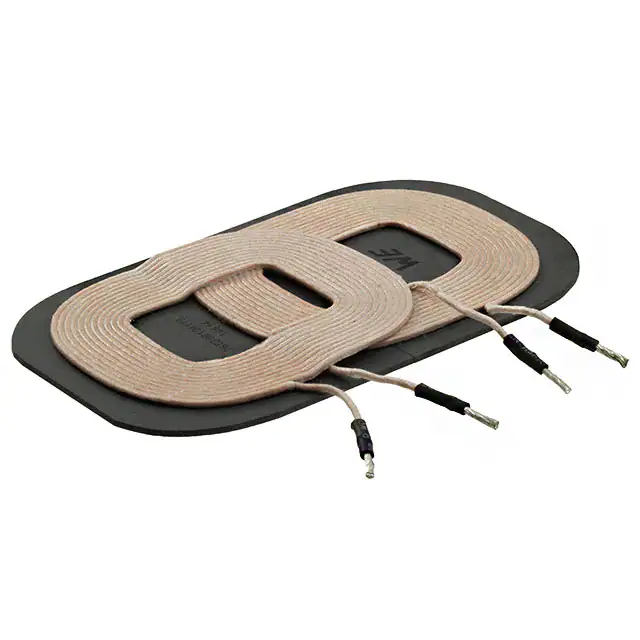

760308104119TX 2 COIL 1 LAYER 12UH 11.5UH 8A |
0 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 2 Coil, 1 Layer | 12µH, 11.5µH | ±10% | 56mOhm | 130 @ 125kHz | 8A | 12A | 12MHz | -20°C ~ 105°C | 3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm) |
|
760308103145WE-WPCC WIRELESS POWER CHARGING |
3 |
|
Datasheet |
WE-WPCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH | ±10% | 83mOhm Max | 150 @ 125kHz, 145 @ 125kHz | 8.5A | 24A | 10MHz | -20°C ~ 105°C | 4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm) |
|
760308103147WE-WPCC WIRELESS POWER CHARGING |
1 |
|
Datasheet |
WE-WPCC | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 8.5µH, 7.5µH, 8.5µH | ±10% | 56mOhm Max | 145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz | 9A, 10A, 9A | 18A | 11MHz | -20°C ~ 105°C | 3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm) |
|
WT202030-16M8-GTX 1 COIL, 1 LYR 6.2UH |
0 |
|
Datasheet |
WT | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.2µH | - | 190mOhm | - | - | - | - | - | - |
|

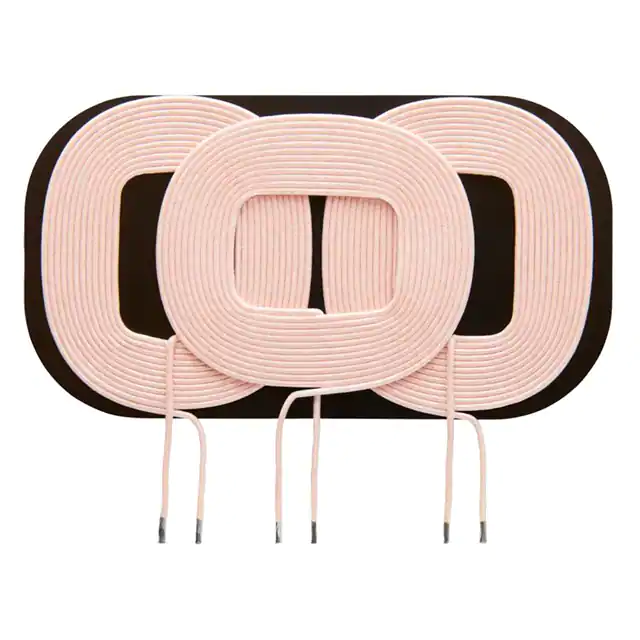

WTM-12R5K-A6MULTI-COIL WIRELESS CHARGING COI |
3 |
|
Datasheet |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm) |
|
WR524825-17M6-NF-GRX 1 COIL, 1 LYR 16.8UH |
0 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 16.8µH | - | 750mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm) |
|

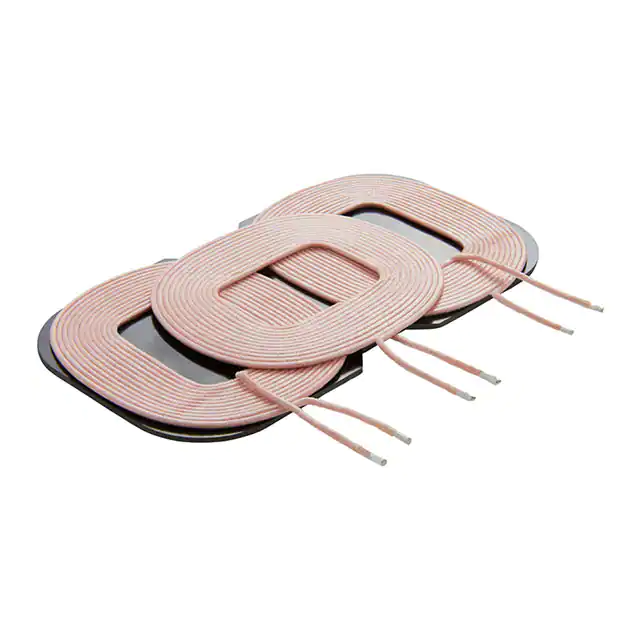

WTM12R5K-A28MULTI-COIL WIRELESS CHARGING COI |
2 |
|
Datasheet |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 11.5µH, 12.5µH | ±10% | 65mOhm Max | - | 7A | 10A | - | -20°C ~ 85°C | 3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm) |
|
WTM9R8K-A9MULTI-COIL WIRELESS CHARGING COI |
0 |
|
Datasheet |
WCC | Box | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 60mOhm Max, 65mOhm Max | - | 8A | 10A | - | -20°C ~ 85°C | 3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm) |
|

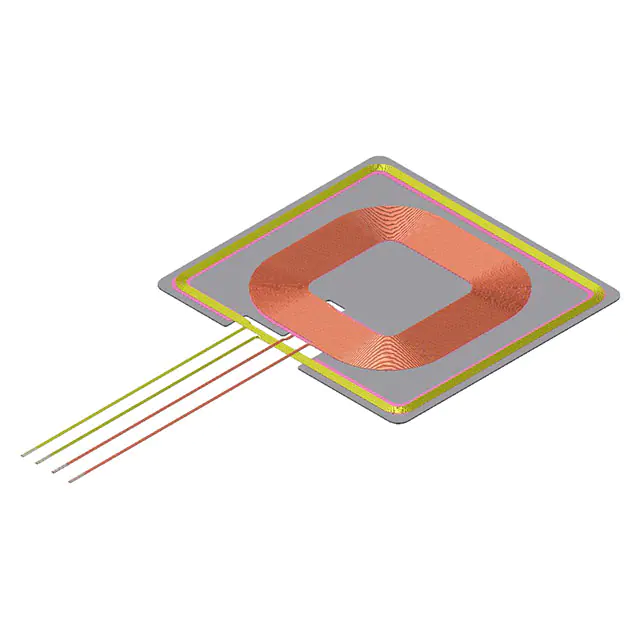

AWCCA-RX404012-101RX COIL 1 LAYER 8.0UH |
0 |
|
- |
AWCCA | Tray | Not For New Designs | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 80mOhm Max | - | - | - | - | - | 1.57" L x 1.57" W x 0.05" H (40.0mm x 40.0mm x 1.2mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
