Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

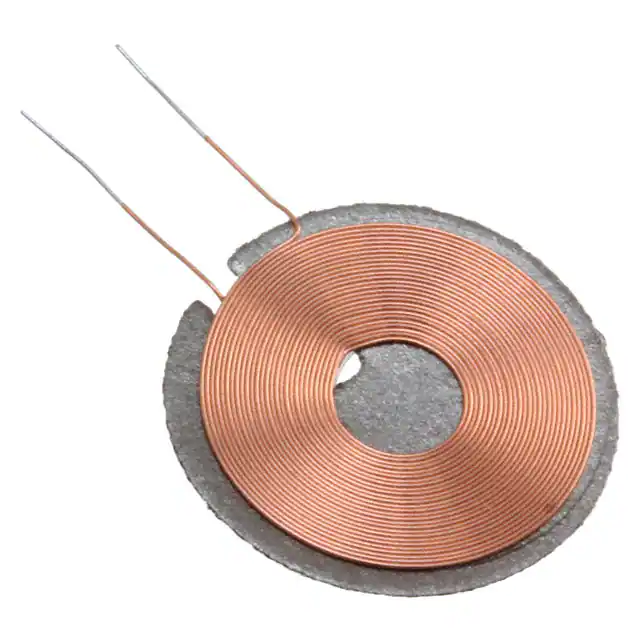

WR121210-27M8-IDRX 1 COIL 1 LYR 8.32UH |
88 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 8.32µH | ±5% | 950mOhm | - | - | - | - | - | 0.47" Dia x 0.01" H (12.0mm x 0.3mm) |
|
IWAS4832ABEB110JF1IWAS-4832AB-F1 11 5% EB E2 |
41 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.8µH | ±5% | 187mOhm | 60 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.7mm) |
|
760308101221WE-WPCC WIRELESS POWER CHARGING |
77 |
|
Datasheet |
WE-WPCC | Bulk | Active | Receiver | 1 Coil, 6 Layer | 24µH | ±10% | 1.15Ohm Max | 16 @ 125kHz | 400mA | 1A | 10MHz | -20°C ~ 105°C | 0.24" Dia x 0.16" H (6.0mm x 4.0mm) |
|
760308101217RX 1 COIL 6 LAYER 24.2UH 400MA |
88 |
|
Datasheet |
WE-WPCC | Box | Active | Receiver | 1 Coil, 6 Layer | 24.2µH | ±10% | 1.4Ohm Max | 13 @ 125kHz | 400mA | 1A | 14.5MHz | -20°C ~ 105°C | 0.41" Dia x 0.07" H (10.3mm x 1.9mm) |
|
760308101216RX 1 COIL 6 LAYER 7.2UH 500MA |
65 |
|
Datasheet |
WE-WPCC | Box | Active | Receiver | 1 Coil, 6 Layer | 7.2µH | ±10% | 440mOhm Max | 10 @ 125kHz | 500mA | 1A | 32MHz | -20°C ~ 105°C | 0.24" Dia x 0.08" H (6.0mm x 2.0mm) |
|
760308105309WE-WPCC WIRELESS POWER CHARGING |
65 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 450mOhm | 19 @ 125kHz | 1.5A | 3A | 18.5MHz | -20°C ~ 105°C | 1.035" Dia x 0.019" H (26.30mm x 0.49mm) |
|
760308101106WE-WPCC WIRELESS POWER CHARGING |
75 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 2.5µH | ±10% | 90mOhm | 30 @ 125kHz | 2.5A | 8A | 38MHz | -20°C ~ 105°C | 0.807" Dia x 0.110" H (20.50mm x 2.80mm) |
|

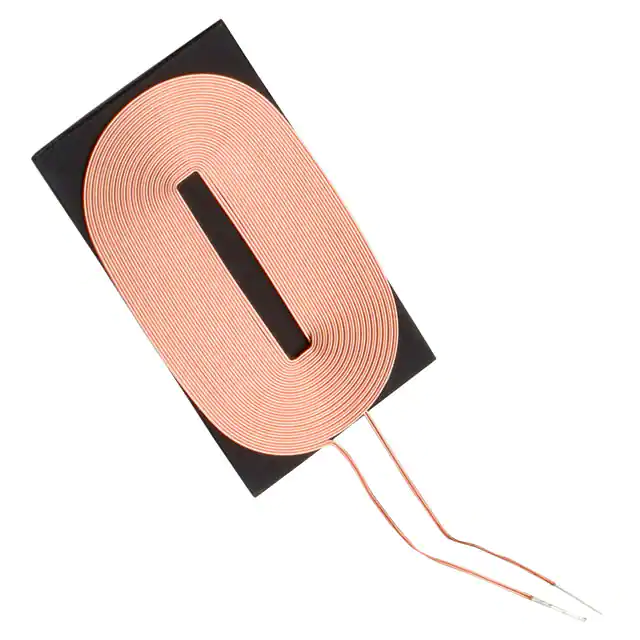

760308103206RX 1 COIL 1 LAYER 7.5UH 1.55A |
87 |
|
Datasheet |
WE-WPCC | Box | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 340mOhm | 16 @ 125kHz | 1.55A | 3A | 23MHz | -20°C ~ 105°C | 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.7mm) |
|
760308102210RX 1 COIL 1 LAYER 7.5UH 3A |
61 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 180mOhm Max | 45 @ 125kHz | 3A | 6A | 22MHz | -20°C ~ 105°C | 1.46" L x 1.46" W x 0.07" H (37.0mm x 37.0mm x 1.8mm) |
|
760308101107WE-WPCC WIRELESS POWER CHARGING |
62 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 315mOhm | 55 @ 125kHz | 2A | 8A | 7.5MHz | -20°C ~ 105°C | 1.220" Dia x 0.098" H (31.00mm x 2.50mm) |
|

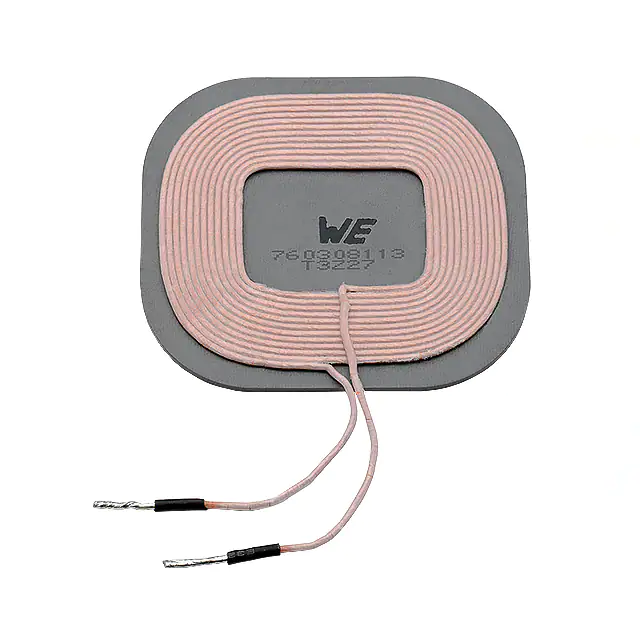

760308104113TX 1 COIL 1 LAYER 12UH 7A |
68 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 12µH | ±10% | 72mOhm Max | 120 @ 125kHz | 7A | 12A | 16MHz | -20°C ~ 105°C | 2.34" L x 2.05" W x 0.15" H (59.5mm x 52.0mm x 4.0mm) |
|
760308102142TX 1 COIL 1 LYR BIFIL 5.8UH 18A |
35 |
|
Datasheet |
WE-WPCC | Box | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 5.8µH | ±10% | 12mOhm Max | 100 @ 125kHz | 18A | 30A | 12MHz | -20°C ~ 105°C | 2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm) |
|
760308101311WE-WPCC WIRELESS POWER CHARGING |
37 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 5.8µH | ±10% | 14mOhm | 220 @ 125kHz | 21A | - | 13MHz | -20°C ~ 105°C | 2.76" Dia x 0.33" H (70.0mm x 8.5mm) |
|
WTSC-24R0K-A10SINGLE-COIL WIRELESS CHARGING CO |
34 |
|
Datasheet |
WCC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 85mOhm Max | - | 6A | 10A | - | -20°C ~ 85°C | 1.97" Dia x 0.16" H (50.0mm x 4.0mm) |
|

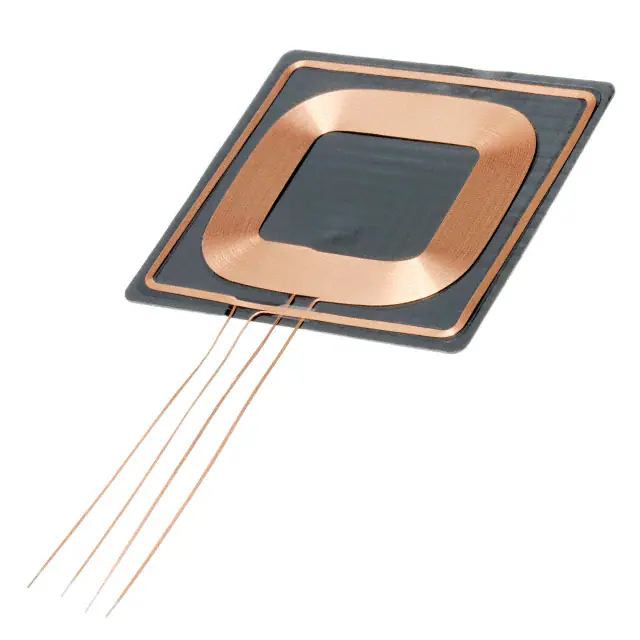

WR524830-16F3-NF-GRX 1 COIL, 1 LYR 19.5UH |
63 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.5µH | - | 800mOhm | - | - | - | - | - | 2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.6mm) |
|

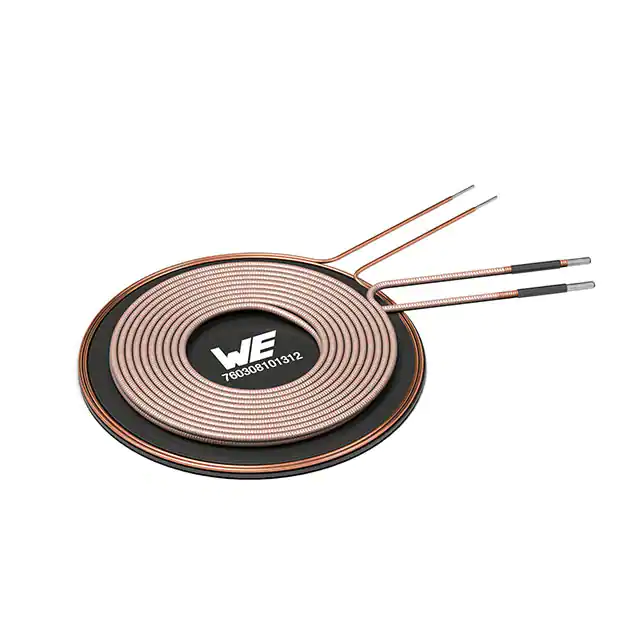

760308101312WE-WPCC WIRELESS POWER CHARGING |
6 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 2 Coil, 1 Layer | 24µH, 700nH | ±10% | 90mOhm, 30mOhm | 125 @ 125kHz, 30 @ 125kHz | 6A, 13A | - | 7MHz, 63MHz | -20°C ~ 105°C | 2.13" Dia x 0.16" H (54.0mm x 4.0mm) |
|
760308103307WE-WPCC WIRELESS POWER CHARGING |
34 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 7.8µH, 1.6µH | ±10% | 340mOhm Max, 90mOhm Max | 19 @ 125kHz, 47 @ 125kHz | 1.5A, 4A | 3A, 7A | 22MHz, 24MHz | -20°C ~ 105°C | 1.57" L x 1.06" W x 0.04" H (40.0mm x 27.0mm x 1.0mm) |
|

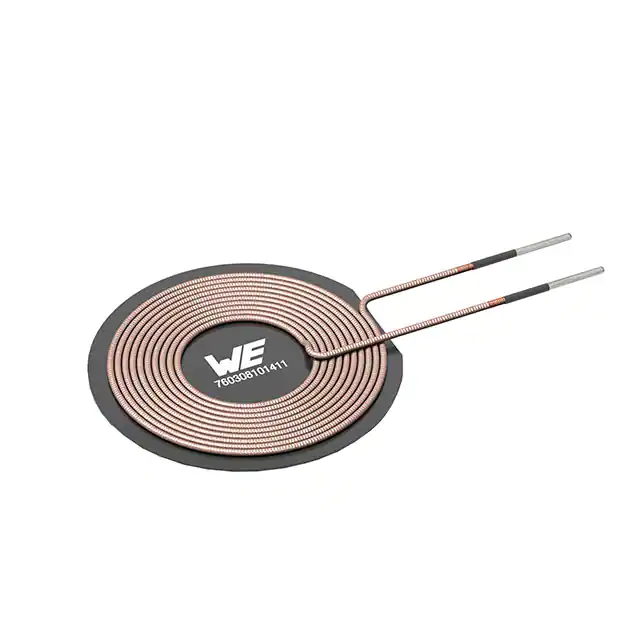

760308101411WE-WPCC WIRELESS POWER CHARGING |
12 |
|
Datasheet |
WE-WPCC | Tray | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 48mOhm | 110 @ 125kHz | 7.5A | 10A | 20MHz | -20°C ~ 105°C | 1.97" Dia x 0.11" H (50.0mm x 2.8mm) |
|

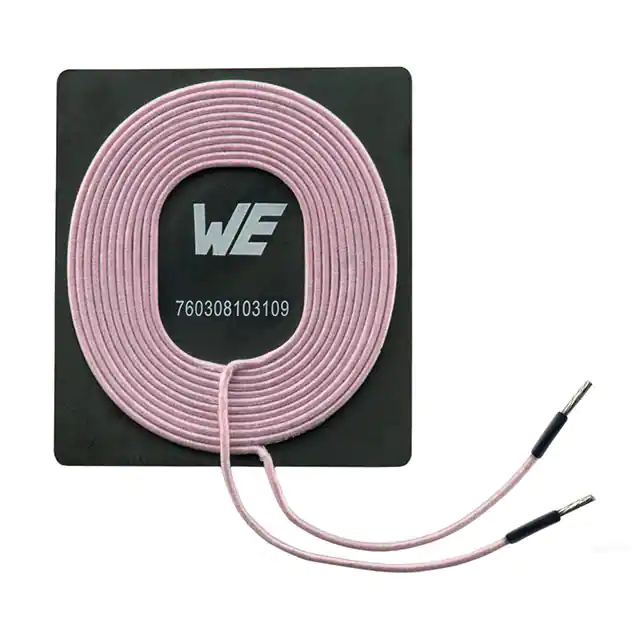

760308103109WE-WPCC WIRELESS POWER CHARGING |
10 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 1 Coil, 1 Layer | 10.2µH | ±10% | 50mOhm | 130 @ 125kHz | 9A | 18A | 11MHz | -20°C ~ 105°C | 2.244" L x 2.008" W x 0.165" H (57.00mm x 51.00mm x 4.20mm) |
|
760308102306WE-WPCC WIRELESS POWER CHARGING |
6 |
|
Datasheet |
WE-WPCC | Tray | Active | Receiver | 2 Coil, 1 Layer | 8µH, 1.4µH | ±10% | 400mOhm Max, 100mOhm Max | 19 @ 125kHz, 47 @ 125kHz | 2A, 5A | 5A, 5A | 17.5MHz, 19MHz | -20°C ~ 105°C | 1.73" L x 1.73" W x 0.03" H (44.0mm x 44.0mm x 0.75mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
