Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTRX324815BF-120KWIRELESS RECEIVER COIL |
5 |
|
- |
CTRX324815BF | Bulk | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 200mOhm | - | 3A | - | - | -40°C ~ 85°C | 1.89" L x 1.26" W x 0.06" H (48.0mm x 32.0mm x 1.6mm) |
|
CTTX504335BF-6R3KWIRELESS TRANSMITTER COIL |
5 |
|
- |
CTTX504335BF | Bulk | Active | Transmitter | 1 Coil, 2 Layer, Bifilar | 6.3µH | ±10% | 25mOhm | - | 10A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.16" H (50.0mm x 50.0mm x 4.0mm) |
|
CTTX1065360SF-12R5KWIRELESS TRANSMITTER COIL |
5 |
|
- |
CTTX1065360SF | Bulk | Active | Transmitter | 3 Coil, 1 Layer, Bifilar | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm | - | 6.5A | - | - | -40°C ~ 85°C | 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm) |
|
QPT-0016Transmitter |
0 |
|
Datasheet |
- | Bulk | Active | Transmitter | 3 Coil, 1 Layer | - | - | - | - | - | - | - | 0°C ~ 40°C | 3.74" L x 2.09" W x 0.15" H (95.0mm x 53.0mm x 3.9mm) |
|
QPR-0303RECEIVER |
0 |
|
Datasheet |
- | Bulk | Active | Receiver | 1 Coil, 1 Layer | 9.75µH | ±5% | 160mOhm | 25 @ 100kHz | - | - | - | 0°C ~ 40°C | 1.62" L x 1.12" W x 0.03" H (41.1mm x 28.5mm x 0.8mm) |
|

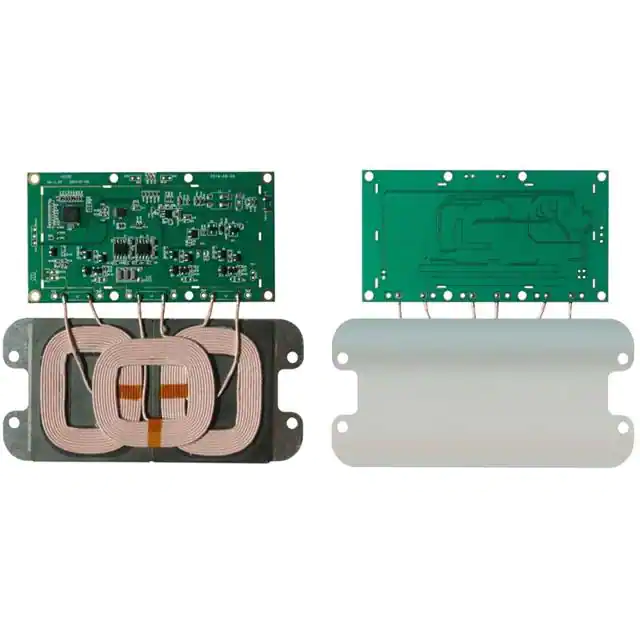

QPT-0005Transmitter |
0 |
|
Datasheet |
- | Bulk | Active | Transmitter | 3 Coil, 1 Layer | 6.8µH, 6.5µH, 6.8µH | ±10% | 55mOhm | 50 @ 100kHz, 45 @ 100kHz, 50 @ 100kHz | - | - | - | 0°C ~ 40°C | 4.80" L x 2.13" W x 0.18" H (122.0mm x 54.0mm x 4.5mm) |
|
QPT-0038Transmitter |
0 |
|
Datasheet |
- | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 35mOhm | 65 @ 100kHz | - | - | - | 0°C ~ 40°C | 1.97" Dia x 0.09" H (50.0mm x 2.3mm) |
