Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RCC-2020-RX-NLINDUCTOR |
3,722 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 275mOhm | - | - | - | - | -25°C ~ 85°C | 0.79" L x 0.79" W x 0.04" H (20.0mm x 20.0mm x 1.0mm) |
|
AWCCA-18R18H10-C01-BRX 1 COIL 1 LAYER 10.5UH |
0 |
|
Datasheet |
AWCCA | Bulk | Active | Receiver | 1 Coil, 1 Layer | 10.5µH | ±10% | 330mOhm | 17 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.72" Dia x 0.04" H (18.3mm x 1.0mm) |
|
SCR35018R3KBRX 1 COIL 2 LAYER 8.3UH 2000MA |
380 |
|
Datasheet |
SCR | Bag | Active | Receiver | 1 Coil, 1 Layer | 8.3µH | ±10% | 160mOhm Max | - | 2A | - | - | -40°C ~ 85°C | 1.38" Dia x 0.05" H (35.0mm x 1.2mm) |
|
|
IWTX55R0DZEB8R9KF1WIRELESS CHARGING TRANSMIT COIL |
552 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 8.9µH | ±10% | 55mOhm Max | 98.5 @ 100kHz | 6A | - | - | -40°C ~ 125°C | 2.17" Dia x 0.16" H (55.0mm x 4.0mm) |
|
|
IWTX5555DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
216 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 80mOhm Max | 99 @ 100kHz | 6A | - | - | -40°C ~ 85°C | 2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm) |
|
AWCCA-50N50H35-C02-BRX TX 1 COIL 1 LAYER 6.3UH 10.6A |
0 |
|
Datasheet |
AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 19mOhm | 72 @ 100kHz | 10.6A | 36A | 6.4MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
|
AWCCA-50N50H35-C01-BRX TX 1 COIL 1 LAYER 24UH 5.4A |
0 |
|
Datasheet |
AWCCA-50N50 | Bulk | Not For New Designs | Receiver, Transmitter | 1 Coil, 1 Layer | 24µH | ±10% | 72mOhm | 160 @ 100kHz | 5.4A | 21A | 3MHz | -25°C ~ 85°C | 1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm) |
|
|
IWTX5050DEEB100KF1WIRELESS CHARGING TRANSMIT COIL |
427 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 29.7mOhm Max | 200 @ 100kHz | 9A | - | - | -40°C ~ 85°C | 1.97" Dia x 0.18" H (50.0mm x 4.5mm) |
|
|
IWAS3222CZEB190JF1IWAS-3222CZ-F1 19 5% EB E2 |
1,512 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 19.6µH | ±5% | 357mOhm | 29 @ 200kHz | - | - | - | -40°C ~ 105°C | 1.26" L x 0.87" W (32.0mm x 22.0mm) |
|
1461798011RX 1 COIL 1 LAYER 2.6UH |
3,849 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Bulk | Obsolete | Receiver | 1 Coil, 1 Layer | 2.6µH | ±2% | 245mOhm | 90 @ 6.78MHz | - | - | - | - | 1.04" Dia x 0.02" H (26.5mm x 0.5mm) |
|
|
IWTX4646DCEB240JF1IWTX-4646DC-F1 24 5% EB E2 |
1,036 |
|
Datasheet |
- | Tray | Active | Transmitter | 1 Coil, 1 Layer | 24µH | ±5% | 75mOhm | 185 @ 200kHz | 6A | 20A | - | -40°C ~ 105°C | 1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm) |
|
|
IWTX9955DEEB110KF3WIRELESS CHARGING TRANSMIT COIL |
219 |
|
Datasheet |
- | Tray | Active | Transmitter | 3 Coil, 1 Layer | 11.3µH, 11.3µH, 11.3µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 6.5A | - | - | -40°C ~ 125°C | 3.90" L x 2.19" W x 0.16" H (99.0mm x 55.6mm x 4.0mm) |
|
1461794001RX 2 COIL, 1 LYR 8.9UH |
5,492 |
|
Datasheet |
NuCurrent, PowerLife, 146179 | Box | Active | Receiver | 2 Coil, 1 Layer | 8.9µH | ±2% | 350mOhm | 25 @ 200kHz | - | - | - | - | 2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm) |
|
|
IWTXA148DGEB9R8KF3WIRELESS CHARGING TRANSMIT COIL |
129 |
|
Datasheet |
- | Tray | Active | Transmitter | 3 Coil, 1 Layer | 9.8µH, 10.2µH, 9.8µH | ±10% | 80mOhm Max | 100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz | 7A | - | - | -40°C ~ 125°C | 4.01" L x 2.26" W x 0.19" H (101.8mm x 57.3mm x 4.7mm) |
|
|
IWTXA653FZEB120KF3WIRELESS CHARGING TRANSMIT COIL |
230 |
|
Datasheet |
- | Tray | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 80mOhm Max | 110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz | 6.5A | - | - | -40°C ~ 85°C | 4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm) |
|
|
IWTX5547EEEB8R5KF1INDUCT WW SNGL COIL MISC |
1,265 |
|
Datasheet |
- | Bulk | Active | Transmitter | 1 Coil, 1 Layer | 8.5µH | ±10% | 56mOhm | 140 @ 125kHz | 6A | 10A | 11MHz | -40°C ~ 105°C | 2.17" L x 1.85" W x 0.22" H (55.0mm x 47.0mm x 5.5mm) |
|

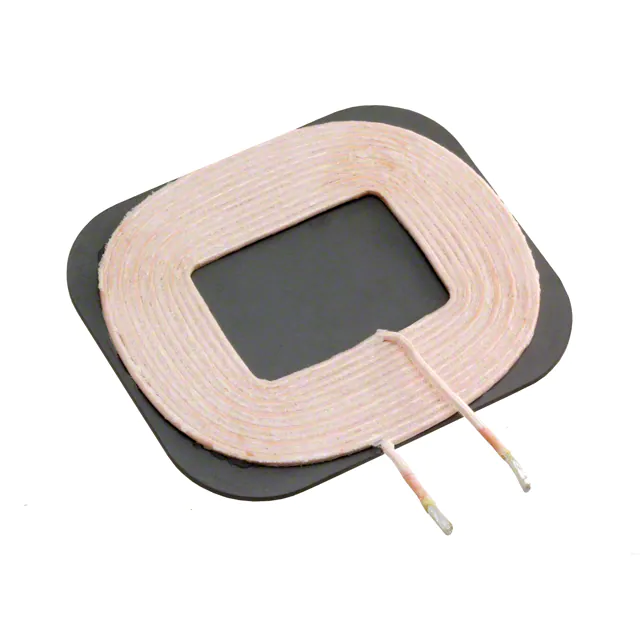

SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
225 |
|
Datasheet |
SWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
|
WR222230-26M8-GRX 1 COIL 2 LYR 27UH |
31 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 27µH | - | 1.1Ohm Max | - | - | - | - | - | 0.87" Dia x 0.03" H (22.0mm x 0.9mm) |
|
760308101141WE-WPCC WIRELESS POWER CHARGING |
68 |
|
Datasheet |
WE-WPCC | Bulk | Active | Transmitter | 1 Coil, 2 Layer | 10µH | ±10% | 30mOhm Max | 220 @ 125kHz | 9A | 16A | 11MHz | -20°C ~ 105°C | 1.97" Dia x 0.20" H (50.0mm x 5.0mm) |
|

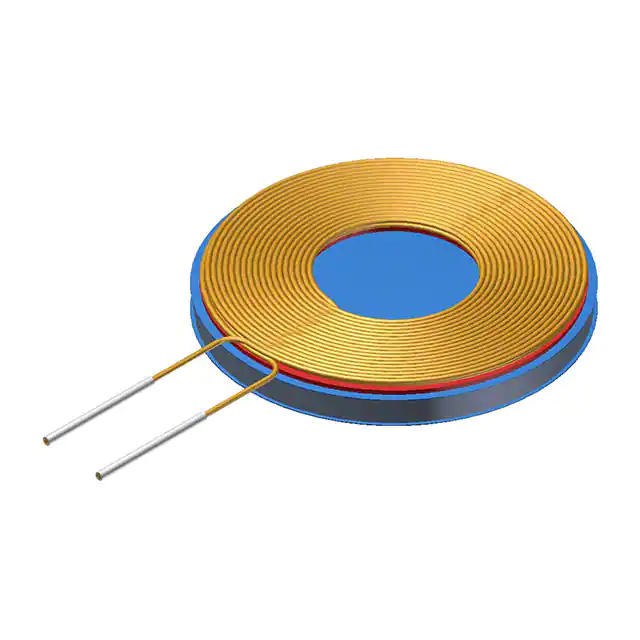

WR111180-36F5-B1RX 1 COIL 2 LYR 16.6UH |
70 |
|
Datasheet |
WR | Tray | Active | Receiver | 1 Coil, 2 Layer | 16.6µH | - | 1Ohm | - | - | - | - | - | 0.43" Dia x 0.06" H (11.0mm x 1.5mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
