Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

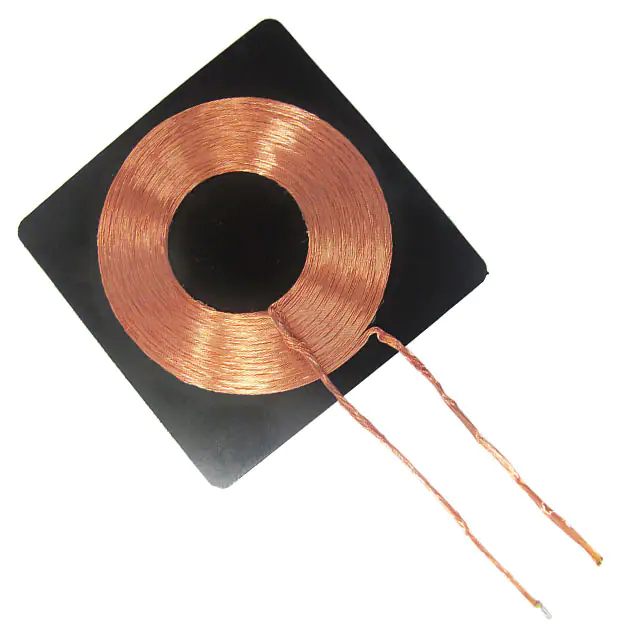

AWCCA-50N50H16-C51-BRX TX 1 COIL 1 LAYER 12.5UH |
0 |
|
Datasheet |
AWCCA | Box | Discontinued at Digi-Key | Receiver, Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 80mOhm | 80 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm) |
|
AWCCA-47R38H08-C01-BRX 1 COIL 1 LAYER 11.5UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 11.5µH | ±5% | 160mOhm | 34 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.85" L x 1.50" W x 0.03" H (47.0mm x 38.0mm x 0.9mm) |
|

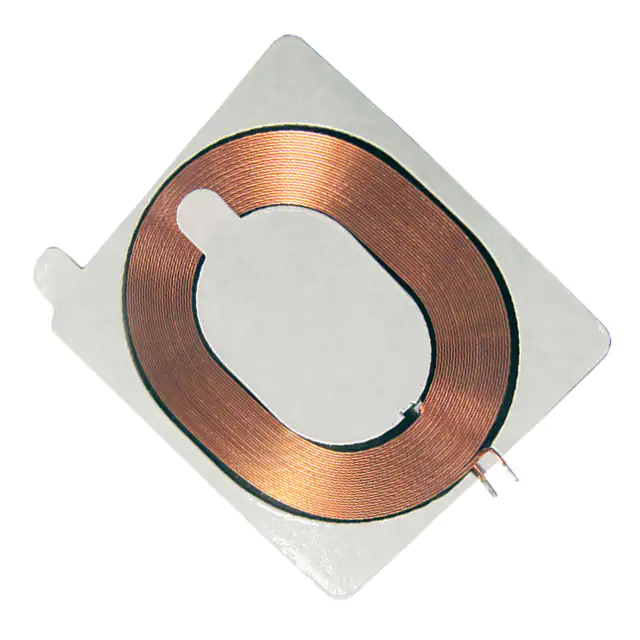

AWCCA-42R38H08-C03-BRX 1 COIL 1 LAYER 12UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±5% | 350mOhm | 28 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.65" L x 1.50" W x 0.03" H (42.0mm x 38.0mm x 0.9mm) |
|

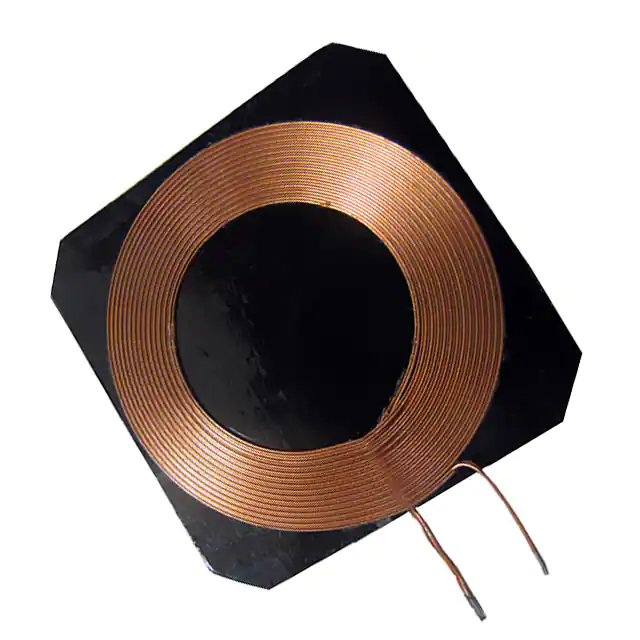

AWCCA-36R36H08-C51-BRX 1 COIL 1 LAYER 12UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 12µH | ±10% | 350mOhm | 27 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm) |
|
AWCCA-12R12H11-C01-BRX 1 COIL 1 LAYER 8UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 8µH | ±10% | 520mOhm | 10 @ 100kHz | - | - | - | -25°C ~ 85°C | 0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm) |
|
AWCCA-50N50H30-C21-BRX TX 1 COIL 1 LAYER 6.3UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 38mOhm | 90 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
AWCCA-98T56H38-C01-BTRANSMITTER 3 COIL 1 LAYER |
0 |
|
Datasheet |
AWCCA | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.0µH, 11.5µH, 12.0µH | ±10% | 56mOhm | 120 @ 100kHZ, 110 @ 100kHZ | - | - | - | -25°C ~ 85°C | 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm) |
|
IWTX47R0BEEB6R3J11WIRELESS CHARGING COIL |
0 |
|
Datasheet |
- | Bulk | Obsolete | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±5% | 38mOhm | 190 @ 200kHz | 7A | 22A | 22MHz | -55°C ~ 105°C | 1.85" Dia x 0.19" H (47.0mm x 4.9mm) |
|
AWCCA-30R30H05-C01-BRECEIVER COIL, 1 COIL, 29.5UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 29.5µH | ±10% | 1.8mOhm | 10.4 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.18" Dia x 0.02" H (30.0mm x 0.5mm) |
|
AWCCA-28R15H08-C01-BRECEIVER COIL, 1 COIL, 7.5UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver | 1 Coil, 1 Layer | 7.5µH | ±10% | 500mOhm | 15 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.10" L x 0.59" W x 0.03" H (28.0mm x 15.0mm x 0.8mm) |
|
AWCCA-30N30H20-C01-BRECEIVER COIL, 1 COIL, 6.3UH |
0 |
|
Datasheet |
AWCCA | Box | Active | Receiver, Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 140mOhm | 26 @ 100kHz | - | - | - | -25°C ~ 85°C | 1.18" Dia x 0.08" H (30.0mm x 2.0mm) |
|
WRM483265-10F5-12V-GWIRELESS POWER TRANSFER RX COIL |
0 |
|
Datasheet |
WRM | Box | Obsolete | Receiver | 1 Coil, 1 Layer, Bifilar | - | - | - | - | 1.25A | - | - | -30°C ~ 70°C | 3.02" L x 1.29" W x 0.07" H (76.7mm x 32.7mm x 1.8mm) |
|
QPT-003515W TRANSMITTER MODULE |
0 |
|
Datasheet |
- | Box | Active | Transmitter | 1 Coil, 1 Layer | 10µH | ±10% | 50mOhm | 40 @ 100kHz | - | - | - | - | 2.83" L x 1.97" W x 0.04" H (72.0mm x 50.0mm x 1.0mm) |
|
L41200R0248UH Q = 19 TYPICAL AT 125KHZ WI |
0 |
|
Datasheet |
- | Tray | Active | Receiver | 1 Coil, 1 Layer | 48µH | - | - | 19 @ 125kHz | - | - | - | -40°C ~ 105°C | 1.20" L x 1.40" W x 0.08" H (30.5mm x 35.5mm x 2.0mm) |
|
WMRR126F-0WIRELESS CHARGE COIL |
0 |
|
- |
- | Bag | Active | Receiver | 1 Coil, 1 Layer | 11.5µH | ±10% | 1.1mOhm | - | - | - | - | - | 1.02" L x 0.75" W x 0.02" H (26.0mm x 19.0mm x 0.4mm) |
|
CTRX103010BF-12R8KWIRELESS RECEIVER COIL |
0 |
|
- |
CTRX103010BF | Bulk | Active | Receiver | 1 Coil, 2 Layer | 12.8µH | ±10% | 780mOhm Max | - | 800mA | - | - | -40°C ~ 85°C | 1.18" L x 0.39" W x 0.04" H (30.0mm x 10.0mm x 1.0mm) |
|
CTTX504424SF-6R3KWIRELESS TRANSMITTER COIL |
0 |
|
- |
CTTX504424SF | Bulk | Active | Transmitter | 1 Coil, 1 Layer, Bifilar | 6.3µH | ±10% | 45mOhm | - | 5A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) |
|
QPT-0014Transmitter |
0 |
|
- |
- | Tape & Box (TB) | Active | Transmitter | 1 Coil, 1 Layer | 6.3µH | ±10% | 30mOhm | 40 @ 100kHz | - | - | - | - | 1.97" Dia x 0.09" H (50.0mm x 2.3mm) |
|
|
CTTX505024SF-6R3KWIRELESS TRANSMITTER COIL |
10 |
|
- |
CTTX505024SF | Bulk | Active | Transmitter | 1 Coil, 1 Layer, Bifilar | 6.3µH | ±10% | 45mOhm | - | 5A | - | - | -40°C ~ 85°C | 1.97" L x 1.97" W x 0.12" H (50.0mm x 50.0mm x 3.0mm) |
|
CTRX324517SF-140KWIRELESS RECEIVER COIL |
5 |
|
- |
CTRX324517SF | Bulk | Active | Receiver | 1 Coil, 1 Layer | 14µH | ±10% | 355mOhm | - | 1.2A | - | - | -40°C ~ 85°C | 1.77" L x 1.26" W x 0.07" H (45.0mm x 32.0mm x 1.7mm) |
Wireless Charging Coils Electronic Components
Explore Wireless Charging Coils electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
