Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
38BM-0-H-3-SSWITCH PUSH SPST-NO 0.4VA 20V |
9 |
|
Datasheet |
38BM | Bulk | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | White | - | - | Gull Wing | - | Sealed - Fully | - | -30°C ~ 85°C |
|
UB15NKG01NSWITCH PUSHBUTTON SPDT 0.4VA 28V |
2 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Plunger Seal | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

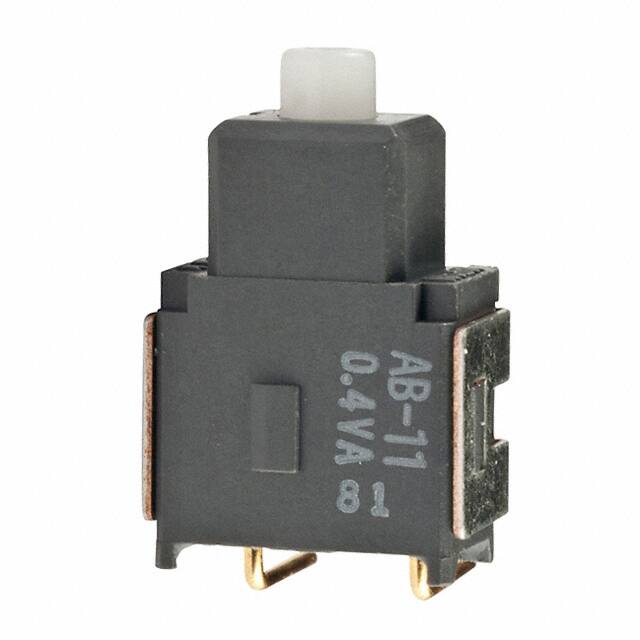

AB11CHSWITCH PUSH SPST-NO 0.4VA 28V |
2,000 |
|
Datasheet |
AB | Box | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
1241.1104.7094SWITCH PUSH SPST-NO 125MA 48V |
194 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Blue | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1102.7098SWITCH PUSH SPST-NO 80MA 24V |
188 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Square, Button, Flush | No Marking | White | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1102.7095SWITCH PUSH SPST-NO 80MA 24V |
185 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Square, Button, Flush | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
EP11RD1AVBESWITCH PUSH SPST-NO 0.4VA 20V |
311 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

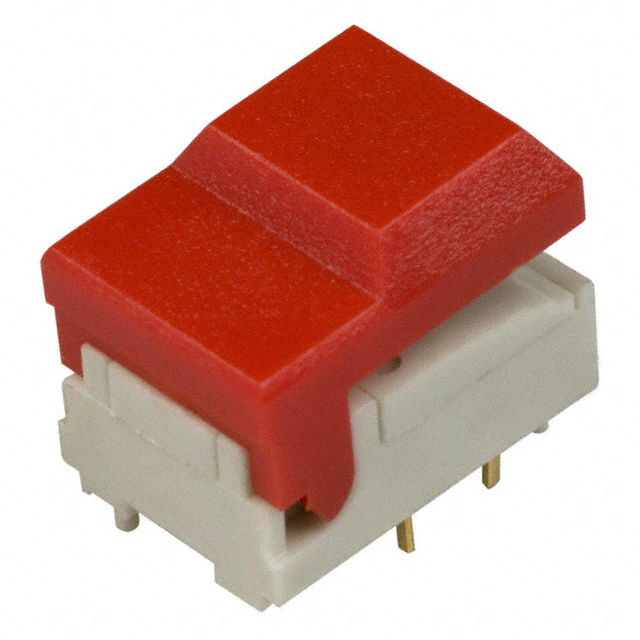

SER RD AU EESWITCH PUSH SPDT 0.01A 24V |
491 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
8168LHCBE2SWITCH PUSH SPDT 0.4VA 20V |
952 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

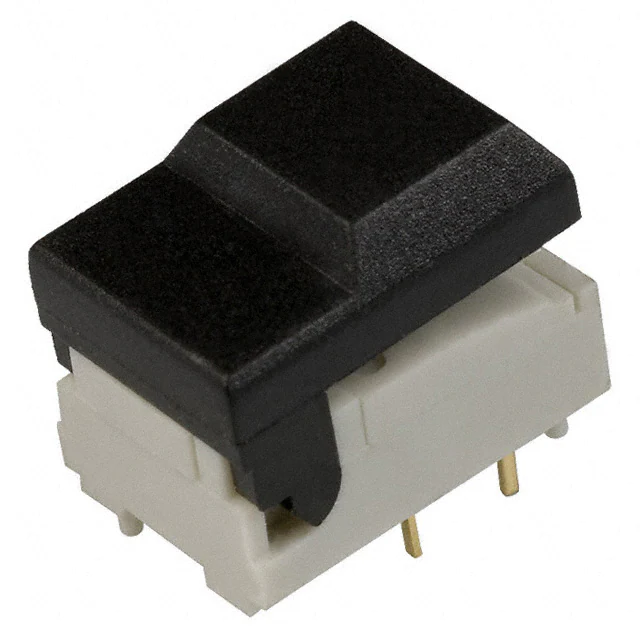

SER BK AU EESWITCH PUSH SPDT 0.01A 24V |
457 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
0041.8845.7107SWITCH PUSHBUTTON SPST-NO |
200 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
FP11SPA1B1TP01SWITCH PUSH SPST-NO 0.4VA 28V |
575 |
|
Datasheet |
FP | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
|
EB2061-BBSWITCH PUSHBUTTON DPDT 3A 125V |
22 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
EP11S2D1AVBESWITCH PUSH SPST-NO 0.4VA 20V |
154 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
EP11S1D1ABESWITCH PUSH SPST-NO 0.4VA 20V |
200 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
0041.9105.72000SWITCH PUSHBUTTON SPST-NO |
200 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

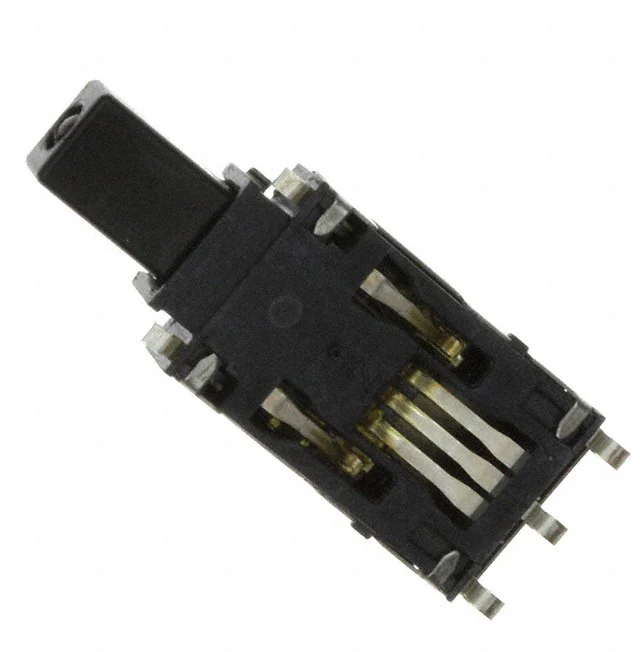

ELUMOASAQ3C12SWITCH PUSH SPDT 0.25A 50V |
236 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
|
1241.1112.7093SWITCH PUSH SPST-NO 125MA 48V |
200 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1113.7094SWITCH PUSH SPST-NO 125MA 48V |
189 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Blue | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1112.7097SWITCH PUSH SPST-NO 125MA 48V |
167 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
