Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPB05-2C54-R-CAP-BK-DDPDT, THROUGH HOLE, 5.4 MM PUSH, |
200 |
|
Datasheet |
MPB05 | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB05-2C54-R-CAP-WT-DDPDT, THROUGH HOLE, 5.4 MM PUSH, |
200 |
|
Datasheet |
MPB05 | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB05-2C54-R-CAP-R-DDPDT, THROUGH HOLE, 5.4 MM PUSH, |
196 |
|
Datasheet |
MPB05 | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|

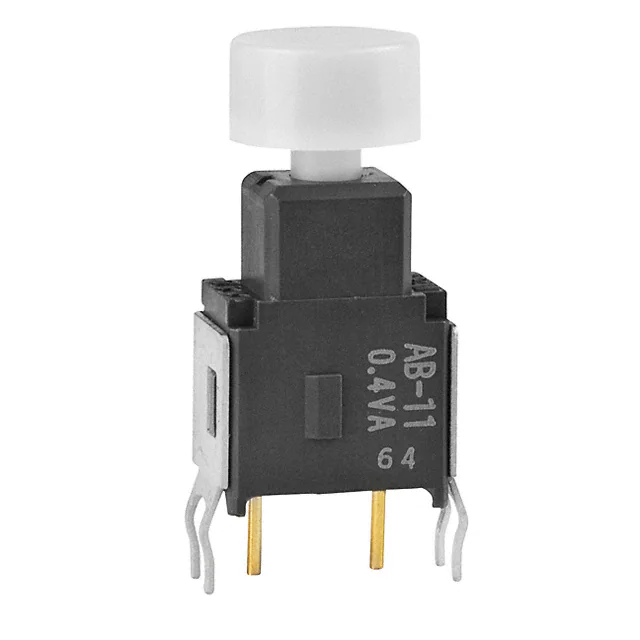

AB11BB-HBSWITCH PUSH SPST-NO 0.4VA 28V |
22 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
700DP7M1REAP2BLKBLKSWITCH PUSH DPDT 0.4VA 20V |
177 |
|
Datasheet |
700 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
ULP12OAP1RSFCL1REDGRNSWITCH PUSHBUTTON SPDT 0.4VA 28V |
101 |
|
Datasheet |
ULP | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green/Red | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
0041.9151.5307SWITCH PUSH SPST-NO 200MA 60V |
197 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Green | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|

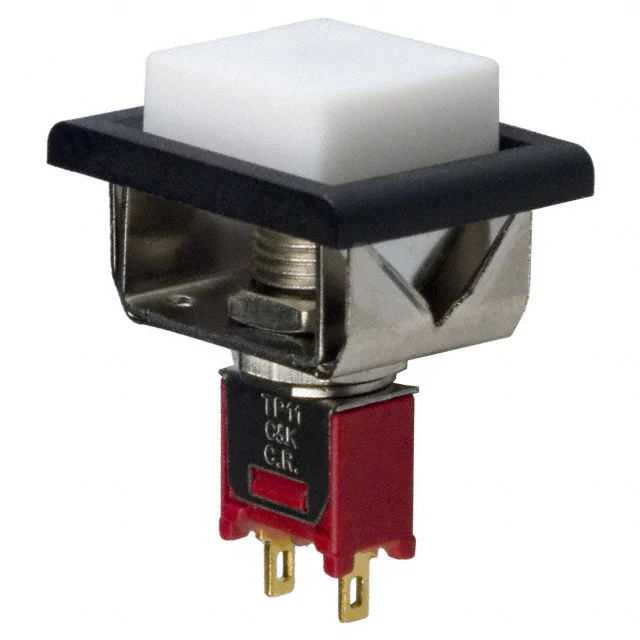

TP11J81ZBE12SWITCH PUSH SPST-NO 0.4VA 20V |
208 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Sealed | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|
PB6B2HS5M3CAL00SWITCH PUSH SPST-NO 125MA 125V |
153 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
1415NC3SWITCH PUSHBUTTON SPDT 3A 12V |
120 |
|
Datasheet |
1400N | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (DC) | - | 12 V | Square, Button | No Marking | Green | - | - | Solder Lug | - | - | Rectangular - 16.50mm x 14.30mm | -20°C ~ 55°C |
|

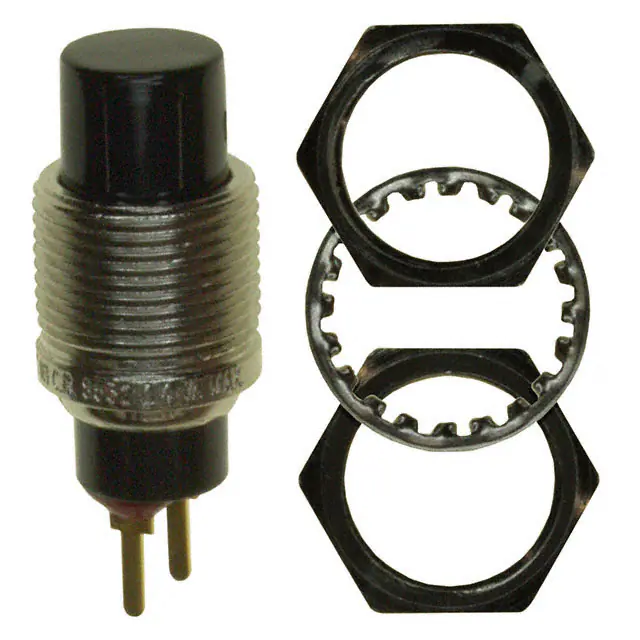

8532TCBE2SWITCH PUSH SPST-NO 0.4VA 20V |
159 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
|
ULP12OAM1QPMCL1REDYELSWITCH PUSHBUTTON SPDT 0.5A 250V |
981 |
|
Datasheet |
ULP | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 200mA (AC), 500mA (DC) | 250 V | 25 V | Square, Button, Flush | No Marking | Clear (White Filter/Diffuser) | LED, Red/Yellow | - | Solder Lug | - | Tactile Feedback | Rectangular - 17.70mm x 15.80mm | -20°C ~ 70°C |
|
|
700CSP7B60M2QEHSWITCH PUSHBUTTON SPDT 3A 120V |
192 |
|
Datasheet |
700C | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
SERL BK YE AU OASWITCH PUSH SPDT 0.01A 24V |
648 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Yellow | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
8551SZQE2SWITCH PUSH SPST-NO 3A 120V |
160 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
PB6B2RS2M3CAL00SWITCH PUSH SPST-NO 125MA 125V |
142 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2RS6M4CAL00SWITCH PUSH SPST-NO 125MA 125V |
110 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM7M3CAL00SWITCH PUSH SPST-NO 125MA 125V |
108 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

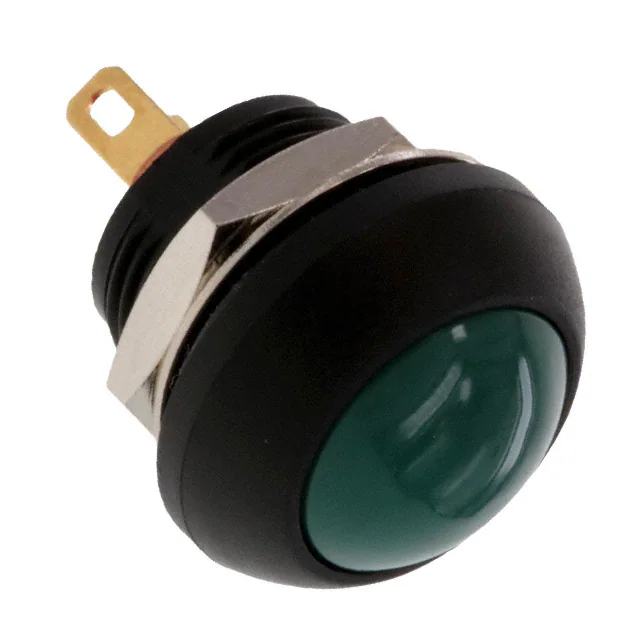

PB6B2RS6M2CAL00SWITCH PUSH SPST-NO 125MA 125V |
105 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button, Domed | No Marking | Green | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
E112SYCBESWITCH PUSH SPDT 0.4VA 20V |
204 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
