Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PB6B2FM6M1CAL03Y500SWITCH PUSH SPST-NO 125MA 125V |
102 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Green | LED, Red | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
UB15SKW03N-FSWITCH PUSHBUTTON SPDT 5A 125V |
2 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Process Sealed | - | -20°C ~ 70°C |
|
|
G3B25AB-S-XASWITCH PUSH DPDT 0.4VA 28V |
200 |
|
Datasheet |
G3B | Tube | Active | Surface Mount | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Gull Wing | - | Process Sealed | - | -30°C ~ 85°C |
|

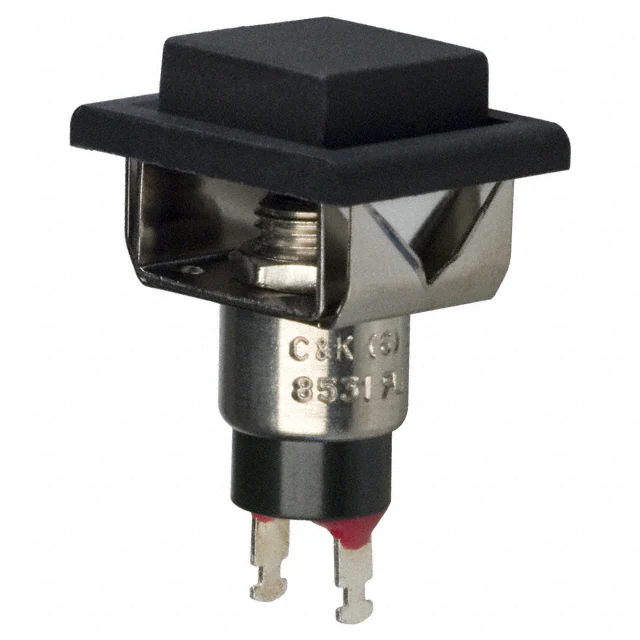

8531J81ZQE22SWITCH PUSH SPST-NO 1A 120V |
113 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
8121J85ZGE226SWITCH PUSHBUTTON SPDT 1A 120V |
195 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Green | 2.1 VDC | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
ELUMEETHQC02SWITCH PUSH SPDT 0.25A 50V |
180 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 80°C |
|
TP12LT9ABESWITCH PUSH SPDT 0.4VA 20V |
155 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
|
0041.8855.1107SWITCH PUSHBUTTON SPST-NO |
200 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
UB15SKW035D-JJSWITCH PUSHBUTTON SPDT 5A 125V |
22 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Clear | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
ULP12OAP1RSFCL1YELBLUSWITCH PUSHBUTTON SPDT 0.4VA 28V |
1,157 |
|
Datasheet |
ULP | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Blue/Yellow | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 70°C |
|
|
0041.9146.3317SWITCH PUSH SPST-NO 200MA 60V |
200 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
|
0041.9146.3117SWITCH PUSH SPST-NO 200MA 60V |
198 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
|
0041.9146.5327SWITCH PUSH SPST-NO 200MA 60V |
198 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Green | LED, Green | 2 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
1825174-3SWITCH PUSHBUTTON SPDT 50MA 48V |
1 |
|
Datasheet |
APA | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
8125SD3V8BESWITCH PUSH SPDT 0.4VA 20V |
159 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
1241.1106.7091SWITCH PUSH SPST-NO 80MA 24V |
200 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Yellow | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1106.7096SWITCH PUSH SPST-NO 80MA 24V |
197 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Gray | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1106.7095SWITCH PUSH SPST-NO 80MA 24V |
190 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
TP11LTWQESWITCH PUSH SPST-NO 1A 120V |
190 |
|
Datasheet |
TP | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
.jpg)
|
GP11MSA1BESWITCH PUSH SPST-NO 0.4VA 20V |
2,035 |
|
Datasheet |
GP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
