Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0041.9160.3317SWITCH PUSHBUTTON SPST-NO |
200 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
0041.9157.1137SWITCH PUSH DPST-NO 200MA 60V |
196 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | - | - | - | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
0041.0412SWITCH PUSHBUTTON SPDT 80MA 125V |
200 |
|
Datasheet |
SDK | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 80mA (AC/DC) | 125 V | 50 V | Round, Plunger | No Marking | Red | - | - | PC Pin | IP40 | - | - | -40°C ~ 85°C |
|
|
0041.0413SWITCH PUSHBUTTON SPDT 80MA 125V |
200 |
|
Datasheet |
SDK | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 80mA (AC/DC) | 125 V | 50 V | Round, Plunger | No Marking | Green | - | - | PC Pin | IP40 | - | - | -40°C ~ 85°C |
|

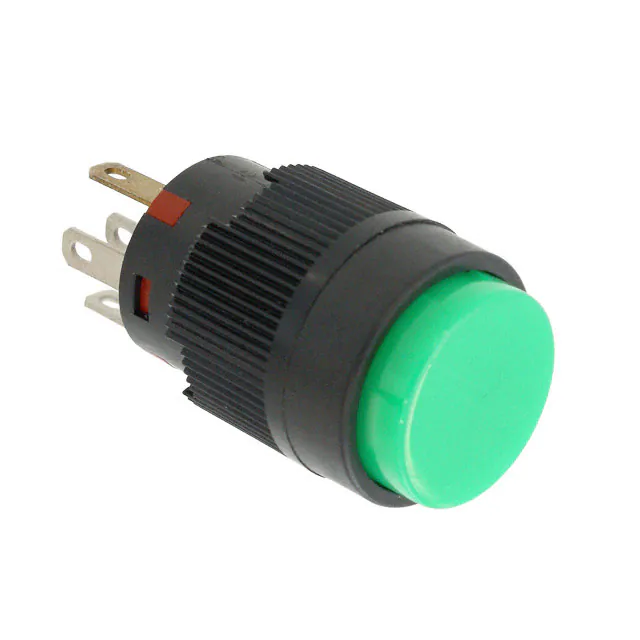

YB15CKG01-FBSWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
YB | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Green (White Filter/Diffuser) | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
ULV8FWBSS331SWITCH PB SPDT 3A 250V |
178 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
|
|
0041.8860.1137SWITCH PUSHBUTTON SPST-NO |
225 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|

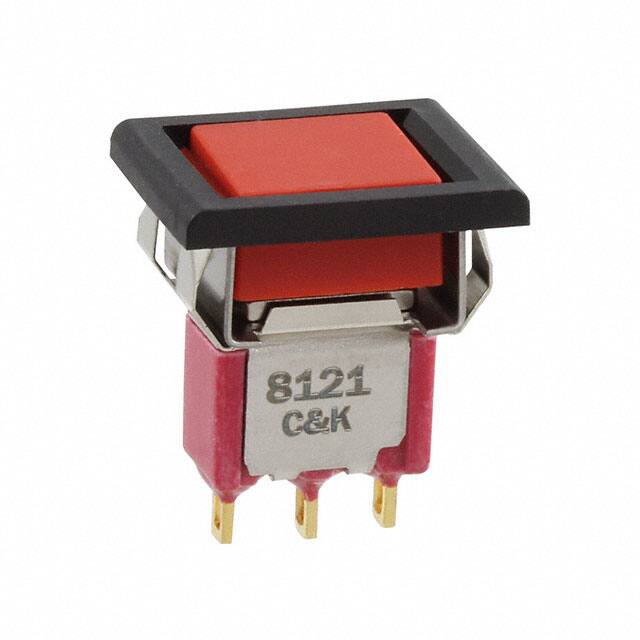

8121J83ZGE32SWITCH PUSHBUTTON SPDT 1A 120V |
147 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button, Flush | No Marking | Red | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
|
1241.2879.3SWITCH PUSH SPST-NO 125MA 48V |
200 |
|
Datasheet |
MCS | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Red | - | - | Connector | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|
AP2D200SZBESWITCH PUSH SPST-NO 0.125A 125V |
274 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
.jpg)
|
GP12MSV1BESWITCH PUSH SPDT 0.4VA 20V |
477 |
|
Datasheet |
GP | Tape & Reel (TR) | Active | Surface Mount, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
ULV4FW3SS311SWITCH PB SPDT 3A 125V |
182 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Red | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
1241.2858SWITCH PUSH SPST-NO 125MA 48V |
158 |
|
Datasheet |
MCS | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 2.0, 2.2 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 19.00mm Dia | -25°C ~ 60°C |
|
ULV4F2GSLL43L18SWITCH PUSHBUTTON DPDT 3A 125V |
106 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-On | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
40-3658-01SWITCH PUSHBUTTON SPDT 2A 14V |
197 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On-On-Off | 2A (DC) | - | 14 V | Round, Plunger | No Marking | White | - | - | Wire Leads | - | - | - | - |
|
|
ULV7F2BSS341SWITCH PUSHBUTTON SPDT 3A 125V |
165 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | - | Silver | LED, Blue | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
ULV4F23SS311-DDSWITCH PUSHBUTTON SPDT 3A 250V |
235 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
AV1911RB12T5Q04SWITCH PUSHBUTTON SPDT 3A 250V |
225 |
|
Datasheet |
AV19 | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Blue/Red | 12 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
PNP8N0D2Y03QE8N, DOME BEZEL, SPST NO, SOLDER |
159 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
ULV8FMBSS311SWITCH PB SPDT 3A 125V |
106 |
|
Datasheet |
ULV8 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 3 VDC | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 25.20mm Dia | -20°C ~ 55°C |
