Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E125SD1AV2BESWITCH PUSH SPDT 0.4VA 20V |
350 |
|
Datasheet |
E020 | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
0041.8846.5127SWITCH PUSH SPST-NO 200MA 60V |
181 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
0041.0403SWITCH PUSHBUTTON SPDT 2A 125V |
199 |
|
Datasheet |
SDK | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 2A (AC/DC) | 125 V | 50 V | Round, Plunger | No Marking | Green | - | - | PC Pin | IP40 | - | - | -40°C ~ 85°C |
|
0041.0401SWITCH PUSHBUTTON SPDT 2A 125V |
190 |
|
Datasheet |
SDK | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 2A (AC/DC) | 125 V | 50 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP40 | - | - | -40°C ~ 85°C |
|
8121SYW4GESWITCH PUSHBUTTON SPDT 1A 120V |
186 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
TP12SH9V3BESWITCH PUSH SPDT 0.4VA 20V |
142 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
0041.9156.5127SWITCH PUSH SPST-NO 200MA 60V |
187 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Green | LED, Green | 2 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|

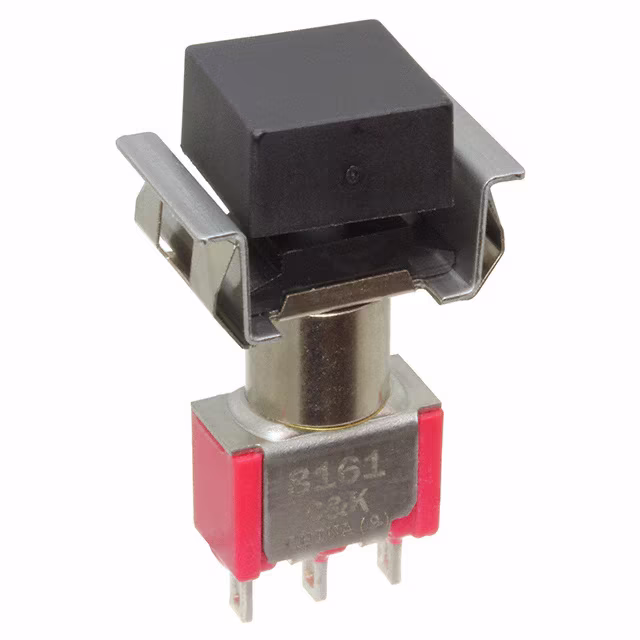

8161J80ZQE2SWITCH PUSHBUTTON SPDT 6A 120V |
102 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
ULV4F2HSLL16L21SWITCH PUSHBUTTON DPDT 3A 125V |
237 |
|
Datasheet |
ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 110 VAC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
0041.9150.5127SWITCH PUSHBUTTON SPST-NO |
195 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
EB2011G-G-J23ACFSWITCH PUSHBUTTON SPDT 0.4VA 28V |
200 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Blue | LED, Green/Red | 2.0, 2.25 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.40mm x 15.00mm | -10°C ~ 70°C |
|
|
UB15SKG035D-DJSWITCH PUSHBUTTON SPDT 0.4VA 28V |
22 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Square, Button | No Marking | Amber | LED, Amber | 2 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
|
UB15KKW015F-ABSWITCH PUSHBUTTON SPDT 5A 125V |
22 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Black (White Window) | LED, Green | 2.1 VDC | Solder Lug | - | Photo Interrupter | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
C7001AFBBSWITCH PUSH SPST-NO 16A 250V |
595 |
|
Datasheet |
7000 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 25.00mm Dia | - |
|
|
WH58M-112A/4044SWITCH PUSHBUTTON 10A 125V |
107 |
|
Datasheet |
WH58M | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO/NC | On-Mom | 10A (AC), 5A (DC) | 125 V | 28 V | Round, Button, Flush | - | Silver | LED, Amber | 1.6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.15mm Dia | -40°C ~ 85°C |
|
|
0041.8856.1137SWITCH PUSH SPST-NO 200MA 60V |
200 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | - | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
|
|
UB15SKW035F-FFSWITCH PUSHBUTTON SPDT 5A 125V |
21 |
|
Datasheet |
UB | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Green | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|
UB16KKW015FSWITCH PUSHBUTTON SPDT 5A 125V |
3 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|
ULV7F2HSLL16L21SWITCH PUSHBUTTON DPDT 3A 125V |
233 |
|
Datasheet |
ULV7 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPDT | On-Mom | 3A (AC) | 125 V | - | Round, Button, Flush | No Marking | Silver | LED, Red | 110 VAC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
0041.9157.5327SWITCH PUSH DPST-NO 200MA 60V |
200 |
|
Datasheet |
LDS | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Square, Button | No Marking | Green | LED, Green | 2 VDC | PC Pin | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 60°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
