Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W49-115SWITCH PUSHBUTTON 125MA 125V |
515 |
|
Datasheet |
W49 | Tube | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | Yellow | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 105°C |
|
|
W49-114SWITCH PUSHBUTTON 125MA 125V |
514 |
|
Datasheet |
W49 | Tube | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | White | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 105°C |
|
|
W49-116SWITCH PUSHBUTTON 125MA 125V |
513 |
|
Datasheet |
W49 | Tube | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | Blue | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 105°C |
|
|
W49-117SWITCH PUSHBUTTON 125MA 125V |
474 |
|
Datasheet |
W49 | Tube | Active | Panel Mount, Front | Standard | SPST-NO (DM) | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button, Domed | - | Orange | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -40°C ~ 105°C |
|
|
0041.8843.7107SWITCH PUSHBUTTON SPST-NO |
195 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
CSMS15CIC01CSM DISPLAY SMT LED SQUARE 15MM |
548 |
|
Datasheet |
CSM | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | Off-Mom | - | - | - | Square, Button | No Marking | Clear | LED, Red | 2.8 VDC | SMD (SMT) Tab | - | - | - | -35°C ~ 85°C |
|
|
BB16AB-FASWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
EP11S1D1CBESWITCH PUSH SPST-NO 0.4VA 20V |
132 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
0041.9101.72000SWITCH PUSHBUTTON SPST-NO |
200 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
|
AB11AB1-FASWITCH PUSH SPST-NO 0.4VA 28V |
22 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11BVSWITCH PUSH SPST-NO 0.4VA 28V |
3 |
|
Datasheet |
AB | Box | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
BB16AV-HASWITCH PUSH SPDT 0.4VA 28V |
22 |
|
Datasheet |
BB | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
1241.1110.4094SWITCH PUSH SPST-NO 125MA 48V |
398 |
|
Datasheet |
MCS18 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Blue | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -25°C ~ 60°C |
|
|
1241.1110.7094SWITCH PUSH SPST-NO 125MA 48V |
200 |
|
Datasheet |
MCS18 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Blue | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -25°C ~ 60°C |
|
|
1241.1110.7098SWITCH PUSH SPST-NO 125MA 48V |
183 |
|
Datasheet |
MCS18 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | White | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -25°C ~ 60°C |
|
|
1241.1108.7097SWITCH PUSH SPST-NO 125MA 48V |
175 |
|
Datasheet |
MCS18 | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Black | - | - | PC Pin | IP65 - Dust Tight, Water Resistant | Tactile Feedback | - | -25°C ~ 60°C |
|
|
SERL BK YE 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
440 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Yellow | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
|
1241.1100.7058SWITCH PUSH SPST-NO 125MA 48V |
195 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
UB15NBKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
22 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | With Barrier | Rectangular - 22.40mm x 16.20mm | -20°C ~ 70°C |
|

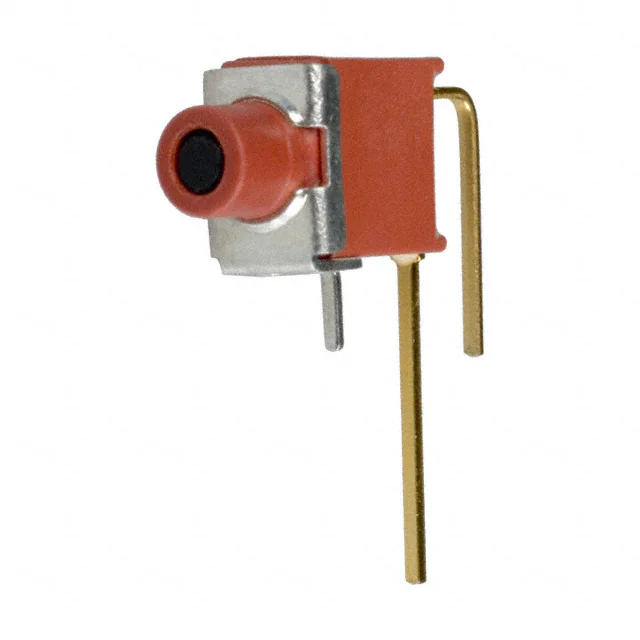

EP11FPD1AVBESWITCH PUSH SPST-NO 0.4VA 20V |
270 |
|
Datasheet |
EP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
