Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B3J-3300SWITCH PUSH SPST-NO 0.05A 24V |
257 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Yellow | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-4200SWITCH PUSH SPST-NO 0.05A 24V |
249 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
B3J-4400SWITCH PUSH SPST-NO 0.05A 24V |
221 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Green | 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
SW-PB8-AA12B1GE-2SEALED SNAP-ACTING PUSHBUTTON SW |
173 |
|
Datasheet |
SW | Box | Active | - | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
B3J-3000SWITCH PUSH SPST-NO 0.05A 24V |
116 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
CFPB-1CC-2R2SWITCH PUSH SPST-NO 1MA 20V |
191 |
|
Datasheet |
CFPB | Bag | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | Red | LED, Red | 2 VDC | PC Pin | - | - | - | -10°C ~ 60°C |
|
EP12FPD1ABESWITCH PUSH SPDT 0.4VA 20V |
262 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
PMS9P1B05M6RESWITCH PUSH SPST-NO 0.4VA 20V |
202 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
SW-PB8-AA00B11GE-2SEALED SNAP-ACTING PUSHBUTTON SW |
280 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
8531MAVBE2SWITCH PUSH SPST-NO 0.4VA 20V |
181 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
RP8100B2M1CEBLKBLKNIL-PSSWITCH PB SPST-NO 125MA 125V |
331 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Black | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
TP11SH8V3BESWITCH PUSH SPST-NO 0.4VA 20V |
110 |
|
Datasheet |
TP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
SW-PB8-BE222QE-1SNAP-ACTING PUSHBUTTON SWITCH, B |
206 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C |
|

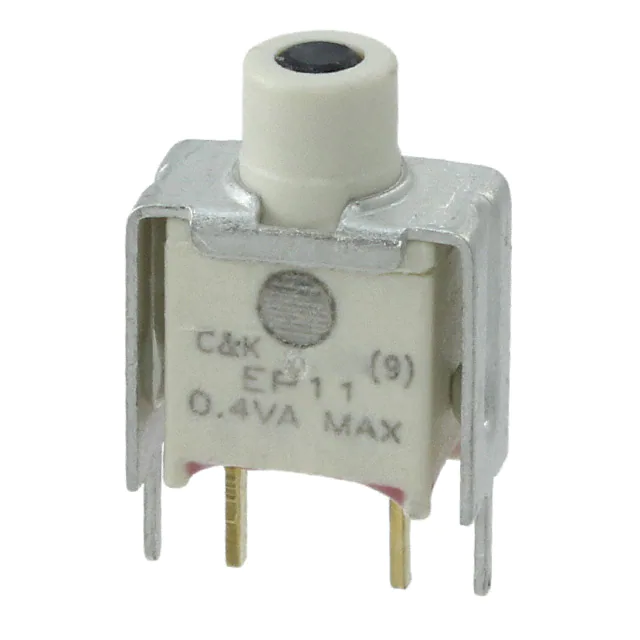

EP11FPD1V3BESWITCH PUSH SPST-NO 0.4VA 20V |
680 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
SW-PB8-BB00A1QE-1SNAP-ACTING PUSHBUTTON SWITCH, S |
286 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | Solder Lug | - | - | - | -30°C ~ 85°C |
|
SW-PB8-BB00A2QE-1SNAP-ACTING PUSHBUTTON SWITCH, S |
199 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
B3J-7100SWITCH PUSH SPST-NO 0.05A 24V |
4 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-6200SWITCH PUSH SPST-NO 0.05A 24V |
288 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Orange | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|

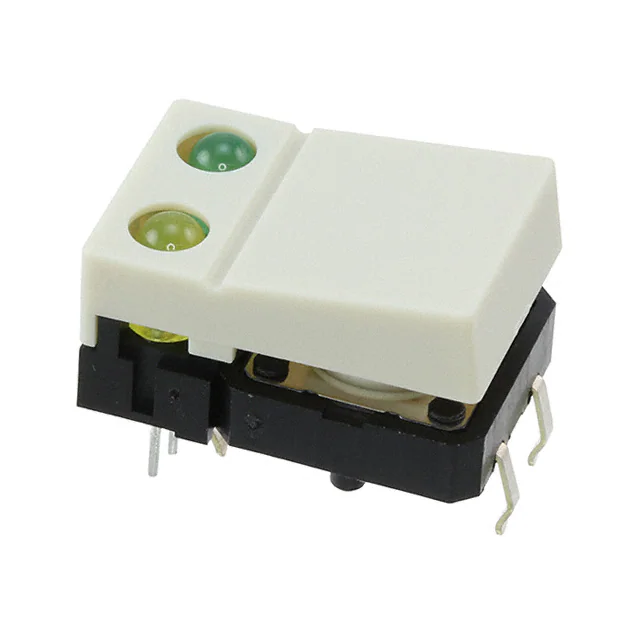

B3J-7000SWITCH PUSH SPST-NO 0.05A 24V |
286 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Green/Yellow | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
ZP33S000100SWITCH PUSH SPST-NO 0.4VA 20V |
229 |
|
Datasheet |
ZP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Voltage Reduction Lighting | Circular - 4.90mm Dia | -30°C ~ 85°C |
