Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPB01-1C54-SB-CAP-WT-DSPDT, THROUGH HOLE, 5.4 MM PUSH, |
200 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB01-1C54-SB-CAP-BK-DSPDT, THROUGH HOLE, 5.4 MM PUSH, |
200 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB01-1B54-SB-CAP-BK-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
197 |
|
Datasheet |
MPB01 | Bag | Active | Through Hole | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
SW-PB8-AB00B10QE-1SNAP-ACTING PUSHBUTTON SWITCH, V |
298 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

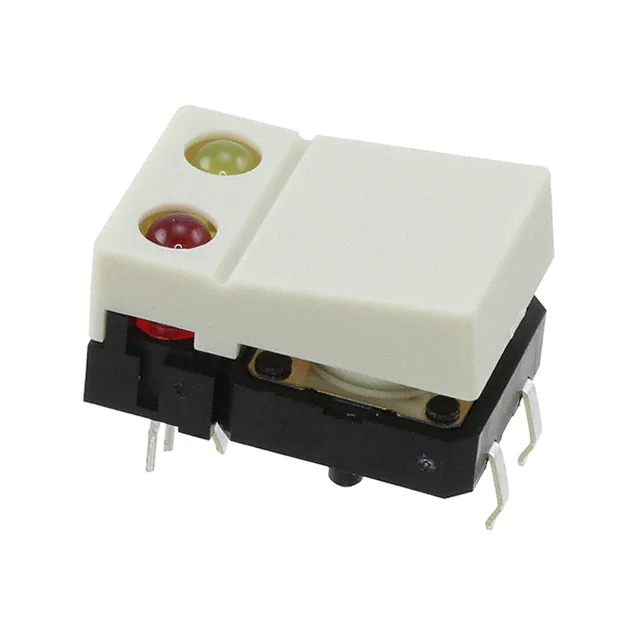

B3J-5000SWITCH PUSH SPST-NO 0.05A 24V |
9 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Gray, Light | LED, Red/Yellow | 2 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
B3J-6400SWITCH PUSH SPST-NO 0.05A 24V |
292 |
|
Datasheet |
B3J | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Square, Button | No Marking | Blue | LED, Green/Red | 2.0, 2.1 VDC | PC Pin | - | - | - | -25°C ~ 70°C |
|
MPB03-1C54-VB-CAP-WT-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
200 |
|
Datasheet |
MPB03 | Bag | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
MPB02-1C54-R-CAP-R-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
198 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB02-1C54-R-CAP-WT-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
197 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB03-1C54-VB-CAP-R-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
183 |
|
Datasheet |
MPB03 | Bag | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB02-1B54-R-CAP-R-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
177 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
|
MPB02-1B54-R-CAP-WT-DSPST, THROUGH HOLE, 5.4 MM PUSH, |
128 |
|
Datasheet |
MPB02 | Bag | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 14mA (DC) | - | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 80°C |
|
5511MWHTXSWITCH PUSH SPDT 0.03A 12V |
793 |
|
Datasheet |
5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|
SW-PB9-ABA2RE-7SEALED SUBMINIATIURE PUSHBUTTON |
482 |
|
Datasheet |
SW | Box | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | IP67 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
PMS9P1B07M2RESWITCH PUSH SPST-NO 0.4VA 20V |
425 |
|
Datasheet |
- | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

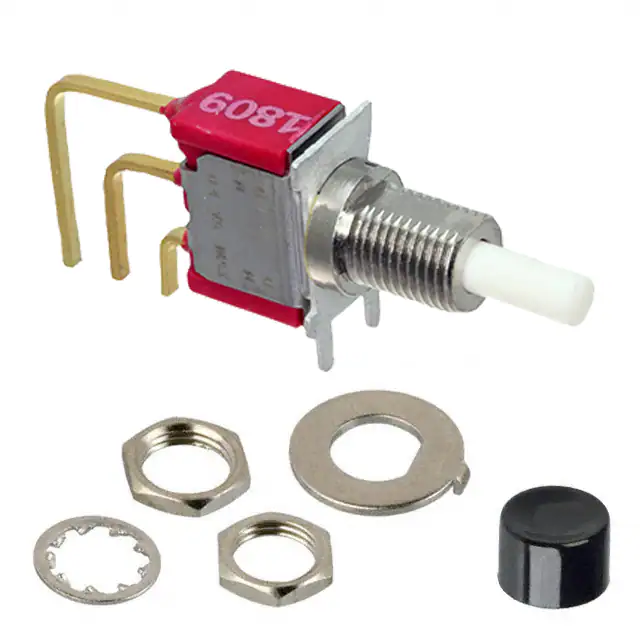

8161SHAV2BE2SWITCH PUSH SPDT 0.4VA 20V |
176 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Vertical, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
SW-PB8-AA00B2GE-2SEALED SNAP-ACTING PUSHBUTTON SW |
174 |
|
Datasheet |
SW | Box | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
SW-PB8-AA00A2GE-2SEALED SNAP-ACTING PUSHBUTTON SW |
167 |
|
Datasheet |
SW | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 38 V | Round, Plunger | No Marking | - | - | - | PC Pin | IP68 - Dust Tight, Waterproof | - | - | -30°C ~ 85°C |
|
MPB06-1C00-R-SMT-TRSPDT, SURFACE MOUNT, 0 MM PUSH, |
438 |
|
Datasheet |
MPB06 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | - | - | -25°C ~ 80°C |
|
|
MPB06-1C54-R-SMT-TRSPDT, SURFACE MOUNT, 5.4 MM PUSH |
210 |
|
Datasheet |
MPB06 | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPDT | On-Mom | 14mA (DC) | - | 28 V | Round, Plunger | No Marking | White | - | - | Gull Wing | - | - | - | -25°C ~ 80°C |
