Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

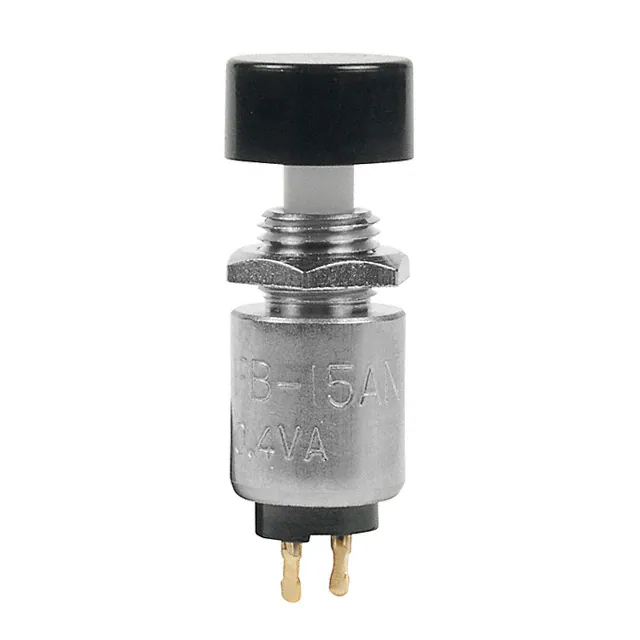

FB15ANEP4-HASWITCH PUSH SPST-NO 0.4VA 28V |
9 |
|
Datasheet |
FB | Box | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Turret | - | Epoxy Sealed Terminals | Circular - 5.30mm Dia | -10°C ~ 70°C |
|
FP21SPA1B1TP00SWITCH PUSH DPST-NO 0.4VA 28V |
496 |
|
Datasheet |
FP | Tray | Active | Through Hole, Right Angle | Standard | DPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
CTHS15CIC07SWITCH PUSH CAPACITIVE ILLUM SQ |
130 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | No Marking | Clear | LED, Yellow | 3.2 VDC | PC Pin | - | - | - | - |
|

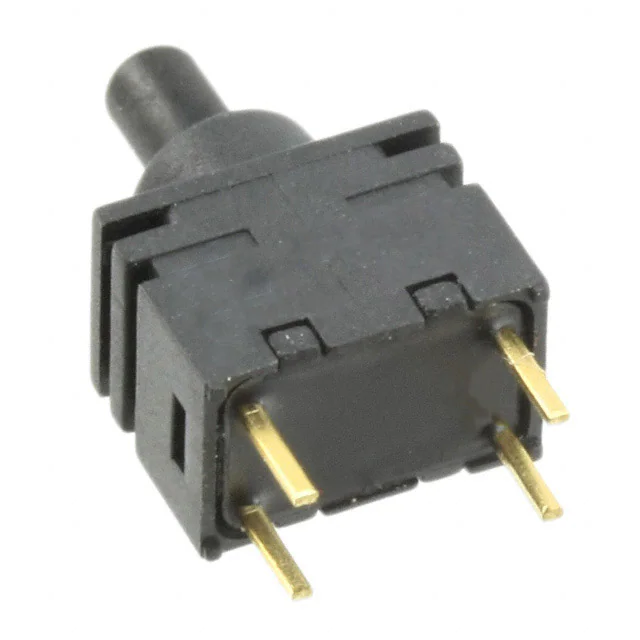

FP11SPC1B1TP00SWITCH PUSH SPST-NO 0.4VA 28V |
794 |
|
Datasheet |
FP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 80°C |
|
RP8300B2M1CEBLKBLKGRNSWITCH PB SPST-NO 200MA 250V |
380 |
|
Datasheet |
RP8300 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
BB26AP-FCSWITCH PUSH DPDT 0.4VA 28V |
19 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
MSP103B04SWITCH PUSH SPST-NC 3A 125V |
115 |
|
Datasheet |
MSP3 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
RP8400B2M1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
116 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
EP11SD1AQESWITCH PUSH SPST-NO 1A 120V |
200 |
|
Datasheet |
EP | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

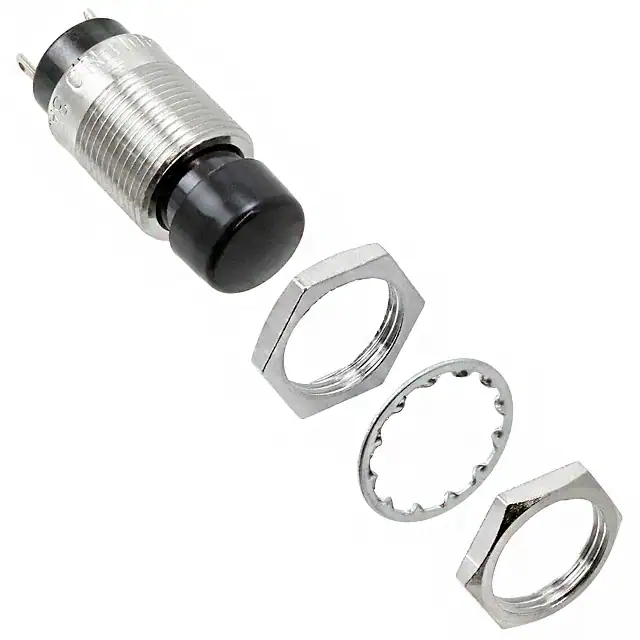

SB4011NOH-2ASWITCH PUSH SPST-NO 3A 125V |
129 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
|
AB15ABSWITCH PUSH SPDT 0.4VA 28V |
106 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
W59-900067SWITCH PB SPST-NO 125MA 125V |
548 |
|
Datasheet |
W59 | Tube | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 125mA (AC), 400mA (DC) | 125 V | 32 V | Round, Button, Domed | - | Red | - | - | Solder, Quick Connect - 0.079" (2.0mm) | IP67 - Dust Tight, Waterproof | - | Circular - 15.20mm Dia | -40°C ~ 105°C |
|
|
TP33WS83500SWITCH PUSH SPST-NO 0.4VA 20V |
634 |
|
Datasheet |
SMT TP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | - | - | - | Gull Wing | - | Washable in solvent or degreaser | - | -40°C ~ 85°C |
|
32-01SWITCH PUSH DPST 0.15A 28V |
235 |
|
Datasheet |
32 | Bulk | Active | Through Hole, Right Angle | Standard | DPST-NO/NC | On-Mom, Off-Mom | 150mA (DC) | - | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed - Fully, Stackable | - | -40°C ~ 85°C |
|

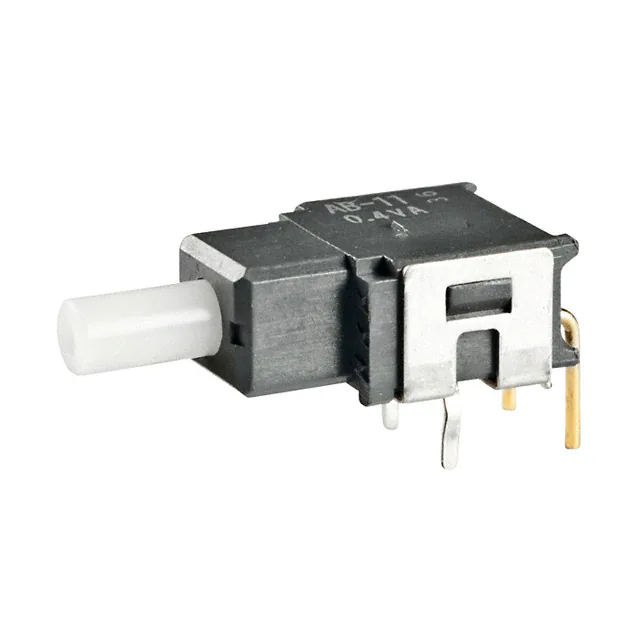

AB11AHSWITCH PUSH SPST-NO 0.4VA 28V |
10 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
0041.8841.7107SWITCH PUSH SPST-NO 200MA 60V |
192 |
|
Datasheet |
LDT | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 200mA (AC/DC) | 60 V | 50 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|
40-2531-01SWITCH PUSHBUTTON SPDT 2A 14V |
782 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Red | - | - | Wire Leads | - | - | - | - |
|

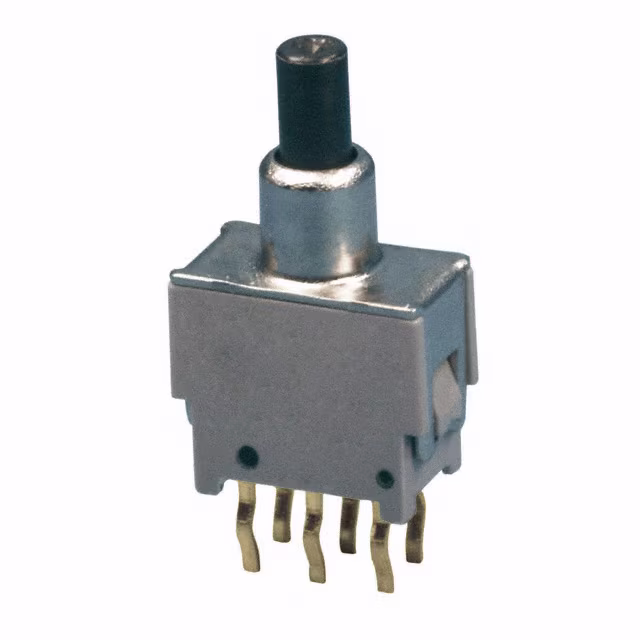

APE2F-2M-10-ZSWITCH PUSH DPDT 0.05A 60V |
193 |
|
Datasheet |
APE | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 50mA (AC/DC) | 60 V | 60 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -20°C ~ 85°C |
|

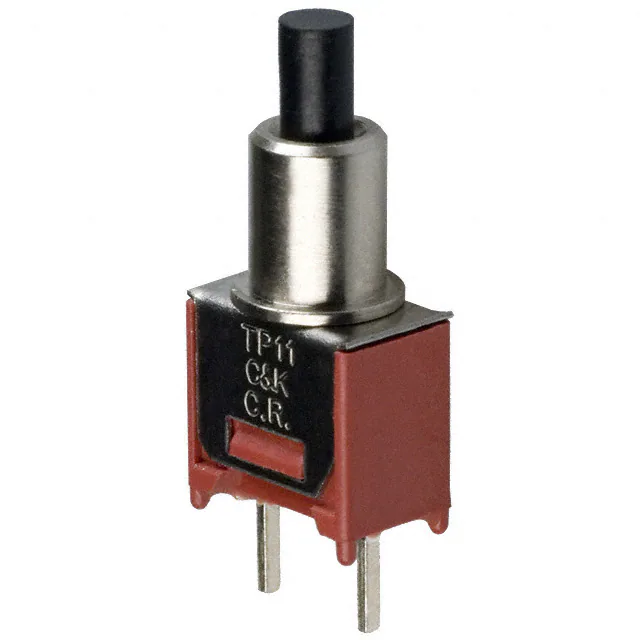

TP11SH8CQESWITCH PUSH SPST-NO 1A 120V |
3,750 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
GB15AP-XCSWITCH PUSH SPDT 0.4VA 28V |
162 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
