Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1241.1112.6096SWITCH PUSH SPST-NO 125MA 48V |
191 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Gray | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
1241.1100.7097SWITCH PUSH SPST-NO 125MA 48V |
174 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
.jpg)
|
GP11MSABESWITCH PUSH SPST-NO 0.4VA 20V |
3,040 |
|
Datasheet |
GP | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Gull Wing | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
M2B15AA5W03-FASWITCH PUSHBUTTON SPDT 1A 125V |
256 |
|
Datasheet |
M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
RP8100B2W1CEBLKREDREDSWITCH PB SPST-NO 0.125A 125V |
389 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | LED, Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2W1CEBLKBLKBLUSWITCH PB SPST-NO 0.125A 125V |
371 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Blue | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2W1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
361 |
|
Datasheet |
RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
PLP1624SQ6SE4LOCK, SQUARE, IP40, ILLUMINATE P |
124 |
|
Datasheet |
PLP16 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 3A (AC), 1A (DC) | 250 V | 30 V | Square, Button | No Marking | Green | LED, Green | 24 VAC/DC | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|
30-105SWITCH PUSH SPST-NO 0.15A 24V |
1,661 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 150mA (DC) | - | 24 V | Round, Button | No Marking | Blue | - | - | Solder Lug | - | Sealed - Fully | Circular - 15.20mm Dia | -40°C ~ 80°C |
|

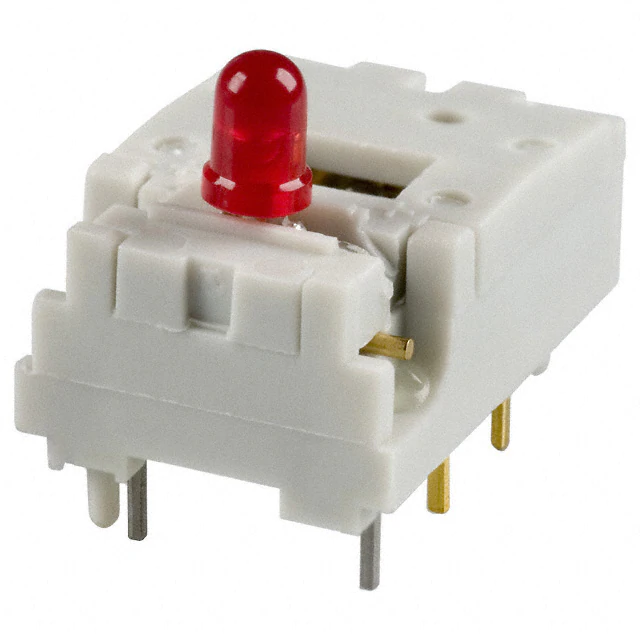

SERUL RD 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
474 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Plunger for Cap | No Marking | - | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
ATPS22SL5612M2SA04GSWITCH ANTIVANDAL R+PO, GRE, 12V |
142 |
|
Datasheet |
ATPS22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | - | Silver | LED, Green | 12 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 22.20mm Dia | -20°C ~ 70°C |
|
GP0115ACCG30SWITCH PUSH SPST-NO 0.4VA 28V |
8 |
|
Datasheet |
GP01 | Tray | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|
GP0115ACAG30SWITCH PUSH SPST-NO 0.4VA 28V |
20 |
|
Datasheet |
GP01 | Tray | Last Time Buy | Surface Mount, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | J Lead | - | - | - | -40°C ~ 85°C |
|

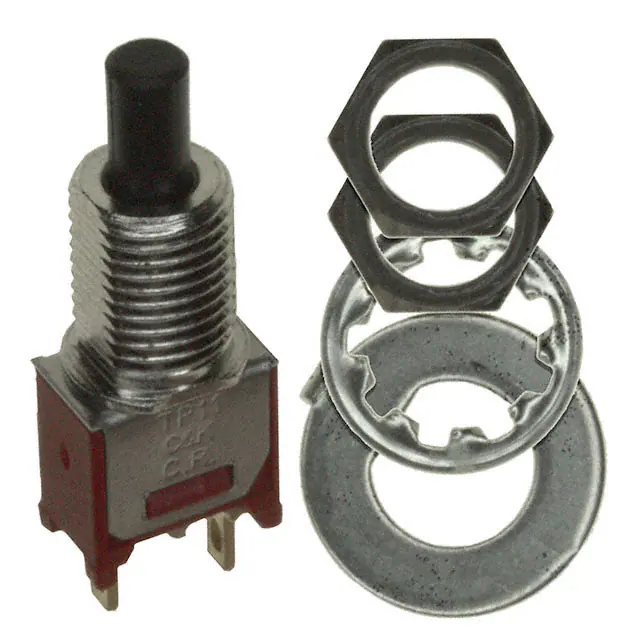

TP11LTZBESWITCH PUSH SPST-NO 0.4VA 20V |
2,792 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
BB25AP-HCSWITCH PUSH DPDT 0.4VA 28V |
125 |
|
Datasheet |
BB | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
TP12SH9AQESWITCH PUSHBUTTON SPDT 1A 120V |
322 |
|
Datasheet |
TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|

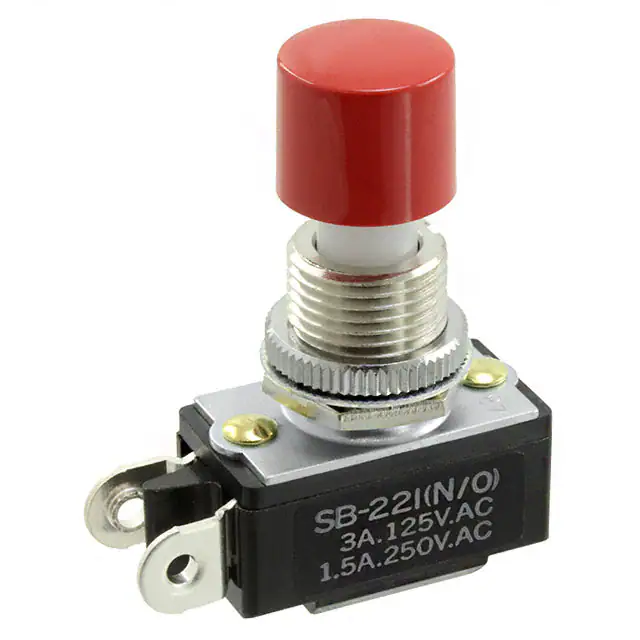

SB221NO-DCSWITCH PUSH SPST-NO 3A 125V |
501 |
|
Datasheet |
SB | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
8R1022-N-ZSWITCH PUSHBUTTON SPDT 3A 125V |
327 |
|
Datasheet |
8R-N | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -20°C ~ 85°C |
|

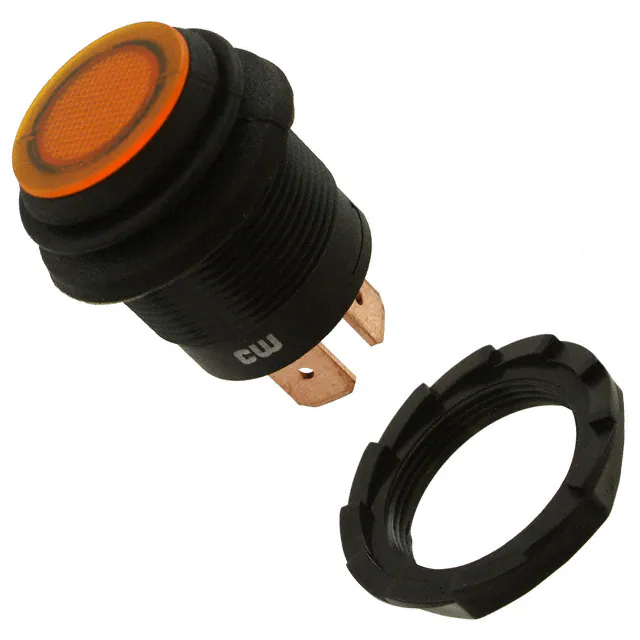

GPB553B2L01BASWITCH PUSHBUTTON SPST 10A 14V |
883 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 10A (DC) | - | 14 V | Round, Button | No Marking | Amber | LED, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 85°C |
|

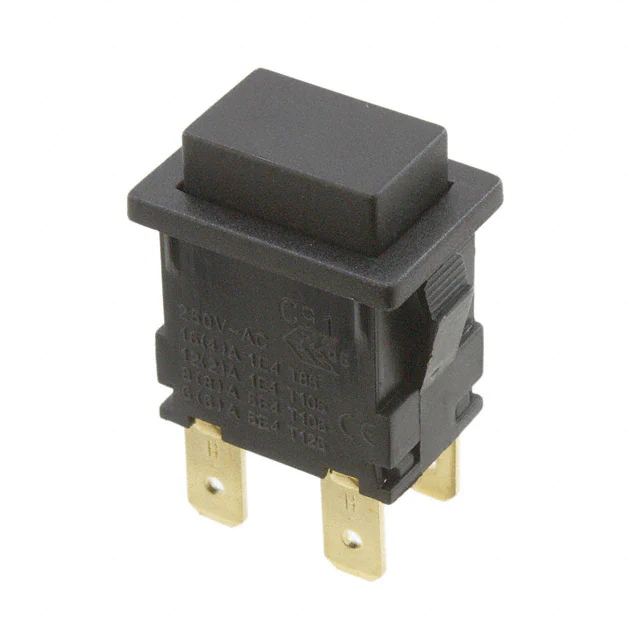

H8351ABBBSWITCH PUSH DPST-NO 12A 250V |
953 |
|
Datasheet |
8300 | Bulk | Active | Panel Mount, Snap-In | Standard | DPST-NO | Off-Mom | 12A (AC) | 250 V | - | Rectangular, Button | No Marking | Black | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.30mm x 12.90mm | - |
