Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CSMS15CIC06CSM DISPLAY SMT LED SQUARE 15MM |
1,481 |
|
Datasheet |
CSM | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | Off-Mom | - | - | - | Square, Button | No Marking | Clear | LED, Blue | 3.2 VDC | SMD (SMT) Tab | - | - | - | -40°C ~ 105°C |
|
CSMS15CIC07CSM DISPLAY SMT LED SQUARE 15MM |
526 |
|
Datasheet |
CSM | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | Off-Mom | - | - | - | Square, Button | No Marking | Clear | LED, Yellow | 2 VDC | SMD (SMT) Tab | - | - | - | -35°C ~ 85°C |
|
CSMS15CIC05CSM DISPLAY SMT LED SQUARE 15MM |
316 |
|
Datasheet |
CSM | Tape & Reel (TR) | Active | Surface Mount | Capacitive, Illuminated | - | Off-Mom | - | - | - | Square, Button | No Marking | Clear | LED, Green | 3.2 VDC | SMD (SMT) Tab | - | - | - | -40°C ~ 105°C |
|
AB11AP-FCSWITCH PUSH SPST-NO 0.4VA 28V |
8 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11BP-FCSWITCH PUSH SPST-NO 0.4VA 28V |
16 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB15AP-FCSWITCH PUSH SPDT 0.4VA 28V |
186 |
|
Datasheet |
AB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

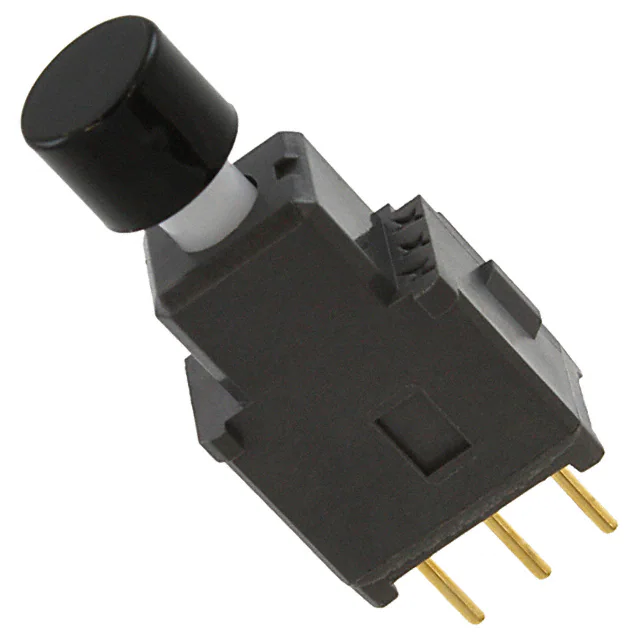

AB15AP-FASWITCH PUSH SPDT 0.4VA 28V |
101 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

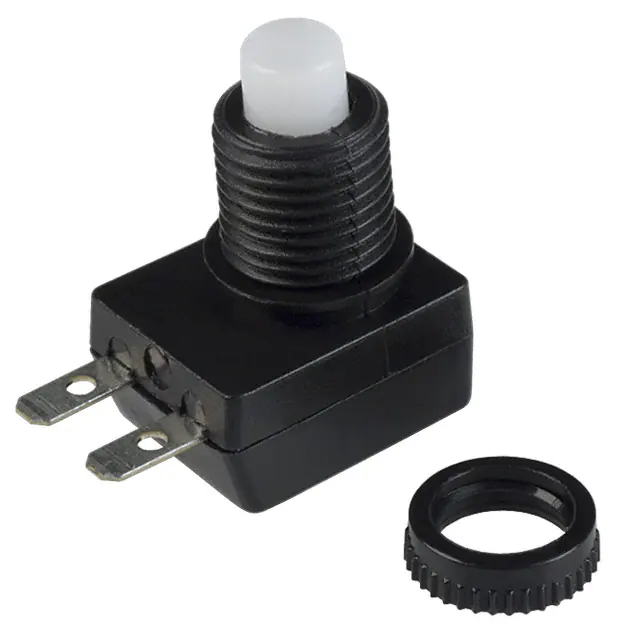

40-3438-02SWITCH PUSHBUTTON SPST 5A 14V |
1,122 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 5A (DC) | - | 14 V | Round, Plunger | No Marking | White | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | - |
|
|
EB2011G-BCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
10 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2065-CBSWITCH PUSHBUTTON SPDT 3A 125V |
198 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|
|
EB2065P-CHSWITCH PUSHBUTTON SPDT 3A 125V |
181 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-On | 3A (AC) | 125 V | - | Round, Button | No Marking | Gray | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

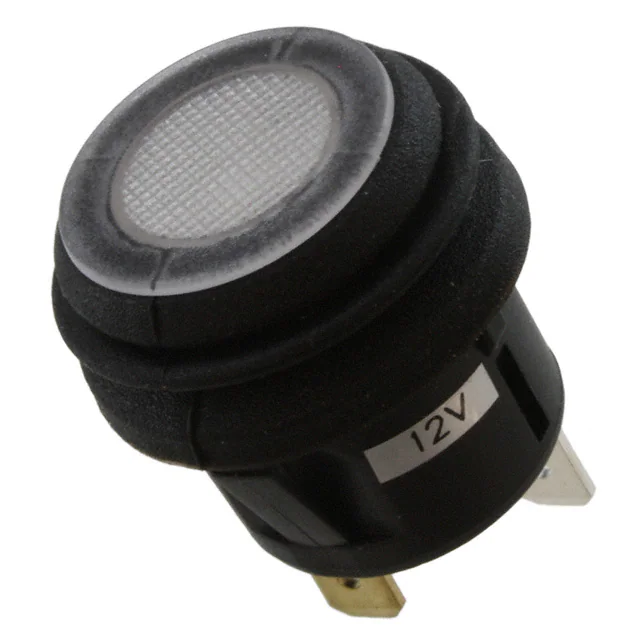

GPB527D2B02BW1SWITCH PUSHBUTTON SPST 10A 125V |
1,007 |
|
Datasheet |
GPB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST | Off-On | 10A (AC/DC) | 125 V | 28 V | Round, Button | No Marking | White | LED, White | 12 VDC | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.20mm Dia | -25°C ~ 85°C |
|
AB11AP-HASWITCH PUSH SPST-NO 0.4VA 28V |
23 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

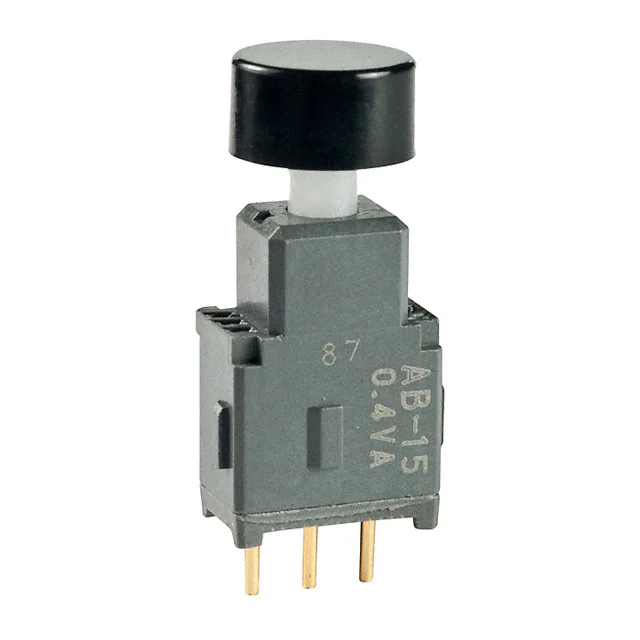

AB15AP-HASWITCH PUSH SPDT 0.4VA 28V |
365 |
|
Datasheet |
AB | Box | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
EB2011G-CCSWITCH PUSHBUTTON SPDT 0.4VA 28V |
14 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

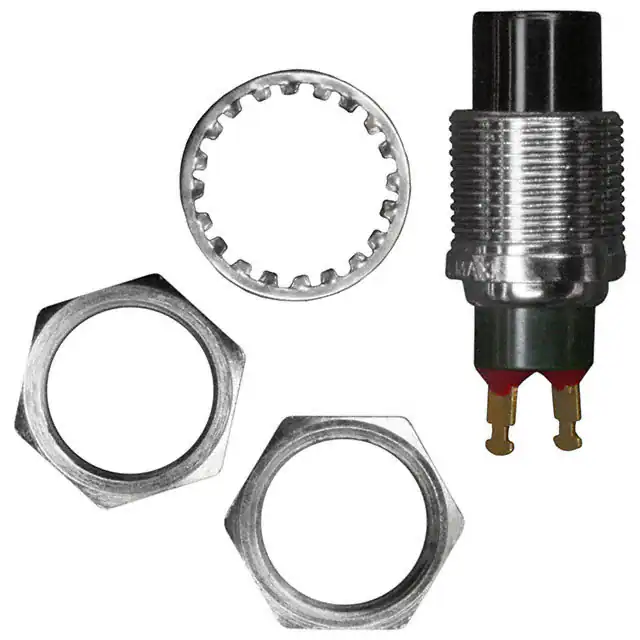

8531TZBE2SWITCH PUSH SPST-NO 0.4VA 20V |
187 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|

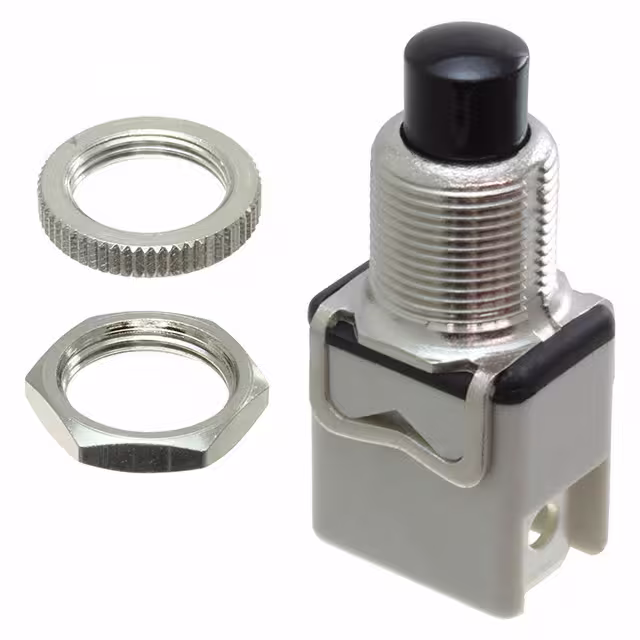

1212C2SWITCH PUSH SPST-NC 3A 125V |
179 |
|
Datasheet |
1200 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Round, Plunger | No Marking | Black | - | - | Solder, Quick Connect - 0.250" (6.3mm) | - | - | Circular - 12.20mm Dia | -20°C ~ 55°C |
|
|
BB16AB-HCSWITCH PUSH SPDT 0.4VA 28V |
17 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
RP8400B2M1CECHRBLUNILSWITCH PB SPST-NO 0.125A 125V |
351 |
|
Datasheet |
RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
TP33P008000SWITCH PUSH SPST-NO 0.4VA 20V |
129 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
