Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTHS15CIC04SWITCH PUSH CAPACITIVE ILLUM SQ |
140 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | No Marking | Clear | LED, White | 3.2 VDC | PC Pin | - | - | - | - |
|

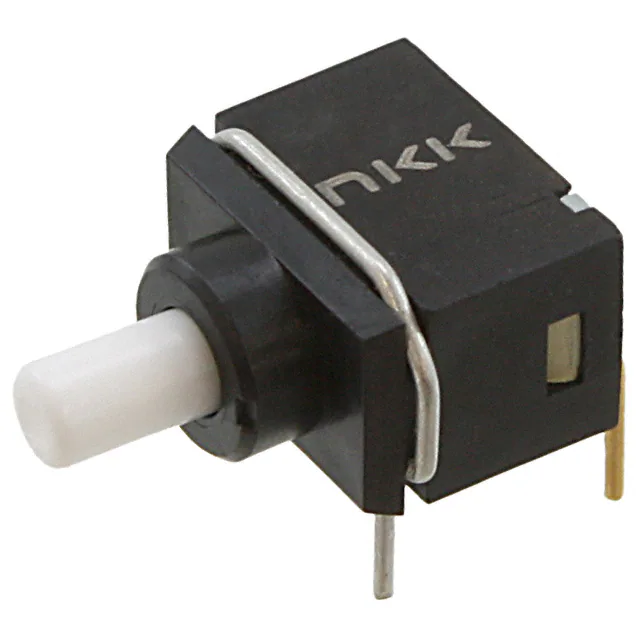

GB15AHSWITCH PUSH SPDT 0.4VA 28V |
7,866 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
BB16AV-FASWITCH PUSH SPDT 0.4VA 28V |
123 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
40-4463-01SWITCH PUSHBUTTON SPST 2A 14V |
1,837 |
|
Datasheet |
J-188 | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-Mom-On | 2A (DC) | - | 14 V | Round, Plunger | No Marking | Black | - | - | Wire Leads | - | - | - | - |
|
PB6B2FM2M1CAL03SWITCH PUSH SPST-NO 125MA 125V |
233 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM2M1CAL01SWITCH PUSH SPST-NO 125MA 125V |
217 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, White | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PB6B2FM2M1CAL07SWITCH PUSH SPST-NO 125MA 125V |
124 |
|
Datasheet |
PB6 | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Blue | - | Solder Lug | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
GB25APSWITCH PUSH DPDT 0.4VA 28V |
169 |
|
Datasheet |
GB | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
EP11S2D1CBESWITCH PUSH SPST-NO 0.4VA 20V |
198 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
AB11AH-FBSWITCH PUSH SPST-NO 0.4VA 28V |
13 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11AH-FCSWITCH PUSH SPST-NO 0.4VA 28V |
399 |
|
Datasheet |
AB | Tray | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
SF 2U EESWITCH PUSHBUTTON |
247 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
EP11SD1WBESWITCH PUSH SPST-NO 0.4VA 20V |
599 |
|
Datasheet |
EP | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Wire Wrap | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
EB2011PSWITCH PUSHBUTTON SPDT 3A 125V |
137 |
|
Datasheet |
EB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC) | 125 V | - | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -10°C ~ 70°C |
|

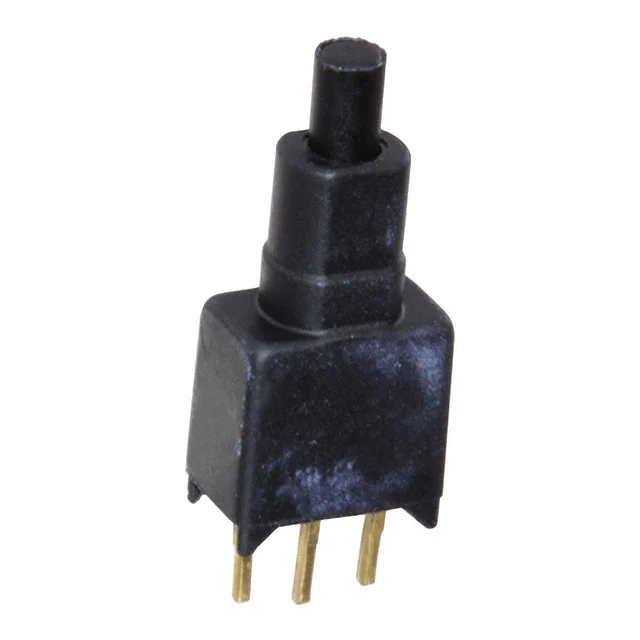

TP32P008000SWITCH PUSH SPDT 0.4VA 20V |
343 |
|
Datasheet |
TP | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | Power Symbol | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
AB15AH-HBSWITCH PUSH SPDT 0.4VA 28V |
147 |
|
Datasheet |
AB | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|

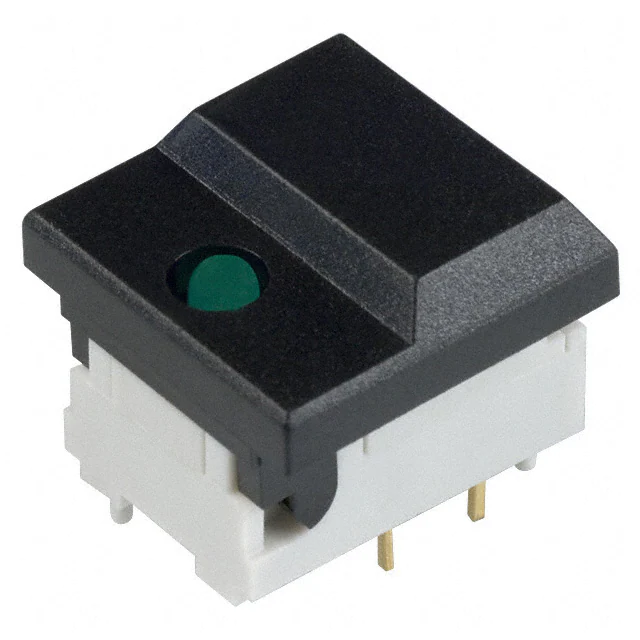

SETL BK GN AU EESWITCH PUSH SPDT 0.01A 24V |
485 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
PB6B2FM3M1CAL03S500SWITCH PUSH SPST-NO 125MA 125V |
104 |
|
Datasheet |
PB6 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | LED, Red | - | Wire Leads | IP68 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
1241.1100.7093SWITCH PUSH SPST-NO 125MA 48V |
238 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Red | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1100.7094MCS18 SWITCH MOMENTARY SILVER |
192 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | Silver | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
