Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC2255EESPSWITCH PUSH DPDT 0.3A 30V |
760 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

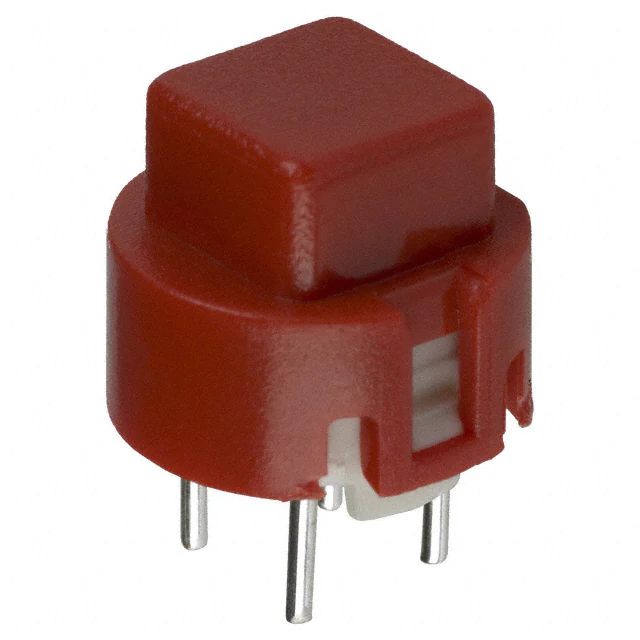

D6C40 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
1,437 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

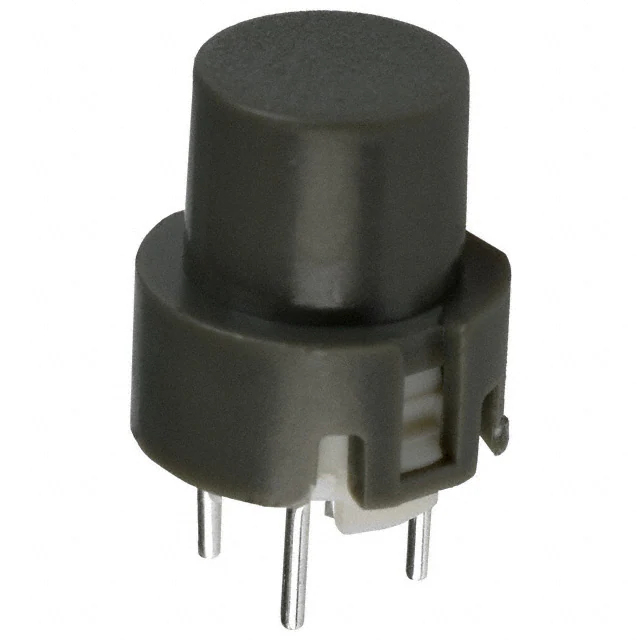

D6R10 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
5,827 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Gray | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
PBH6UEENAG1DBLKSWITCH PUSH 6PDT 0.1A 30V |
1,604 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PBH4UEEKZXNAG1SBLKSWITCH PUSH 4PDT 0.1A 30V |
235 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
MHPS4284SWITCH PUSH 4PDT 0.1A 30V |
374 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
D6L90 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
264,755 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6F90 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
58,011 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button, Flush | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

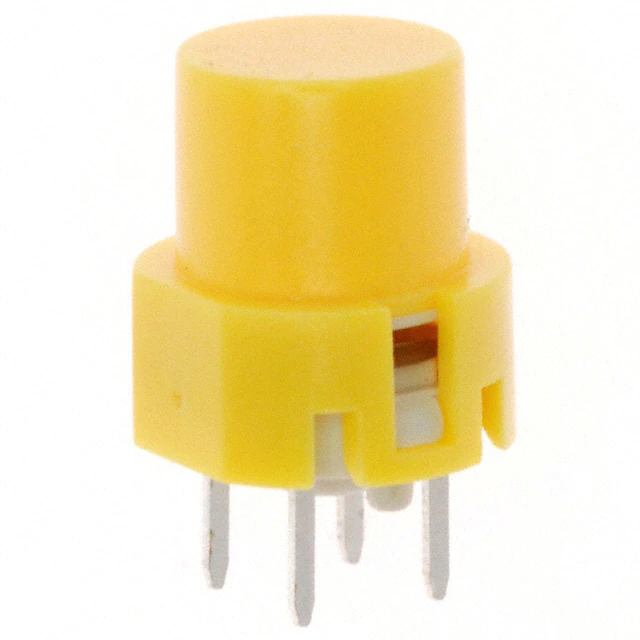

D6R30 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
4,264 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
MX1A-C1NWSWITCH PUSH SPST-NO 0.01A 12V |
20,382 |
|
- |
MX | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Clear | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|
MX1A-E1NNSWITCH PUSH SPST-NO 0.01A 12V |
6,991 |
|
- |
MX | Bulk | Active | Panel Mount, Front | Keyswitch | SPST-NO | Off-Mom | 10mA (AC/DC) | 12 V | 12 V | Plunger for Cap | No Marking | Blue | - | - | PC Pin | - | Audible Click | Square - 14.00mm x 14.00mm | -10°C ~ 70°C |
|
NCA1SWITCH PB SPST-NO 25MA 50V |
164 |
|
Datasheet |
NC | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 25mA (DC) | - | 50 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
|
D6R30 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
49,859 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

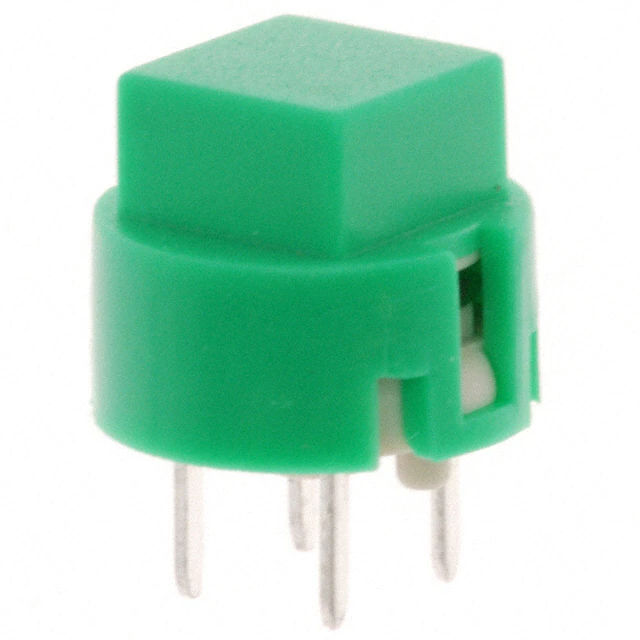

D6C50 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
15,505 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Green | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
MHPS2266NSWITCH PUSH DPDT 0.1A 30V |
1,471 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
JN2UOANAGXSWITCH PUSH DPDT 0.1A 30V |
781 |
|
Datasheet |
JN | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|

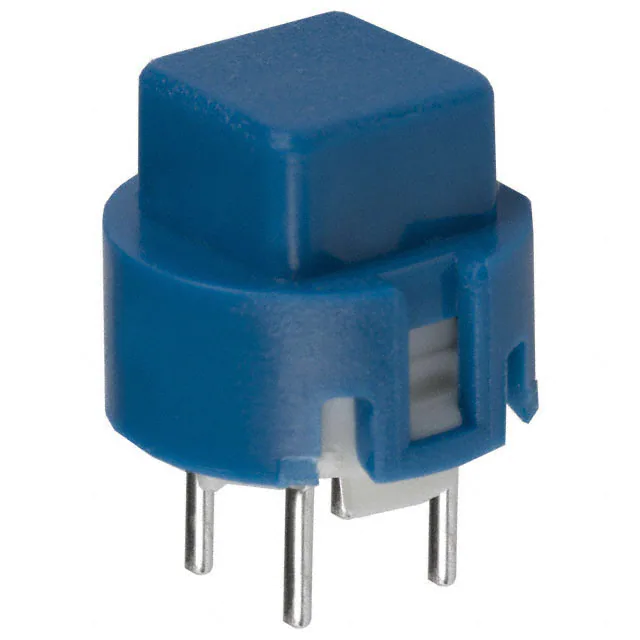

D6C60 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
4,263 |
|
Datasheet |
D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
ESE-20C321SWITCH PUSH SPST-NO 0.1A 14V |
545 |
|
Datasheet |
ESE20C | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | - |
|
ESE-20C341SWITCH PUSH SPST-NO 0.1A 14V |
879 |
|
Datasheet |
ESE20C | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | - |
|
ESE-20C343SWITCH PUSH SPST-NO 0.1A 14V |
842 |
|
Datasheet |
ESE20C | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (DC) | - | 14 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | - |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
