Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL2230OAF140SWITCH PUSHBUTTON DPDT 0.1A 30V |
1,969 |
|
Datasheet |
TL2230 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
TR1-01SWITCH PUSH SPST-NO 10MA 12V |
2,011 |
|
Datasheet |
TR | Tube | Active | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
PBH4UOANAGXSWITCH PUSH 4PDT 0.1A 30V |
1,564 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
TL2201EEYASWITCH PUSH DPDT 0.1A 30V |
5,074 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
TL2201OAZASWITCH PUSH DPDT 0.1A 30V |
3,469 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

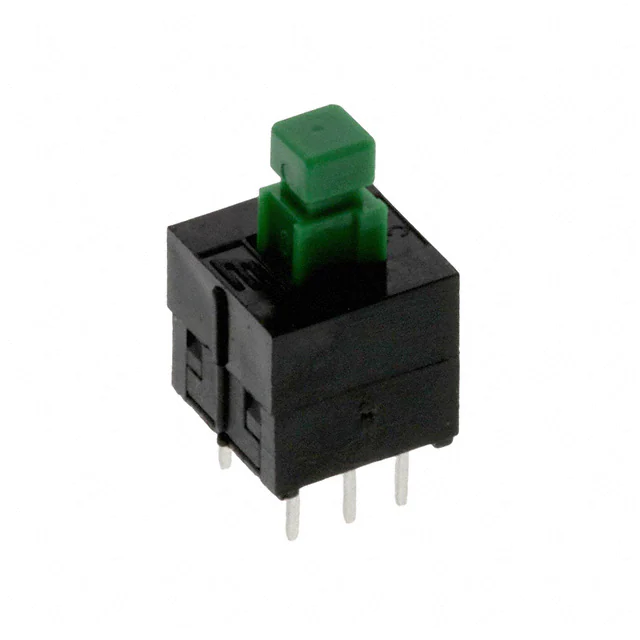

TL2201OAYASWITCH PUSH DPDT 0.1A 30V |
1,755 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
LC2255EENPTAGBLKSWITCH PUSHBUTTON DPDT 0.3A 30V |
3,816 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
TL2201EEYBSWITCH PUSH DPDT 0.1A 30V |
2,581 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

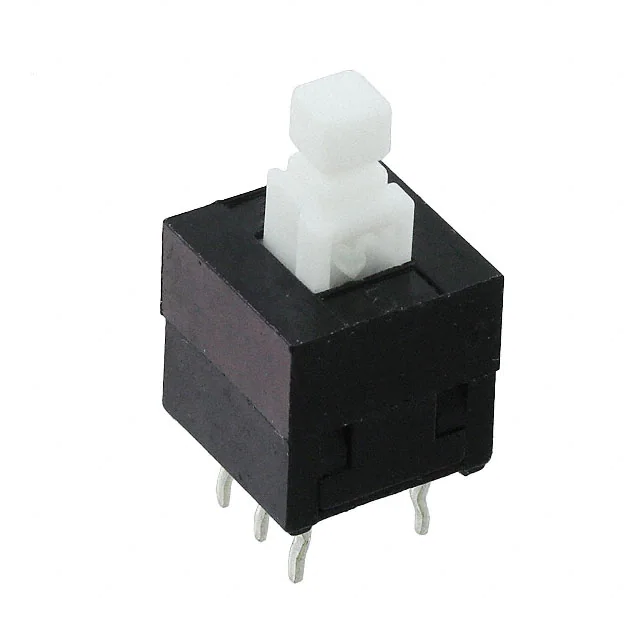

TL2201EEZBSWITCH PUSH DPDT 0.1A 30V |
2,124 |
|
Datasheet |
TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
ESB-30B103SWITCH PUSH DPDT 0.2A 14V |
1,809 |
|
Datasheet |
ESB30 | Tray | Active | Through Hole | Standard | DPDT | On-On | 200mA (DC) | - | 14 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | - |
|
LC1258EENPSWITCH PUSHBUTTON SPDT 0.3A 30V |
1,971 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
LC1258OANPSWITCH PUSHBUTTON SPDT 0.3A 30V |
1,771 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

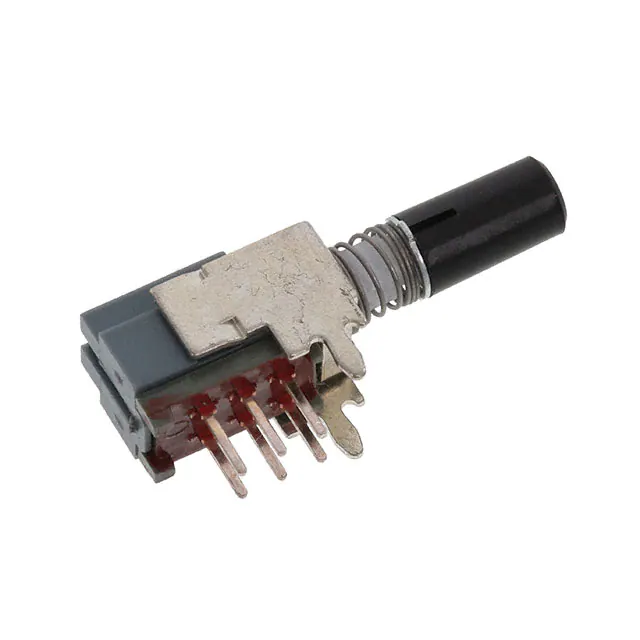

PBH2UEEKZXNAG1RBLKSWITCH PUSH DPDT 0.1A 30V |
961 |
|
Datasheet |
PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
LC2259EENPSWITCH PUSH DPDT 0.3A 30V |
2,561 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

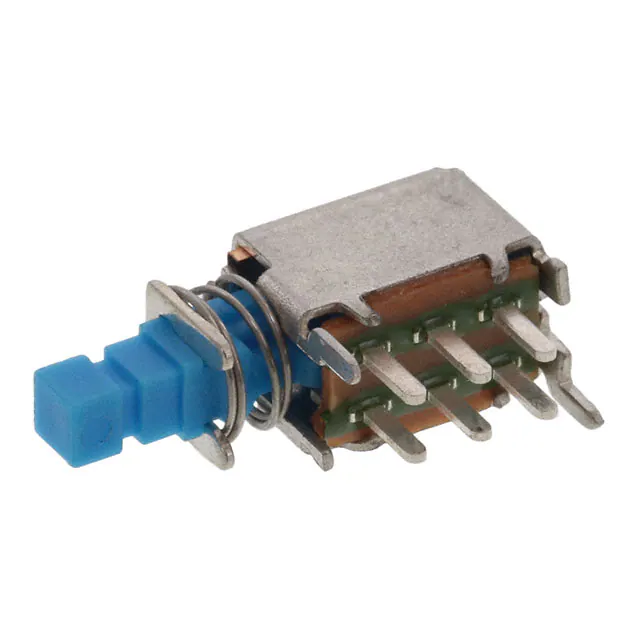

LC2255EENPNYLON6/6SWITCH PUSH DPDT 0.3A 30V |
1,757 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|

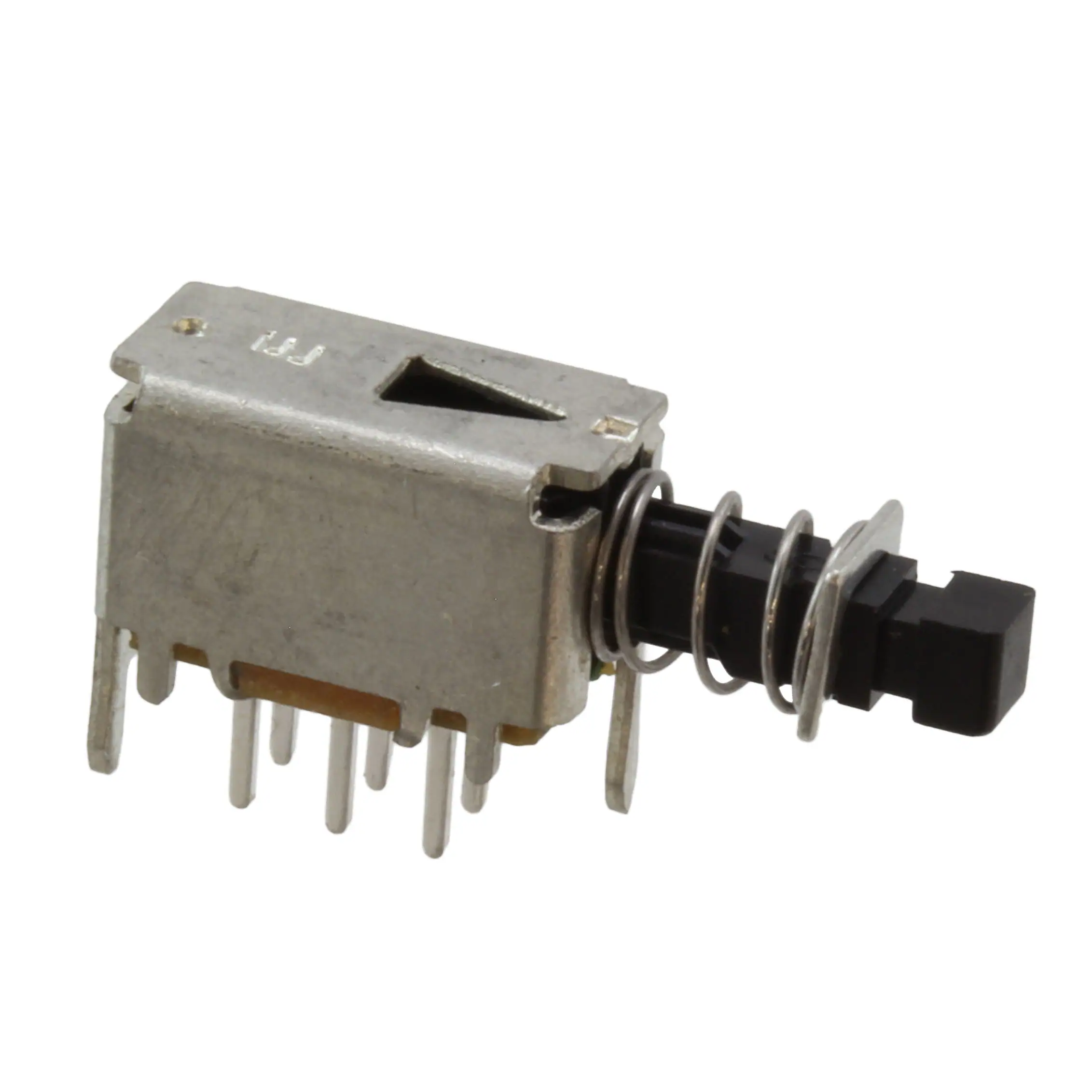

LC2259OANPSWITCH PUSH DPDT 0.3A 30V |
181 |
|
Datasheet |
LC | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
TL2285OASWITCH PUSH DPDT 0.1A 30V |
5,516 |
|
Datasheet |
TL2285 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

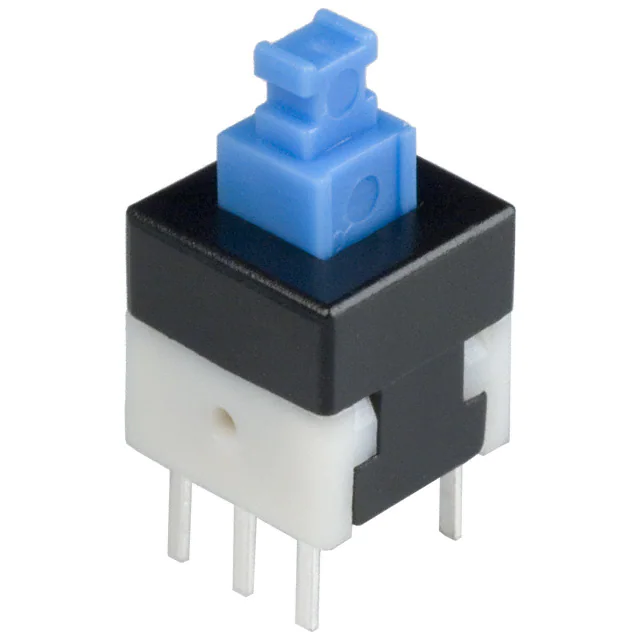

TL2285EESWITCH PUSH DPDT 0.1A 30V |
3,260 |
|
Datasheet |
TL2285 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
|
50-0117-00J977-1 MINI FLAT PAK SWITCH W/ S |
2,864 |
|
Datasheet |
- | Box | Active | Through Hole, Right Angle | Standard | SPST | On-Off | 1A (DC) | - | 30 V | Round, Plunger | - | Yellow | - | - | PC Pin | - | - | - | - |
|
|
50-0118-00J977-1 MINI FLAT PAK SWITCH W/ B |
1,094 |
|
Datasheet |
- | Box | Active | Through Hole | Standard | SPST | On-Off | 1A (DC) | - | 30 V | Round, Plunger | - | Yellow | - | - | PC Pin | - | - | - | - |
