Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
31-131.022SWITCH PB DPST-NO/NC 5A 250V |
106 |
|
Datasheet |
31 | Bulk | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Mom, Off-Mom | 5A (AC) | 250 V | - | Round, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP40 | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|

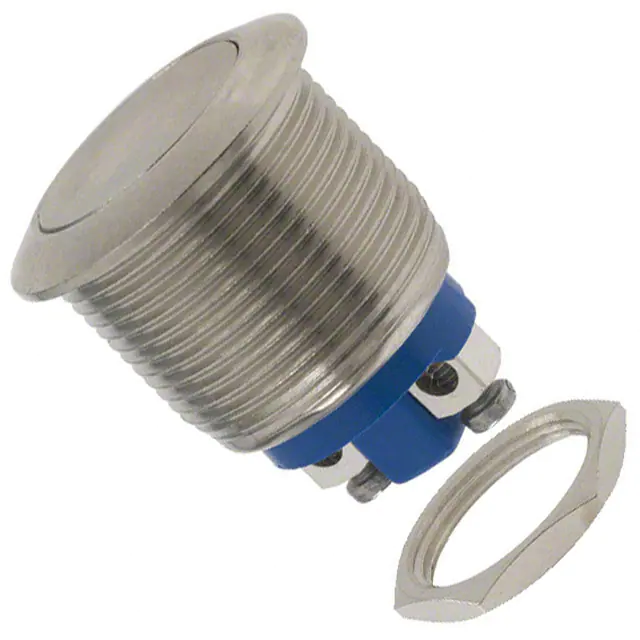

AV091003C900SWITCH PUSH SPST-NO 2A 48V |
151 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Screw Terminal | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
MPI002/28/GNSWITCH PUSH SPST-NO 0.05A 24V |
460 |
|
Datasheet |
- | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 50mA (DC) | - | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green | 3.5 VDC | Quick Connect - 0.110" (2.8mm) | IP66 - Dust Tight, Water Resistant | Stainless Steel | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
AV091003C200SWITCH PUSH SPST-NO 2A 48V |
102 |
|
Datasheet |
AV | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP54 - Dust Protected, Water Resistant | - | Circular - 19.20mm Dia | -30°C ~ 70°C |
|
IPR1SAD2L0GSWITCH PUSHBUTTON SPST 4A 12V |
284 |
|
Datasheet |
IP | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 2A (AC), 4A (DC) | 125 V | 12 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.60mm Dia | -40°C ~ 85°C |
|
1241.6824.1114000SWITCH PUSHBUTTON SPST 12A 250V |
55 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
84-6820.0020ASWITCH STOP LIGHT GRAY 1NC NON |
71 |
|
Datasheet |
84 | - | Active | - | - | - | - | - | - | - | - | No Marking | - | - | - | - | - | - | - | - |
|
921KXSWITCH PUSH SPST-NO 0.5A 30V |
79 |
|
Datasheet |
921 | Bulk | Active | Free Hanging | Standard | SPST-NO | - | 500mA (DC) | - | 30 V | Round, Button | No Marking | - | - | - | Wire Leads | - | - | - | - |
|
1241.6824.1124000SWITCH PUSHBUTTON DPST 12A 250V |
44 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Blue | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 19.10mm Dia | -20°C ~ 85°C |
|
1241.6834.1122000SWITCH PUSHBUTTON DPST 12A 250V |
58 |
|
Datasheet |
MSM LA | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | DPST | Off-On | 12A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Silver | LED, Green | 24 VDC | Quick Connect - 0.187" (4.7mm) | IP64 - Dust Tight, Water Resistant | - | Circular - 22.10mm Dia | -20°C ~ 85°C |
|
IXP3W11WSWITCH PB IP67 SEALED BLUE ROUND |
68 |
|
Datasheet |
IX | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 28 V | Round, Button, Mushroom | No Marking | Blue | LED, White | 3.3 VDC | Wire Leads | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 11.90mm Dia | -40°C ~ 85°C |
|
AVP19MS16FE0DT5A04SWITCH PUSHBUTTON SPST-NO 1A 24V |
79 |
|
Datasheet |
AVP | Bulk | Active | Panel Mount, Front | Piezo, Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 1A (AC/DC) | 24 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Blue/Green/Red | - | Wire Leads with Connector | IP68 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 65°C |
|
AML31FBA4ADSWITCH PUSH DPST-NO 10A 125V |
26 |
|
Datasheet |
AML31 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|
134454X778SWITCH PUSHBUTTON DPDT 4A 28V |
255 |
|
Datasheet |
13000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 4A (DC) | - | 28 V | Round, Plunger | No Marking | Silver | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 12.00mm Dia | -40°C ~ 85°C |
|
1PB5SWITCH PUSHBUTTON SPDT 5A 250V |
98 |
|
Datasheet |
PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Silver | - | - | Solder Lug | - | - | - | - |
|
MHPS2273SWITCH PUSH DPDT 0.1A 30V |
6,898 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
MHPS2273NSWITCH PUSH DPDT 0.1A 30V |
4,220 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 65°C |
|
MHPS2283SWITCH PUSH DPDT 0.1A 30V |
1,419 |
|
Datasheet |
MHPS | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Audible Click | - | -20°C ~ 65°C |
|
TL2230EEF100SWITCH PUSHBUTTON DPDT 0.1A 30V |
9,113 |
|
Datasheet |
TL2230 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
TL2230EEF140SWITCH PUSHBUTTON DPDT 0.1A 30V |
3,757 |
|
Datasheet |
TL2230 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
