Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KJD17-21413-112SWITCH PUSH DPST 16A 230V |
380 |
|
Datasheet |
KJD17, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 230 V | - | Square, Button, Dual | No Marking | Red, Green | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 46.00mm x 22.00mm | -25°C ~ 55°C |
|
|
MPE 106 FSWITCH PUSHBUTTON 1-POLE ON-MOM |
492 |
|
Datasheet |
MPE | Box | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.10mm Dia | -45°C ~ 140°C |
|
|
MPE 106 DSWITCH PUSHBUTTON 1-POLE ON - ON |
455 |
|
Datasheet |
MPE | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.10mm Dia | -45°C ~ 140°C |
|

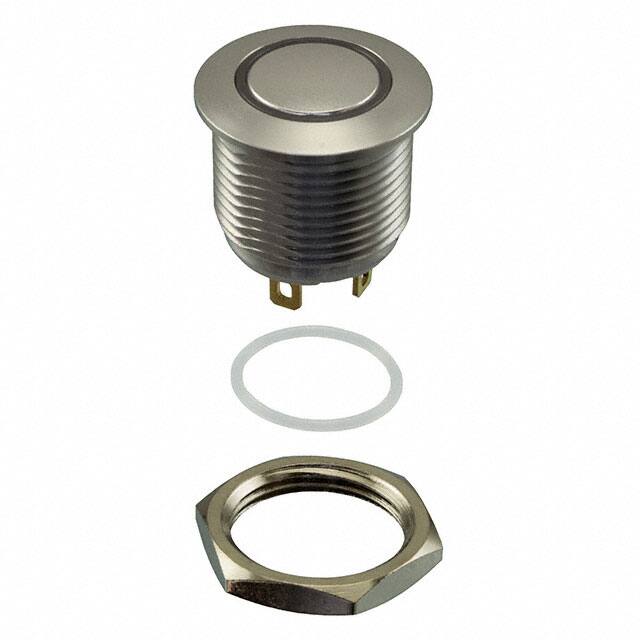

AV1610R124R04SWITCH PUSHBUTTON SPDT 2A |
118 |
|
Datasheet |
AV16 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, White | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Fixed LED Ring | Circular - 16.00mm Dia | -20°C ~ 70°C |
|

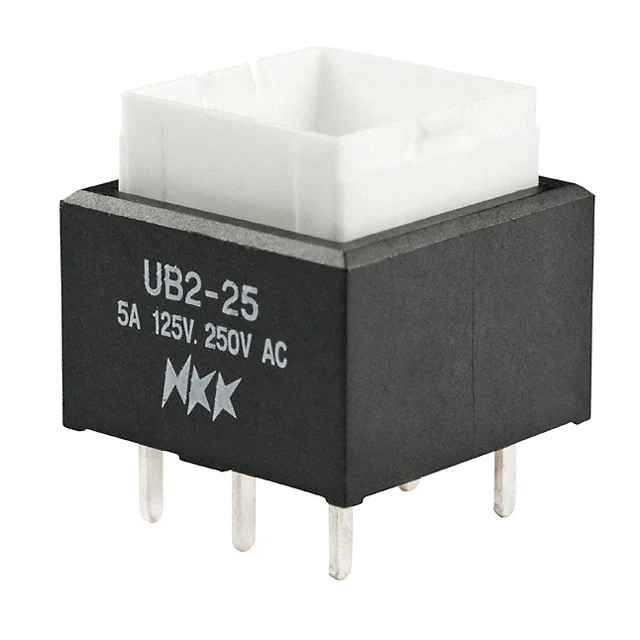

UB225SKW03NSWITCH PUSHBUTTON DPDT 5A 125V |
7 |
|
Datasheet |
UB2 | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Sealed - Fully | - | -25°C ~ 70°C |
|

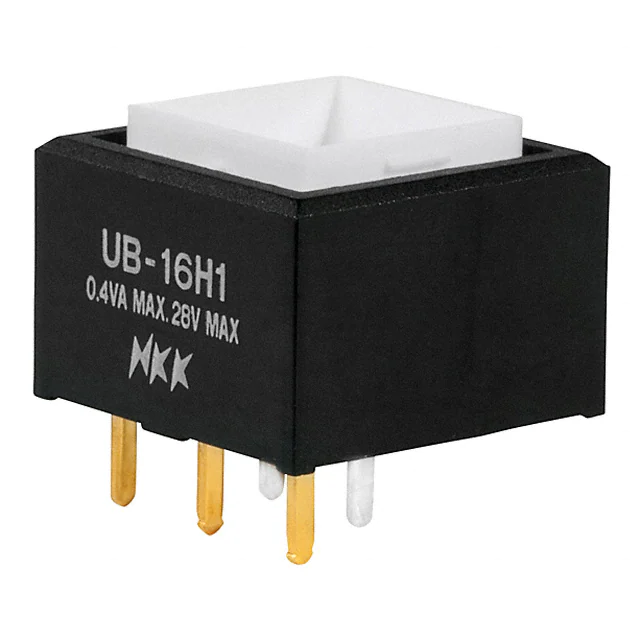

UB16SKG035FSWITCH PUSH SPDT 0.4VA 28V |
105 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Process Sealed | - | -25°C ~ 50°C |
|

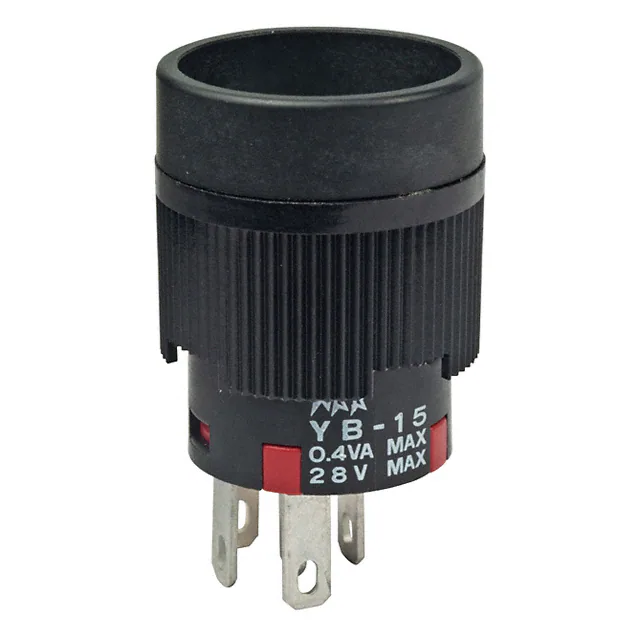

YB15CKG01SWITCH PUSH SPDT 0.4VA 28V |
18 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Stainless Steel | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
MPG 106 DSWITCH PUSHBUTTON 1-POLE ON - ON |
470 |
|
Datasheet |
MPG | Box | Active | Panel Mount, Rear | Standard | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -45°C ~ 140°C |
|
|
MPA 206 RSWITCH PUSHBUTTON 2-POLE ON-MOM |
490 |
|
Datasheet |
MPA | Box | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.20mm Dia | -45°C ~ 140°C |
|
|
MPA 206 NSWITCH PUSHBUTTON 2-POLE ON - ON |
410 |
|
Datasheet |
MPA | Box | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Circular - 6.20mm Dia | -45°C ~ 140°C |
|
|
P2334D-00-00ILLUMINATED SWITCH MOMENTARY |
360 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
P2333D-00-00ILLUMINATED SWITCH LOCK |
360 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MAV19A0F100JQANTI-VANDAL SWITCH, 19MM, IP 67, |
188 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

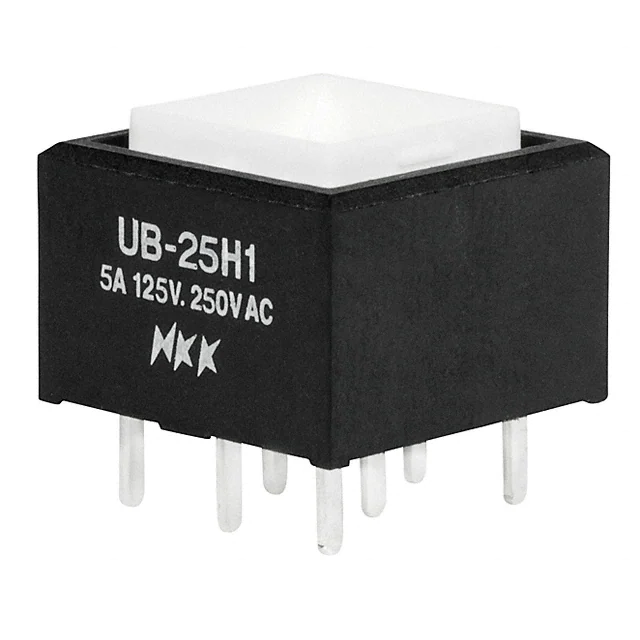

UB25SKW035CSWITCH PUSHBUTTON DPDT 5A 125V |
12 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|
|
50070SWITCH P-P |
398 |
|
Datasheet |
- | Bulk | Active | Panel Mount, Rear | Standard | SPST | Off-On | 10A (DC) | - | 12 V | Round, Button | No Marking | Silver | - | - | Screw Terminal | - | - | - | - |
|
YB16RKW01SWITCH PUSHBUTTON SPDT 3A 125V |
129 |
|
Datasheet |
YB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-On | 3A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | Tactile Feedback | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

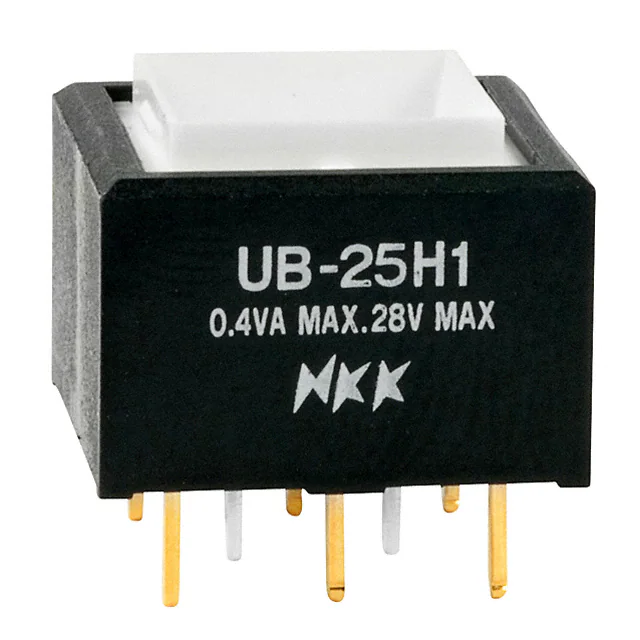

UB25SKG035CSWITCH PUSH DPDT 0.4VA 28V |
682 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

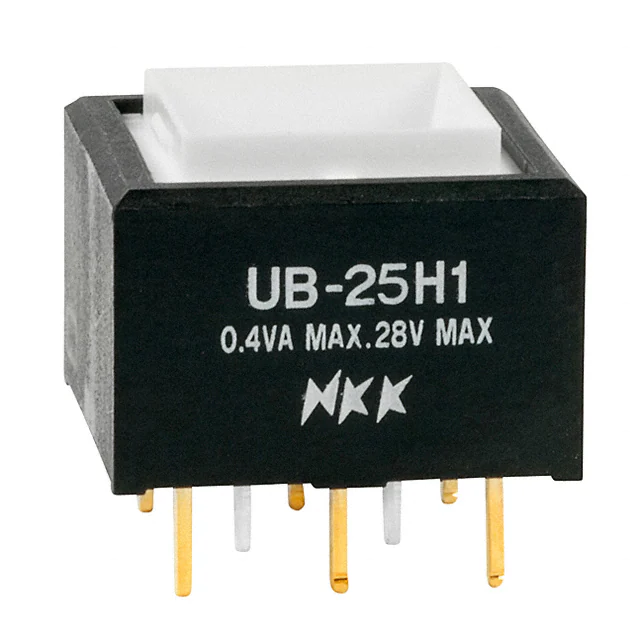

UB25SKG035DSWITCH PUSH DPDT 0.4VA 28V |
237 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Spot LED | - | -25°C ~ 50°C |
|

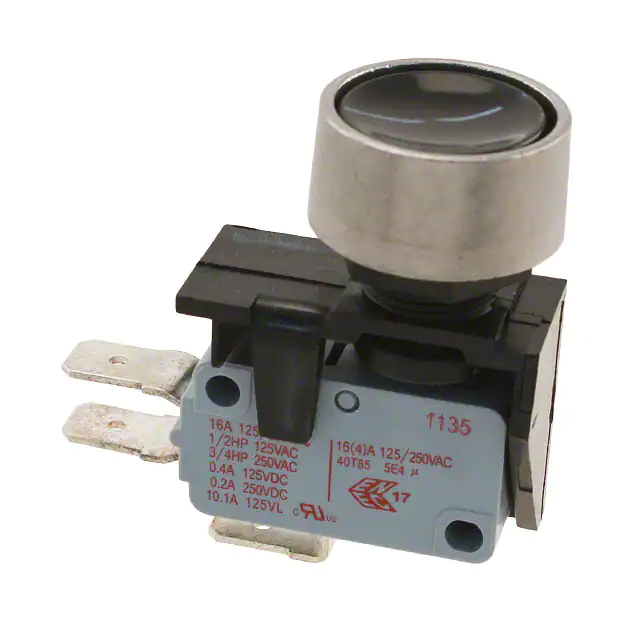

3832510KBSWITCH PUSHBUTTON SPDT 16A 250V |
225 |
|
Datasheet |
380 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 16A (AC) | 250 V | - | Round, Button | No Marking | Black | - | - | Quick Connect - 0.250" (6.3mm) | IP40 | - | Circular - 12.70mm Dia | - |
|
|
MAV22A0F10E56JQANTI-VANDAL SWITCH, 22MM, IP 67, |
200 |
|
Datasheet |
MAV | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, Yellow | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
Pushbutton Switches Electronic Components
Explore Pushbutton Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
