Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SB4011NOHC-2ASWITCH PUSH SPST-NO 3A 125V |
7 |
|
Datasheet |
SB40 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 12.50mm Dia | -10°C ~ 70°C |
|
A9PS16-0011SWITCH PUSH SPST-NO 0.1A 28V |
651 |
|
Datasheet |
A9PS | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 100mA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP64 - Dust Tight, Water Resistant | Sealed - Flux Protection | - | -20°C ~ 80°C |
|
AB11BP-FASWITCH PUSH SPST-NO 0.4VA 28V |
186 |
|
Datasheet |
AB | Tray | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
AB11BP-HCSWITCH PUSH SPST-NO 0.4VA 28V |
6 |
|
Datasheet |
AB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Sealed - Fully | - | -30°C ~ 85°C |
|
|
APE 1 F-RASWITCH PUSHBUTTON 1-POLE MOM |
397 |
|
Datasheet |
APE | Box | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
1241.1100.7098SWITCH PUSH SPST-NO 125MA 48V |
153 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | White | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|

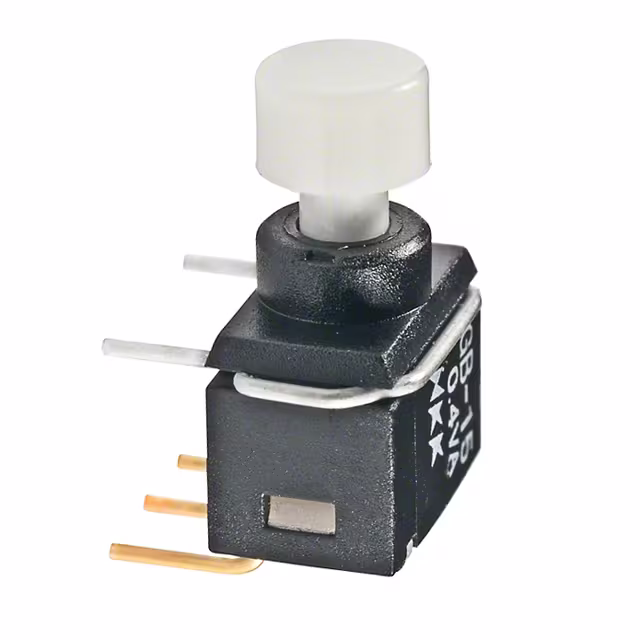

GB15AH-XBSWITCH PUSH SPDT 0.4VA 28V |
122 |
|
Datasheet |
GB | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

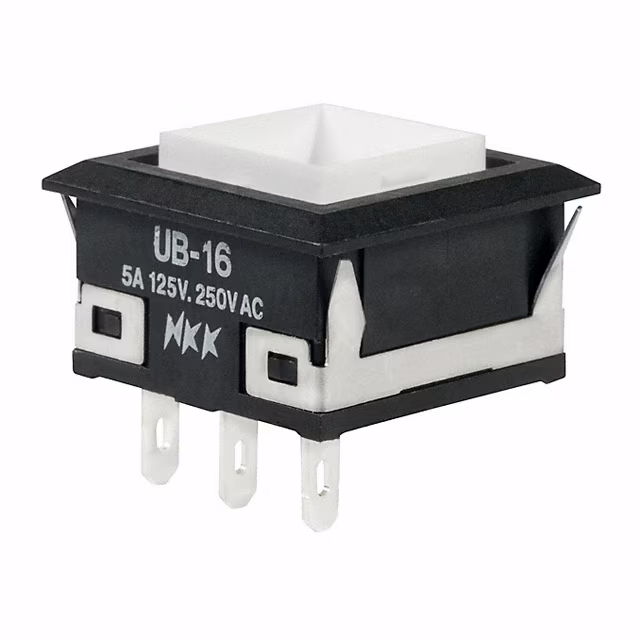

UB16KKW01NSWITCH PUSHBUTTON SPDT 5A 125V |
10 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | Process Sealed | Square - 16.20mm x 16.20mm | -20°C ~ 70°C |
|
|
APE 2 FSWITCH PUSHBUTTON 2-POLE MOM |
398 |
|
Datasheet |
APE | Box | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Round, Plunger | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
1241.1102.7097SWITCH PUSH SPST-NO 80MA 24V |
195 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 80mA (DC) | - | 24 V | Square, Button, Flush | No Marking | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
M2B15BA5G13SWITCH PUSH SPDT 0.4VA 28V |
1,117 |
|
Datasheet |
M2 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
BH16NRSZXSWITCH PB SPST 1A 125VAC |
283 |
|
Datasheet |
BH | Tray | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-Mom | 1A (AC), 2A (DC) | 125 V | 36 V | Round, Button | - | Silver | - | - | Screw Terminal | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|

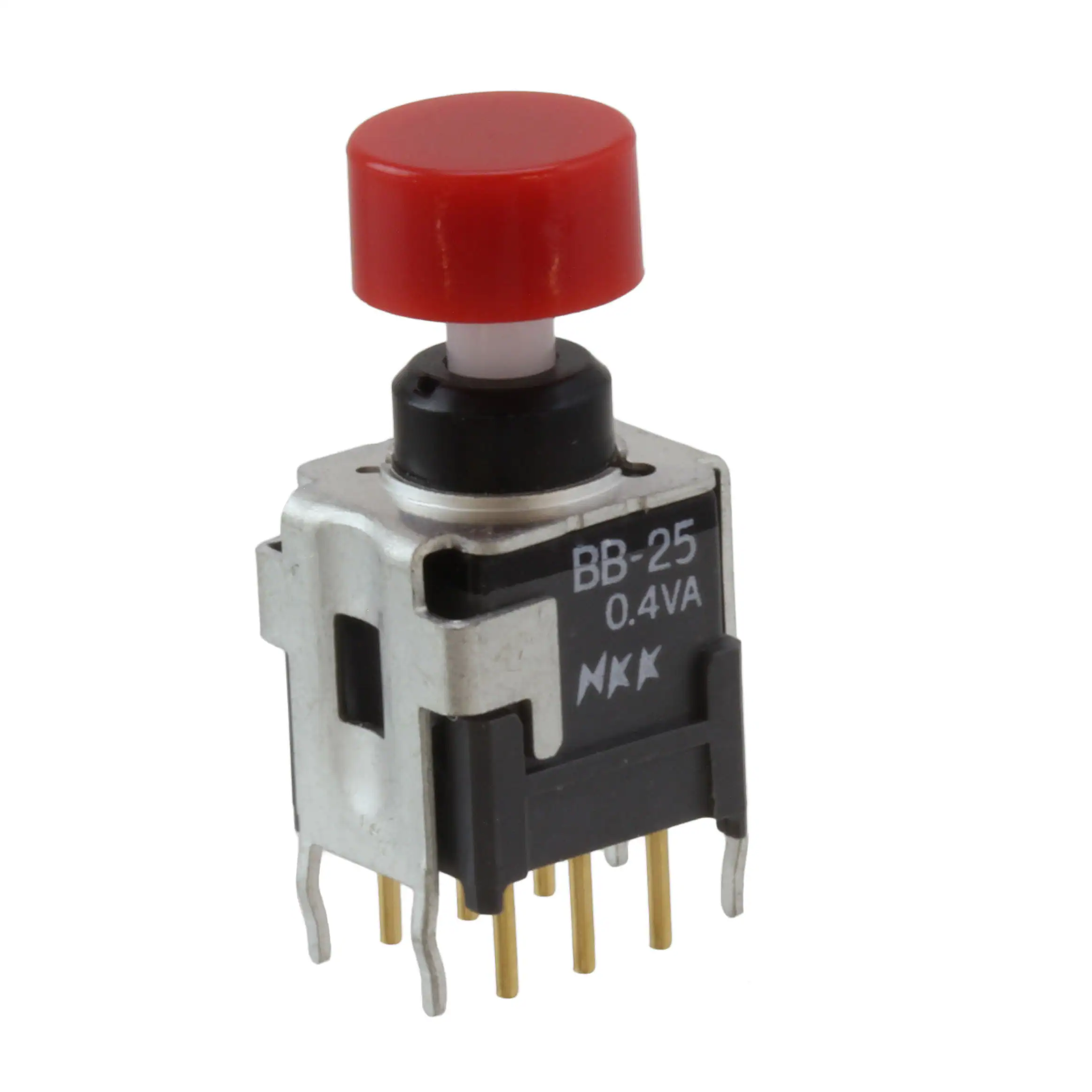

BB25AB-HCSWITCH PUSH DPDT 0.4VA 28V |
120 |
|
Datasheet |
BB | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
BB25AH-FCSWITCH PUSH DPDT 0.4VA 28V |
122 |
|
Datasheet |
BB | Tray | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | No Marking | Red | - | - | PC Pin | - | Antistatic | - | -30°C ~ 85°C |
|
|
0041.8851.7107SWITCH PUSH SPST-NO 0.2A |
200 |
|
Datasheet |
LDS | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 200mA (AC/DC) | 60 V | 50 V | Round, Button | - | Black | - | - | Solder Lug | IP40 | - | Circular - 8.00mm Dia | -25°C ~ 85°C |
|
CTHS15CIC07ARROWSWITCH PUSH CAPACITIVE ILLUM SQ |
170 |
|
Datasheet |
CTH | Tube | Active | Through Hole | Capacitive, Illuminated | - | Off-On | - | - | - | Square, Button | Arrow, Right | Black | LED, Yellow | 3.2 VDC | PC Pin | - | - | - | - |
|
|
1241.1112.7018SWITCH PUSH SPST-NO 125MA 48V |
200 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Square, Button, Flush | No Marking | - | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
|
1241.1113.7095SWITCH PUSH SPST-NO 125MA 48V |
196 |
|
Datasheet |
MCS18 | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (DC) | - | 48 V | Round, Button, Flush | No Marking | Green | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | Tactile Feedback | Circular - 13.00mm Dia | -25°C ~ 60°C |
|
GB25AVSWITCH PUSH DPDT 0.4VA 28V |
102 |
|
Datasheet |
GB | Box | Active | Through Hole, Right Angle, Vertical | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

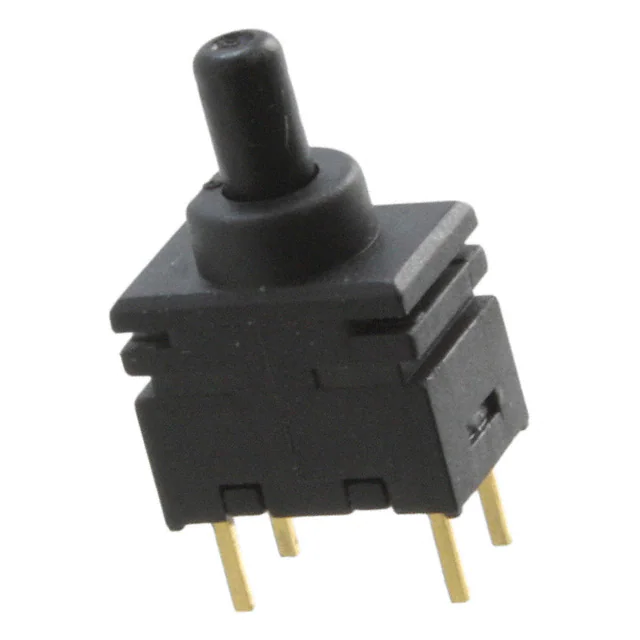

A9PS26-0011SWITCH PUSH DPST-NO 0.1A 28V |
1,081 |
|
Datasheet |
A9PS | Bulk | Active | Through Hole | Standard | DPST-NO | Off-Mom | 100mA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP64 - Dust Tight, Water Resistant | Sealed - Flux Protection | - | -20°C ~ 80°C |
