Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAV22A0F10E36JQANTI-VANDAL SWITCH, 22MM, IP 67, |
198 |
|
Datasheet |
MAV | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, Red | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|
|
MAV22A0F10E66JQANTI-VANDAL SWITCH, 22MM, IP 67, |
189 |
|
Datasheet |
MAV | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, Green | 6 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
|

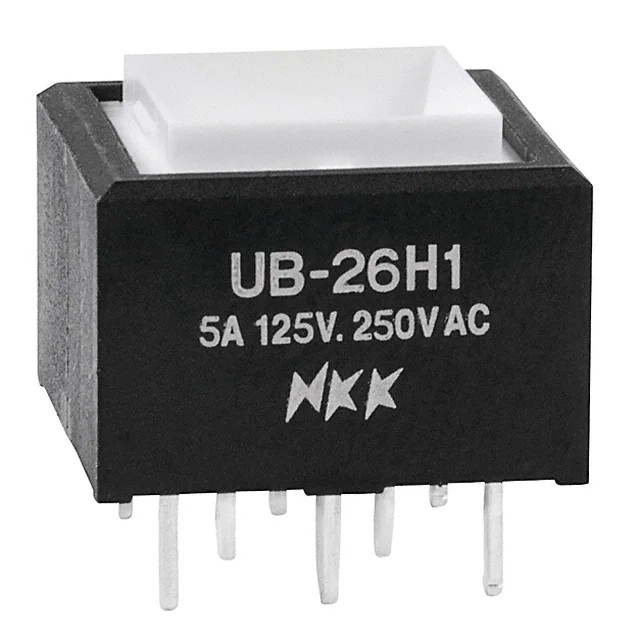

UB26SKW035DSWITCH PUSHBUTTON DPDT 5A 125V |
163 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Amber | 2 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|

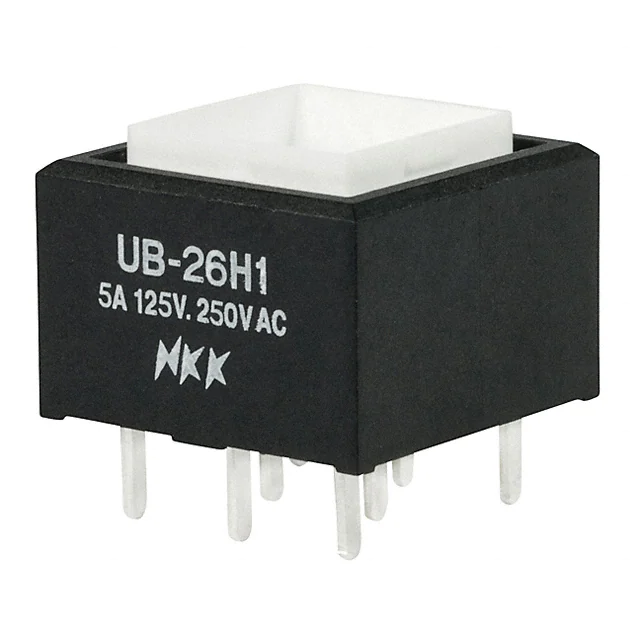

UB26SKW035FSWITCH PUSHBUTTON DPDT 5A 125V |
126 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
MBN15SB1W03LARGE BUSHING MINIATURE PUSHBUTT |
650 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

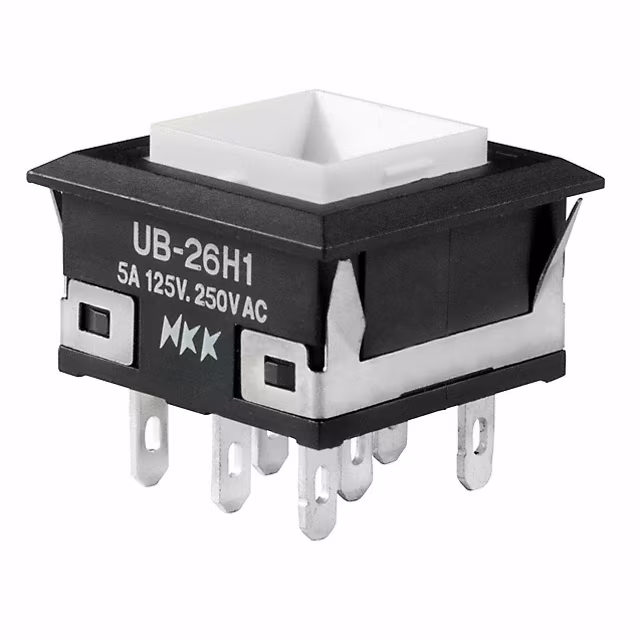

UB26KKW015FSWITCH PUSHBUTTON DPDT 5A 125V |
25 |
|
Datasheet |
UB | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 5A (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | LED, Green | 2.1 VDC | Solder Lug | - | Stainless Steel | Square - 16.20mm x 16.20mm | -25°C ~ 50°C |
|

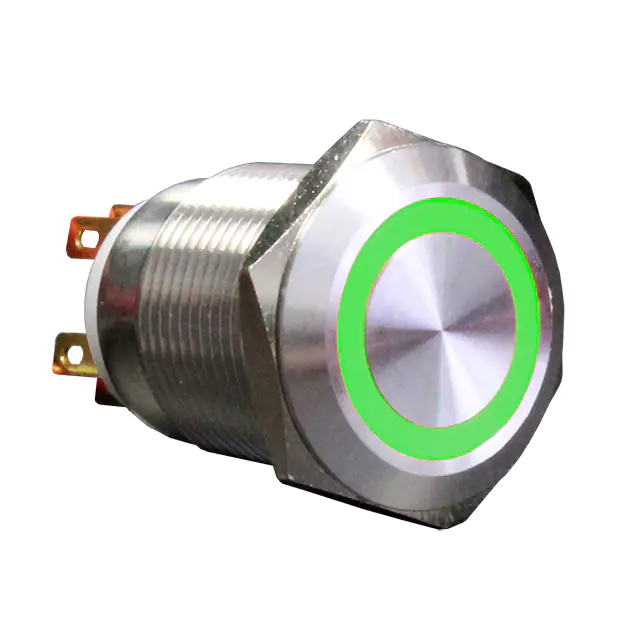

AH1NBSRGNSWITCH PB DPST-NO/NC 1A 125V |
186 |
|
Datasheet |
AH | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO + SPST-NC | On-Mom, Off-Mom | 1A (AC/DC) | 125 V | 24 V | Round, Button, Flush | No Marking | Silver | LED, Green/Red | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Stainless Steel | Circular - 19.00mm Dia | -25°C ~ 70°C |
|
|
MPE 206 RSWITCH PUSHBUTTON 2-POLE ON-MOM |
495 |
|
Datasheet |
MPE | Box | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.10mm Dia | -45°C ~ 140°C |
|
|
MPG 206 NSWITCH PUSHBUTTON 2-POLE ON - ON |
347 |
|
Datasheet |
MPG | Box | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -45°C ~ 140°C |
|
|
MPG 206 RSWITCH PUSHBUTTON 2-POLE ON-MOM |
344 |
|
Datasheet |
MPG | Box | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Round, Button | No Marking | Silver | - | - | Solder Lug | - | - | Circular - 12.50mm Dia | -45°C ~ 140°C |
|
|
MPE 206 NSWITCH PUSHBUTTON 2-POLE ON - ON |
499 |
|
Datasheet |
MPE | Box | Active | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 6.10mm Dia | -45°C ~ 140°C |
|
|
MBNR15A2G30-HASNAP-ACTION BRACKET PC MOUNT PUS |
143 |
|
- |
MB2400 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Round, Button | - | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|

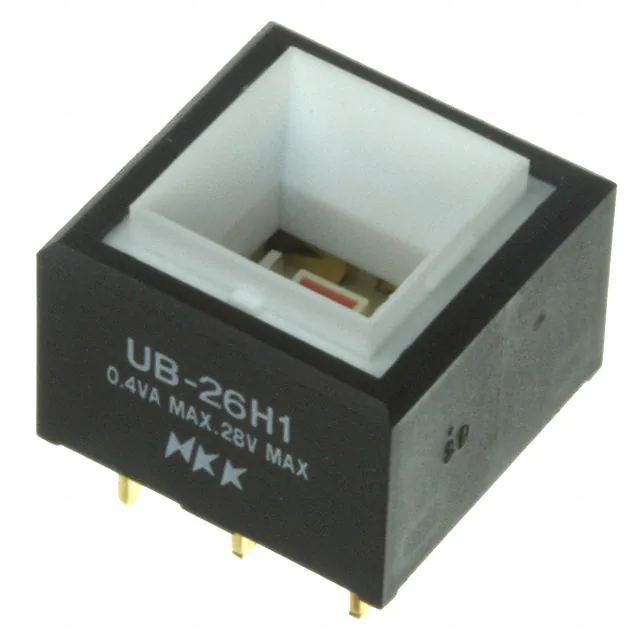

UB26SKG035CSWITCH PUSH DPDT 0.4VA 28V |
2 |
|
Datasheet |
UB | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | LED, Red | 1.85 VDC | PC Pin | - | Stainless Steel | - | -25°C ~ 50°C |
|
|
MBN25SS1W01-BCBUSHING MOUNT MINIATURE PUSHBUTT |
301 |
|
Datasheet |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | Solder Lug | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MB2061SS1W03/CUL-N987-BCBUSHING MOUNT MINIATURE PUSHBUTT |
307 |
|
- |
MB2000 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round, Button | - | Red | - | - | PC Pin | - | - | Circular - 6.50mm Dia | -30°C ~ 85°C |
|
|
MAV19D0F11P63JQANTI-VANDAL SWITCH, 19MM, IP 67, |
200 |
|
Datasheet |
MAV | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, Green | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|
|
LB15SGW01-HSWITCH PUSHBUTTON SPDT 3A 125V |
160 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Square, Button | No Marking | Gray | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 16.20mm x 16.20mm | -25°C ~ 70°C |
|

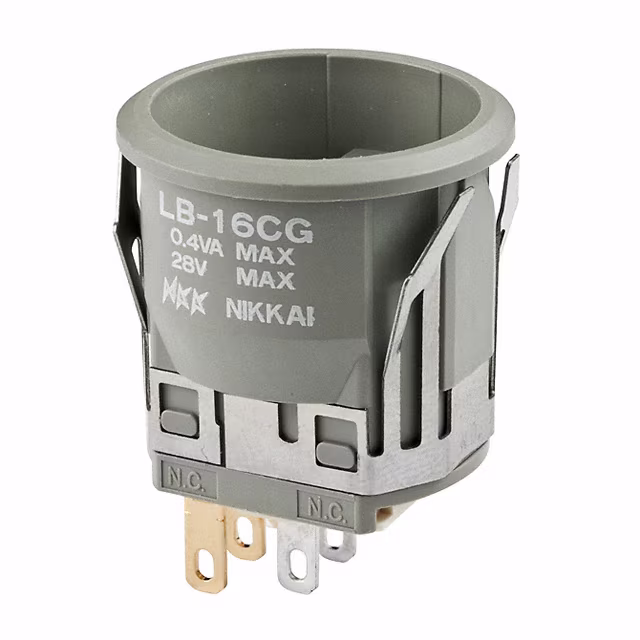

LB16CGG01SWITCH PUSH SPDT 0.4VA 28V |
23 |
|
Datasheet |
LB | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Plunger for Cap | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
30-251 REDSWITCH PUSH SPST-NO 1A 115V |
225 |
|
Datasheet |
30 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC) | 115 V | - | Round, Button | No Marking | Red | - | - | Solder Lug | - | Sealed - Fully | Circular - 6.75mm Dia | -40°C ~ 85°C |
|
|
MAV25A0F10E112JRANTI-VANDAL SWITCH, 25MM, IP 67, |
200 |
|
Datasheet |
MAV | Box | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round, Button, Flush | - | Silver | LED, White | 12 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 25.00mm Dia | -20°C ~ 55°C |
